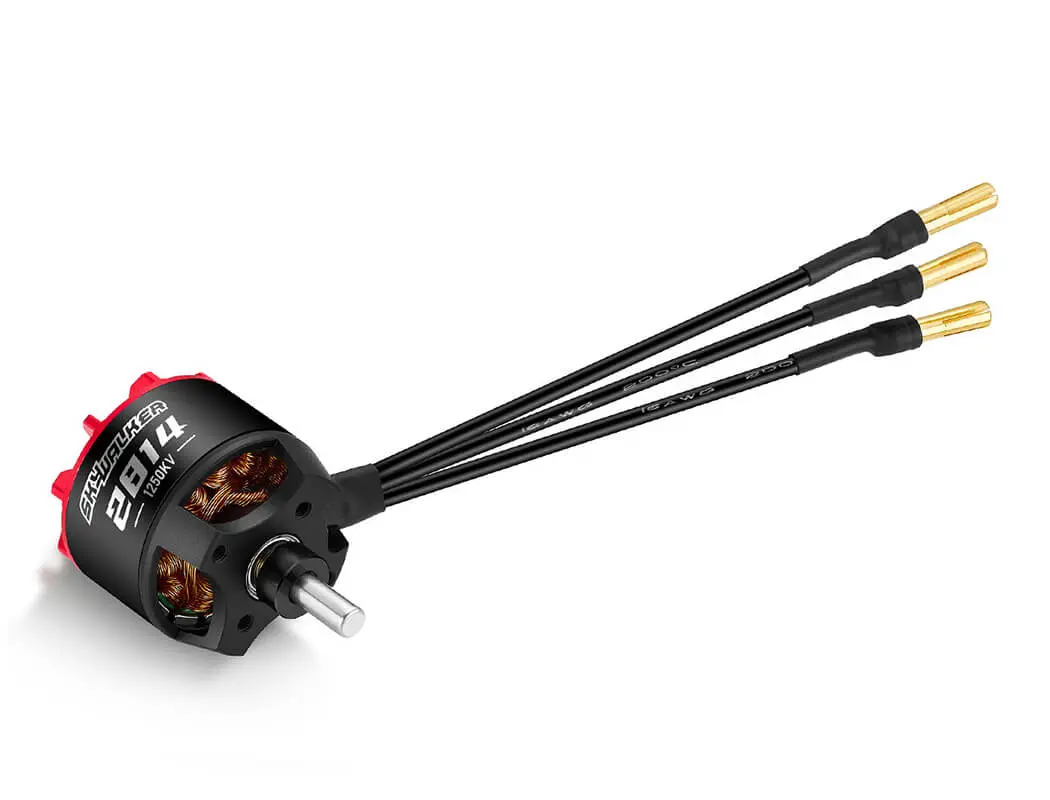

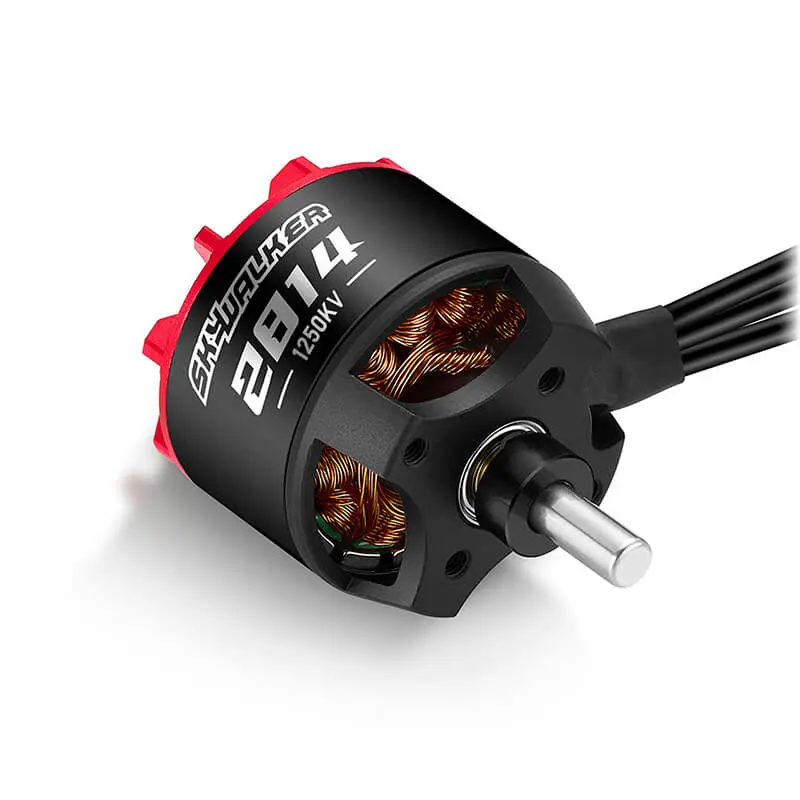

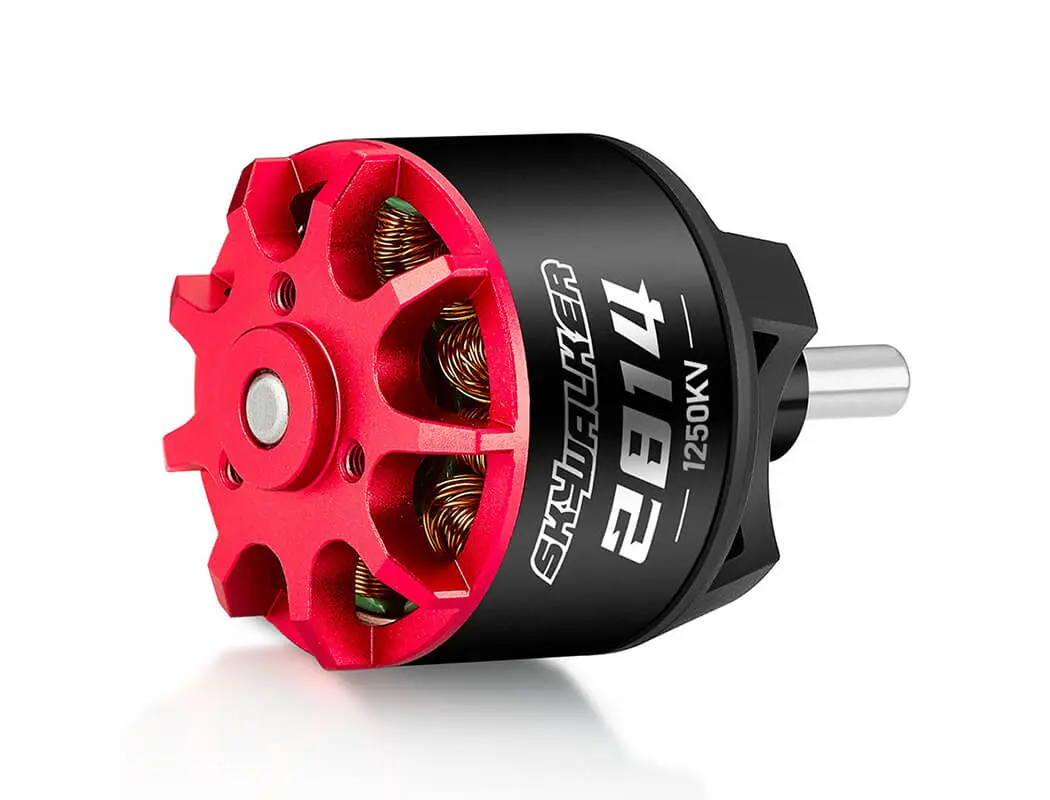

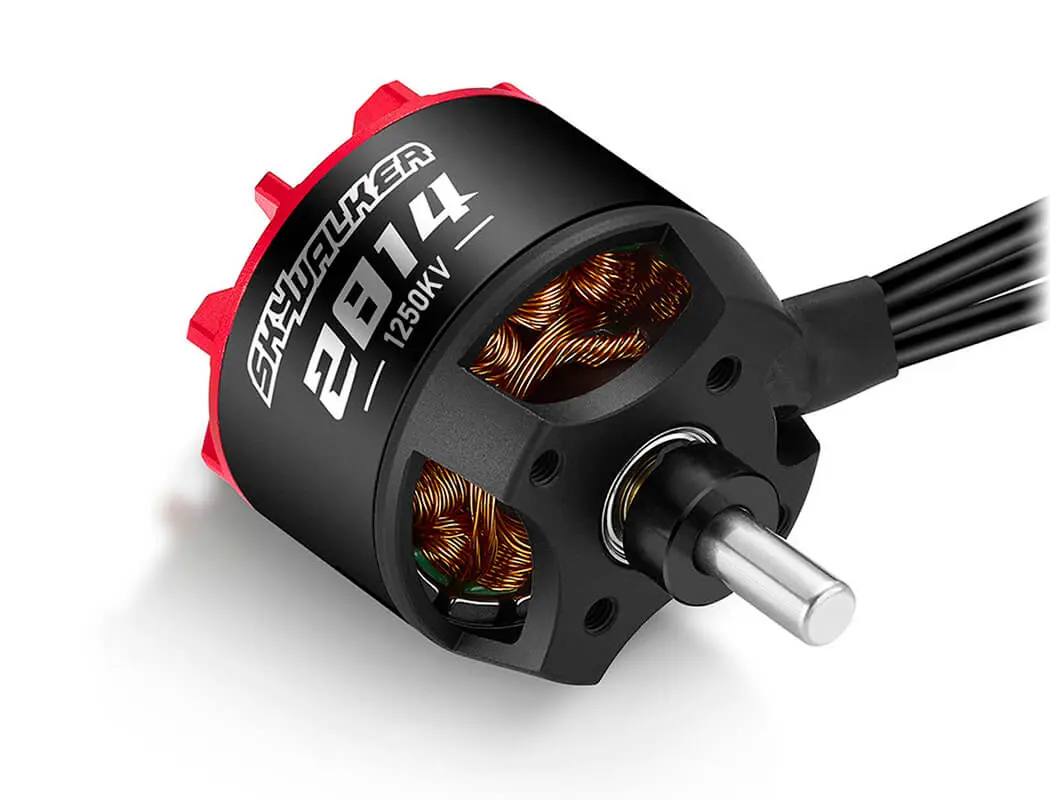

Hobbywing Skywalker 2814sl 1250kv G1 Outrunner Motor

HOBBYWING SKYWALKER 2814SL 1250KV G1 OUTRUNNER MOTOR

The 28-series Skywalker motors are characterized by great pulling power and brings RC hobby pilots with fixed-wing models a whole new flying experience. They are a suitable addition to the established Skywalker ESCs and can be used in a variety of ways due to the built-in components.

The Skywalker aircraft motors have a special propeller attachment that ensures an overall higher torque. And the motor, equipped with N48 magnets, takes advantage of exactly that to ensure maximum torque output. Incidentally, no problems due to excessive heating are to be expected. After all, there is a generous cavity in the motor, which, together with the self-draining structure of the top cover, increases the cooling performance. And together with other high-quality components such as the 0.2mm JNEH1200 silicon steel sheet and the high-temperature-resistant enameled wire, these engines are ready to travel the skies for a long time.

The rotor itself has been designed to noticeably reduce potential motor vibrations and ensure smoother operation overall. The rotor is also secured through the interaction of the various components in order to further increase the reliability of the Skywalker motors.

Features

• Powerful motor
• Ideal as a complement to the Skywalker ESCs
• Optimized rotor running
• Designed for effective cooling and heat dissipation
• 16AWG silicone cable

Specifications

Type: Brushless
kV Rating: 1250kV
No-Load Current: 2.98A/14.8V
Resistance: 19.7m Ohm
LiPo Cells: 3-4S LiPo
Slots & Poles: 12N14P
Max. cont. Current: 75.1A/35s
Max. cont. Power: 1111.5W/35s
Phase Cable: 16AWG, 110mm
Bearing: 685ZZ (D11 x d5 x 5)
Diameter: 35.1mm
Length: 54mm
Shaft Diameter: 5mm
Weight: 114g
Recommended ESC: Skywalker V2 80A
Props:4S: 8X6E, 9×4.5E, 10X5E / 3S: 10x5E, 10x6E, 11X5.5
Clip Mounting Hole Thread: D:15mm-3 x M2.5
Base Thread: D:19mm-2 x M3 / D:25mm-2 x M3
