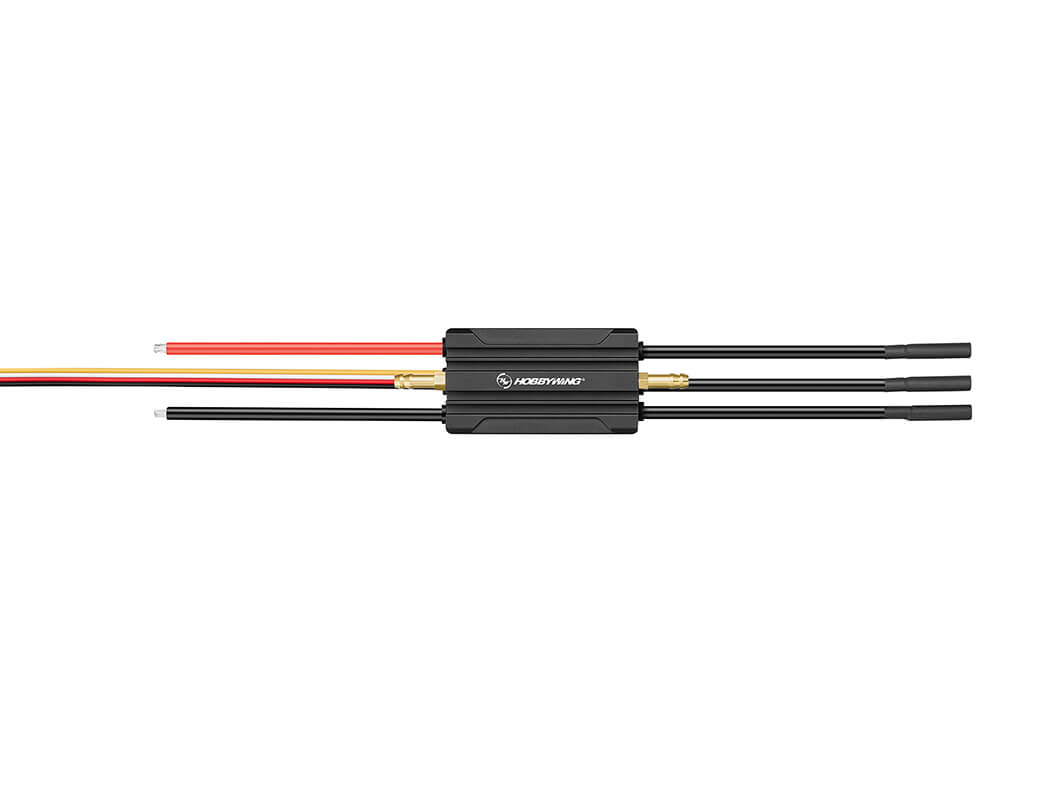

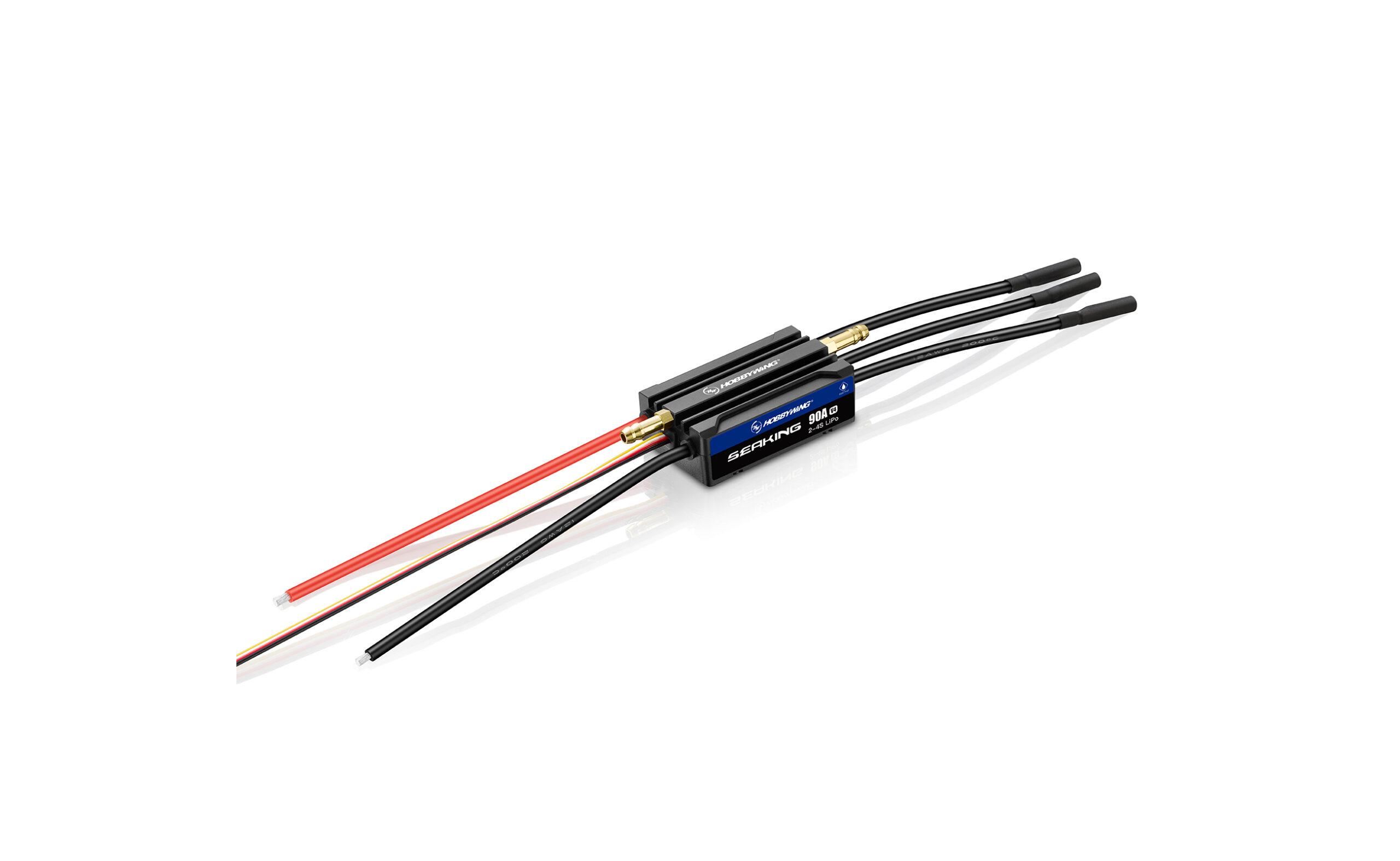

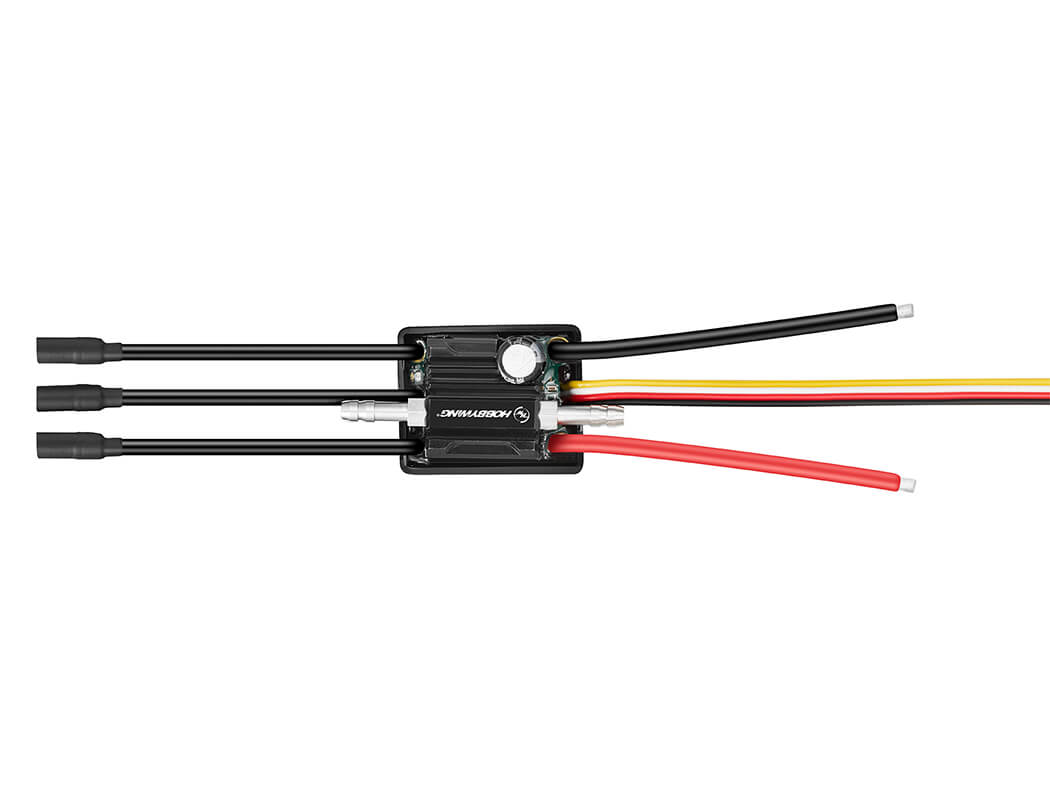

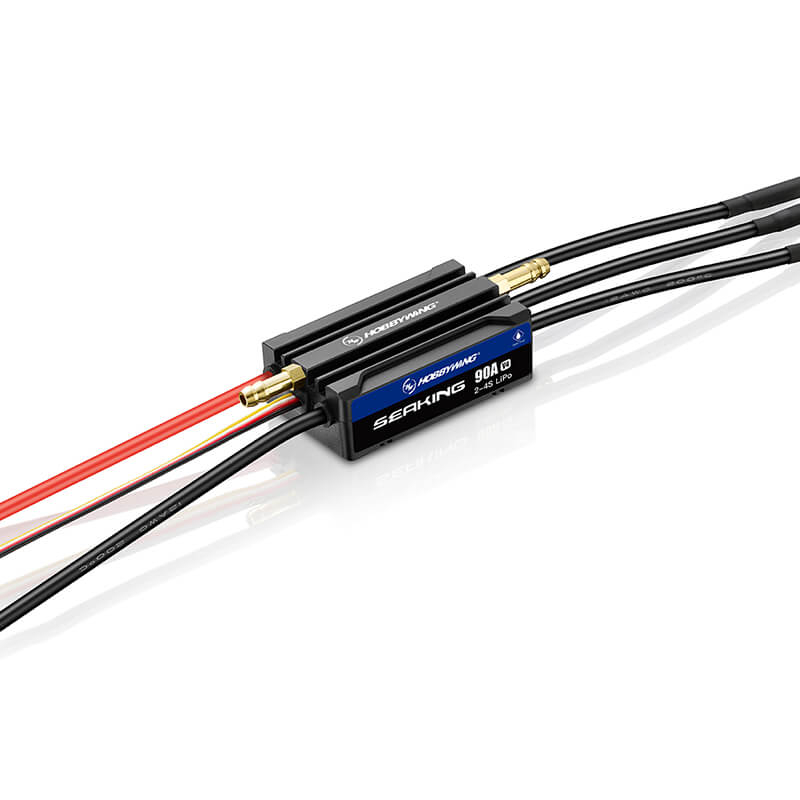

Hobbywing Seaking 90a V4 Brushless Speed Control

HOBBYWING SEAKING 90A V4 SPEED CONTROL

Specifications

Brushed/Brushless: BL
Sensored/Sensorless: SL
Waterproof: Waterproof
Cont./Peak Current: 90A/360A
Input Voltage: 2-4S Lipo
BEC Output: 6V/7.4V/8.4V @8A
Input Wires: Red-12AWG-150mmx1,Black-12AWG-150mmx1
Output Wires: Black-12AWG-100mmx3
Input Connectors: No
Output Connectors: 4.0mm Gold female plug
ESC Programing via –
LED Program Box: Supported
LCD G2 Program Box: Supported
LCD PRO: Supported
OTA Programmer: Supported
Program Port: Throttle signal wire
Data Recording –
Extreme value: Supported
Real-time Data: Supported
Historical data (Graph): Supported
Firmware Upgrade: Supported
Size: 60×36.3×22.5mm
Weight: 115.6g (Including wire and output plug)
Boat Applicable: ≤80CM
