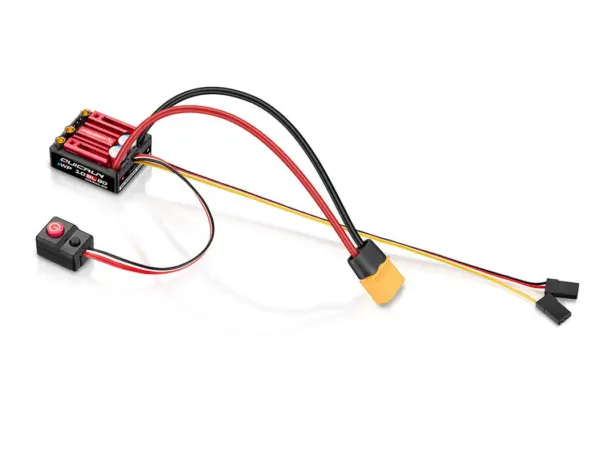

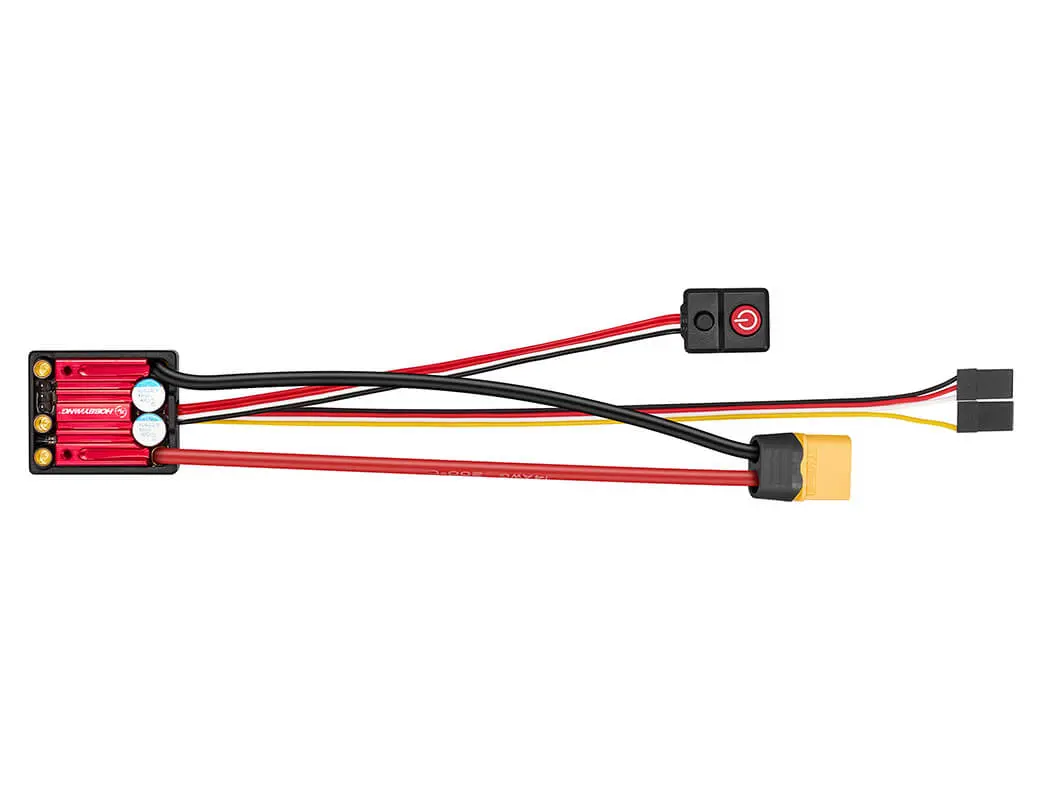

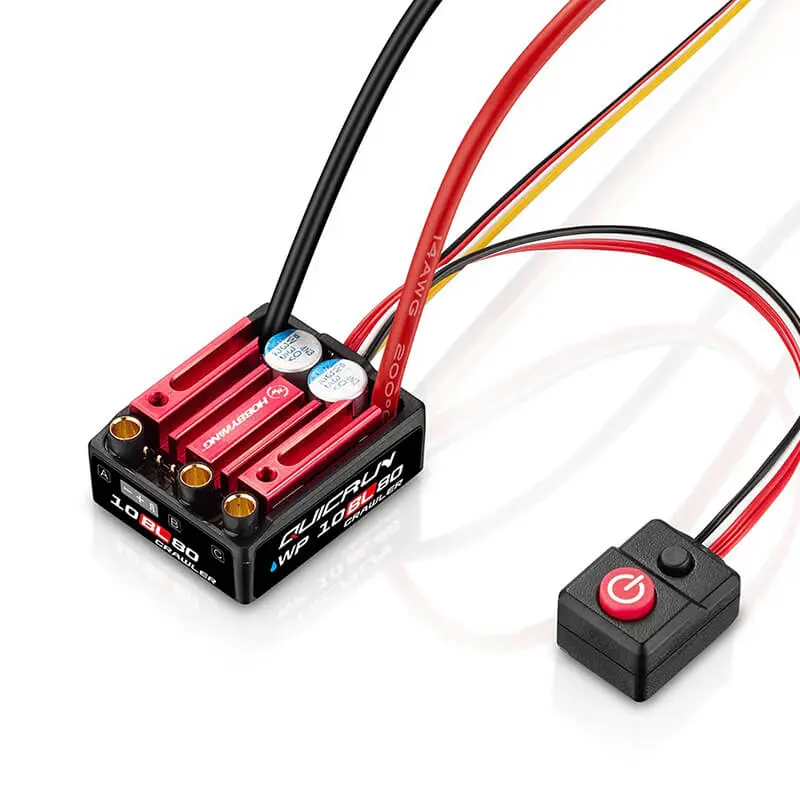

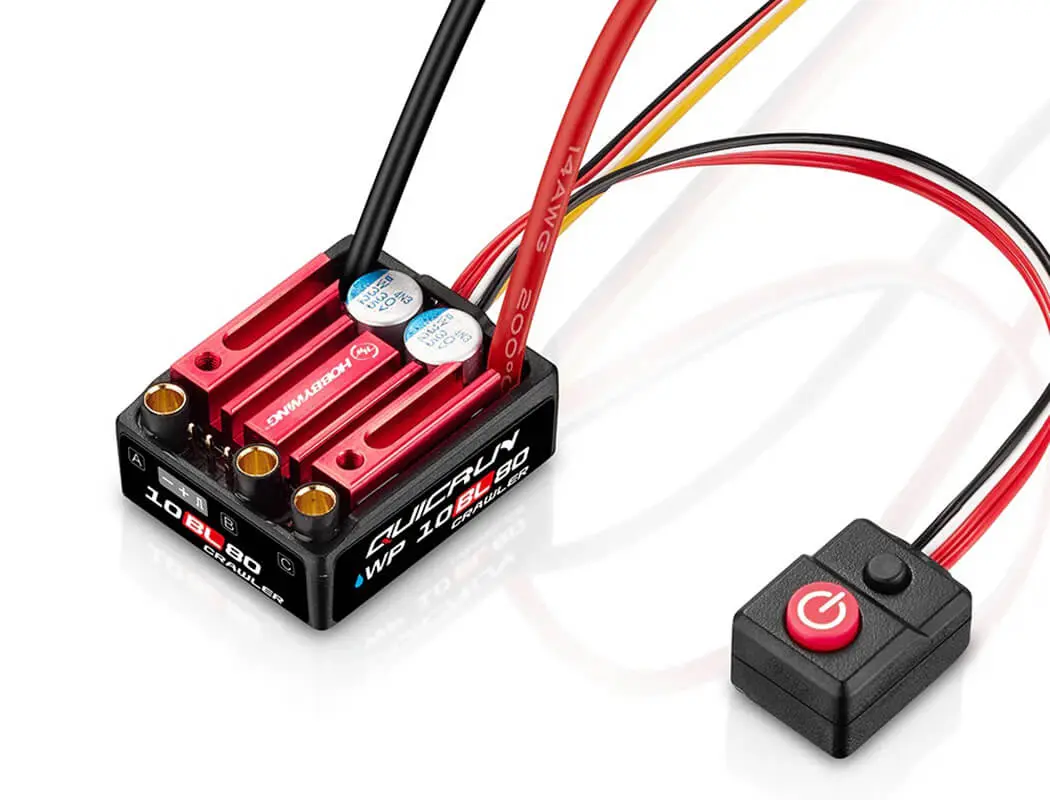

Hobbywing Quicrun Wp 10bl80 Brushed/Brushless Crawler Esc

HOBBYWING QUICRUN WP 10BL80 BRUSHED/BRUSHLESS CRAWLER ESC

Features

• Supports Sensorless Brushless motors & Brushed Motors.
• Compatible with most brushed or brushless motors on the market.
• Fully waterproof design for all conditions.
• Super internal switch-mode BEC with switchable voltage of 6V/7.4V/8.4V for usage with high torque and high voltage servos.
• Separate programming port to easily connect the LED program box or the LCD program box pro to the ESC.
• Multiple protections: motor lock-up protection, low-voltage cutoff protection, thermal protection, and fail safe (throttle signal loss protection).
• It has the function of using transmitter (AUX channel) to adjust the drag brake force in real time.

Specifications

Scale: 1/10th
Brushed/Brushless: Both
Sensored/Sensorless: Sensorless
Waterproof: Yes
Cont./Peak Current: 80A/240A
Input Voltage: 2-4S LiPo
BEC Output: 6V/7.4V/8.4V,5A
Input Wires: Black-14AWG-175mm*1,Red-14AWG-175mm*1
Output Wires: No
Input Connectors: XT60
Output Connectors: 3.5MM Gold (female)
ESC Programing via:
SET Button on ESC: Supported
LED Program Box: Supported
LCD G2 Program Box: Supported
LCD PRO: Supported
OTA Programmer: Not Supported
Program Port: Independent program port

Data Recording:
Extreme value: Not Supported
Real-time Data: Not Supported
Historical data (Graph): Not Supported

Firmware:
Firmware Upgrade: Not Supported
Size: 36*30*15.5mm
Weight: 47.8g( Included wires & connectors)

Applications:
Motors: Sensorless / Sensored Brushless Motor
Vehicles: 1/10th Crawlers

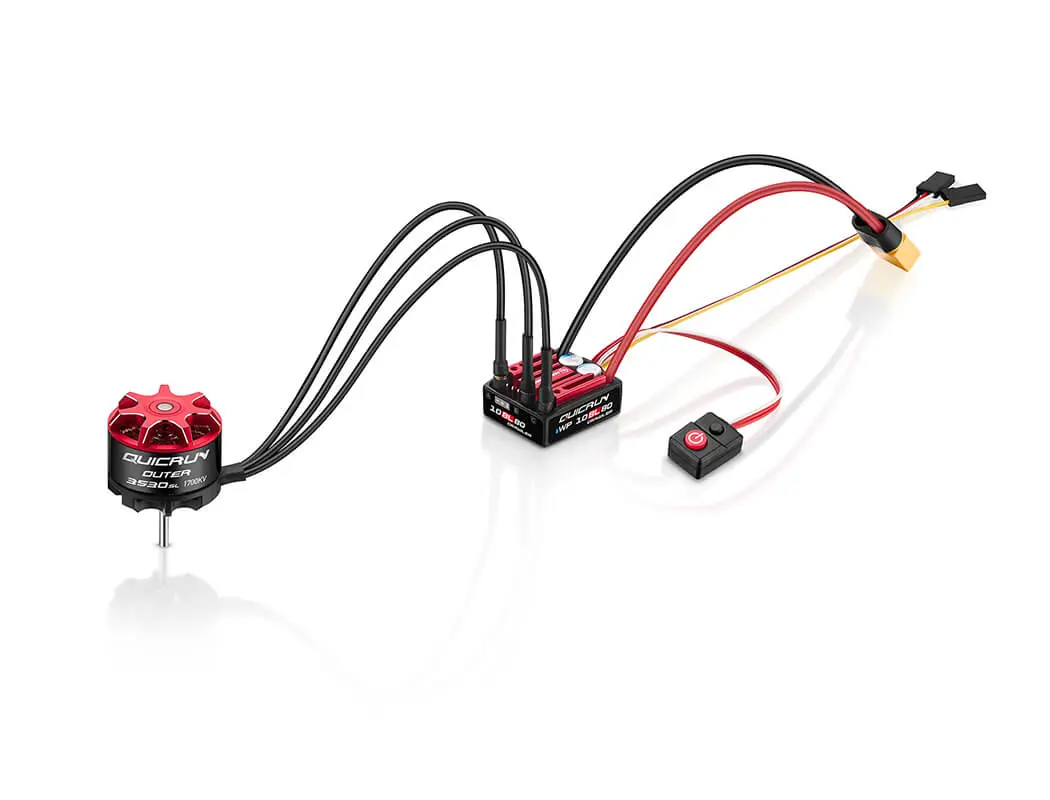

KV Rating/T Count: Outer 3530SL sensorless outrunner motors; 540, 555 including other brushed motors
