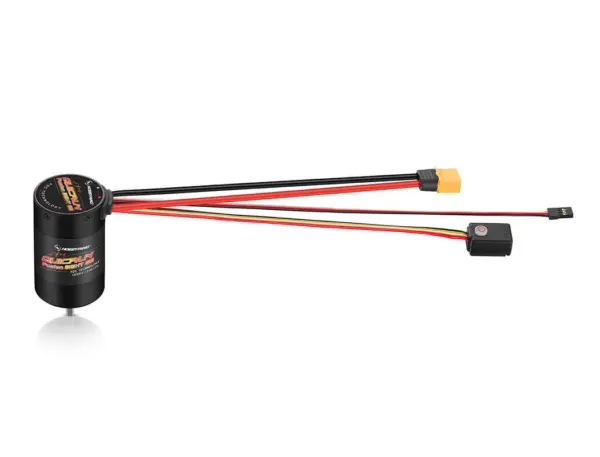

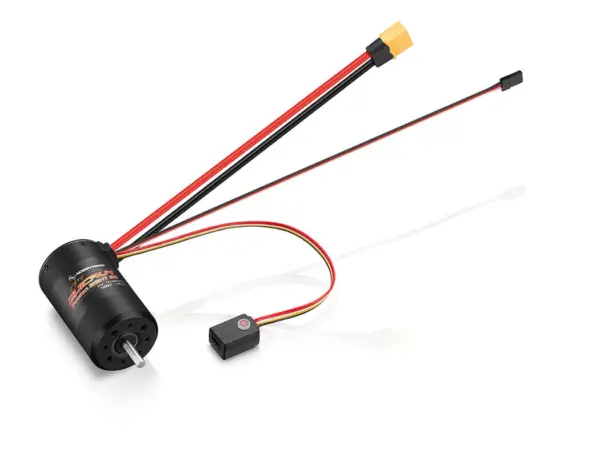

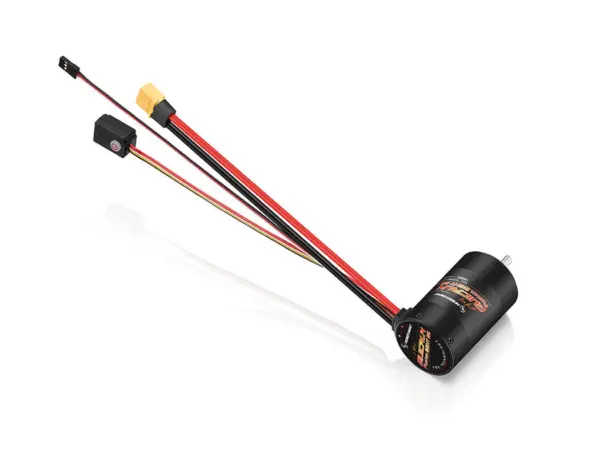

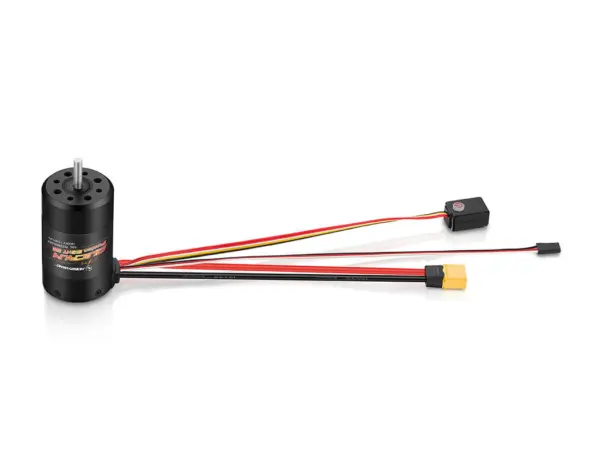

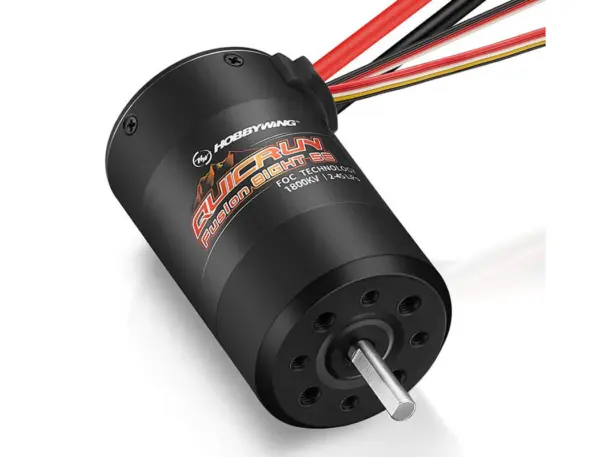

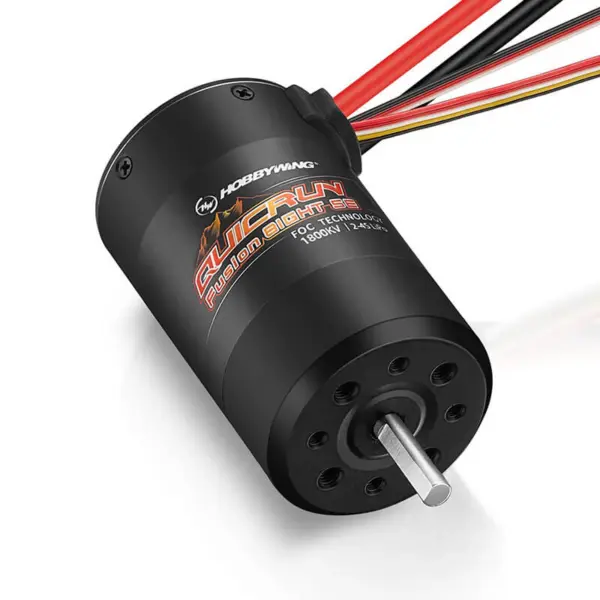

Hobbywing Quicrun Fusion 8ight Se Brushless for 1/8th Crawler 1800kv

HOBBYWING QUICRUN FUSION 8IGHT SE FOR 1/8TH CRAWLER 1800KV

Features

• The integrated design of the ESC and the motor, makes the layout and wiring of car more simple, and convenient.
• FOC (Field Oriented Control) driving mode to the power system of rock crawler. The low speed torque is very strong. This improves over standard brushless setups and is even preferred over the brushed setups for overall feel.
• The system has high efficiency, less heat, and effectively extends the run time; and the motor runs more quietly.
• Excellent waterproof and dustproof performance, capable of running in all conditions.
• Intelligent torque output and speed closed-loop control.
• Active drag brake force adjustment, providing super holding power on inclines.
• With strong built-in switch mode BEC, and supports 6V/7.4V adjustable, capable of driving high torque and high voltage servos.
• Multiple protection functions: battery low voltage protection, overheat protection, throttle lost protection, lock-up protection.
• It supports LED and LCD Program Box Pro/G2 to set ESC parameters, making setting parameters more convenient.

Specifications

Scale: 1/8th
Brushed/Brushless: Brushless
Sensored/Sensorless: Sensored
Waterproof: Waterproof
Cont./Peak Current: 60A/200A
Input Voltage: 2-4S LiPo,6-12 Cells NiMH
BEC Output: 6V/7.4V adjustable,continuous current 4A (Switch mode)
KV: 1800KV
Motor Poles: 4
Input Wires: Black-13AWG-200mm*1 Red?-13AWG-200mm*1
Input Connectors: XT60
ESC Programing via:
SET Button on ESC: Not Supported
LED Program Box:
LCD G2 Program Box/LCD PRO: Supported
OTA Programmer: Not Supported
Program Port: Independent programming port(switch position)
Firmware Upgrade: Not Supported
Diameter / Length of motor: 41mm/69mm
Shaft diameter / exposed shaft length: 5mm/18.5mm
Weight: 326.5g (including wires&connectors)
Applications / Vehicles: 1/8th Crawlers
