Hobbywing Quicrun Combo Esc G2 16bl30/2435sl 6500kv G3 Motor

HOBBYWING QUICRUN COMBO ESC G2 16BL30/2435SL 6500KV G3 MOTOR

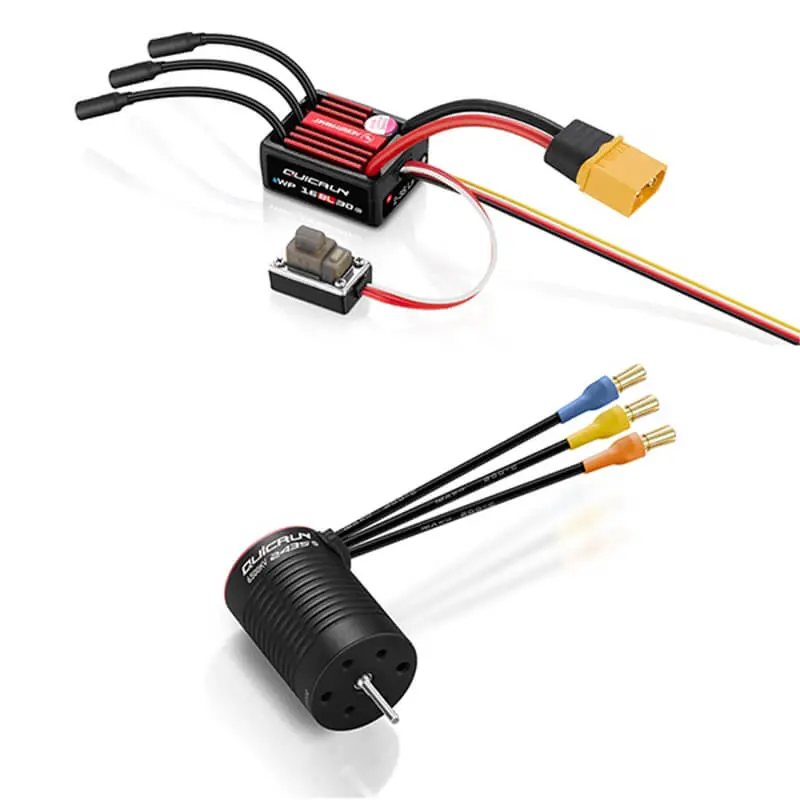

Introducing the Hobbywing QuicRun 16BL30 G2 Waterproof brushless speed control and 2435SL Motor Combo.

Intelligent Freewheeling for Lower Heat and Enhanced Performance.
The ESC features intelligent freewheeling technology, delivering higher drive efficiency, lower operating temperatures, improved stability, and greater reliability.

Compact Size for Easier Installation and Flexible Layout.
Compared to the previous generation 16BL30 ESC, the G2 ESC is significantly smaller: 8.3% shorter in length, 7.1% narrower, and 16.7% lower in height. This design is compact and makes installation easier and allows for cleaner wiring on the chassis.

BEC Upgrade Compared to the G1 ESC.
The BEC’s continuous current has been upgraded from 1A to 2A.
A peak current of up to 4A
The output voltage can be switched between 6V and 7.4V.

Easily powering high-torque and high-voltage servos. This provides faster response and more precise control.

High Protection Rating.
IP67-rated protection allows it to easily handle harsh environments such as rain, sand, and muddy roads, ensuring reliable performance without environmental limitations.

Note: The IP67 protection rating described above applies under normal usage conditions, providing splash resistance, water resistance, and dust resistance, as tested under controlled laboratory conditions. These protective features are not permanent, and protection performance may degrade over time due to regular wear and aging. Do not submerge the product in water for extended periods, as this may cause damage.

Multiple Programming Methods.
Supports three programming methods: LCD Program Box Pro, LED Program Box, and SET button, allowing users to conveniently select their preferred programming method for parameter adjustments.

Exceptional Value for Money.
Specifically designed for entry-level users, with HOBBYWING’s exceptional quality. Easy to operate and beginner-friendly, with no complex setup required.

Perfect Match for QuicRun 2030 G2/2435 G3 Motors.
The ESC offers excellent compatibility when paired with QuicRun 2030 G2/2435 G3 motors, delivering smoother control.

Wide Compatibility.
The power system is suitable for both 1/16th & 1/18th scale hobby vehicles.

Specifications

Scale: 1/16th, 1/18th
Brushed/Brushless: BL
Sensored/Sensorless: SL
Waterproof: Yes
Cont./Peak Current: 30A/100A
Input Voltage: 2-3S LiPo
BEC Output: 6V/7.4V@2A

Cables and Plugs
Power Cord: Black-16AWG-75mm*1,Red-16AWG-75mm*1
Output Line: Black-16AWG-60mm*3
Power Plug: XT60
Output Plug: 3.5MM gold female plug

ESC Programing via
SET Button on ESC: Supported
LED Program Box: Supported
LCD G2 Program Box: Supported
OTA Programmer: Not Supported
Program Port: Shared with Throttle Wire

Data Recording
Extreme Value Records: Not Supported
Real-time Data: Not Supported
Historical Data (line graph): Not Supported

Firmware
Firmware Upgrade: Not Supported

Size & Weight
Size: 33.4 x 26.8 x 15.1mm
Weight: 38.5g( Included wires & connectors)

Applications
Supported Motor Types: Sensorless brushless motor, sensored brushless motor (only works in sensorless mode)
Applicable Models: 1/16th?1/18th On-Road & Off-Road
Applicable Motor: QUICRUN 2435 G2

Motor

Better performance.
Compared with the same specification of products under the same load conditions, the maximum output power is 60% higher, the maximum efficiency is 5% higher, and the temperature is reduced by approximately 30 degrees.

Upgraded materials.
durable 0.2mm thick silicon steel, high-strength explosion-proof rotor, 200°C high-temperature-resistant enameled wire, and first-line brand high-precision and high-quality bearings make the motor durable.

Excellent protection.
The output of the motor is sealed with a silicone rubber on the housing. It is dust-proof for off-road vehicles/trucks. Users will now enjoy bashing without having to worry in harsh operating environments such as outdoor sand, stones, and dust.
Note: It is recommended to block the unused mounting holes of the motor front cover with screws.

Plug and play, flexible play.
The motor output line has been welded with high-quality gold-plated plugs. Plug and play without worrying about soldering.

One “machine” with multiple functions, compatible with a wide range of models
The product is applicable to 1:16 and 1:18 vehicles, from on-road to buggy, short course truck, and monster truck.

Specifications

Scale: 1/16th
Brushed/Brushless: BL
Sensored/Sensorless: SL
Pole Count: 4
KV Rating: 6500KV
LiPo: 2-3s
No-load Current(A): 3.4A
O.D. (mm): 24
Length (mm): 36
Shaft Diameter (mm): 2
Weight (g): 61.2
Connectors: 3.5mm (Male)
Front Bearing: D8*D3*T4
Rear Bearing: D8*D3*T4
Applications: 1/16th, 1/18th On Road, Off Road
