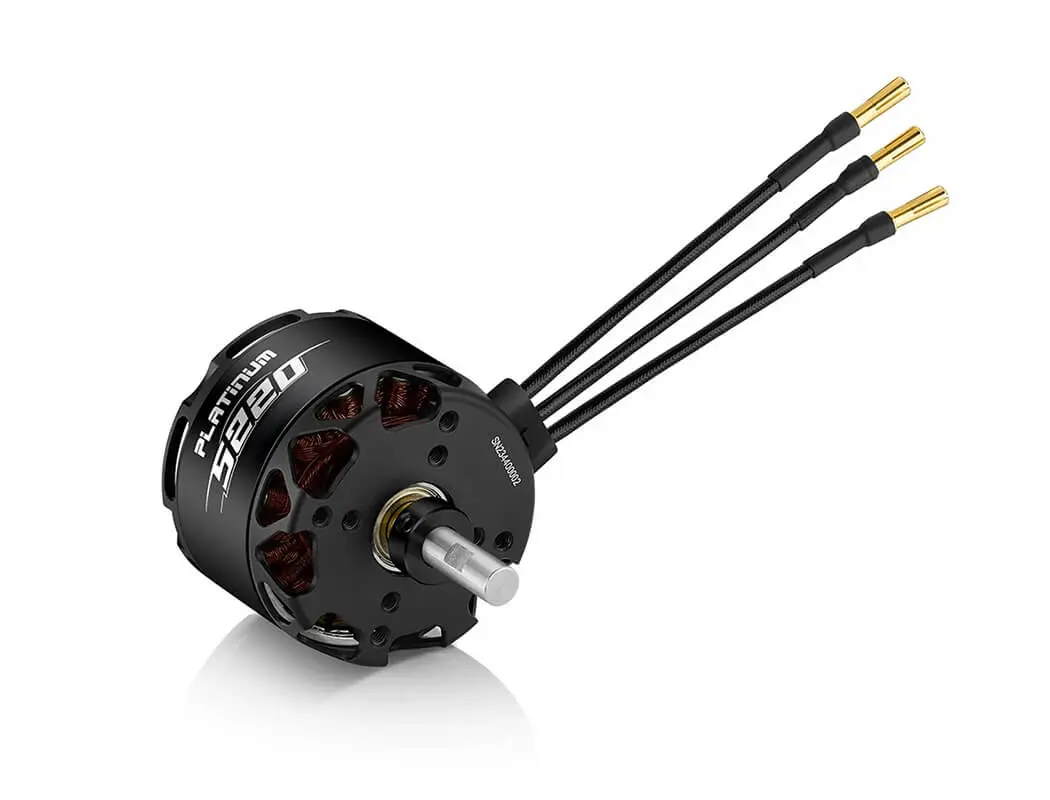

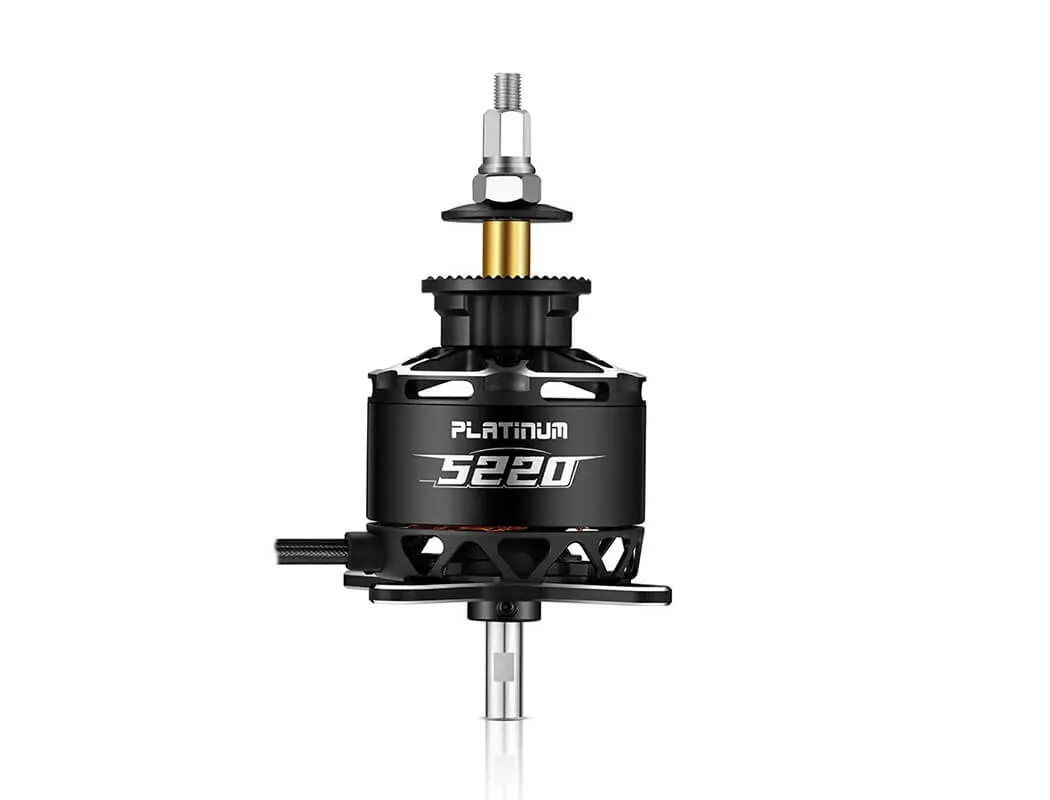

Hobbywing Platinum 5220sl 380kv Fixed Wing Motor

HOBBYWING PLATINUM 5220SL 380KV FIXED WING MOTOR

Specifications

Motor Size: Φ60.2 *83.5mm
Stator Size: Φ51.7*t20
Stator Process: High standard silicon steel sheet,180? high temperature resistance paint-coa
Enamelled Wire: 200?
Props Mounting Dimensions: Φ22mm-3*M4
Motor Mounting Dimensions: Φ30mm-4*M4;Φ44mm-4*M4
Slot & Pole: 24N28P
Dynamic Balance: ≤10mg
Bearing: 1560ZZ,698ZZ
Motor Axle Diameter: Φ8mm
Isolation Test: 500V AC high voltage resistance test
KV: 380
Battery (LiPo): LiPo-6~8S
No-load Current: 3.7A/22.2V
Maximum Current (Non-hermetic Ambient Temperature ≤ 25?: 136.3A/47s
Max Power: 4028W/47s
Max Thrust: 10.14kg
Resistance: 11.3mΩ
Wire Size: Enamelled Wire Output
Wire Length:100mm
Weight (With Wire): 435g
Recommended ESC: PLATINUM 120A V4 PLATINUM 150A V5
Recommended Propeller: 6S:18x10E,19x10E,20x10E 8S:16x10E,17x10E,18x10E
