Hobbywing

Hobbywing Platinum 5220sl 220kv Fixed Wing Motor

£119.99
Out of Stock
SKU HW30416150
🚚 Calculating…
24hr or 48hr delivery — choose at checkout ✓ Free delivery on orders over £129.99
🚚 Calculating…
24hr or 48hr delivery — choose at checkout ✓ Free delivery on orders over £129.99

About this product

Specifications

Motor Size: Φ60.2 *83.5mm
Stator Size: Φ51.7*t20
Stator Process: High standard silicon steel sheet,180? high temperature resistance paint-coa
Enamelled Wire: 200?

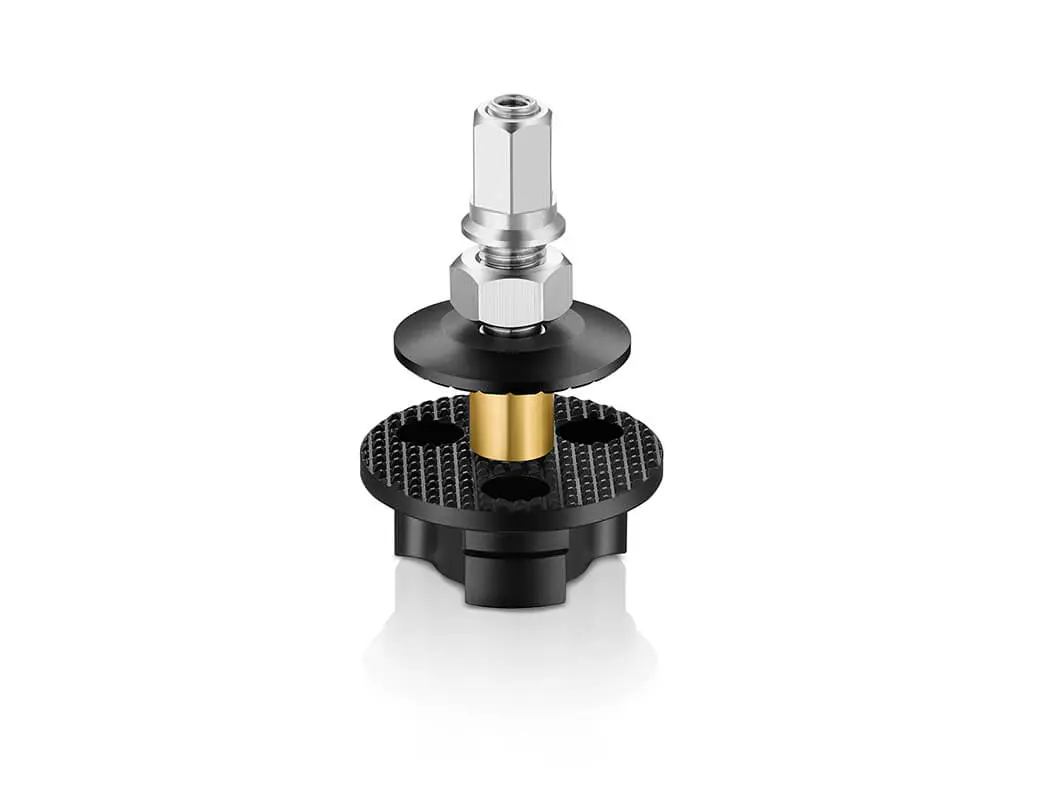

Props Mounting Dimensions: Φ22mm-3*M4
Motor Mounting Dimensions: Φ30mm-4*M4;Φ44mm-4*M4
Slot & Pole: 24N28P
Dynamic Balance: ≤10mg
Bearing: 1560ZZ,698ZZ
Motor Axle Diameter: Φ8mm
Isolation Test: 500V AC high voltage resistance test
KV: 220
Battery (LiPo): LiPo-10~12S
No-load Current: 3.5A/44.4V
Maximum Current (Non-hermetic Ambient Temperature ≤ 25?: 86A/44s
Max Power: 3828W/44s
Max Thrust: 10.05kg
Resistance: 27.5mΩ
Wire Size: Enamelled Wire Output
Wire Length:100mm
Weight (With Wire): 430g
Recommended ESC: PLATINUM 130A V4, PLATINUM 180A V5
Recommended Propeller: 10S:20x8E,20x10E 12S:17x8E,18x8E,18x10E


Browse the full Hobbywing range at Radio Controlled UK, including Hobbywing brushless motors, Hobbywing ESCs and Hobbywing motor and ESC combos. View all current stock in the Hobbywing product archive.
