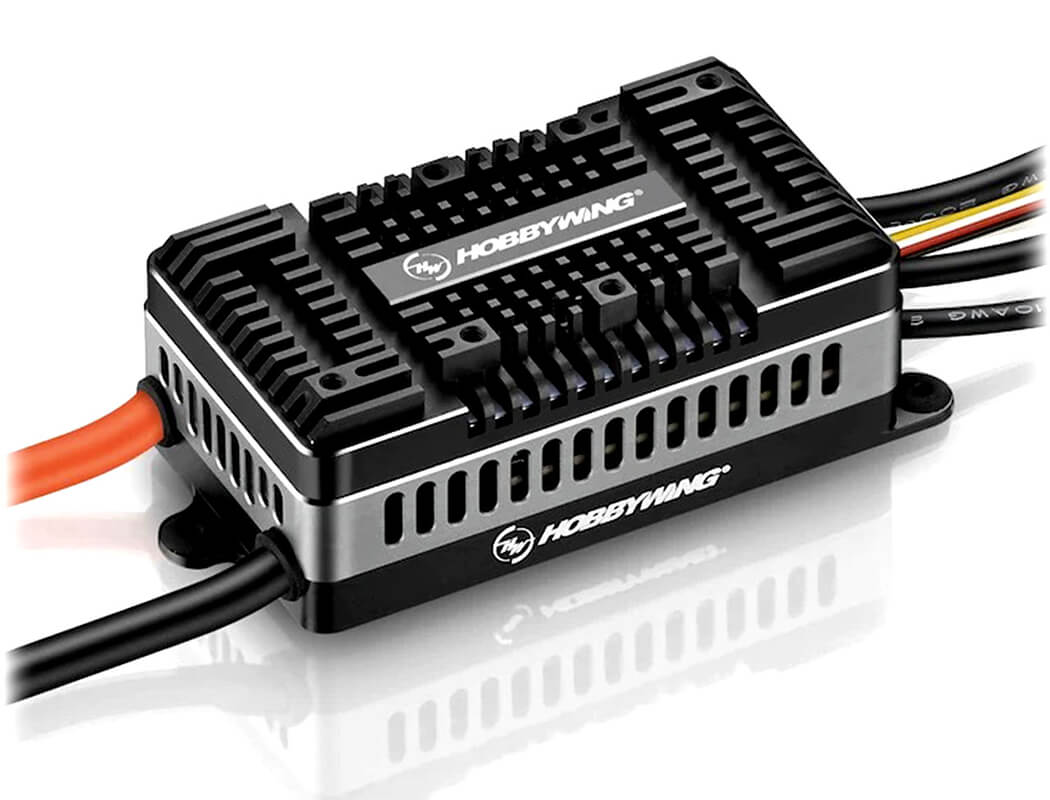

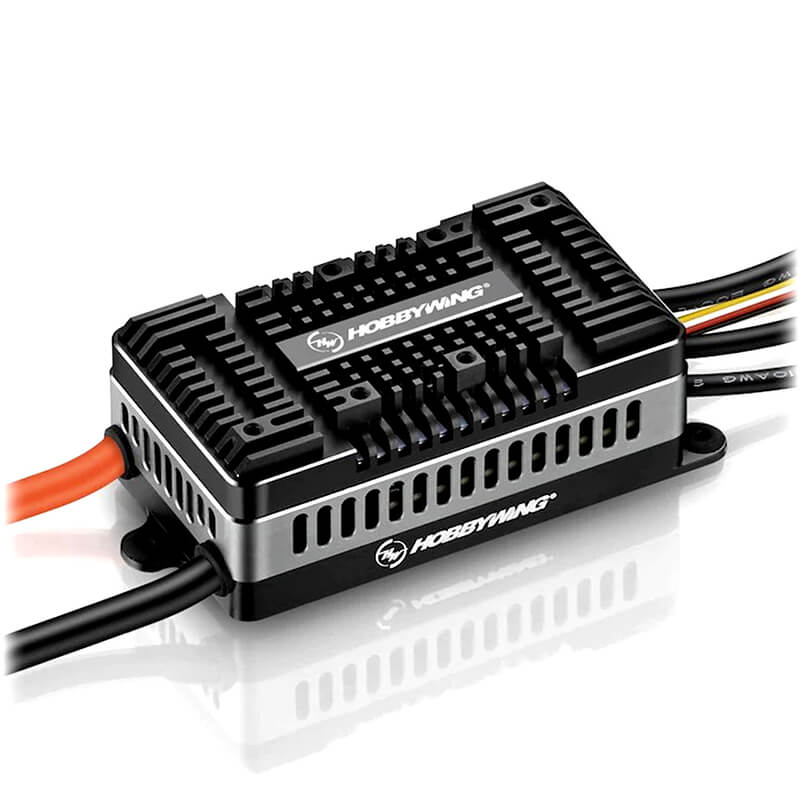

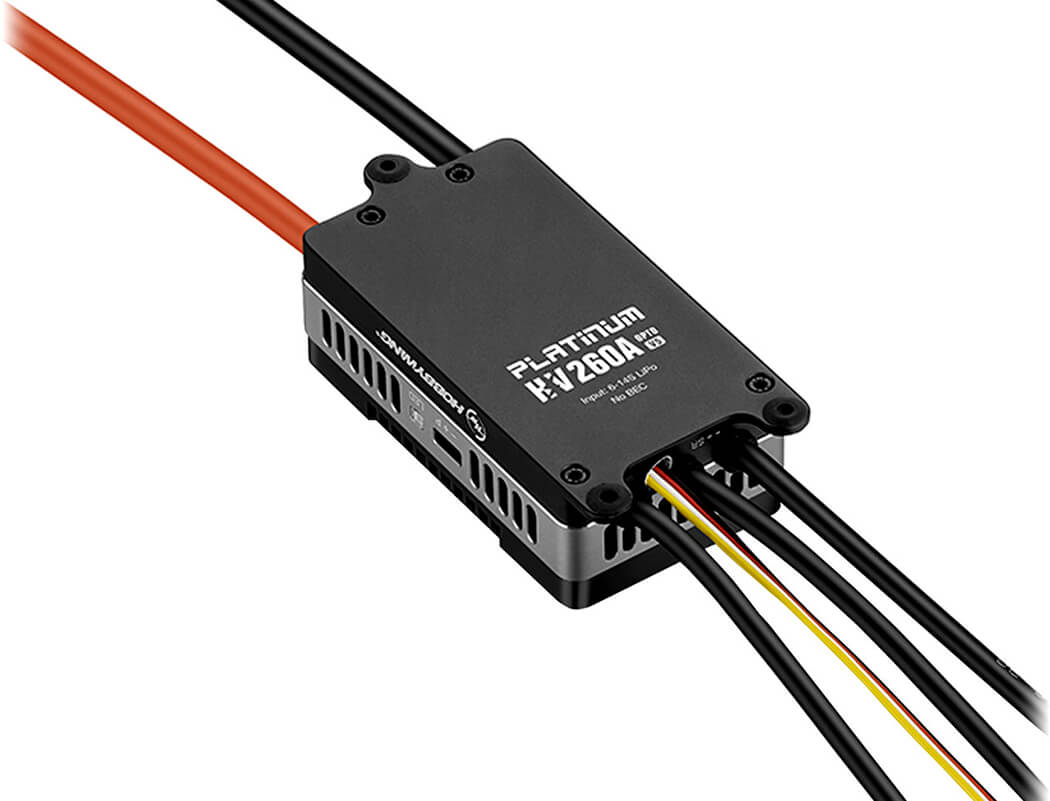

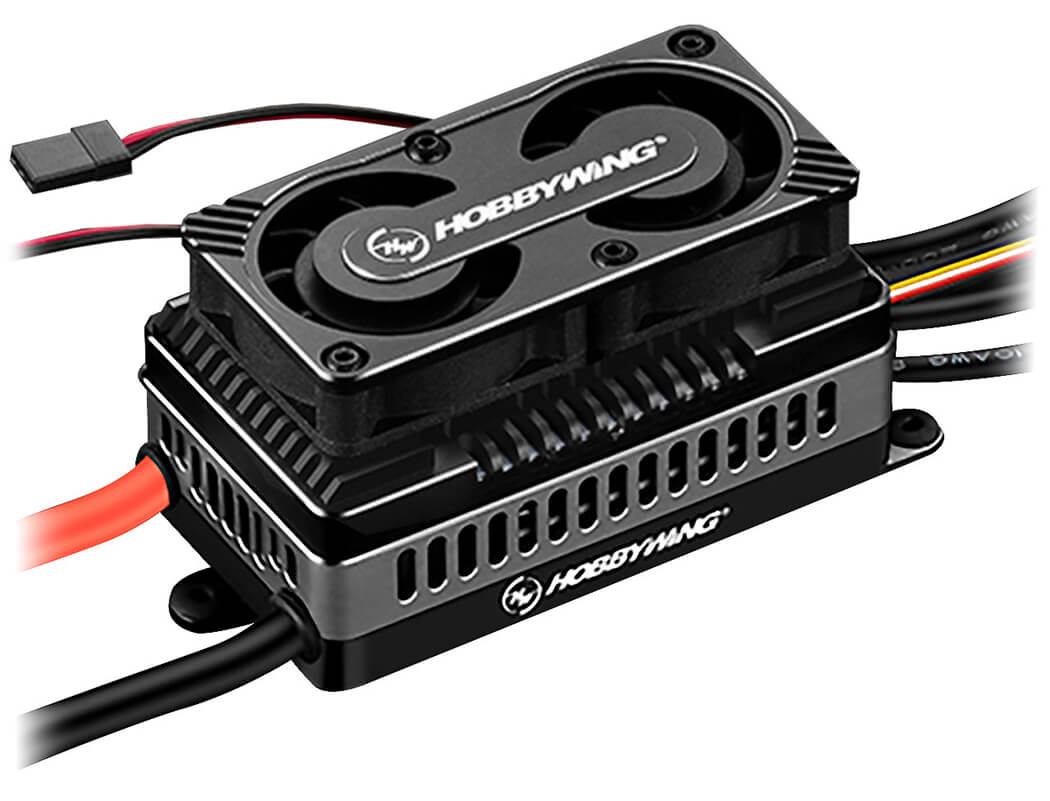

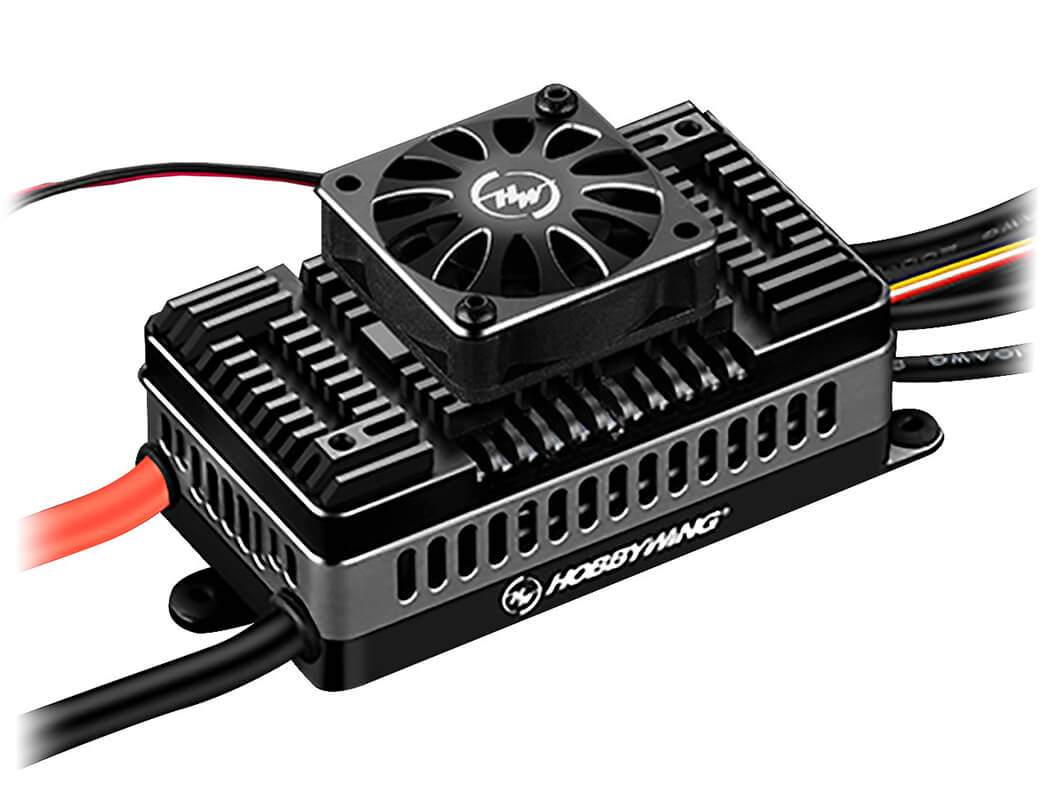

Hobbywing Platinum 260a Hv Opto V5 Brushless Esc

★★★★★
4.7 · 14 reviews
£439.99
In Stock — ships today
SKU HW30203101
🚚 Calculating…
24hr or 48hr delivery — choose at checkout ✓ Free delivery on orders over £129.99
🚚 Calculating…
24hr or 48hr delivery — choose at checkout ✓ Free delivery on orders over £129.99

About this product

The Platinum V5 260A HV V5 provides constant speed control, ensuring an excellent flying experience without BEC. The innovative housing design, featuring additional windows on the sides and internal structure, enables highly effective heat dissipation. This allows the generated heat to be directly transported from the circuit board to the outside through the shortest path. This is particularly necessary because the integrated 32-bit processor enhances the RPM algorithm’s precision, thereby further strengthening the overall performance of the Platinum ESC (Electronic Speed Controller). The finely adjustable speed sensitivity ultimately allows every pilot to find a setting that suits them perfectly.

The ESC also incorporates Efficiency Optimization Technology with Synchronous Rectification (DEO: “Driving Efficiency Optimization” – Active Freewheeling), which brings several advantages at once:

  • Faster throttle response, improved flight stability, and flexibility.
  • Higher driving efficiency and longer battery life.
  • Lower temperature increase of the ESC, ensuring reliability.

Features

  • Efficient cooling through a sophisticated heat dissipation system with windows
  • Supports multiple data protocols e.g. Mikado VBar System, Futaba S.BUS2, MSH Brain, and iKON
  • Includes data recording accessible via the OTA module on the smartphone
  • Multiple protection features
  • 16 adjustable parameters, including 4 flight modes :-
    – Fixed Wing
    – Helicopter – External Governor
    – Helicopter – Express Governor
    – Helicopter – Store Governor

Specifications

Type: Brushless High Voltage
Current cont./peak: 260A/400A
Cells: 6-14S LiPo
BEC: None
Cable Battery/Motor: 1x 8AWG (red, black), 3x 10AWG (black)
Programming: LCD Programming Box, OTA Bluetooth Programmer, Separate Programming Port
Firmware upgrade: Yes
Telemetry: Mikado VBar, Futaba S.Bus2, MSH iKon, Brain and etc.
Dimensions: 89x50x34mm
Weight (incl. cable): 287g
Application: 700-800 Electric Helicopter (main rotor length: 690-880mm)

Unsure which Speed Controller you need for your model?

Visit our ESC Compare Centre and find the ideal speed controller for your needs.


Browse the full Hobbywing range at Radio Controlled UK, including Hobbywing brushless motors, Hobbywing ESCs and Hobbywing motor and ESC combos. View all current stock in the Hobbywing product archive.
