About this product

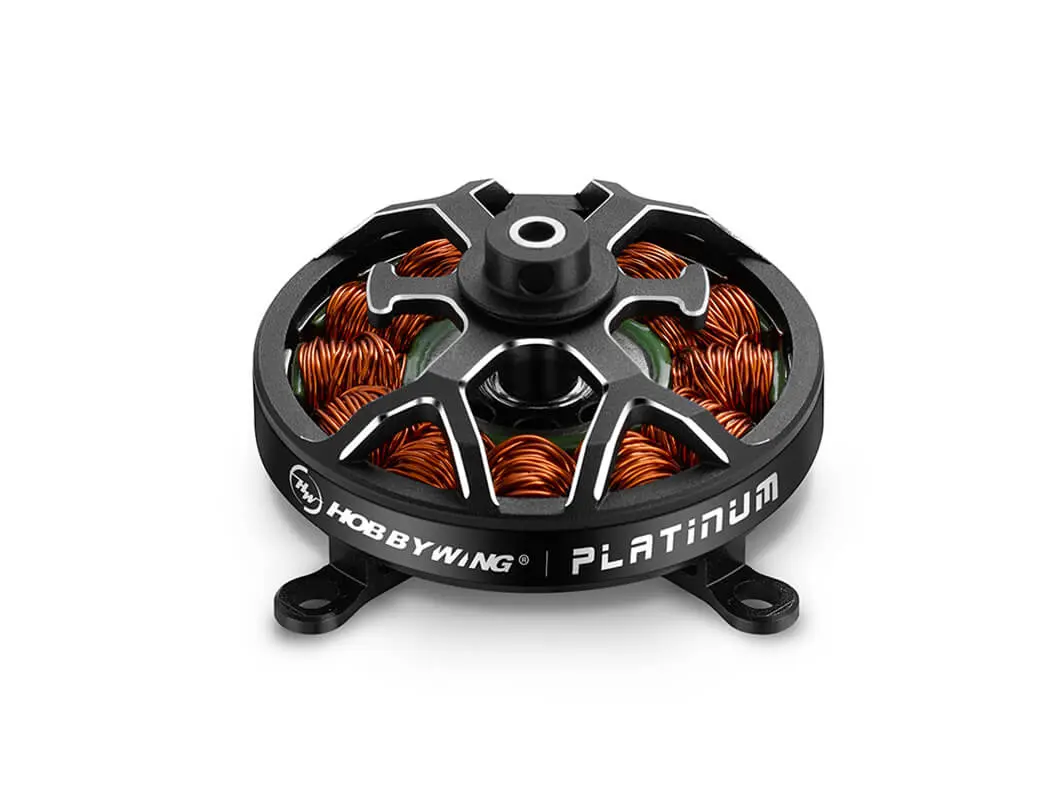

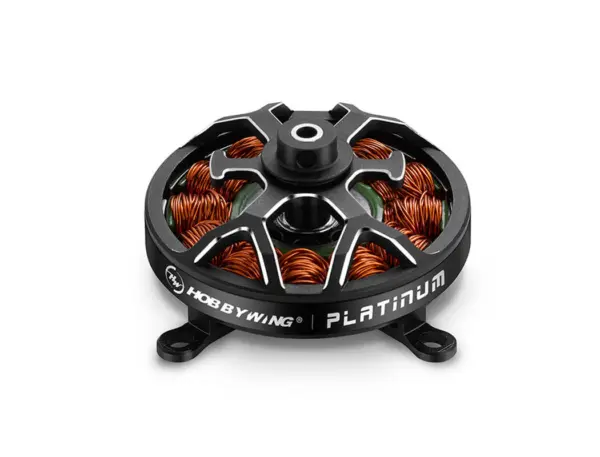

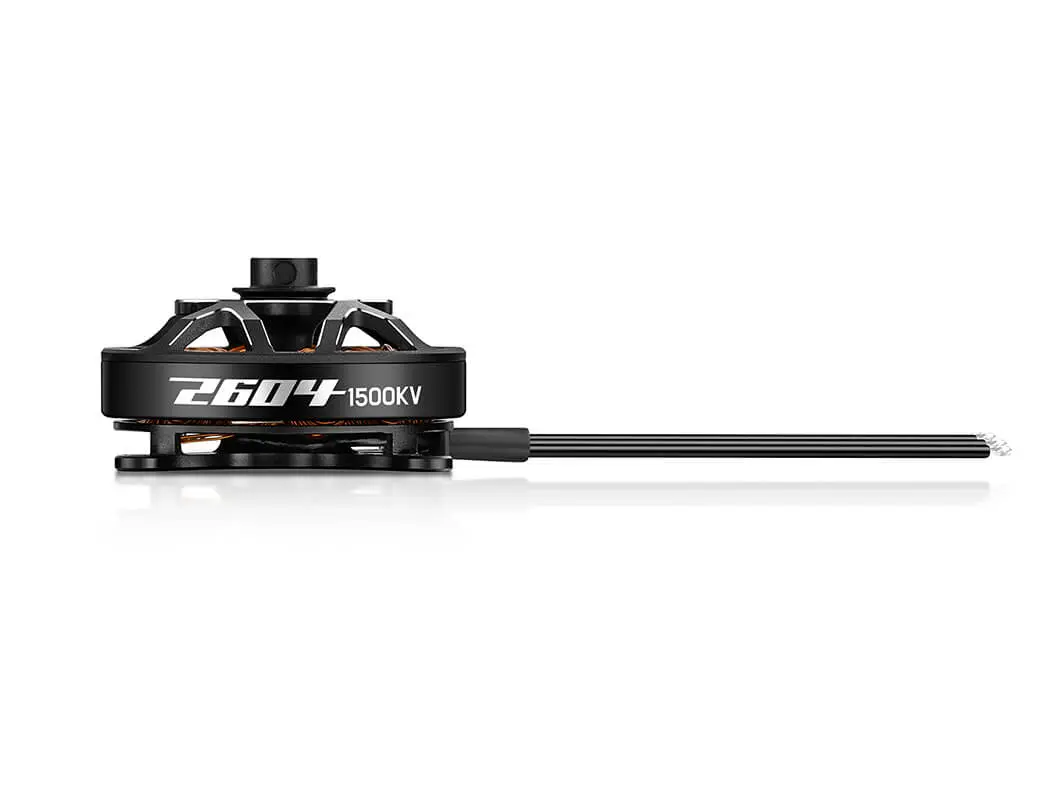

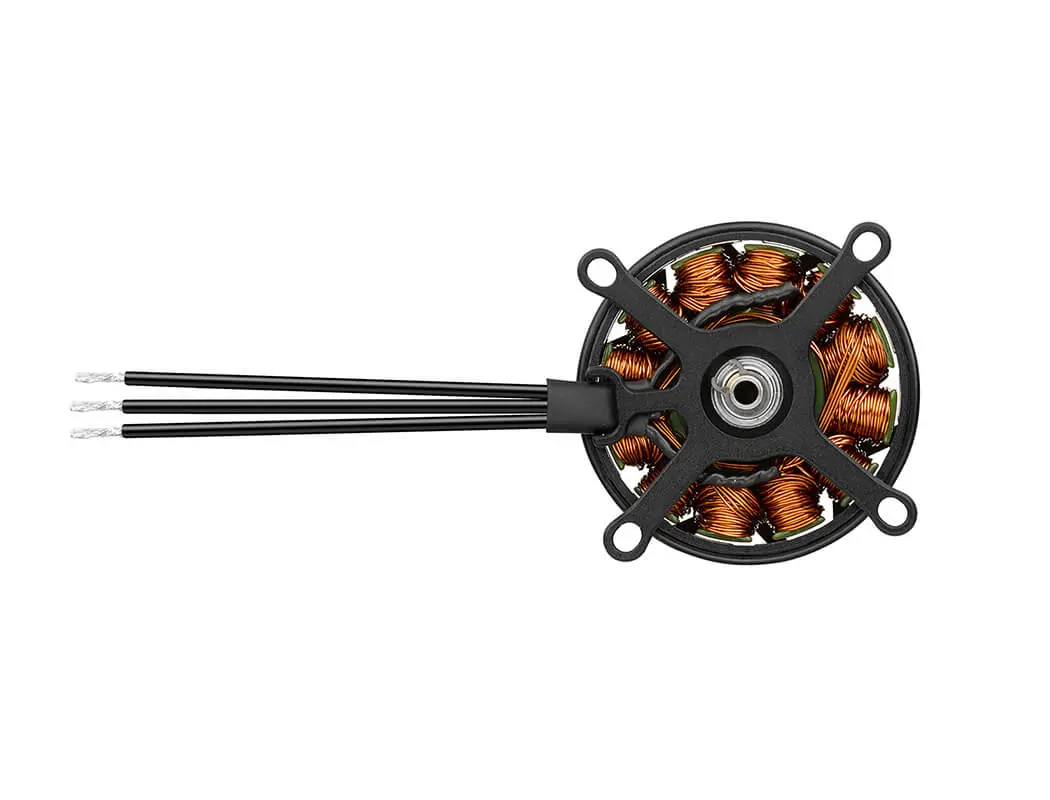

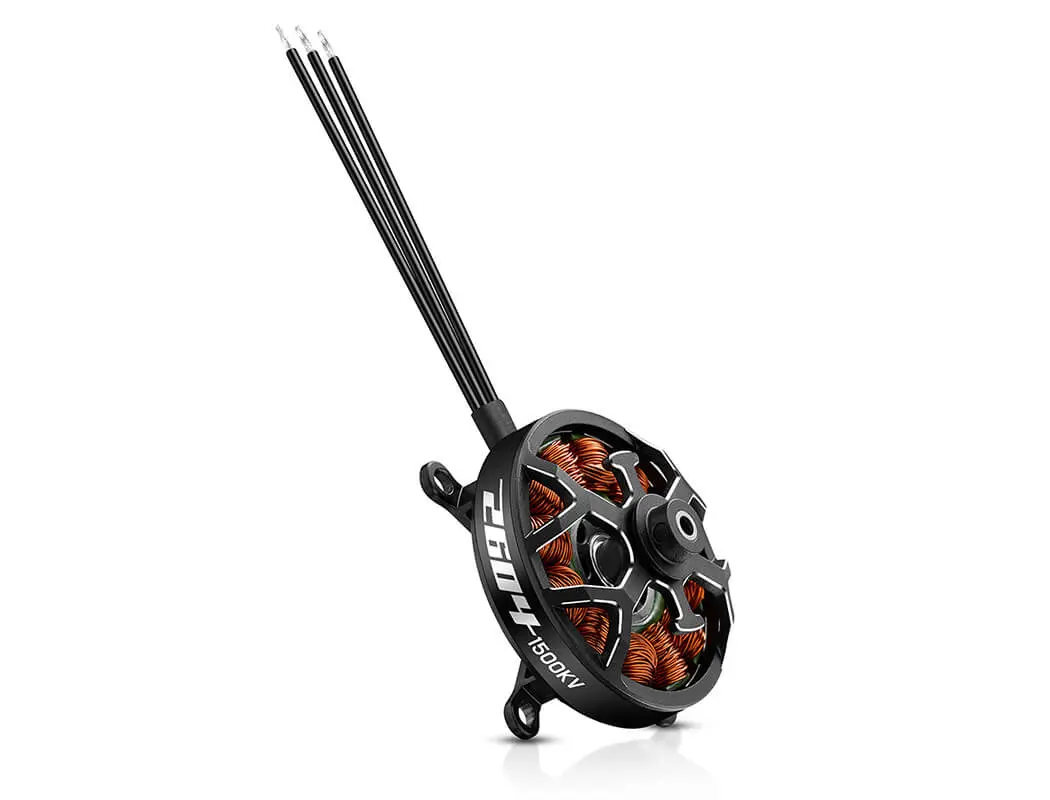

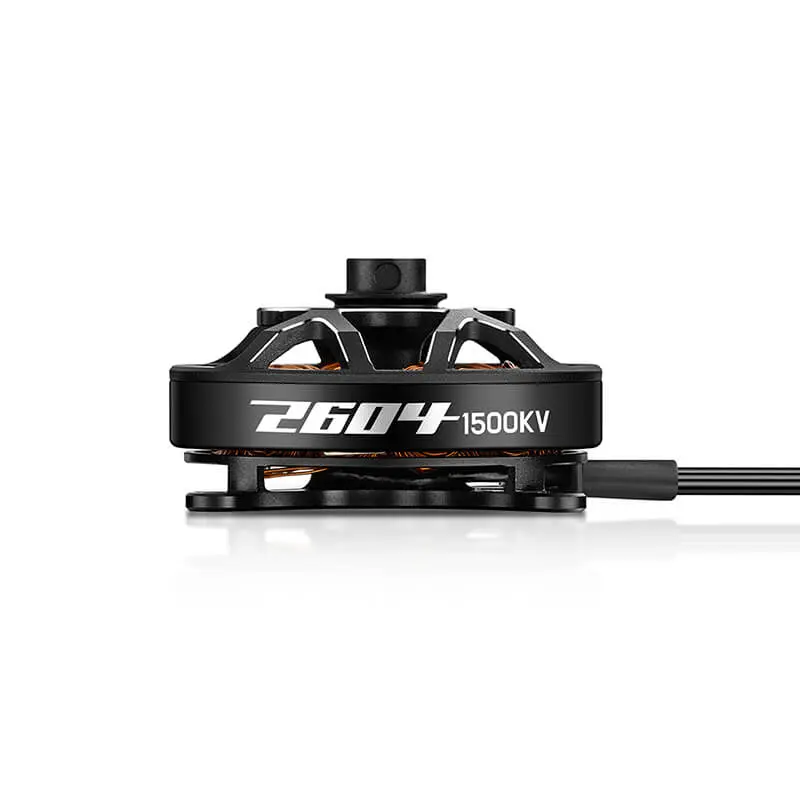

HOBBYWING PLATINUM 2604SL 1500KV MOTOR (F3P)
Specifications
Model: Platiunm 2604SL 1500KV
Motor size: Φ30*H17.2mm
Stator size: Φ26*H3.6mm
Stator process: High standard silicon steel sheet
Enamelled wire: 220?
Isolation test: 500V AC high voltage resistance test
Propeller: TP8038
Slot & pole: 12N14P
Dynamic balance: ≤5mg
Bearing: 630ZZ
Motor axle diameter: ?5.5 x t2.4mm
Shaft material: Titanium alloy
Motor mounting dimensions: 4×Φ2.1@D33
KV: 1500
Battery(LiPo): 3S Lipo
No-load current: 0.6A/12V
Maximum current (Non-hermetic Ambient Temperature ≤ 25?): 19A/10s
Max power: 229W/10s
Max thrust: 877g
Resistance: 132mΩ
Wire Size: Enamelled Wire Outlet
Wire length: 45mm
Weight(With wire): 21.5g
Recommended application combinations:
Motor: Platinum 2604SL 1500KV
Propeller: UP8338,TP8038
ESC: Platinum 18A V5 F3P
Battery: 3S LiPo
