About this product

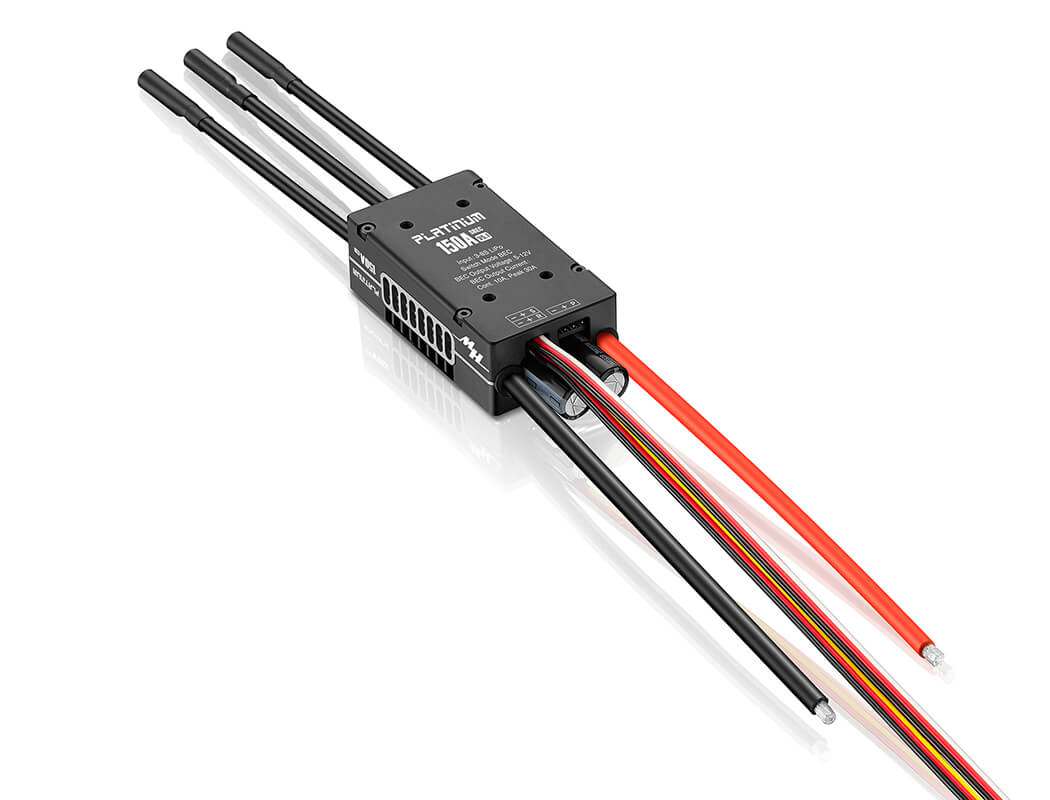

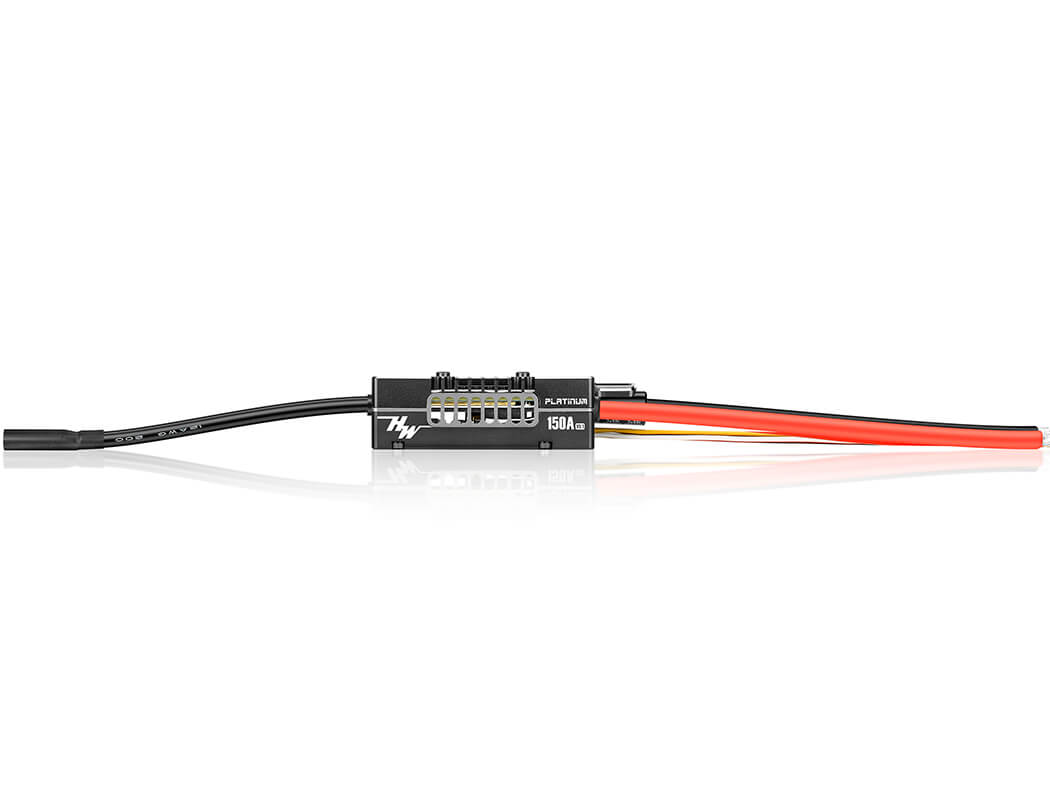

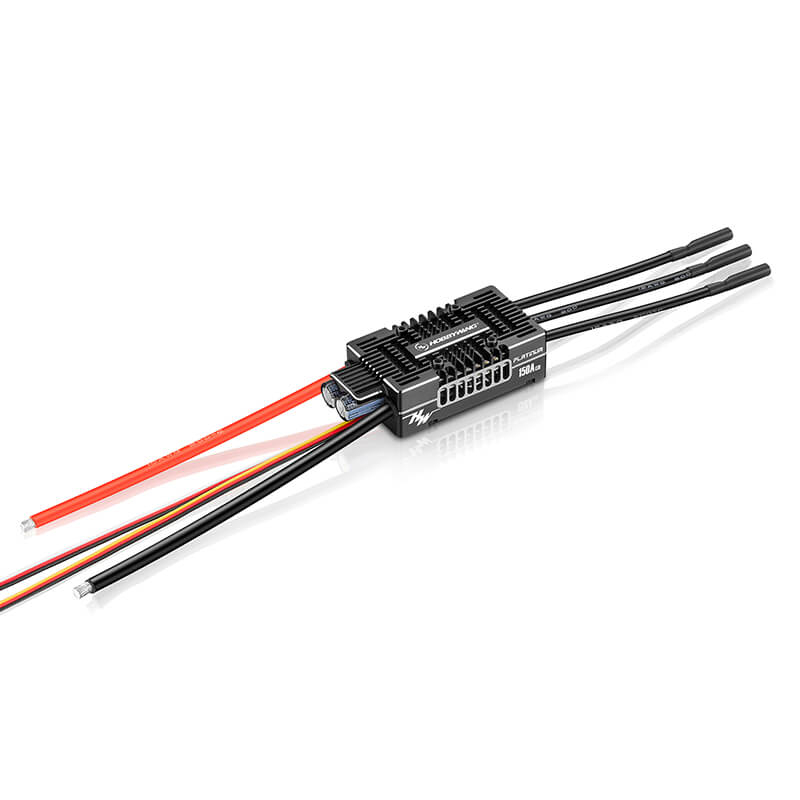

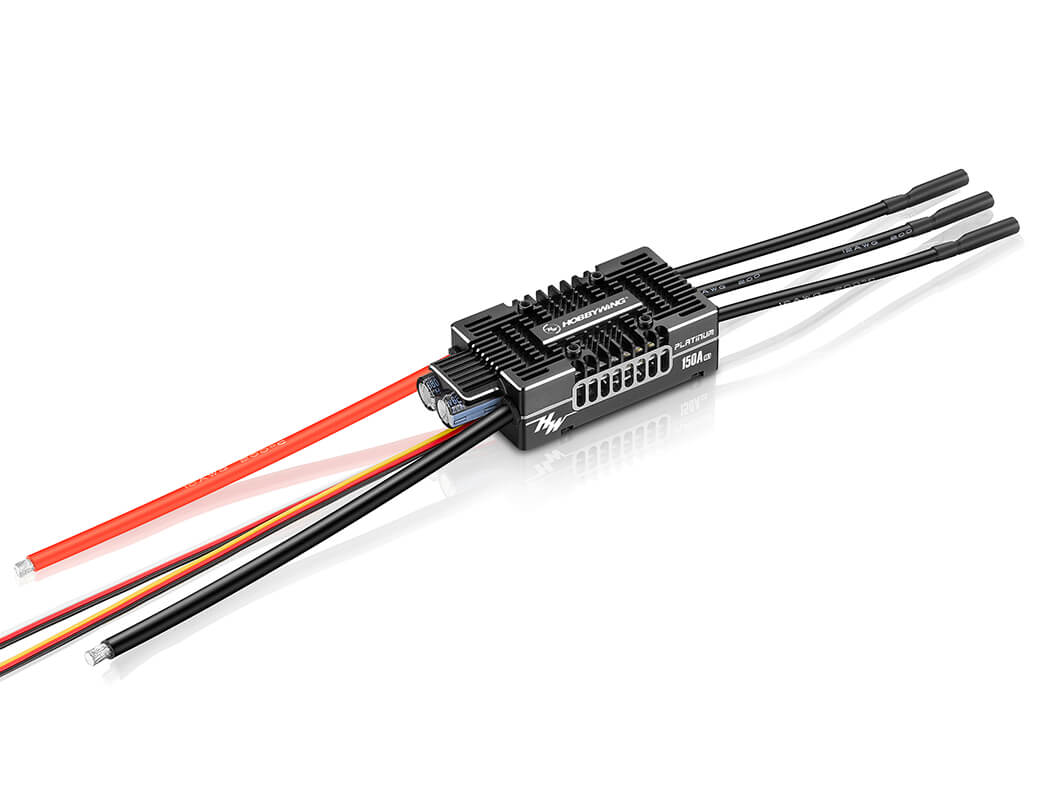

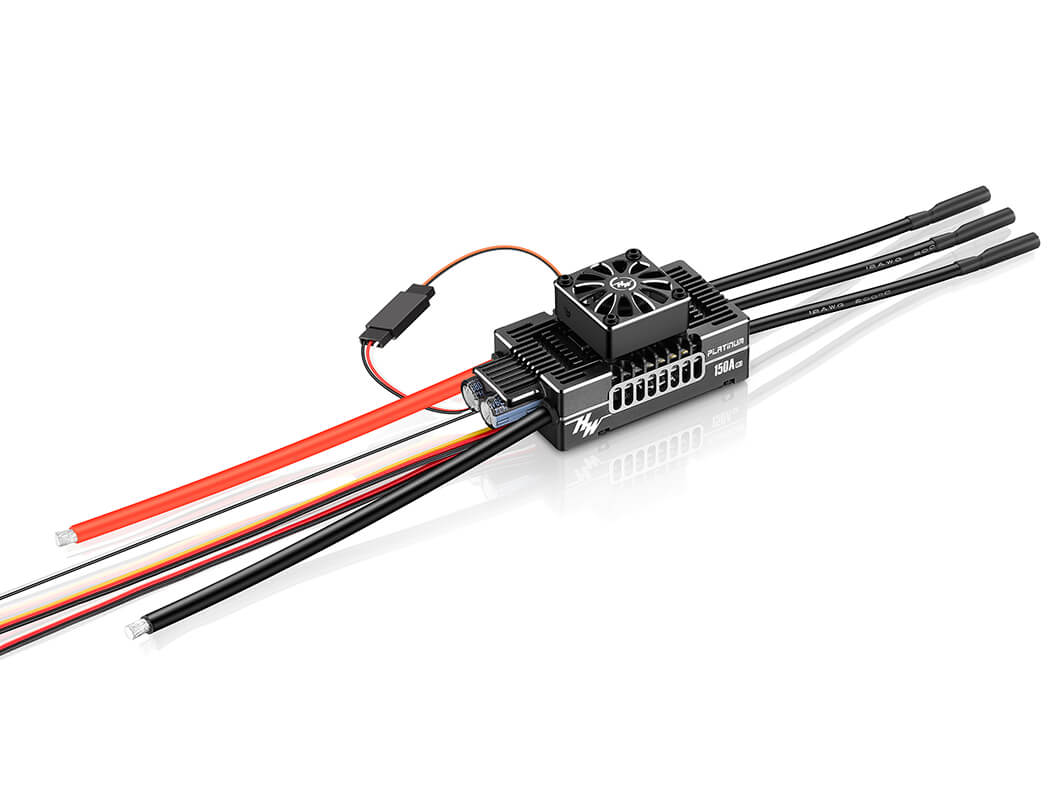

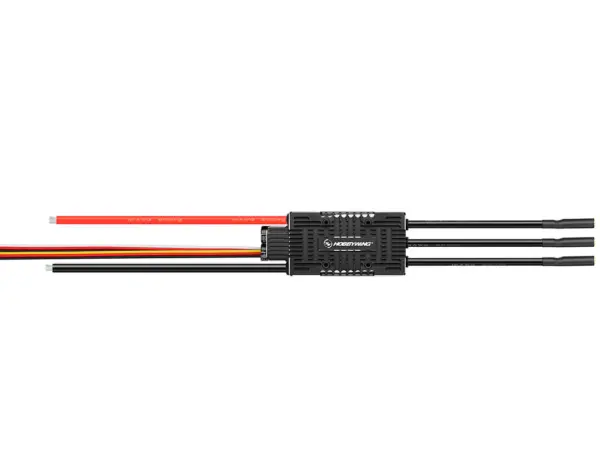

HOBBYWING PLATINUM 150A V5.1 SPEED CONTROL
Specifications
Brushed/Brushless: Brushless
High Voltage/Regular: Regular
Cont./Peak Current: 150A/180A
Input Voltage: 3-8S Lipo
BEC Output: Switch Mode: 5-12V & Cont. 10A,Peak 30A
Input Wires: Red-10AWG-150mm*1/Black-10AWG-150mm*1
Output Wires: Black-12AWG-100mm*3
Input Connectors: No
Output Connecotors: 4.0mm Gold Connectors (Female)
ESC Programing via Transmitter: Not Support
ESC Programing via LED Program Card: Not Support
ESC Programing via LED Program Box: Not Support
ESC Programing via LCD Program Box: Supported
ESC Programing via OTA Programmer: Supported
ESC Programing via Program Port: Separate Program Port
Firmware Upgrade: Supported
Telemetry Function: Mikado VBar;Futaba S.Bus2;etc.
Size: 83.2*37.1*22.5mm (without fan)
Weight: 150.4g (with wires, no fan)
Application Scope: 520-580 class electric helicopter (main blade length 520-580mm) or fixed-wing
