About this product

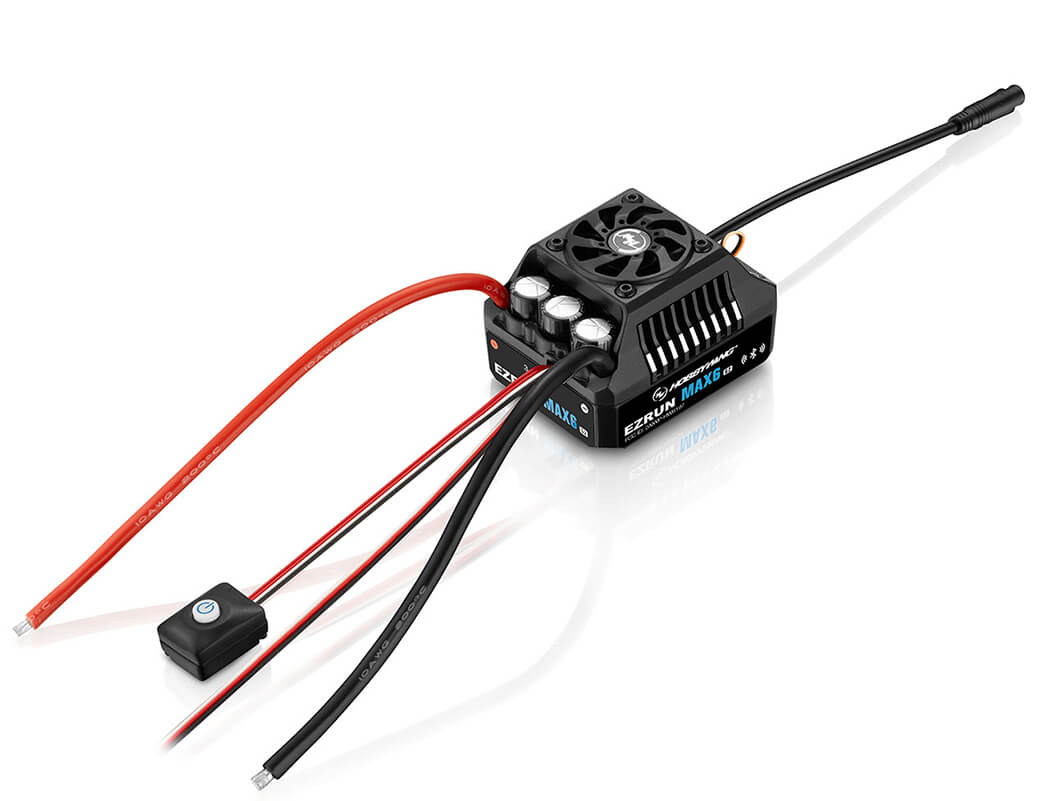

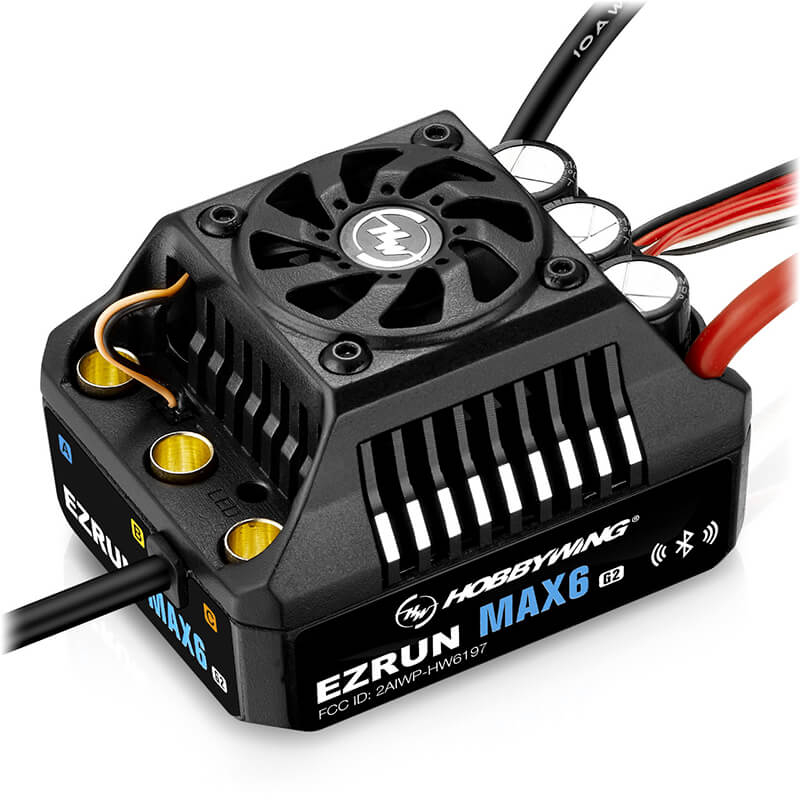

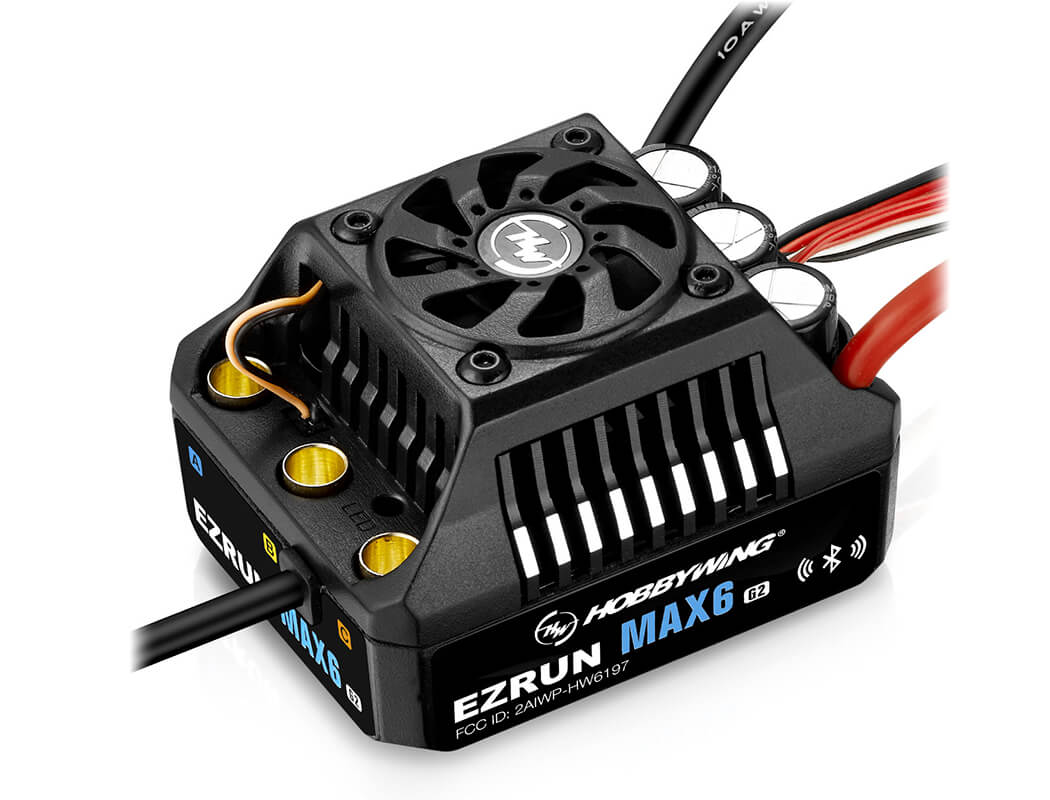

HOBBYWING EZRUN MAX6 G2 ESC
Specifications
Scale: 1/6th,1/7th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Waterproof: Yes
Cont./Peak Current: 200A/1200A
Input Voltage: 3-8S Lipo
BEC Output: Switch-mode 6V/7.4V/8.4V @8A
Input Wires: Black-10AWG-200MMmm*1 Red-10AWG-200MMmm*1
Input Connectors: 6.5mm Connectors (Female)
SET Button on ESC: Not Supported
LED Program Box: Not Supported
LCD G2 Program Box: Not Supported
OTA Programmer: Not Supported
Program Port: Built-in Bluetooth
Fan Size: 35x35x10mm
Fan Output Wires: 5-8.4V
Input Connectors: Powered by BEC
Data Recording Extreme value: Supported
Real-time Data: Supported
Historical data (Graph): Supported
Firmware Upgrade: Supported
Size: 70*56*45.5mm
Weight: 245g (Included input wires)
Motors Application: 1/6th&1/7th On-road,Truck,Monster Truck
Vehicles: Losi 1/6 Super Baja Rey, Traxxas XRT, Traxxas X-MAXX, ARRMA 1/7 Limitless, ARRMA 1/7 Fireteam, ARRMA 1/7 Mojave, Cen 1/7 Reeper, HPI Baja 5B
