About this product

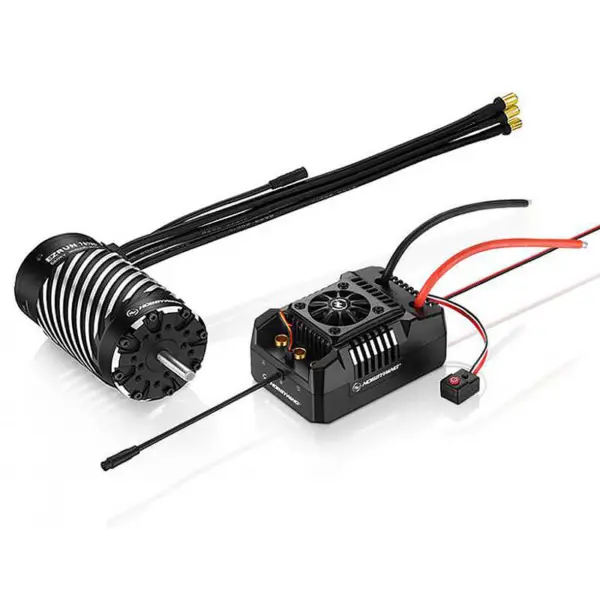

HOBBYWING COMBO EZRUN MAX4 HV ESC 70125/560KV MOTOR
Hobbywing EzRun MAX4-HV 300A Features
- Super-powerful BEC switching mode with 10A constant current and 25A instantaneous
- Flame-retardant circuit to protect the battery connectors
- Integrated protection: cut-off voltage, overheating, loss of signal, etc.
- Programmable via LCD Programming Card or OTA Module
- Real-time data recording
Specifications
Power: 300A with Peak at 2000A
Motor Type: Sensored and Sensorless
Motor Limit: 12S 600 Kv in 70125
Power Supply: Lipo 6 to 12S
BEC: 6 V / 7.4 V / 8.4 of 10A with Peak at 20A
Dimensions: 125x85x61.7mm
Weight: 775.4 g
Hobbywing EzRun 70125SD 560KV Sensored Motor Features
- Sensor mode in perfect combination with Ezrun MAX4-HV
- CNC aluminium housing, 0.2mm silicon steel sheets
- Four sintered NdFeB magnets for super torque, stable performance and explosive power
- New innovative sensor interface
- Waterproof and dustproof thanks to rolling rubber coating
- Independent high-precision encoder in the motor to communicate rotor position
- More power and less heat generation
Specifications
Power: 560Kv
Compatible: Lipo 8 to 12S
Motor Shaft: 8mm
Length: 125mm
Axle Length: 30mm
Diameter: 70mm
Weight: 1995g
