Key Specs
About this product

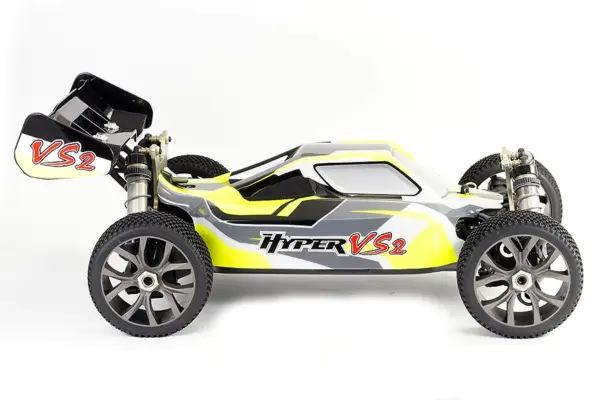

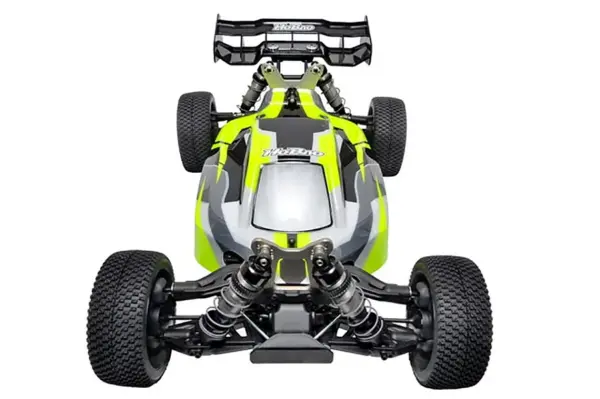

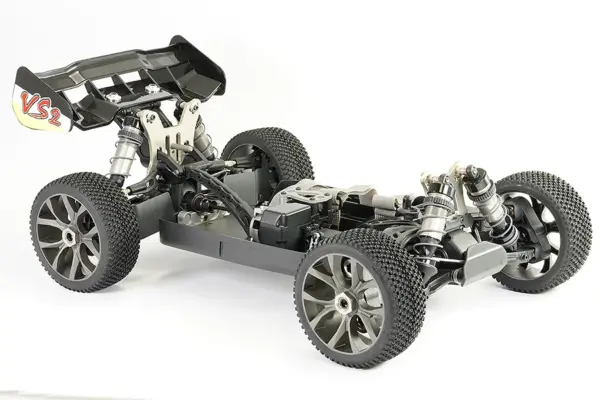

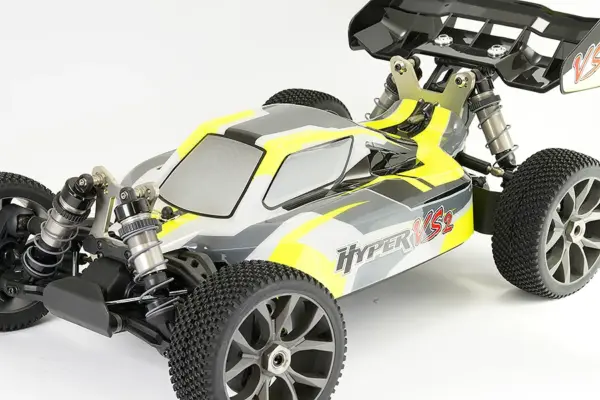

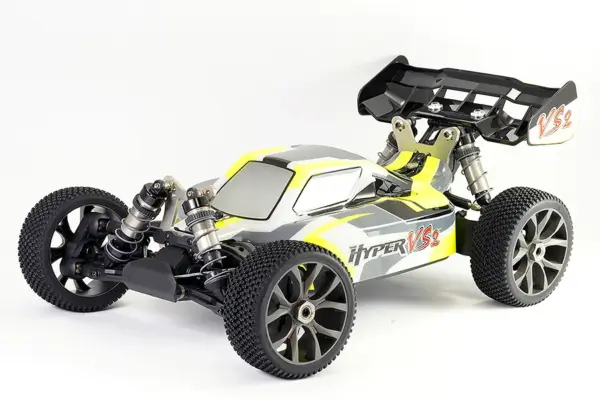

HOBAO HYPER VS2 1/8 BUGGY ELECTRIC ROLLER 80% PRE-ASSEM.
Please Note: The HB-VS2E comes with an unpainted clear body.
FEATURES
- CNC Alumimum 7075 parts: All Turnbackles, All Balls, pivot ball, front & rear shock towers, steering rack
- Chassis: 3mm thick CNC aluminum, with new plastic side guards and rear mud guards
- Drive: Four Wheel Drive, Heavy duty drive shaft
- Differentials: Bevel gear type, front, rear and center, new Anti-leakage Differential housing, hardened steel lightweight cups
- Motor Mount: CNC aluminum, cam lock style
- Shocks: Oil-filled 17mm Big Bore, 4mm diameter shafts
- Shock Towers: 4mm thick CNC 7075 aluminum
- Ball Bearings: Full set included
- Pinion Gear: 16T (MOD 1)
- Spur Gear: 48T (MOD 1)
- Suspension: Front & rear anti-roll bars, front PBS, strengthened composite upper arms and lower arms
- Caster: Adjustable
- Camber: Adjustable
- Body: 1/8 scale buggy painted. Yellow, quick release body shell post with single clip.
- Tires: 3.3 ” L shaped tread with foam inserts
- Wheels: New 10 spoke wheels, Grey, 17mm Hex
SPECIFICATIONS
Length: 460mm
Width: 308mm
Height: 180mm
Wheelbase: 325mm
Front Track: 260mm
Rear Track: 265mm
Weight: 3550g
Max Battery Dimensions:
Width: 137mm
Depth: 49.5mm
Height: 49mm
REQUIREMENTS
- Radio 2 channel
- ESC & Motor
- High-torque steering servo
- Glue for tire
- Paint for body
- LiPo batteries with single XT90 plug connector
- Battery Charger
- AA Batteries for Transmitter (4)
Frequently Asked Questions
This is designed for intermediate to advanced pilots. Whilst the 80% pre-assembly saves time, you'll still need mechanical knowledge to complete the build and tune the adjustable suspension and differentials effectively.
You'll need a 2-channel radio, ESC, motor, high-torque steering servo, LiPo batteries with XT90 connectors, a battery charger, AA batteries for the transmitter, glue for the tyres, and paint for the unpainted clear body shell.
The Hobao arrives 80% pre-assembled with the chassis, CNC aluminium parts, full ball bearing set, shocks, differentials, suspension components, body shell (unpainted), wheels, and tyres with foam inserts already fitted or included.
At 1/8 scale, it measures 460mm long, 308mm wide, and 180mm tall with a 325mm wheelbase, making it a medium-sized RC buggy suitable for most gardens and outdoor spaces.
You'll need a LiPo battery with a single XT90 plug connector; the maximum dimensions are 137mm wide × 49.5mm deep × 49mm high. Consult the manual or supplier recommendations for voltage and capacity guidance specific to your chosen motor and ESC.
