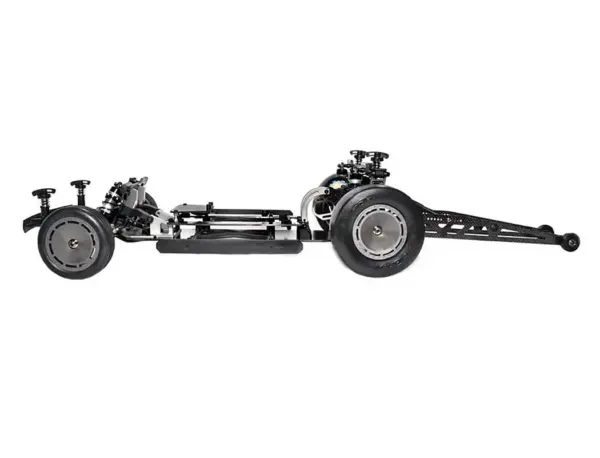

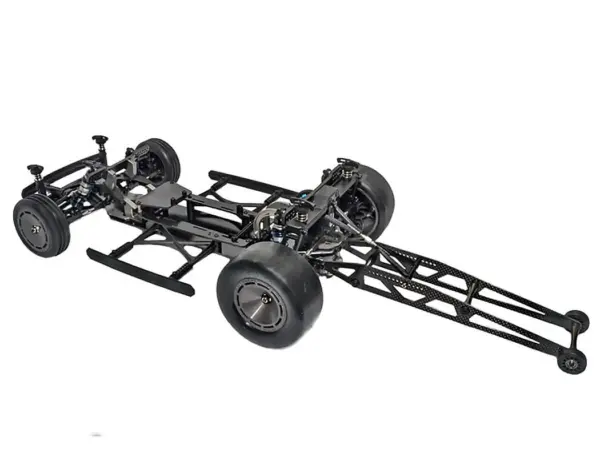

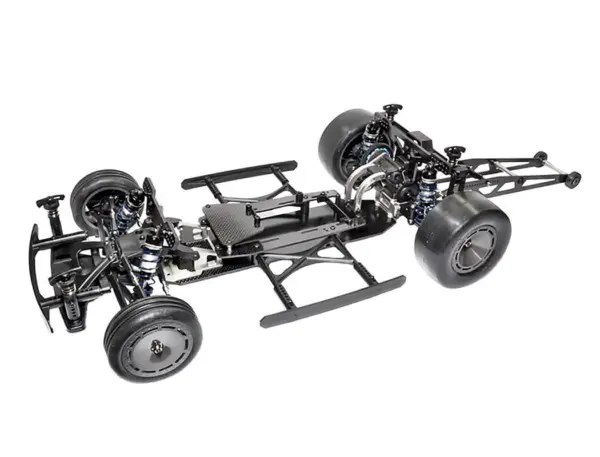

HOBAO HYPER EX10 1/10 2WD DRAG CAR PRO ARR W/O BODY,ELECTRICS

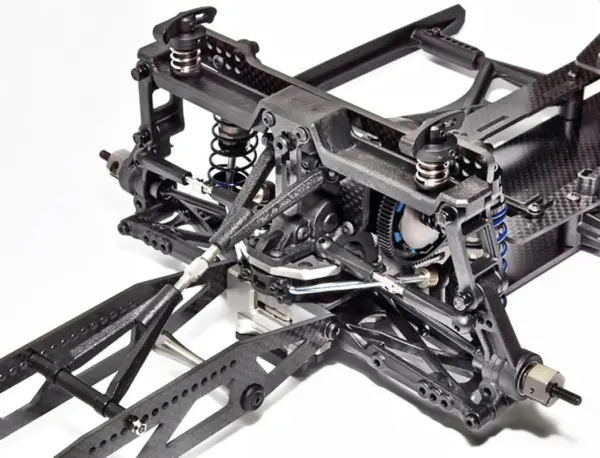

The HB-EX10 features a lightweight and rigid design which is made up of lots of carbon fiber and hardened anodized aluminium alloy parts in the overall structure for strength and overall weight reduction. The 3 gear Mid-Motor 3 gear box offers increased stability, traction and handling.
FEATURES

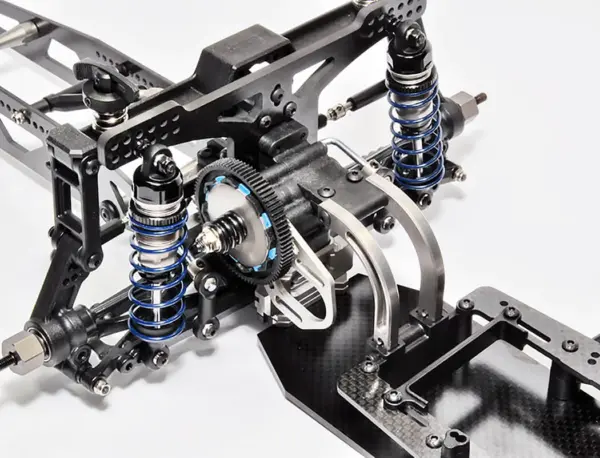

- Mid-motor 3 gears design
- Lightweight and rigid design

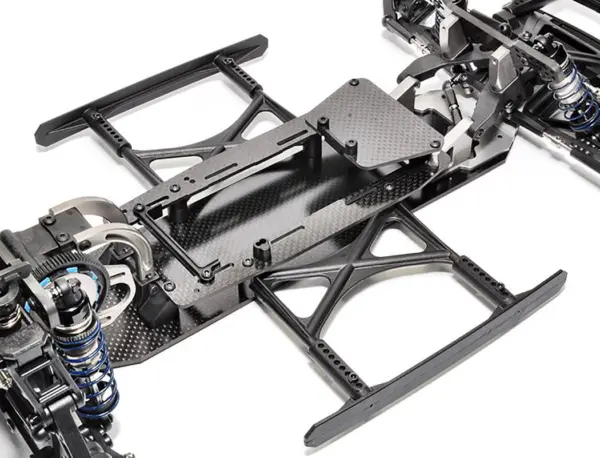

- 3mm carbon fiber chassis and 4mm carbon fiber front/rear towers
- All metal gear transmission with hardened steel shaft
- Heavy duty metal sealed gear differential with 500K silicon oil

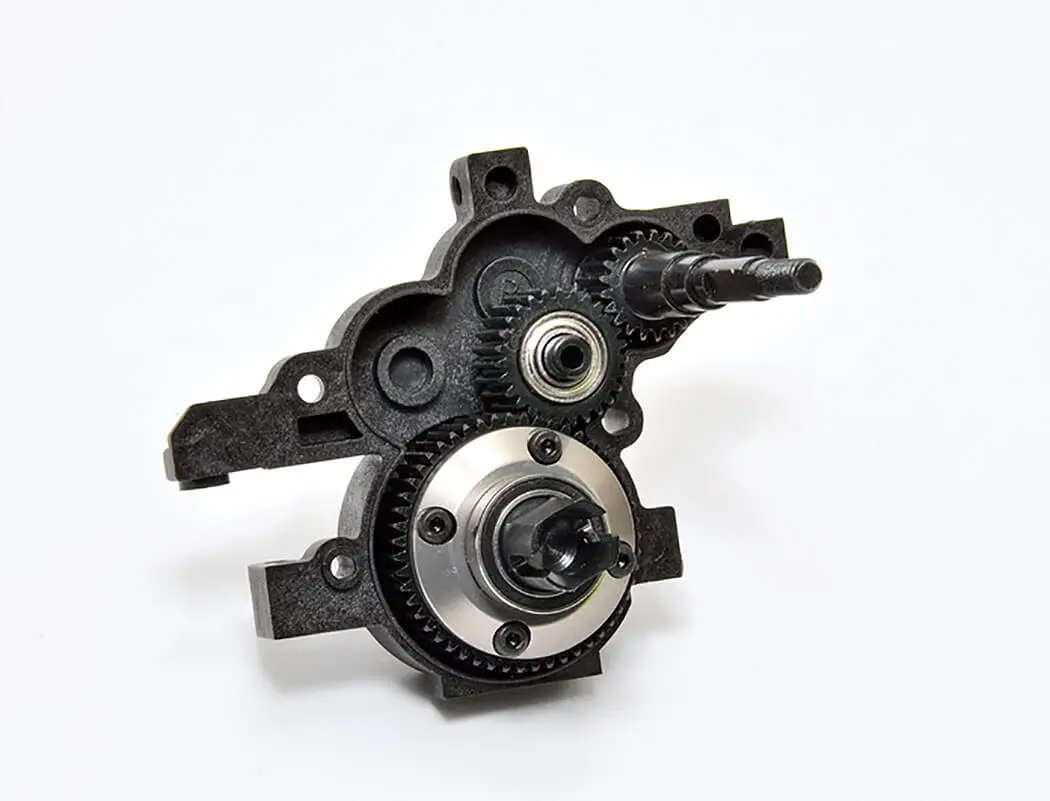

- High strength steel 3 gear transmission design (27T Idler gear, 51T Diff housing gear and 21T lay-shaft gear)

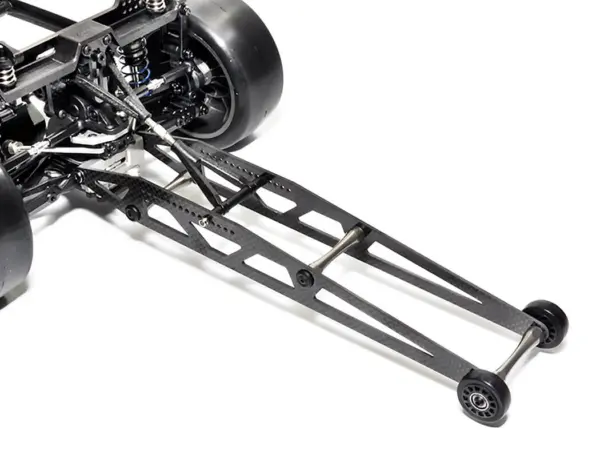

- 280mm long wheelie bar set with Carbon fiber arm and CNC Aluminum standoffs
- Height adjustable and fine-tuned, Tension arms with adjustable turnbuckles (Allows shock mounting of H40059 or H40125)
- Rear floating body mount set
- 3mm rear sway bar

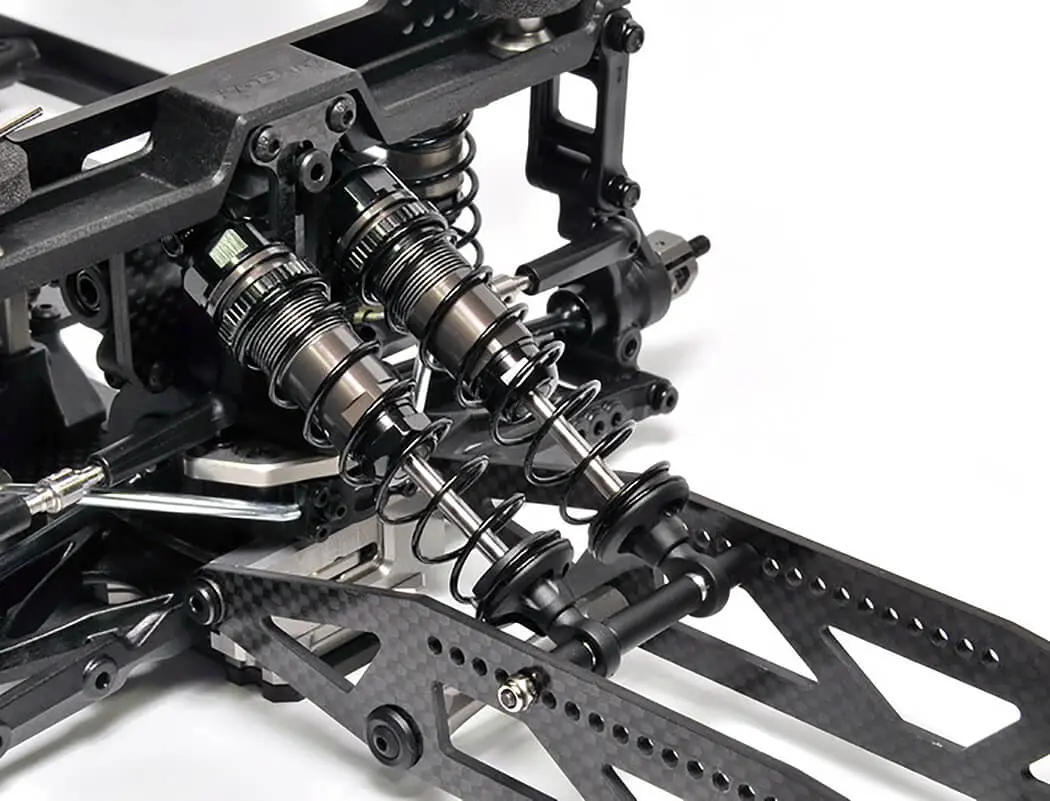

- 12mm big bore aluminium shock with silicon oil (soft front springs/hard rear springs)

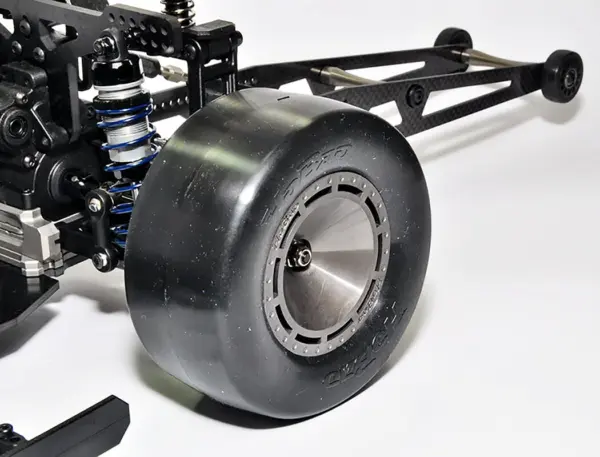

- Soft belted rear tire, 2.2”/3.0” made from natural rubber- IIR
- Front wheels with 26mm rubber tyres

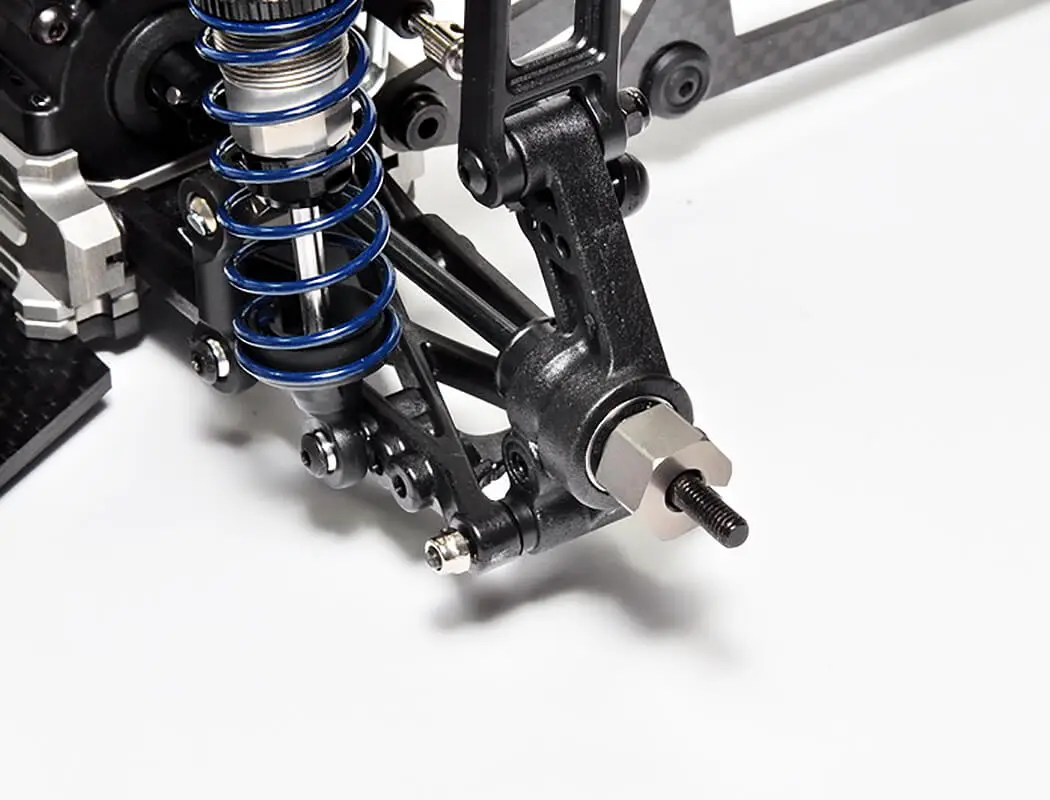

- 10.5mm thick rear wheel hex

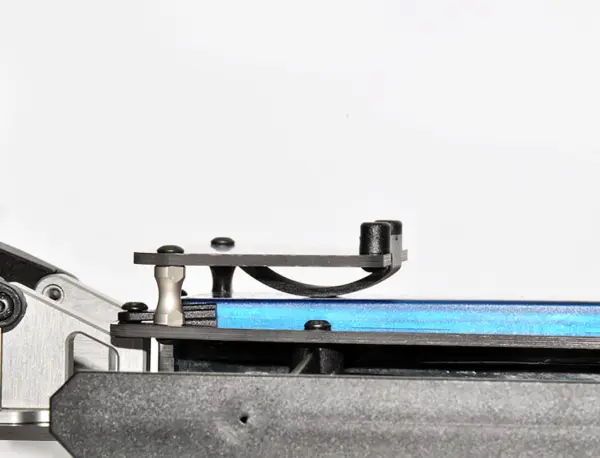

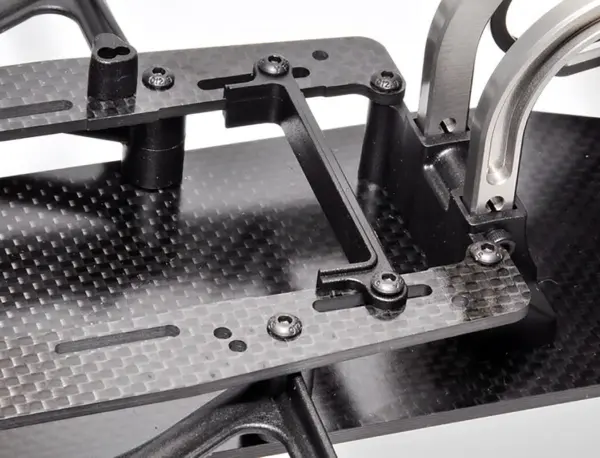

- Adjustable Carbon fiber battery mount set allows for fine-tune the battery position
- Spur gear 84T, Optional 94T-48P (Optional part HOP1-0059)

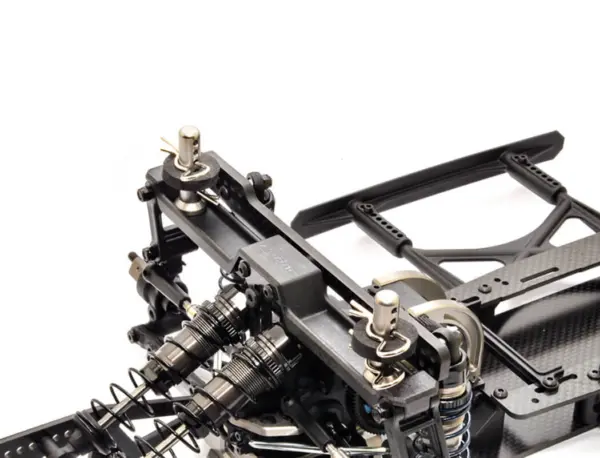

- Adjustable body support for front and side
- New design quick release body post

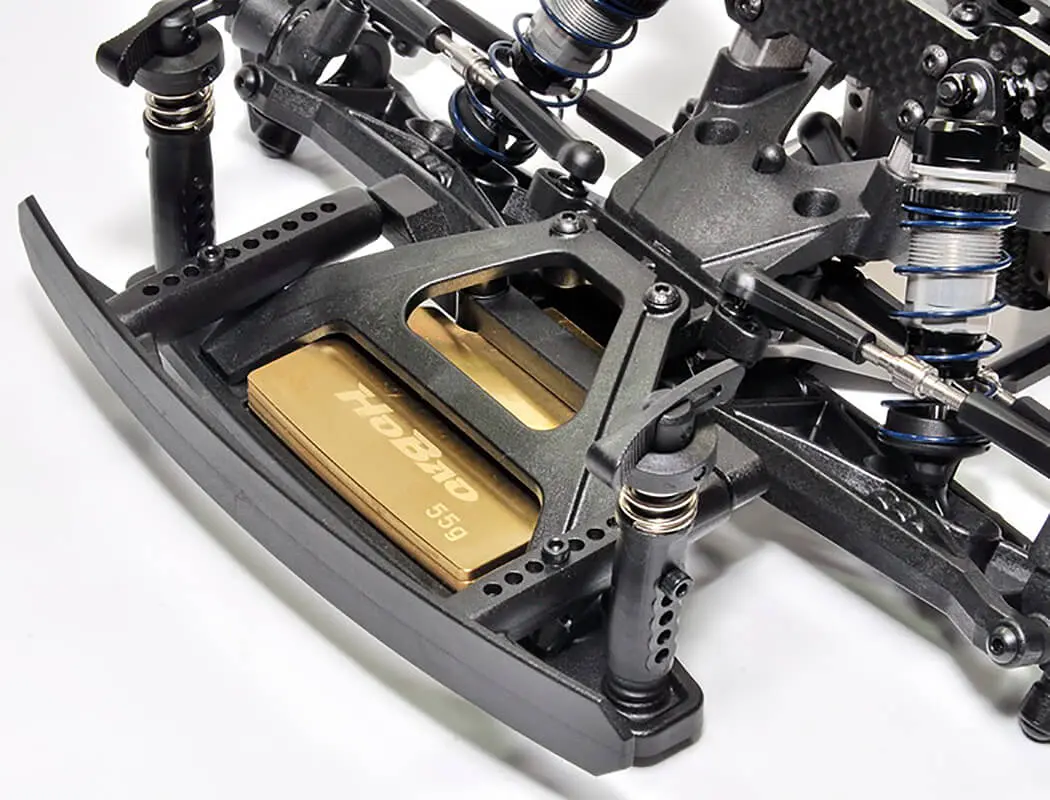

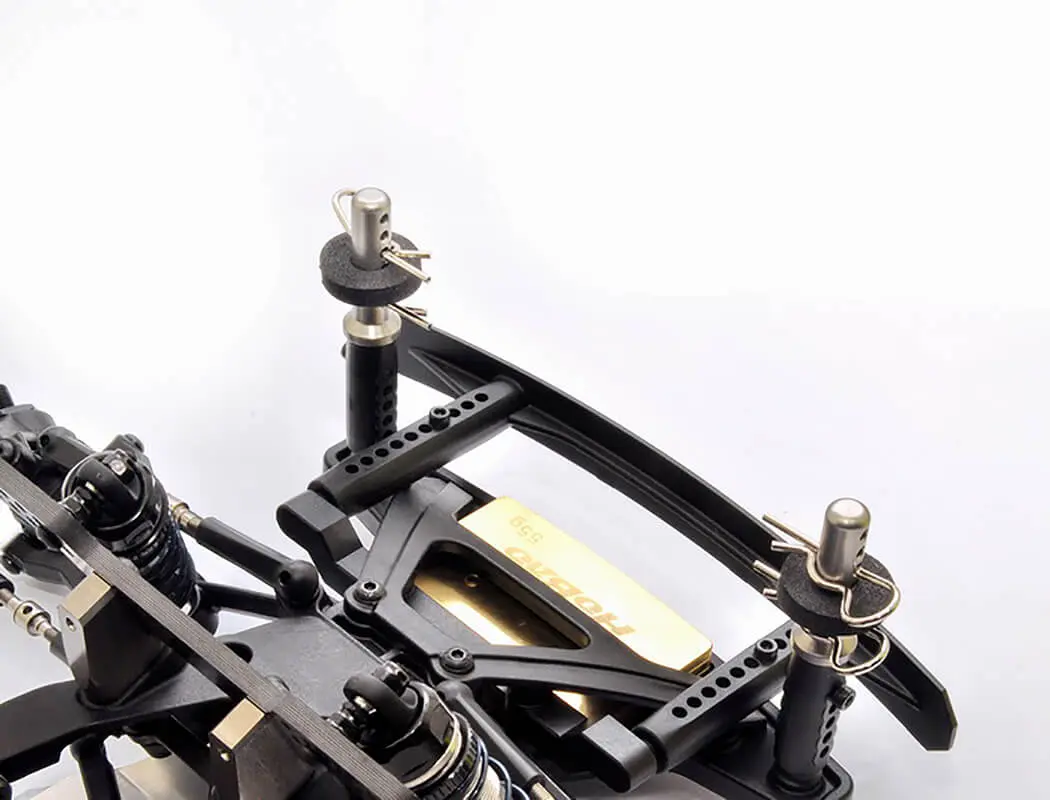

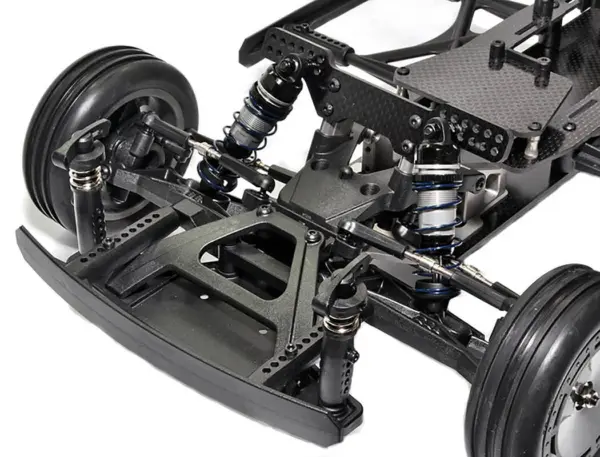

- New front bumper with weight adjustment (Optional part HOP1-0060)
SPECIFICATIONS
Power Source: Electric
Terrain: On-Road
Body Style: Drag
Scale Size: 1:10 Scale
Assembly Level:ARR*
Length:750mm
Width: 275mm
Wheelbase: 345mm
Weight:1400g
Drive: 2WD
* This vehicle comes Almost Ready to Run but requires electronics/motor and other items.
REQUIRED TO COMPLETE
- 1:10 scale electric motor
- Electronic speed control
- Pinion gear
- 2S LiPo battery
- Battery charger
- 2-channel surface transmitter
- 2-channel receiver
- Steering servo
- Body and paint
Frequently Asked Questions
This is an ARR drag car designed for experienced racers; it requires assembly of electronics, motor installation, and tuning knowledge such as adjusting suspension and battery positioning. If you're new to RC, you may want to start with a fully assembled RTR (Ready To Run) model first.
You'll need to source a 1/10 scale electric motor, ESC (electronic speed control), pinion gear, 2S LiPo battery, battery charger, 2-channel transmitter and receiver, steering servo, and a body with paint. The chassis and drivetrain are included.
The Ex10 is 750mm long, 275mm wide, and has a 345mm wheelbase—roughly the size of a large shoe box. It's designed as a 1/10 scale on-road drag car, so it suits indoor tracks or dedicated drag venues rather than open terrain.
The mid-motor 3-gear transmission improves stability and traction, while the lightweight carbon fibre chassis and metal differential keep weight down for better acceleration. The adjustable suspension, 280mm wheelie bar, and fine-tuned tension arms allow you to dial in performance for competitive drag racing.
It uses a 2S LiPo battery (you'll need to purchase this separately). Exact charge times depend on your charger's output and battery capacity—check your charger's manual for specific timings once you've chosen a battery.
