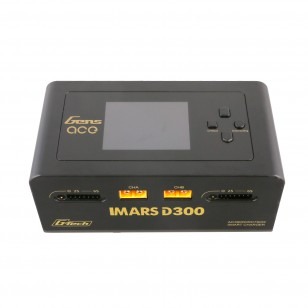

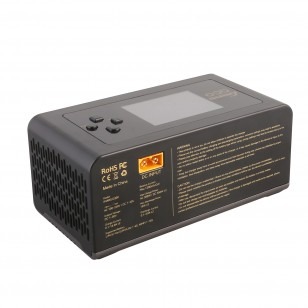

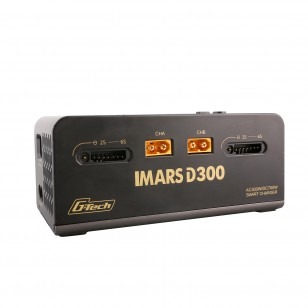

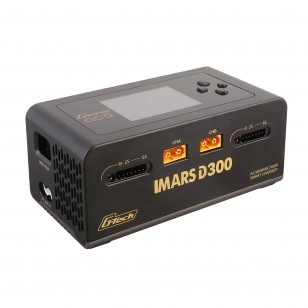

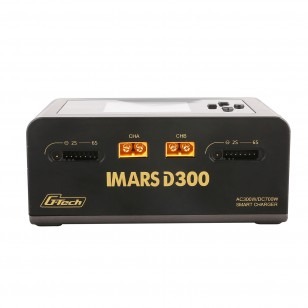

Gensace Charger Imars D300 Dual Channel 300w (Eu) Black

Description

Description
The iMars D300 Charger is a versatile and intelligent charger that supports both charging and discharging. As a member of G-Tech Eco; iMars D300 Charger is designed specifically for the G-Tech smart battery; but is also compatible with non-smart batteries.

When a G-Tech smart battery is connected to the iMars D300 charger; the charger will automatically identify the battery type; voltage through the smart balance connector; and charging current recommended by the battery manufacturer. For non-smart batteries; it is necessary to manually select the battery type and the required working mode to get started.

The iMars D300 Charger offers a range of features; including dual channel AC/DC smart balance charging; a small and lightweight portable design; a wide-view IPS display; and high power charging.

The charger has seven operating modes: charge; discharge; balance; storage; ExtDischarge; SyncCharging; and digital power supply. It offers simple to use and operation.

Features:
Dual Channel AC/DC Smart Balance Charger.
Small & Lightweight Portable Design with wide-view IPS Display.
High power charging; capable of Max 16 Amp charge rates for one channel; worldwide 100V-240V voltage versatility; AC 300 Watts; DC 700 Watts.
External discharge feature available.
Synchronous output; 2-in-1 Fast-charging.
Built-in DC power source for different devices.
Controlled heat dissipation system.
Advanced safety features; UL94-V0 Flame Retardant Grade.
Protection of Short circuit / Over current / Overcharge / Over voltage..
Support Gens Ace G-tech smart charging.

Specifications:
Input Voltage: AC 100-240V; DC 7-30V
output Voltage: DC 1~30V
Max. Input Current: DC 34A
Max. Discharging Power: 15W*2
Maximum Charging Power: AC 300W; DC 350W*2
Charge Current: 0.1-16A*2
Discharge Current: 0.1~3A*2
Cell Balancing: 1~6s
USB Output: 5V / 2.4A
Display Type: 2.4 inch IPS LCD Display
Supported Battery Chemistry: LiPo/ LiHV/ LiFe 1~6S;NiMH 1~16S
Dimensions: 145x76x62 mm
Product Net Weight: 530g

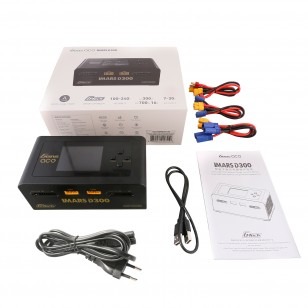

Accessories Included: AC Input Cable / XT60-T adapter / XT60-EC5 adapter / XT60-EC3 adapter
