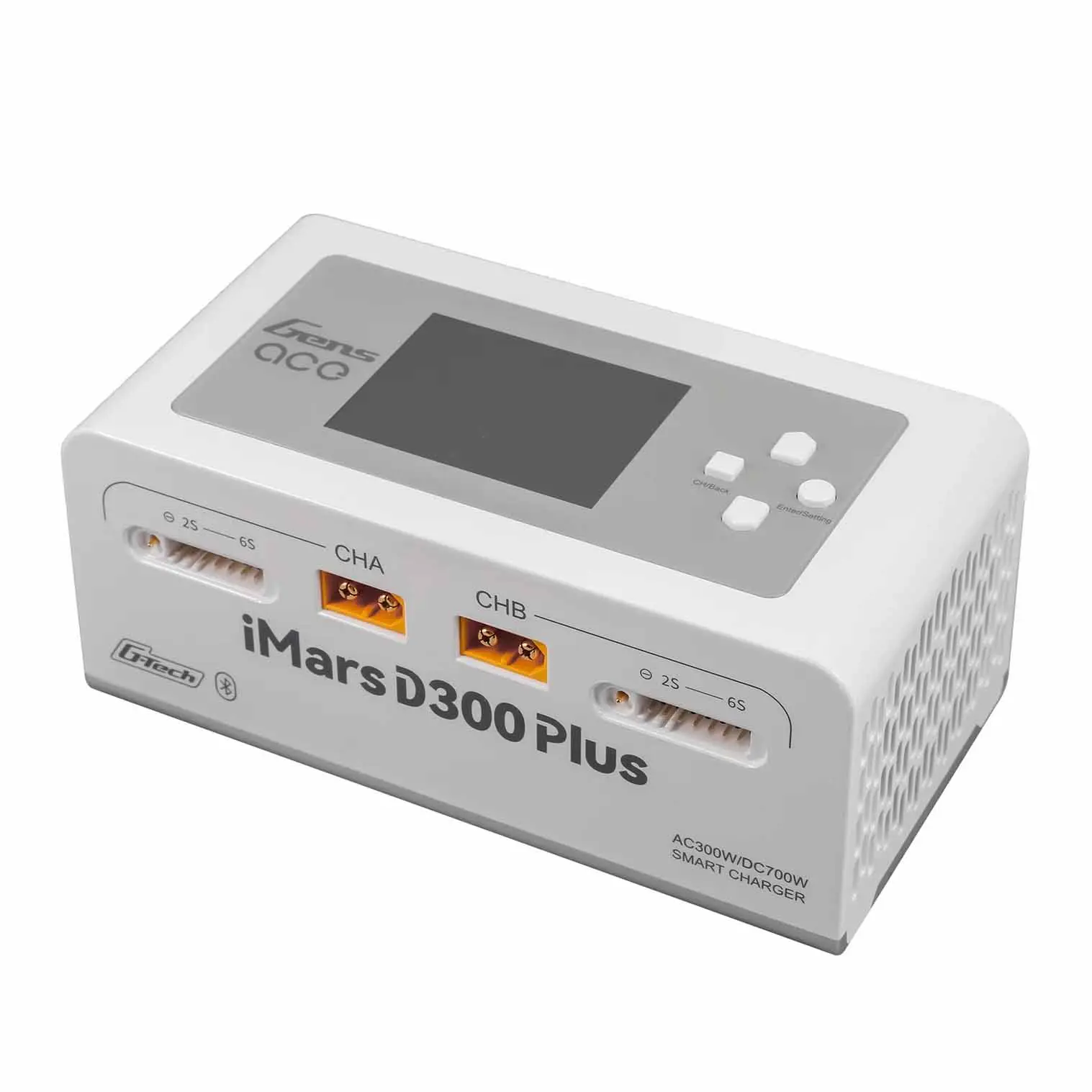

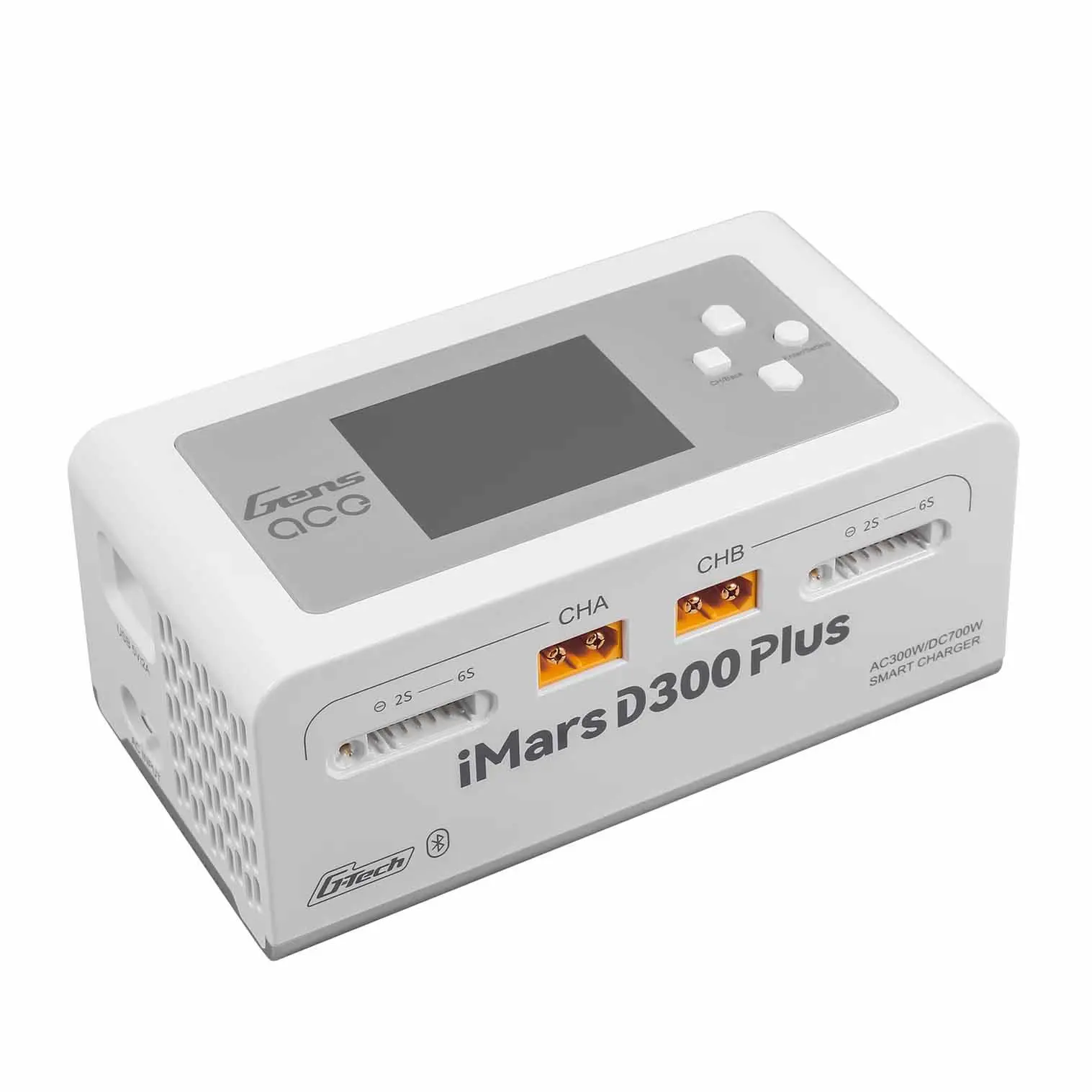

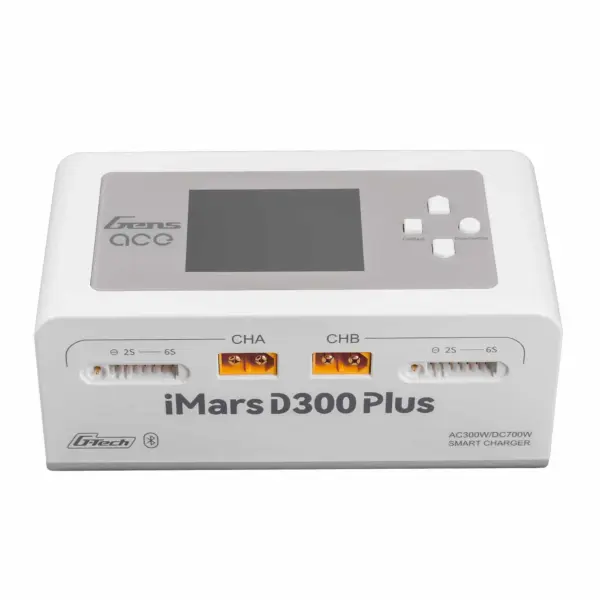

Gensace Charger Imars D300 Plus Dual Channel (Eu) White

Description

Description
The Gens Ace iMars D300 Plus is a new dual-channel smart charger based on the D300. It keeps the core features of the G-Tech system and adds Bluetooth remote control. RC enthusiasts can now use the Gens Ace app to manage and view more real-time data and historical records, making the experience simpler, more efficient, and safer.

Key Features
AC 300W / DC 700W High Power

Control it remotely via the app

Plug and play

Automatic Recognition of G-Tech smart batteries

Data Record and Storage

8-Level Protection

7-function

Compact and lightweight

Built-in power

Easy plug & unplug

IPS display

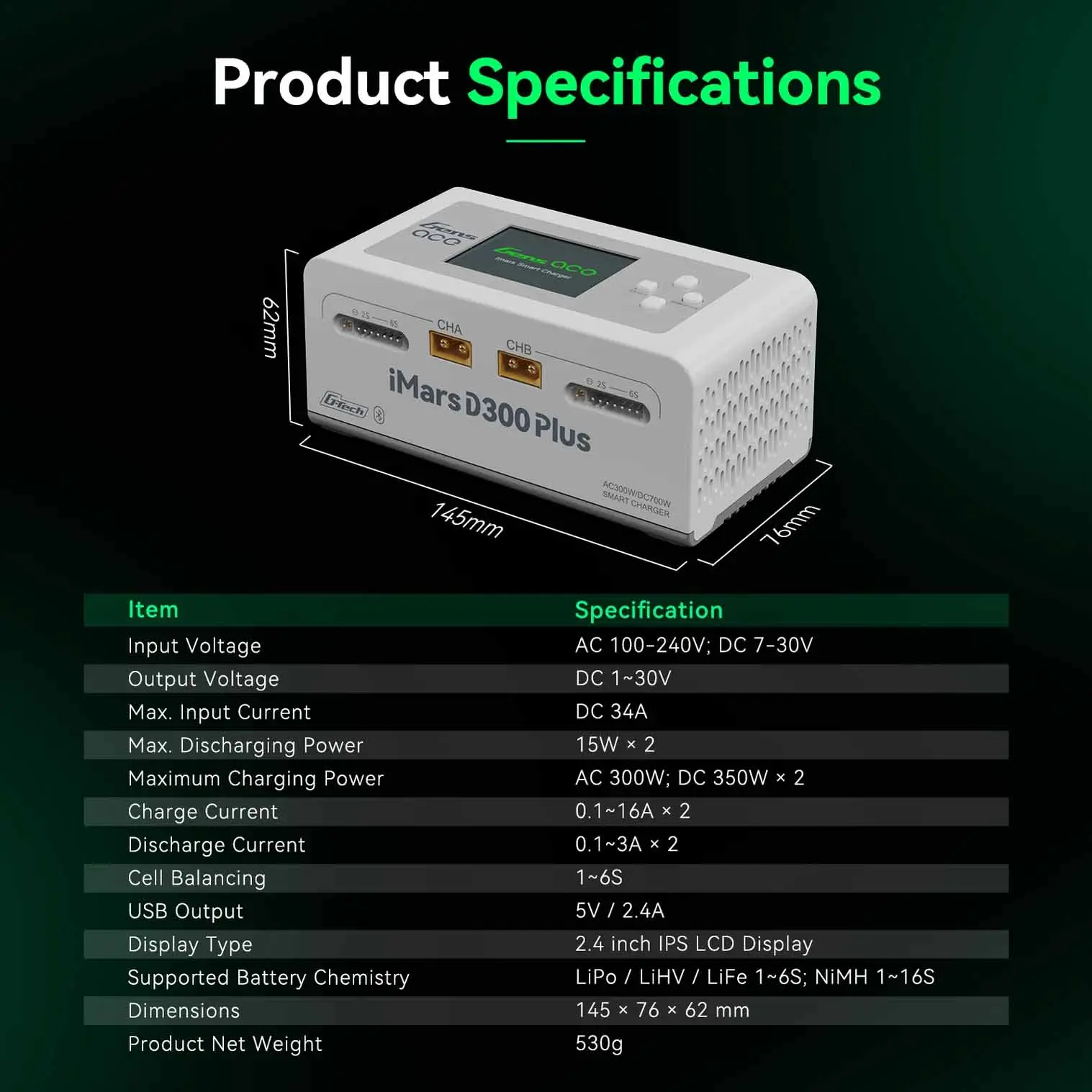

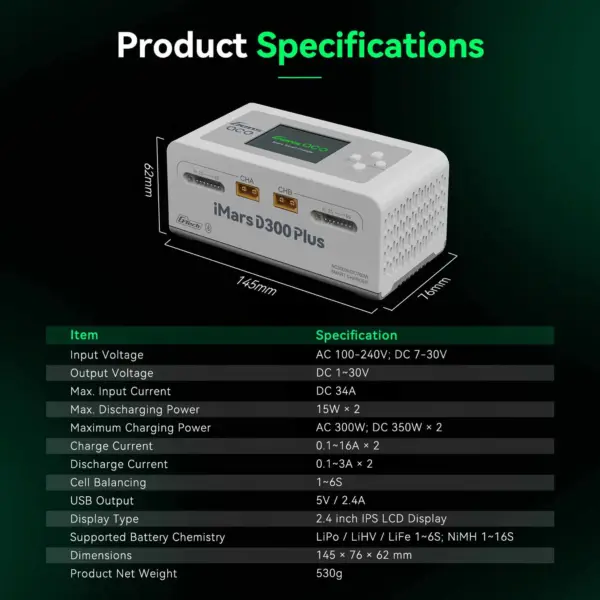

Specifications
Input Voltage: AC 100–240V / DC 7–30V
Output Voltage: DC 1–30V
Max Input Current (DC): 34A
Max Charging Power: AC 300W / DC 350W ×2
Charging Current: 0.1–16A ×2
Discharge Current: 0.1–3A ×2
Discharge Power: 15W ×2
Supported Batteries:
LiPo / LiHV / LiFe: 1–6S
NiMH: 1–16S
Cell Balancing: Supported (1–6S)
Display: 2.4-inch IPS LCD
USB Output: 5V / 2.4A
Dimensions: 145 × 76 × 62 mm
Weight: Approx. 530g
Languages: English, German, French, Chinese, Simplified Chinese

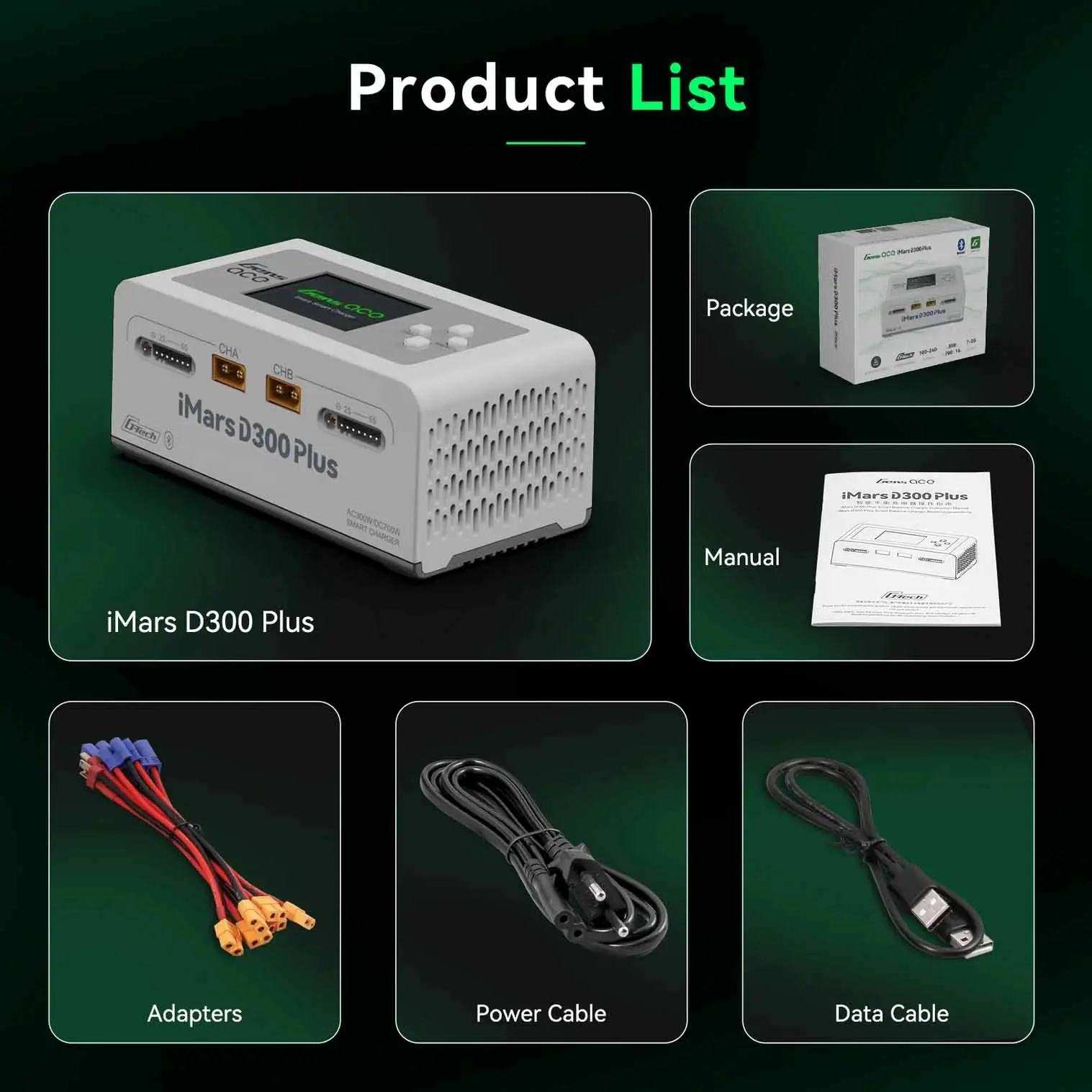

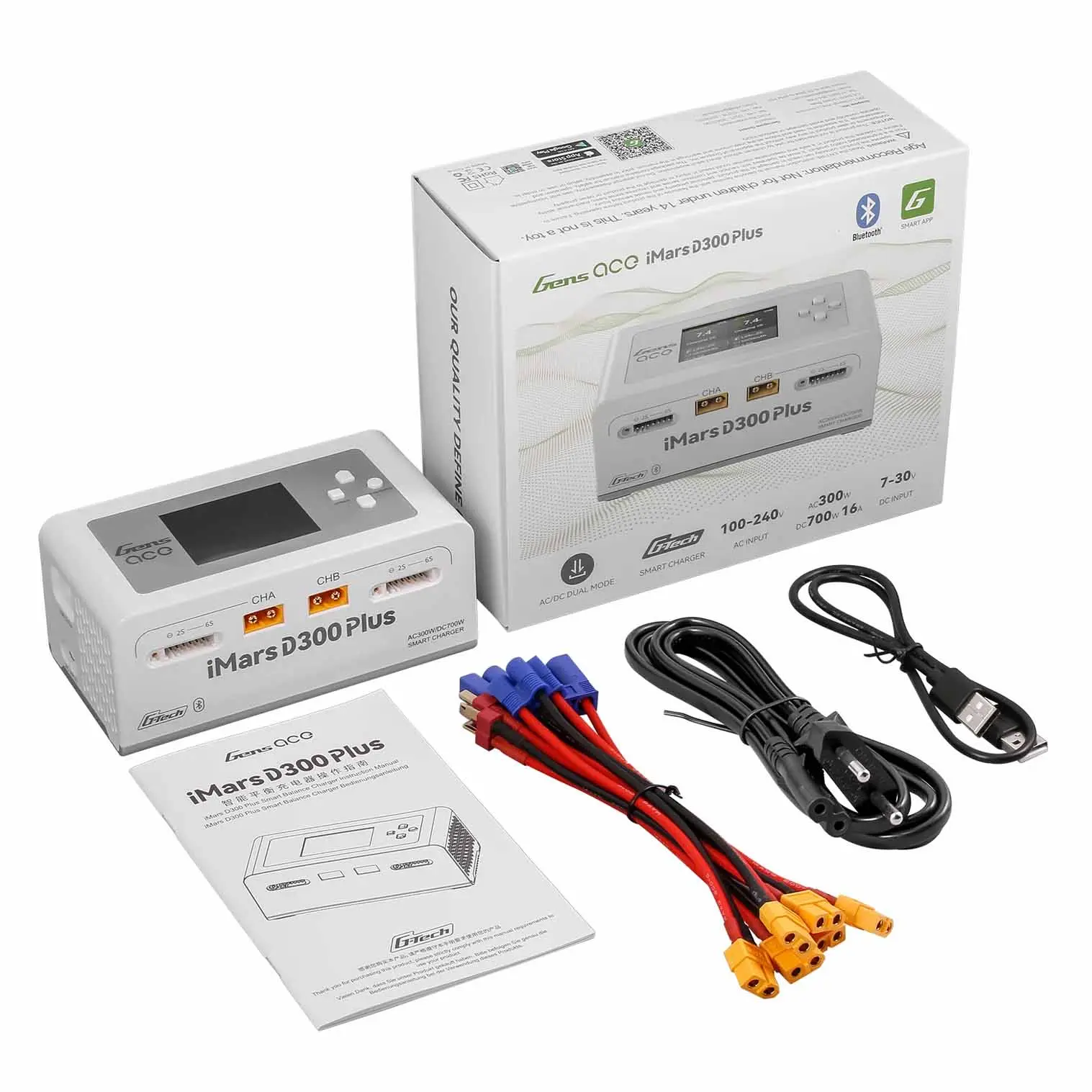

Included Accessories: AC cable, XT60-T / EC5 / EC3 adapters

Control via App

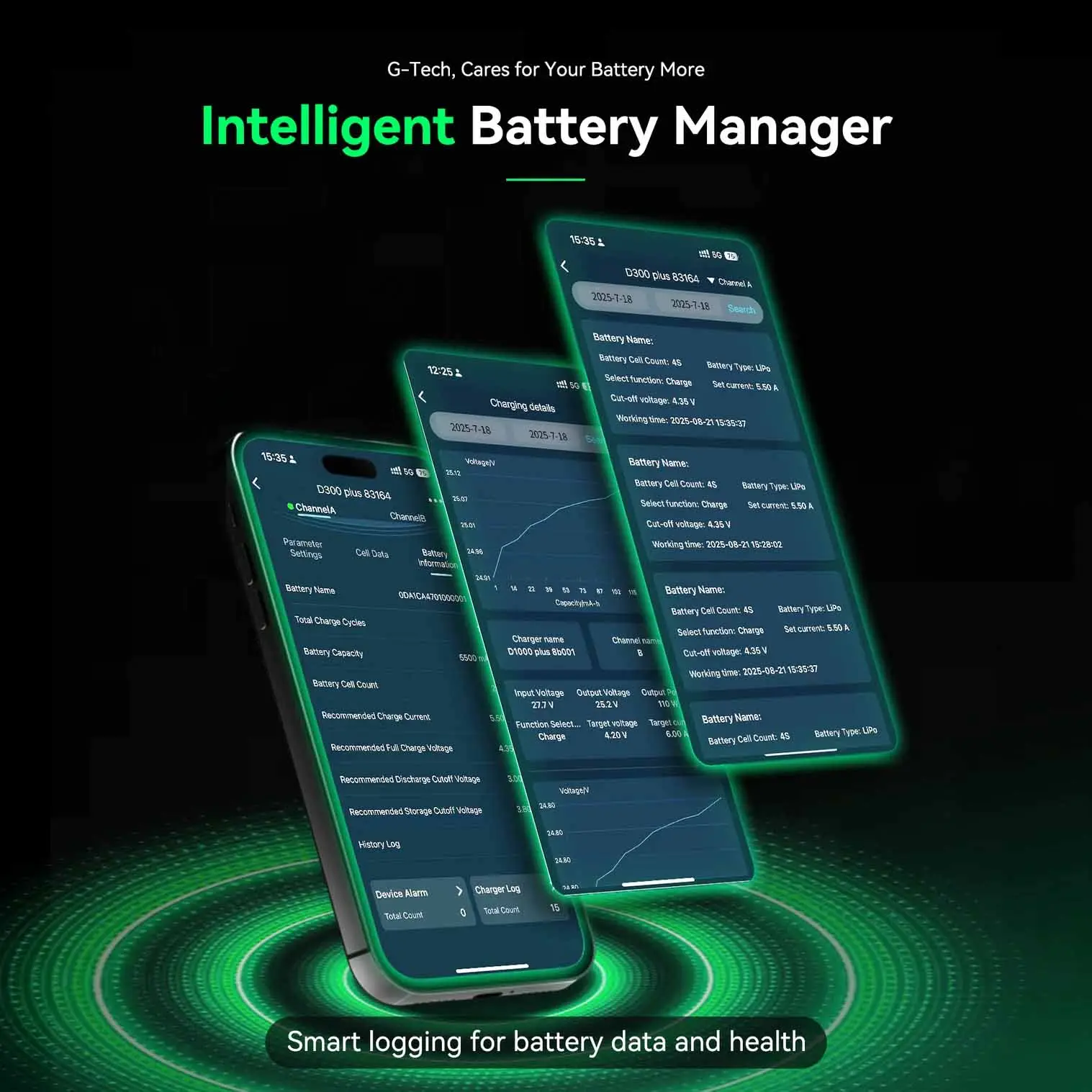

The Gens Ace App goes beyond remote control of the D300 Plus—it seamlessly integrates with the G-Tech Smart System. Users can access detailed real-time data and historical records anytime, ensuring simpler operation and full visibility of battery health.

G-Tech

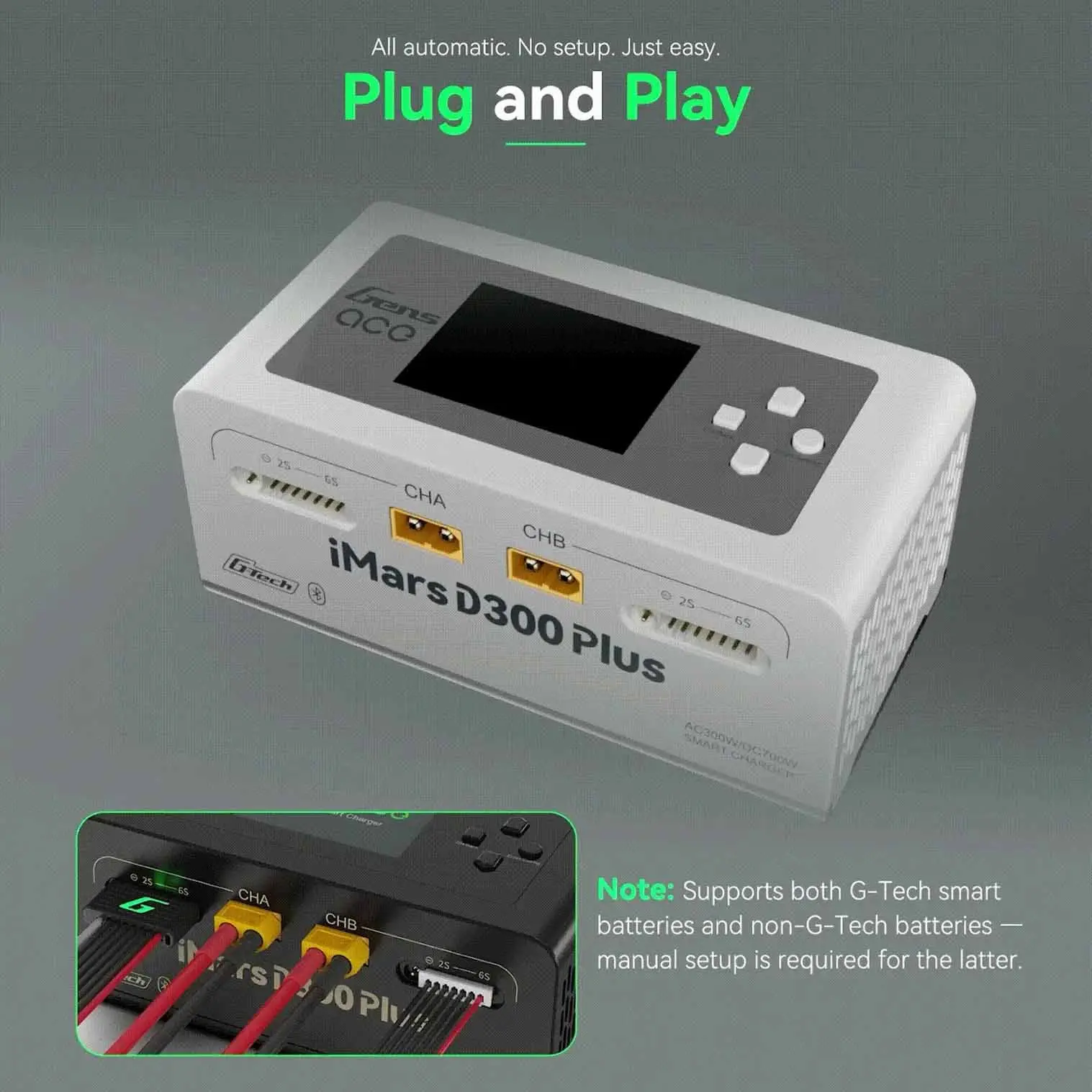

Plug and Play – Automatically detects battery type and parameters—starts charging instantly with no setup required.
Automatically identifies battery parameters to avoid setup errors and achieve smarter, more efficient management.
Note: Supports both G-Tech smart batteries and non-G-Tech batteries — manual setup is required for the latter.

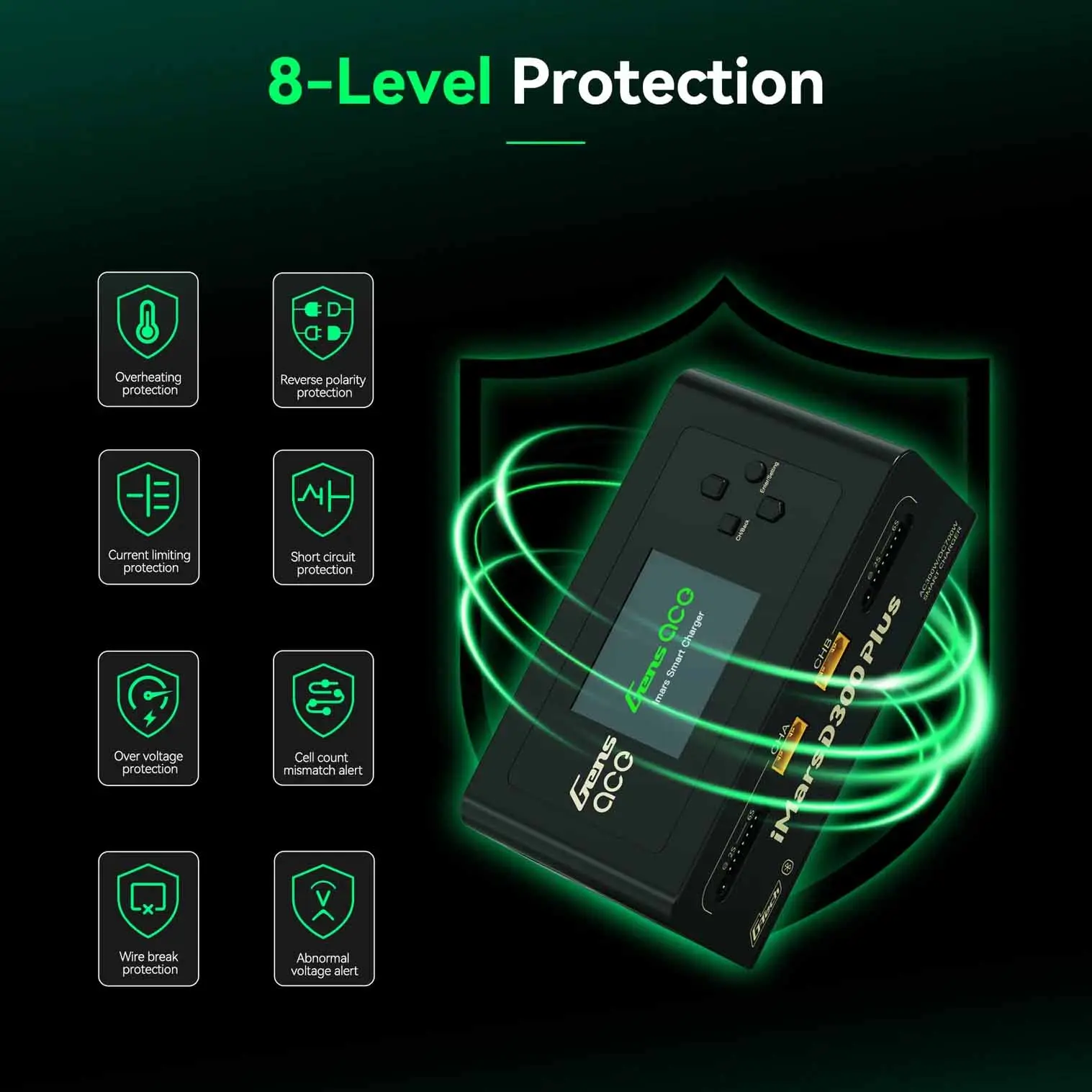

8-Level Protection
Overheating Protection
Current Limiting Protection
Over Voltage Protection
Wire Break Protection
Reverse Polarity Protection
Short Circuit Protection
Cell Count Mismatch Alert
Abnormal Voltage Alert
Versatile Operating Modes
Charge
Discharge
Storage
Balance
2-in-1 Fast Charge
External Discharge
Digital Power

Manual

iMars D300 Plus Firmware V1.0.5
