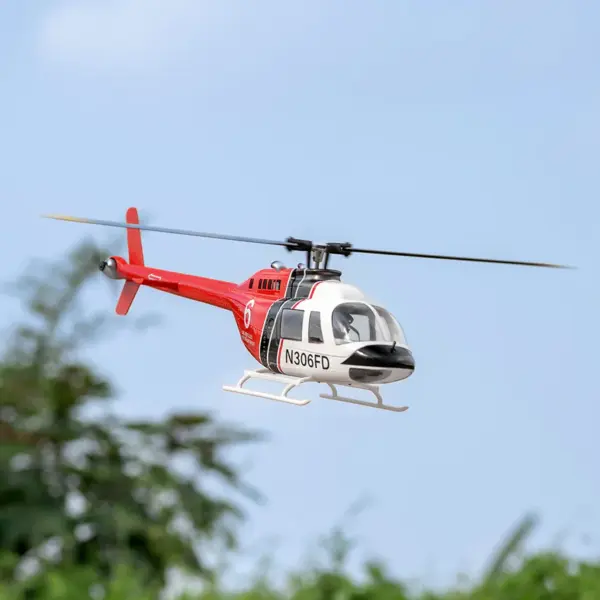

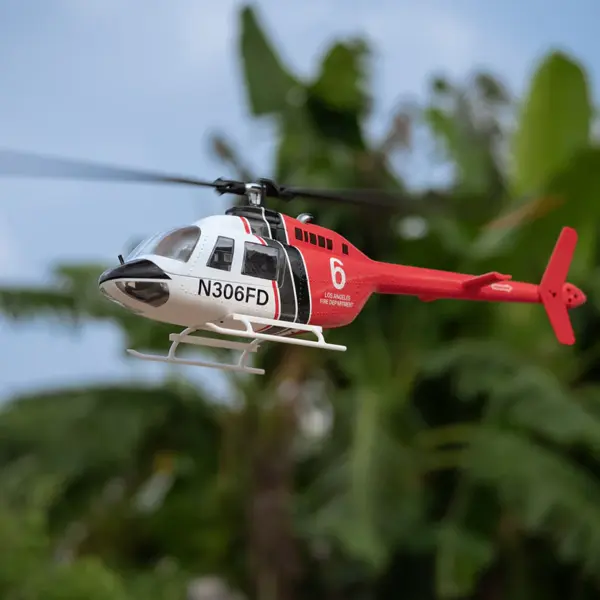

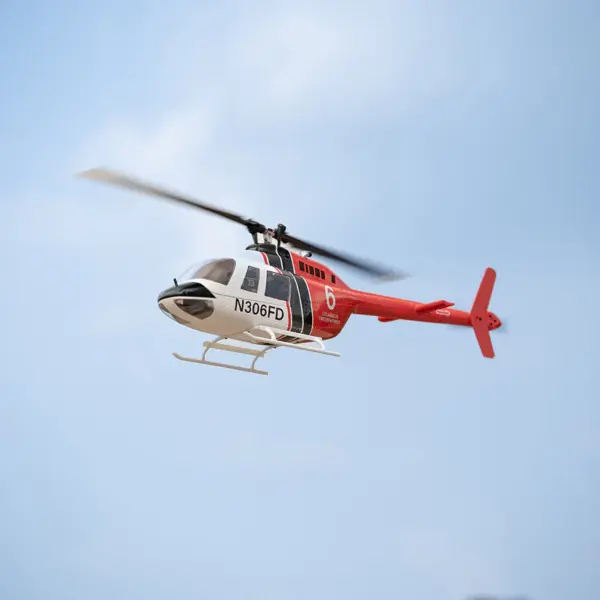

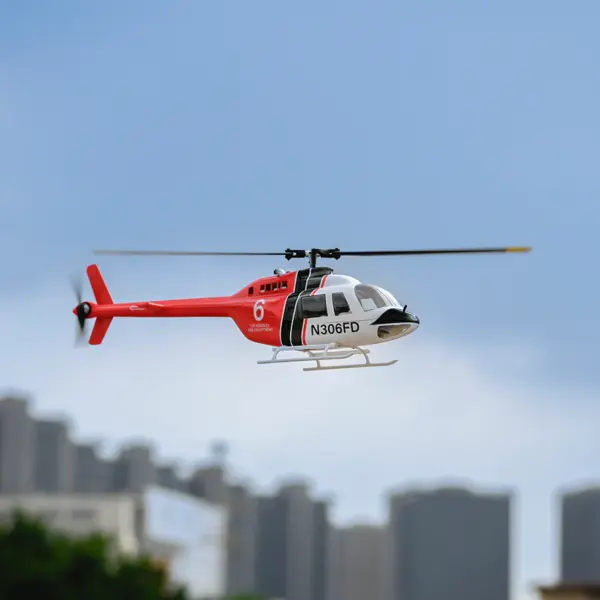

Bell 206 V3 GPS Stabilized 6CH RC Helicopter
Product Overview
The Bell 206 is a family of two-bladed, single- and twin-engined helicopters, originally designed for the United States Army’s Light Observation Helicopter program. Although it was not selected by the Army, Bell successfully redesigned and marketed the aircraft commercially as the Bell 206A JetRanger. Now available in a scaled RC version with cutting-edge GPS stabilization, experience the thrill of precise flying with advanced features and reliable performance.
Product Features
- High-precision remote control with a range of up to 1 km.
- One-key return and low-power return for added safety.
- M10N GPS system for stable flight and easy hovering.
- Auto mode with circular flight capabilities.
- Modular design for easy maintenance and quick battery replacement.
- Tail high-speed brushless motor for enhanced performance.
Specifications
| Feature | Specification |
|---|---|
| Length (without blades) | 720mm |
| Height | 235mm |
| Width | 150mm |
| Weight (exclude battery) | 869g |
| Main rotor diameter | 810mm |
| Main rotor length (one) | 370mm |
| Tail rotor diameter | 125mm |
| Gear specification | Motor main gear: 13T, Main drive gear: 81T, Tail drive motor: Brushless motor |
| Motor | 3508 Brushless motor |
| ESC | 60A |
| Flight mode | GPS Mode, 3D Manual Mode, Low voltage return, Semi-automatic assisted flight |
| Satellite positioning module | GPS/GLONASS/Galileo |
| Hovering precision | Level: ±1.5m, Vertical: ±0.5m (when GPS is working well) |
Flight Experience
The Bell 206 V3 is equipped with the latest M10N positioning system and a high-precision IMU for attitude calculation. The barometer ensures smooth hovering and flight, making it easier to control, even for beginners. Experience the flight precision similar to drones with effortless hovering and automatic flight mode.
Safety Features
This model includes one-key return and low voltage return for safer flights. If the power reaches a low set value, the helicopter will automatically return to its takeoff point and land safely, provided there is enough reserved power.
Power Configuration
Equipped with a 16V brushless motor and optimized ESC, this model provides greater flight efficiency and an impressive flight time of over 20 minutes.
Frequently Asked Questions
Yes. The Flywing Bell 206 V3 is a larger RC helicopter in the 500-750 class, which means it almost certainly exceeds 250g in weight. You'll need to register with the UK Civil Aviation Authority and obtain your Flyer ID before operating it. Registration costs £9 and is valid for three years. You should also complete the online theory test to understand airspace rules and safety requirements.
The GPS stabilization and 6-channel control make this helicopter more accessible than traditional models, but it's best suited to pilots with some RC experience. Larger helicopters like this require smooth stick inputs and good spatial awareness to fly safely. If you're completely new to RC helicopters, starting with a smaller indoor trainer or a simpler model is advisable, then progressing to this one once you're confident.
This is an outdoor RC helicopter that requires a large, open space away from people, buildings, and obstacles. A sports field or flying club site is ideal. You'll need at least 100 metres of clear space in all directions to operate safely and to recover the helicopter if you lose control. Always check local airspace rules and seek permission from landowners before flying.
