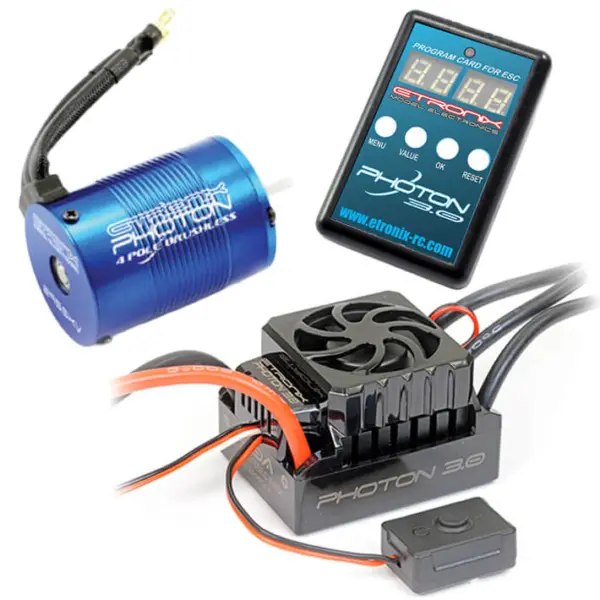

Etronix Photon 3.0 50a Esc / 9.0r 4350kv Motor Combo

£86.99
In Stock — ships today
SKU ET0443 Category RC Motor & ESC combo
🚚 Calculating…
24hr or 48hr delivery — choose at checkout ✓ Free delivery on orders over £129.99

What our customers say

A selection of recent five-star reviews from Trustpilot, as written.

  • Ordered flishrc cobra. Communication was great. Ordered larger batteries but they were the wrong size. Olly shipped the right batteries and gave a refund for the difference I paid. Couldn't ask for more. Thanks for the help with the order.

    Robert, 22 September 2026

  • Very helpful when the vehicle I wanted wasn't in stock. Very fast deliver too.

    Anna Abbott, 17 September 2026

  • Excellent service speedy delivery and good customer service

    GLYN, 10 September 2026

  • Great product and service. I enjoy buying from these guys. Thanks to radio-controllled.co.uk.

    Paul Jordan, 3 September 2026

  • Dealt with customer services over an order I accidently placed, they were prompt and dealt with it will, completely refunded within a small window of time, thanks!

    Oliver Galustian, 23 July 2026

  • Really good online rc store with some great products and sales on. The owner is very knowledgeable as well.

    Simon, 19 July 2026

  • Product delivered promptly and in excellent condition 👍had very helpful and prompt responses from Olly to all my questions, I will definitely be using them again 👍

    Mark Clucas, 30 January 2026

  • The customer service and advice were first class!

    Steve Avery, 9 September 2025

  • The seller knew I was after one and very kindly informed me when they came back into stock so now have a Flywing Bell 206. Fantastic bit of kit. Well worth the wait.

    Pete Goddard, 15 April 2025

  • Great service, car arrived fast and really well packaged. Also, I had a little problem....(which turned out to be me doing it wrong) but someone replied the same evening! Will definitely be buying from them again.

    Graham Rousseau, 10 February 2025

Read all 237 reviews on Trustpilot
🚚 Calculating…
24hr or 48hr delivery — choose at checkout ✓ Free delivery on orders over £129.99

About this product

Unlock the convenience and performance of brushless technology with the 50A Photon 3.0 Sensorless Waterproof System. Designed for easy setup and offering a range of sensible KV-rated motors for most 1/10-scale off-road applications, the 50A Photon 3.0 is the ideal upgrade from a stock brushed system or the perfect starting point for your first brushless build. Whether you’re running a 1/10-scale buggy, truggy, short-course, or stadium truck, the Photon 3.0 delivers reliable power, smooth throttle control, and exceptional value.

With the included programmable setup card (ET0106), you can finely tune sixteen different ESC parameters to perfectly suit your driving style and setup.

ESC Specifications

  • 2-3S LiPo or 5-10 Cell NiMH/NiCd
  • BEC Output: 6V/3A
  • Motor Type: Sensorless brushless motor
  • Max Continuous Current: 50A
  • Burst Current: 300A
  • Program By: ET0106 only
  • Waterproof: Yes
  • Dimensions: 48x38x32mm (without fan)
  • Weight: 95g

Adjustable Parameters

  • Throttle Response – 1 ms to 3 ms
    The shorter the time, the quicker the acceleration.
  • Coast – Off, 10 to 30
    When this function is activated, the car will not slow down immediately but will coast for a short distance when the throttle input is reduced.
  • Neutral Range – 5% to 12%
    The wider the neutral range, the further the throttle trigger or stick must be moved from the neutral point before the car begins to move.
  • Minimum Throttle – 5% to 16%
    The higher the value, the more aggressive the initial acceleration when moving the throttle trigger or stick away from the neutral range.
  • Maximum Forward Force – 40% to 100%
    The lower the value, the slower the maximum speed in the forward direction.
  • Maximum Reverse Force – 40% to 100%
    The lower the value, the slower the maximum speed in the reverse direction.
  • Brake Response – 0.1 ms to 3 ms
    The shorter the time, the quicker the braking response.
  • Minimum Brake Force – Off, 15% to 50%
    After entering braking mode, the higher the value, the stronger the brake force when moving the throttle trigger or stick away from the neutral range.
  • Maximum Brake Force – 50% to 100%
    The lower the value, the weaker the maximum braking force.
  • Forward Drag Brake Force – Off, 20% to 100%
    This is the braking force applied when the throttle trigger or stick is at the neutral position in forward mode. The lower the value, the longer the car will coast.
  • Reverse Drag Brake Force – Off, 20% to 100%
    This is the braking force applied when the throttle trigger or stick is at the neutral position in reverse mode. The lower the value, the longer the car will coast.
  • Motor Rotation – CW or CCW
    This controls the direction in which the motor spins. Depending on the installation, the default setting may cause the motor to run in the opposite direction. This function allows users to reverse the motor direction if needed.
  • Running Mode – 3 Options
    The three running modes are: Forward/Brake, Forward/Brake/Reverse, and Forward/Reverse.
  • Reverse Mode – Available only when the running mode is set to Forward/Brake/Reverse
    Two options are available: One Shot (pull the throttle trigger or stick once) and Two Shots (quickly pull the throttle trigger or stick twice).
  • Cut-Off Voltage – Off or Auto
    When set to Auto, the ESC automatically detects the number of LiPo cells when powered on. Use the Off setting for NiMH cells only.
  • Thermal Protection – Off, 95 °C or 105 °C
    The ESC will automatically stop operating when its internal temperature exceeds the selected threshold.
