DumboRC 16-Channel Receiver "P16MRP" 2.4GHz (P16MRP)

DUMBORC P16MRP 16-Channel Receiver ‘ 2.4 GHz RC Receiver with Telemetry & USB Simulator Function

The DUMBORC P16MRP is a powerful, versatile 16-channel RC receiver designed for maximum precision and range. Whether you’re flying an RC car, boat, tank, or mech’thanks to support for SBUS, PPM, and serial signal processing ‘this compact receiver integrates seamlessly into modern flight controllers and control systems.

With a range of up to 2,000 meters (line of sight) and built-in voltage telemetry (1’60V) , you maintain full control over your model and battery status at all times.

Highlights at a Glance

• 16 Channels & Long Range: Up to 2.0 km of stable signal transmission in the reliable 2.4 GHz ISM band.
• Integrated Voltage Feedback (1’60 V): Transmits real-time battery voltage directly to the display of your DUMBORC remote control.
• Flexible USB connection: Use the receiver directly on your PC as a USB game controller for RC simulators or for hassle-free firmware updates.
• Wireless & Wired Mode: Even allows you to connect third-party remote controls to your PC.

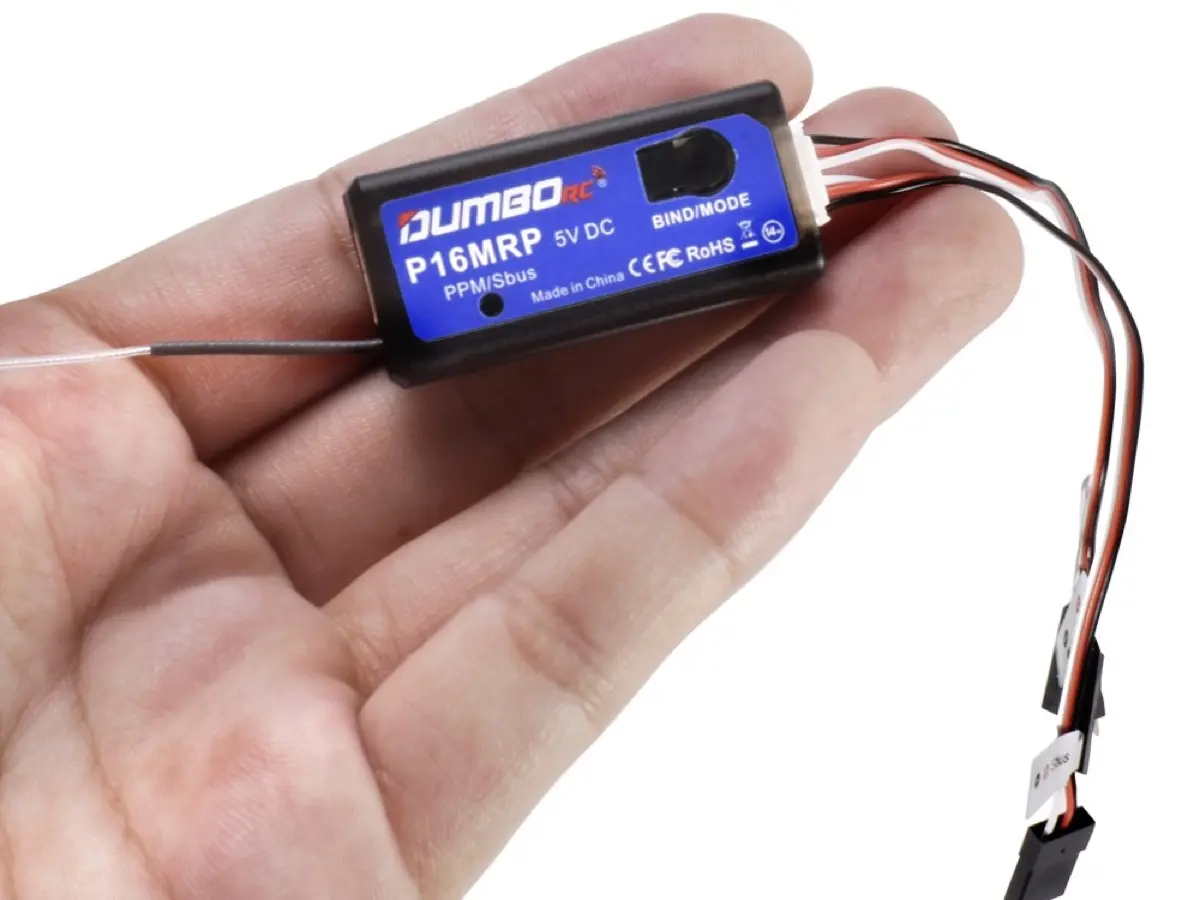

• Compact & Lightweight: Weighs only 5.6 grams’ideal even for space-constrained builds.
• Maximum Compatibility: Works with all DUMBORC transmitters.

Versatile Modes & Easy Operation

With its multifunctional pairing button, the P16MRP offers intuitive control options right on the module:

• Easy Pairing: Hold down to pair (a steady green light indicates a connection).
• Fail-Safe / Protection in Case of Signal Loss: A short press activates the built-in fail-safe protection.
• Mode Switching: Pressing three times quickly switches between wireless and wired modes .
• USB Simulator & Serial Mode: Plug it in and use it on your PC as a controller for model aircraft or driving simulators.

Status LED Overview

The two-color status LED always shows you the exact current operating status:

Wireless mode (green LED):

• Steady green: Successfully connected to the transmitter
• Slow flashing: Signal lost (fail-safe active)
• Fast flashing: Pairing mode active

Wired mode (red LED):

• Solid red: Connected to an external SBUS/PPM signal
• Slow flashing: No external signal detected

Package Contents & Connection Tips

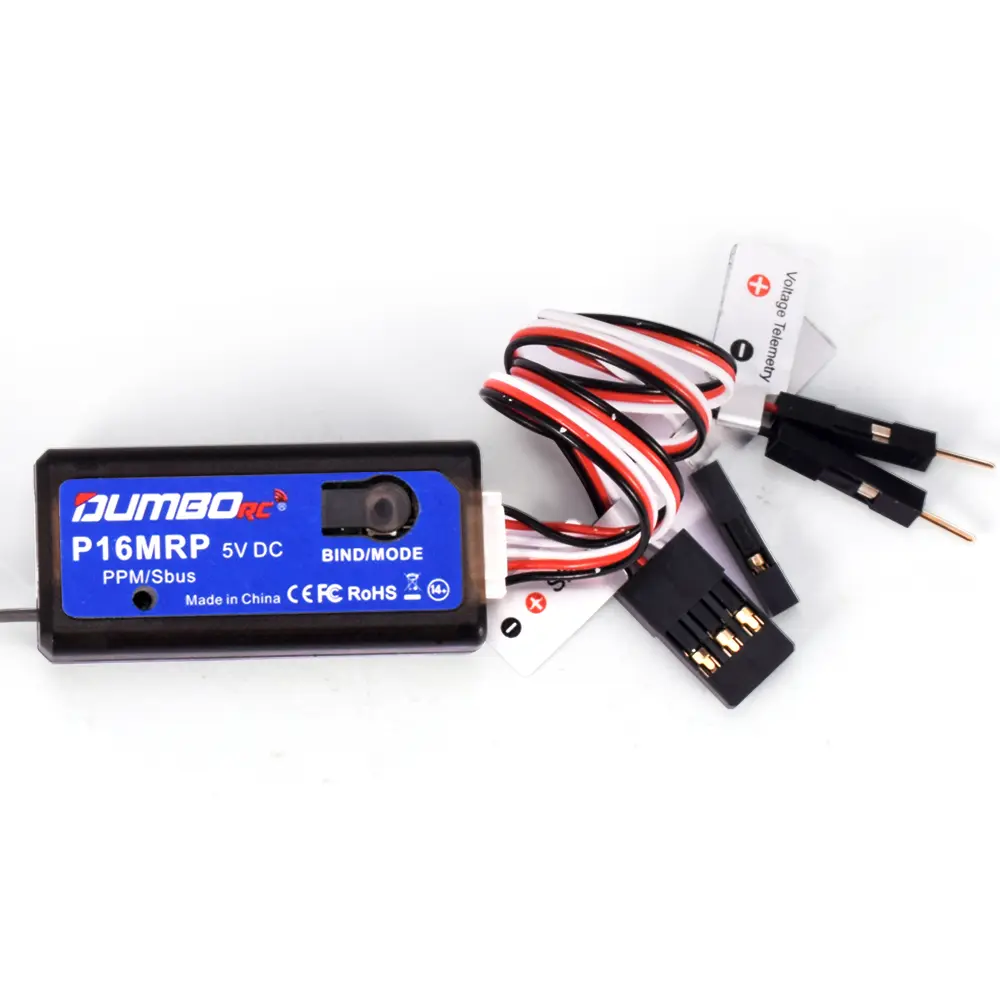

The P16MRP connects directly to your flight controller or model control unit. For voltage feedback, simply connect the included feedback cable to the positive and negative terminals of your power or balance battery (1’60 V).

TECHNICAL SPECIFICATIONS:

Dimensions: 38 × 18 × 10 mm

Weight: 5 g

Channels: 16 channels

Operating voltage: 5V DC

Operating current: 45’70 mA at 5V

Telemetry voltage range: 1’60 V (battery feedback via balancer connector)

Range: 2,000 m (line of sight)

Antenna length: 90 mm

Signal output: PPM/SBUS/Serial

Output frequency: 2.4-GHz ISM band (2400 MHz to 2483.5 MHz)

Wireless simulation function: Supported

Compatibility: All DumboRC remote controls

Applications: RC cars, boats, tanks, mechs, flight controller setups

<div

DUMBORC part number P16MRP, EAN 4250650969356.
