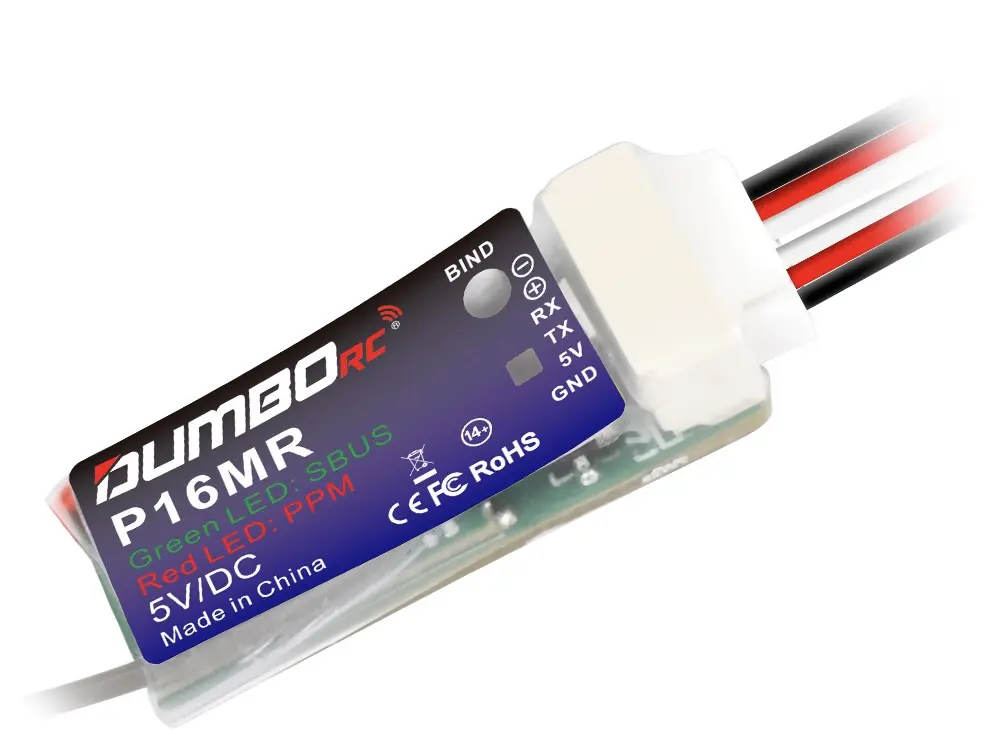

DumboRC 16-Channel Receiver "P16MR" 2.4GHz (P16MR)

P16MR 16-Channel RC Receiver (2.4 GHz) ‘ Ultra-Lightweight & 2,000 m Range

The P16MR 16-channel receiver is the perfect choice for discerning RC modelers looking for reliable, ultra-lightweight, and long-range signal transmission. Weighing just 2 grams and featuring compact dimensions, this receiver fits easily into almost any model’from drones and FPV copters to RC cars, boats, and tanks.

Thanks to its universal SBUS and PPM output signals , the P16MR connects effortlessly to standard flight controllers. Plus, the built-in real-time telemetry (voltage feedback) ensures you can always keep an eye on your model’s battery level right on your remote control.

Highlights & Features

• 16 channels & 2.4 GHz ISM band: Interference-free connection for maximum precision.
• Long range: Up to 2,000 meters range with direct line of sight.

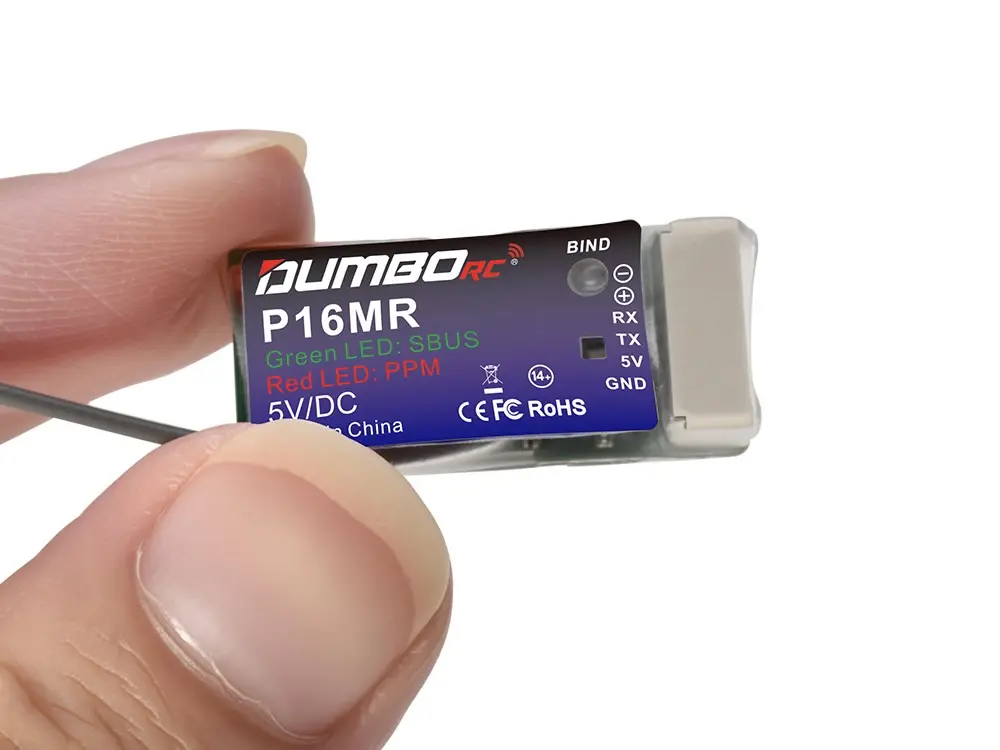

• Ultra-compact & lightweight: Weighs only 2 g with dimensions of 27 × 13 × 7 mm.
• Dual Mode (SBUS / PPM): Easily switch between modes depending on the flight controller you’re using.
• Integrated Telemetry (1’60 V): Read the battery voltage directly on the remote control’s display.
• Maximum Compatibility: Perfectly matched to all DumboRC remote controls.
• Future-Proof: Firmware updates can be easily performed via PC.

User Manual & Configuration

1. Switching Between SBUS and PPM

Press the pairing button 4 times in quick succession to change the receiver’s output signal. The LED indicates the current status:

• Red indicator light: PPM mode active
• Green indicator light: SBUS mode active

2. Failsafe (Protection in case of loss of control)

• Press the pairing button once briefly to activate the failsafe protection. This causes the model to move to a predefined safety position in the event of signal loss.

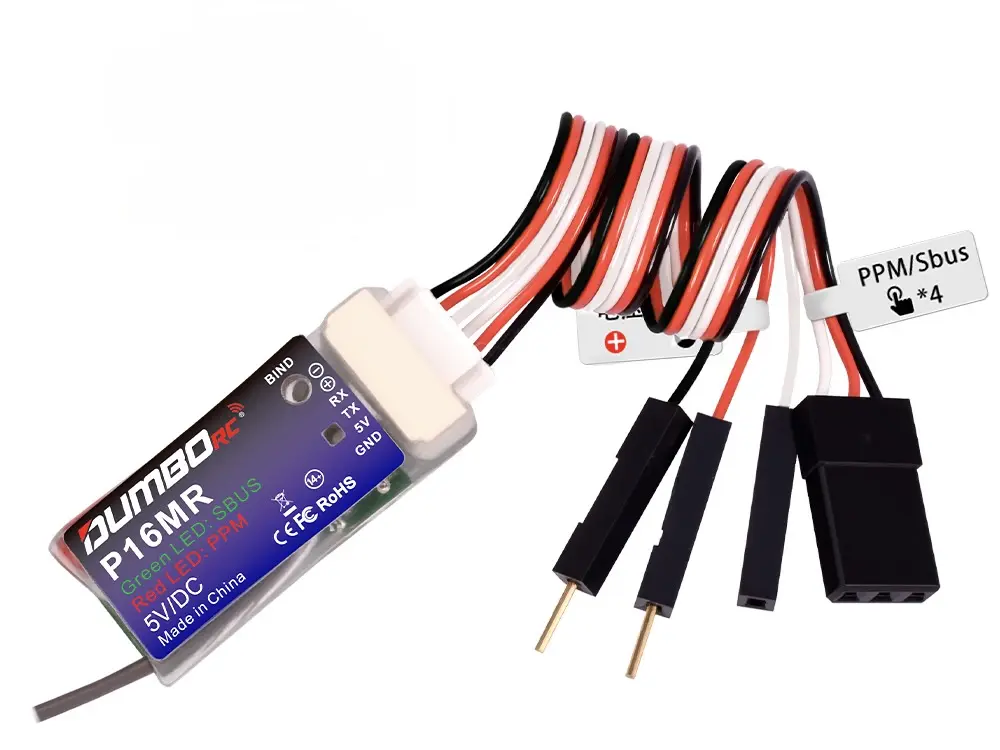

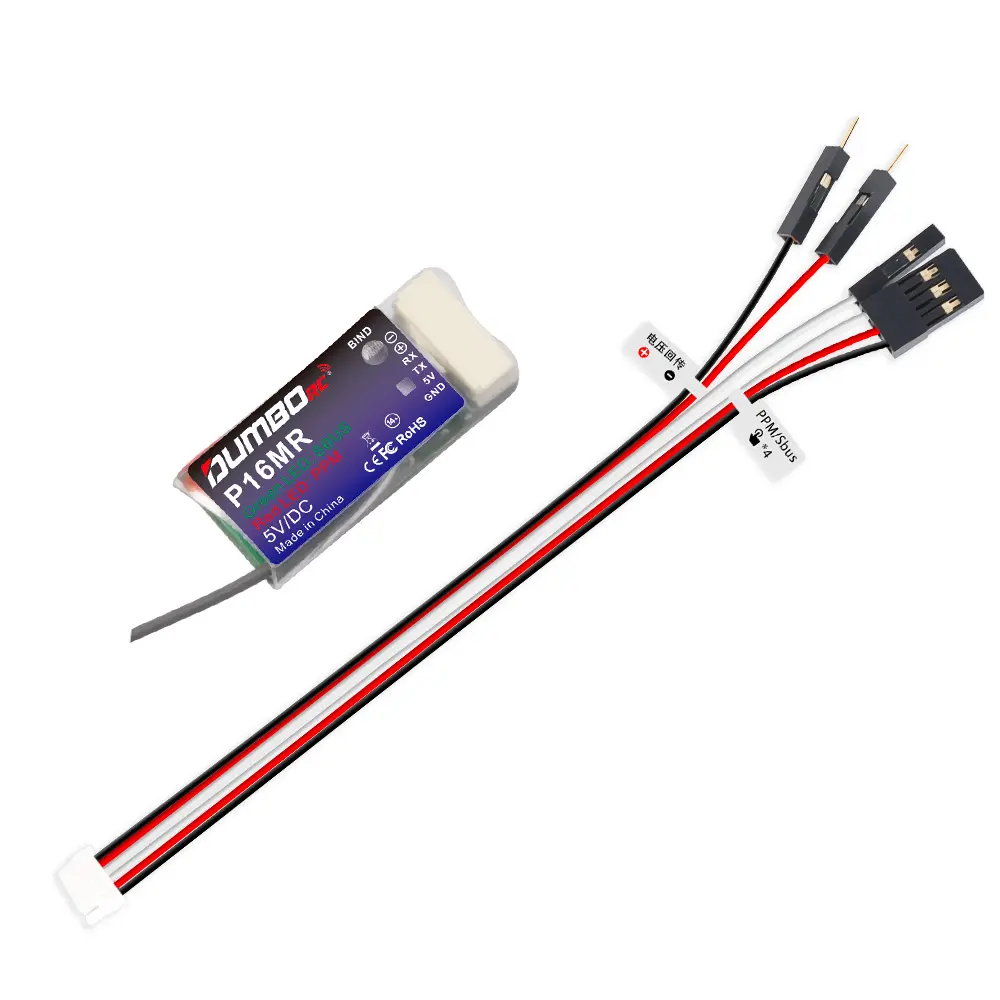

3. Connecting the Voltage Feedback (Telemetry)

The receiver supports direct battery voltage feedback from 1 to 60 V :

• Connect the positive (+ / red) and negative (‘ / black) terminals of the feedback cable directly to the positive and negative terminals of the battery balancer or battery.
• Your model’s current battery voltage is now displayed in real time on the main screen of your DumboRC remote control.

Note: The supported voltage feedback range depends on the flight controller being used.

TECHNICAL SPECIFICATIONS:

Channels: 16

Signal Output: SBUS and PPM (connects directly to the flight controller/electronics).

Range: up to 2000m (line of sight)

Dimensions: 27 × 13 × 7 mm

Weight: only 2 g

Operating voltage: 5.0V DC

Operating current: 45’70mA at 5V

Voltage feedback: 1’60V (depending on the flight controller)

Antenna length: 90 mm

Output frequency: 2.4-GHz ISM band ‘ FHSS frequency hopping (2400 MHz to 2483.5 MHz)

Telemetry: Supports voltage feedback (depending on the remote control used)

Compatibility: All DumboRC remote controls and compatible Absima remote controls (CR4S-EVO & SR6S-EVO)

<div

DUMBORC part number P16MR, EAN 4250650969349.
