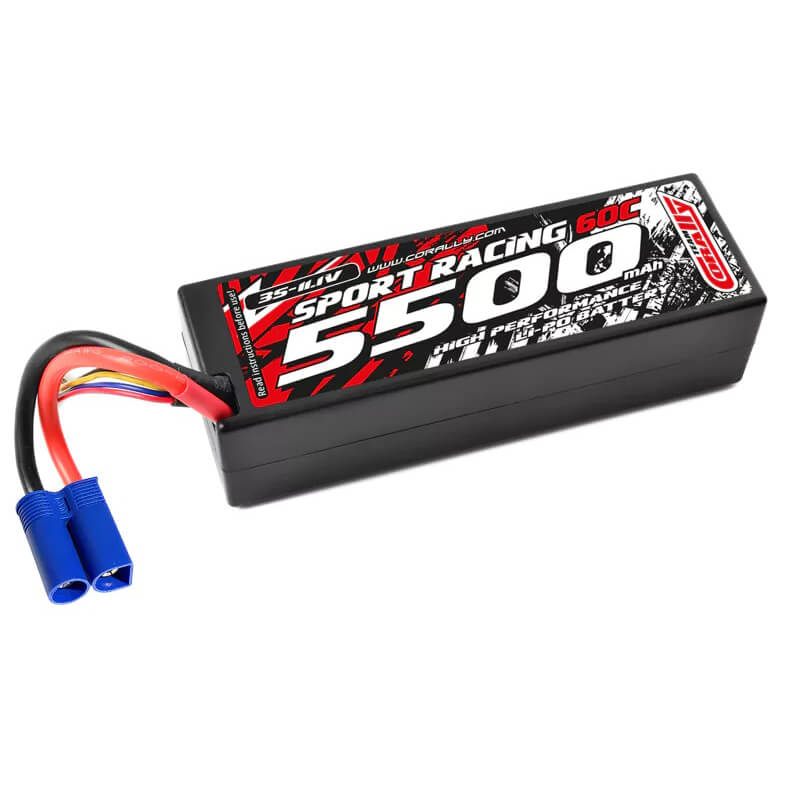

Corally Power Racing 60c Lipo Battery 5500mah 11.1V Ec5 3s

CORALLY POWER RACING 60C LIPO BATTERY 5500MAH 11.1V EC5 3S

Dependable power you can rely on! Team Corally Li-Po batteries have earned a reputation for delivering unmatched power-to-weight ratios, unwavering safety, and impressive longevity. Manufactured and assembled at a prestigious lithium battery factory with over 15 years of experience in high discharge lithium polymer batteries, our batteries boast an all-new formula that maximizes high performance across numerous cycles, far surpassing typical low-grade hobby batteries. When you seek a power source with enhanced performance, increased reliability, more safety, and an extended lifespan for your model airplane, boat, or car, rest assured that Team Corally Li-Po batteries are your better choice.

Quality Assurance

To ensure uncompromising quality, each cell undergoes meticulous balancing, aging, grading, and matching based on voltage and internal resistance before they are assembled into specific Team Corally Li-Po battery packs. This stringent process guarantees that lower graded cells are never utilized in Team Corally Li-Po battery packs. Only the highest-grade cells, with minimal tolerances between individual cells, are used, resulting in unparalleled performance, well-balanced individual cells, and extended life and cycle times for the battery pack. You can trust in the quality and reliability of Team Corally Li-Po batteries for all your power needs.

Specifications

Battery – Cell Specifications

Applications: Car
Case Type: 3S Hard Case w/ Wires
Cell Technology: Li-Po 3.7V – Lithium Polymer
Nr of Cells: 3S
Voltage (V): Li-Po 3S – 11.1V
Cell Configuration: 3S 1P
Capacity (mAh): 5500
Discharge Rate (Cont. C): 60C
Charge Rate (C): Up to 3C

Battery – Dimensions

Length (+- 2mm): 138
Width (+- 2mm): 47
Thickness (+- 2mm): 35

Battery – Connectors

Balance Connector: JST – XH – 3S
Balance Wire Gauge (AWG): Silicone wire – 22 AWG
Power Connector: EC-5
Power Wire Gauge (AWG): Silicone Wire – 12 AWG
Power Wire Length (mm): +- 100mm
