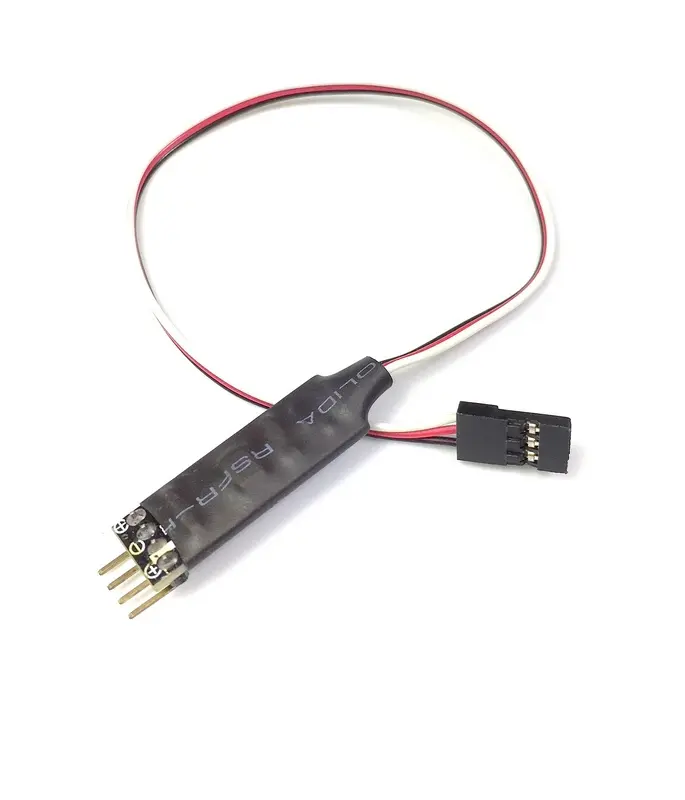

Channel on/Off Switch for Rc Receiver

ABSIMA 2020050 Channel Switch on:off for receiver
When you start the video, your browser connects to YouTube. Traffic data is transmitted to YouTube and possibly stored in your user profile.
Don’t ask anymore
You can use the power switch module for channel 3/4… of your remote control to switch 2 electronic devices (A & B).
The video above shows the 5 different mode of the channel switch.
Connect the switch between the receiver (channel 3) and your electronic devices like light unit…
If you press the button for the 3rd channel on your radio, you could switch between the 5 different mode like you could see in the video.
1.) = Customer A switch on / Customer B switch off ·
2.) = Customer A switch off / Customer B switch on
3.) = Customer A & B switch on  ·
4.) = Customer A & B switch on – blink mode
5.) = Customer A & B switch off
Power supply via receiver 3.7 – 6.0 V
Maximum load 20mA
Cable length 190 mm
Receiver connection: JR
Dimensions module (L / W / H) 44 x 12 x 7 mm
Weight 4 g

Item number: 2020050
EAN: 4250650936884
