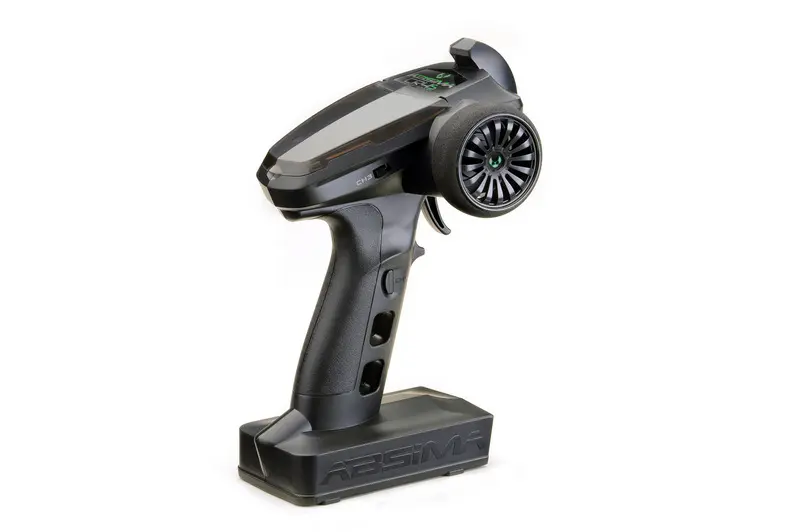

Absima Radio CR4S-V2 transmitter and reciever set
£34.99
Just a few left
Read More
Excellent product, superb delivery and packaging. Recipient absolutely overjoyed with the truck and all its excellent parts and performance
Read More
i have to say radio- controlled uk are spot on with the service provided and fast delivery, their products are packaged with great care i ordered a Rlaarlo AM-D12 1/12 RTR Brushless RC Desert Car and it arrived 48 hours later, and boy what a great little buggy for the price so well done radio- controlled uk . Oliver who owns the company was very polite/honest and helpful in answering my questions, and nothing seemed to be to much trouble i will buy from this company again. Good service, helpful staff, always replies to a message right away 10/10 stars from me regards Ian
Read More
Not ran it yet, but the build quality is excellent. Excellent service and communications from radio-controlled.co.uk one of my fave vendors
Read More
Fantastic service and advice from radio-controlled.co.uk, couldn't have helped any more, thank you. Really impressed with the quality of this buggy, extremely well built and looks amazing. Everything just looks well made and put together. This buggy is seriously rapid 👌
Previous
Next
- Description
- Information ElectroG3
- Manuals
- Accessories, etc.
- Reviews
ATTENTION: V2 version with new receivers (2020018 & 2020019) !!!

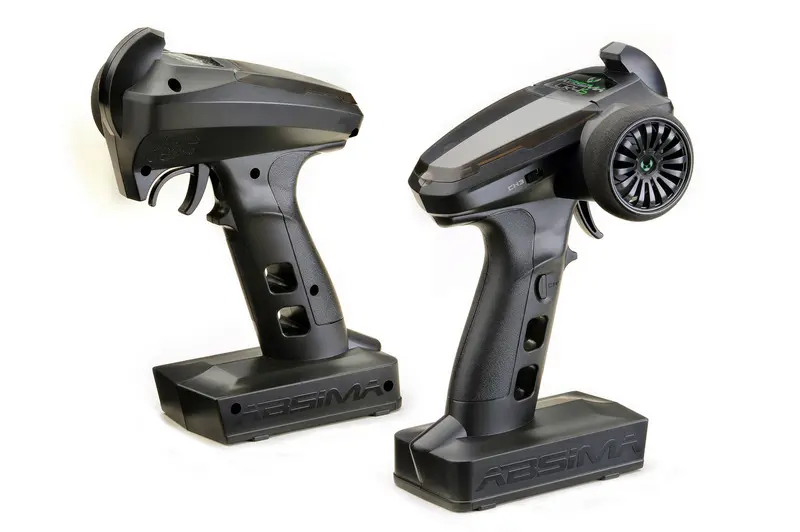

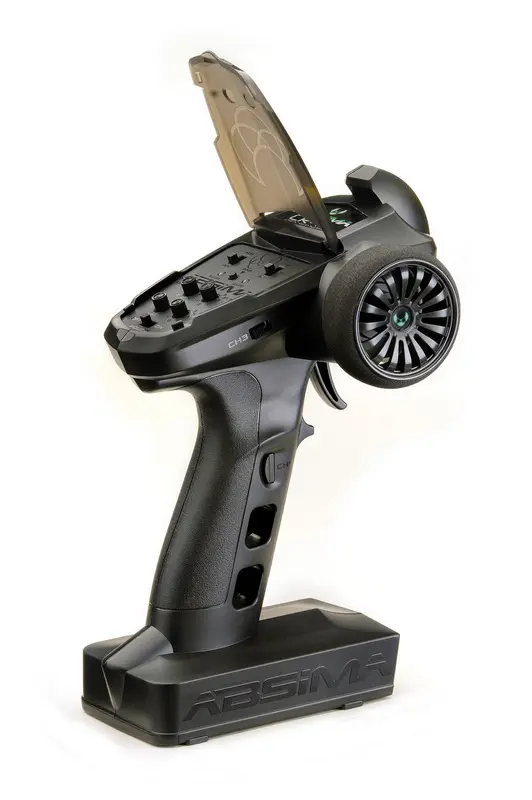

The “CR4S-V2” is a 4-channel remote control including receiver, which uses the latest frequency hopping technology from ABSIMA.
Lightweight and compact design, as well as comfortable and ergonomic shape. In addition, the remote control has a “beginner mode” and is therefore also suitable for pilots with less experience and also children.
The included receiver has a very compact design with a size of 30.2*18.0*13.0mm and fits in almost every receiver box.
FEATURES

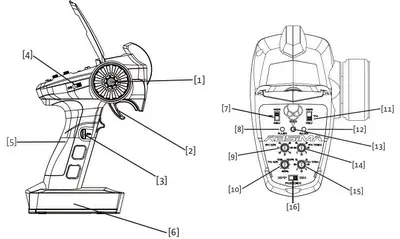

Description of the channels (the transmitter has 4 channels which are assigned as follows):
CH1: Steering wheel
CH2: Throttle lever (Trigger)

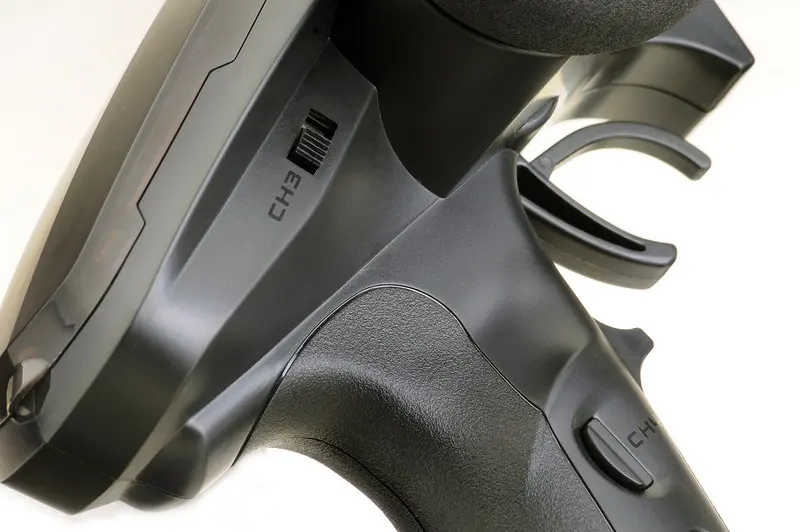

CH3: 3-position toggle switch

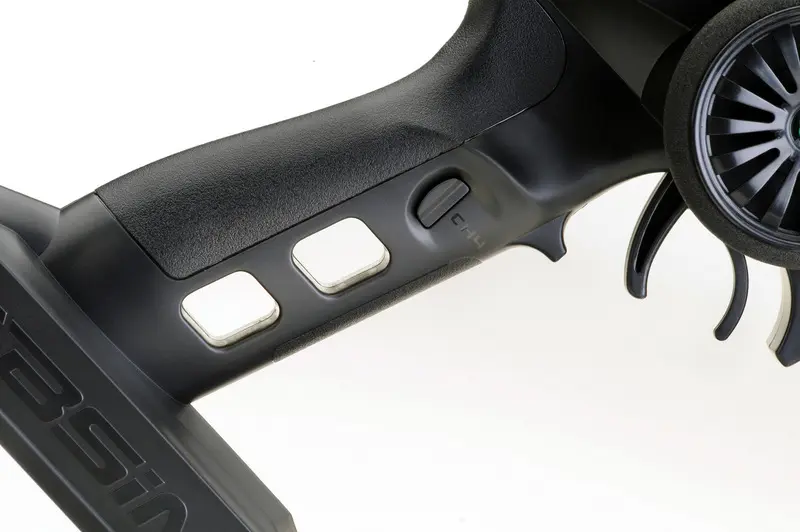

CH4: Push button

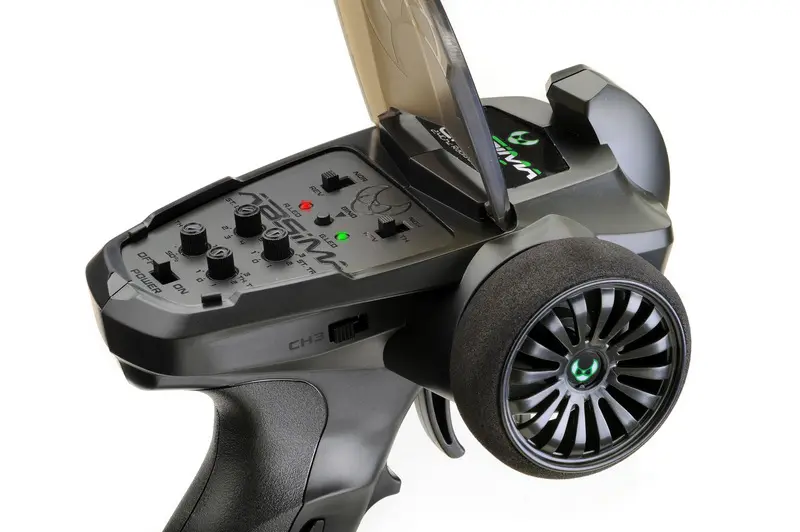

Reverse function (REV): This function can be used to set the direction of rotation of the steering servo/motor.
Trimming (TRIM): Adjustment of the straight run and throttle neutral position.
Dual Rate function (D/R): The steering angle and also the motor rotation power can be increased or reduced by operating this rotary knobs.
Failsafe function: This function determines what the receiver should pass on if the signal to the transmitter is lost (e.g. emergency braking).
Beginner modus: This function is intended for newcomers. In this mode the motor power is automatically reduced to 50%.
SPECIFIKATION
Radio CR4S-V2:
Channels: 4
Protocol: 2.4GHz
Distance: >150m
Battery (not included): 4*AAA 1.5 – 6V DC
Low V Warning: <4.2V (only NiMH)
Using LiPo TX battery possible: Yes (only LiPos with built-in low V protection)
Charging interface: No
Antenna type: Single antenne
Temperatur range: -10°C – +60°C
Dimension (L/W/H): 150*100*210 mm
Weight: ca. 130 g

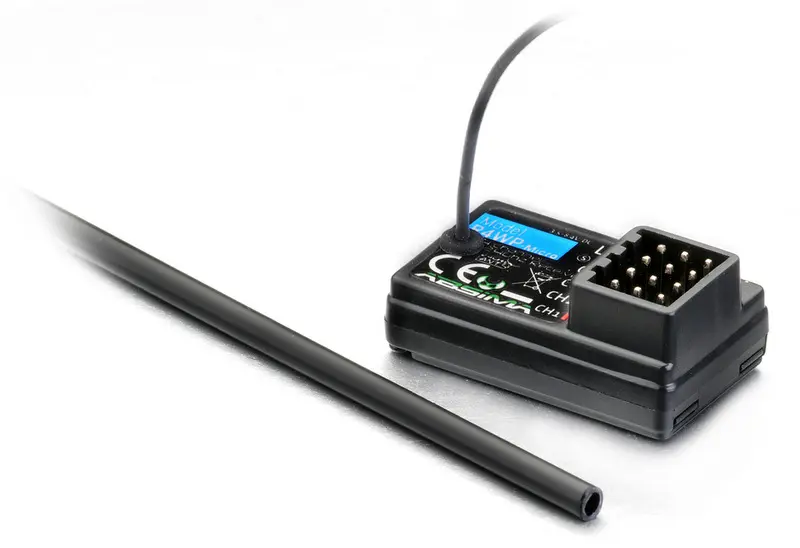

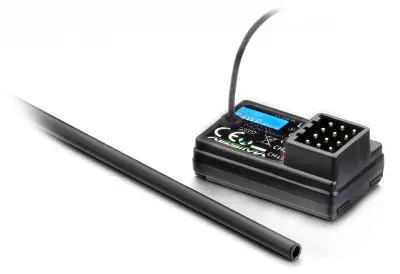

Receiver R4WP-V2 Micro (2020019):
Channels: 4
Antenna type: external single antenna
Waterproof: Yes
Power: 3.5-8.4V
Failsafe: Yes (in connection with radio)
Temperatur range: -10°C – +60°C
Weight: 5 g
Size: 30.2*18.0*13.0 mm
SET INCLUDES
1* 4-Channel radio “CR4S-V2”
1* 4-Channel receiver
1* Antenna tube
1* Manual (DE/ENG/FR)
