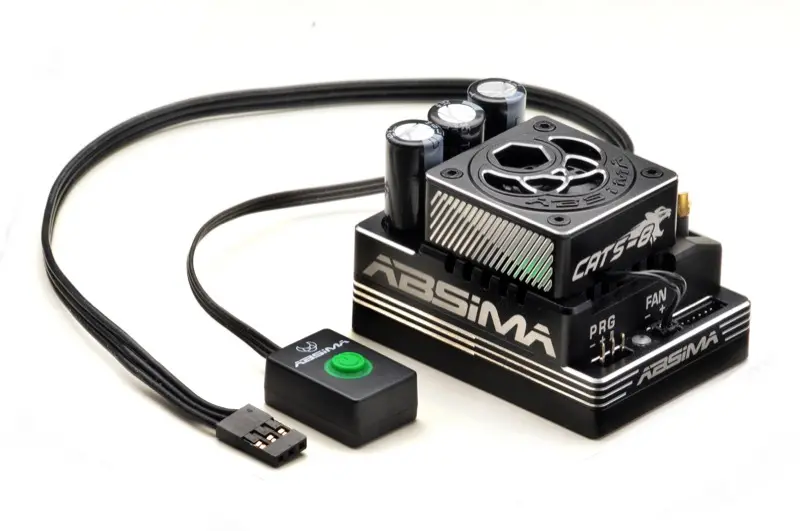

1:8 Brushless Competition Esc Cats-8v2 200a

CATS-8 Competition ESC – High-end 1/8 racing speed controller
Maximum performance for your RC car!
The
CATS-8 Competition ESC
is a powerful high-end speed controller for 1/8 RC cars and was developed specifically for racing applications. Thanks to reliable power transmission, efficient heat management, and extensive adjustment options, this controller ensures particularly precise and consistent driving performance.
In combination with an Absima motor and a LiPo battery, the ESC unleashes its full power and delivers optimal acceleration and maximum control on the track.
Ideal for ambitious RC racers
who are looking for a powerful, precisely adjustable, and reliable 1/8 ESC.
Highlights:
Powerful 1/8 competition ESC for racing
Advanced cooling system for consistent performance
Over 33 adjustable parameters for individual setup
Very large boost & turbo timing control
Supports multiple driving and performance modes
Firmware updates supported (if available)
Technical Data:
Scale: 1/8
Continuous current / peak current: 200A / 1080A
Battery: 4S LiPo
BEC output voltage: 6.0V / 7.4V
BEC output current: 8A (12A peak)
Intelligent core technology
The CATS-8 ESC offers optimized motor control with improved efficiency. Precise boost and turbo control enables maximum acceleration on straights, while finely tuned parameters allow perfect adaptation to the track and driving style.
Protection and safety features
Voltage protection for LiPo batteries
Overheating protection for ESC and motor
Professional reverse shutdown
Reliable operation even under high loads
Cooling & Connections
High-quality 10AWG silicone cable 180mm
Powerful fan (30*30*10mm) 5-8.4V BEC
Sensor cable 200mm
3M mounting pad 30*40mm
Compatibility:
Motor:
4268/4272
<=
3000KV with 4S LiPo
RC car type:
Touring Car, Buggy, Truggy, SC Truck, Monster Truck
Programming:
All parameters can be conveniently adjusted using the optional
CATS programming box
—for maximum control over your setup.
Dimensions & Weight:
56,8*41,6*40,0mm / 122g
Scope of delivery:
1/8 CATS ESC including fan
10AWG motor & battery cables
Sensor cables 200mm
3M mounting pad
2110110 – Programm box (sold separately)

Item number: 2110101V2
EAN: 4250650965884
