1:10 EP Touring/Rally Car “ATC3.4V2” 4WD RTR

Description

The success story continues! We have equipped the ATC3.4 “V2” with some new features that take the vehicle to the next level.

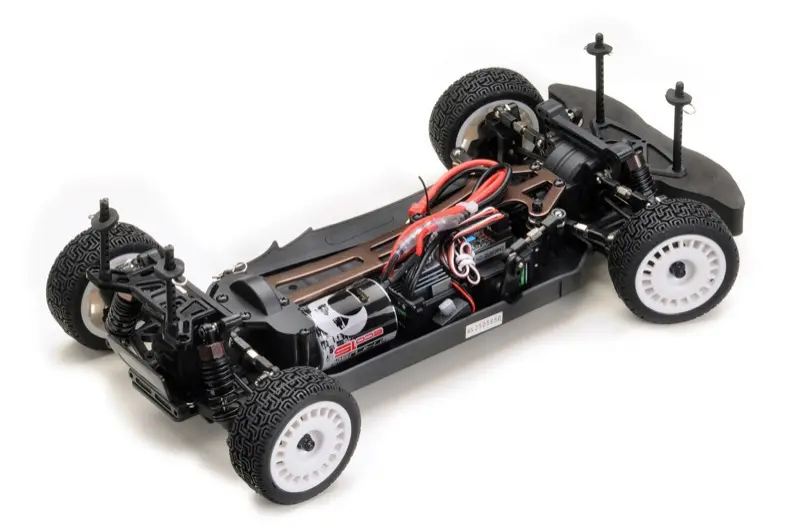

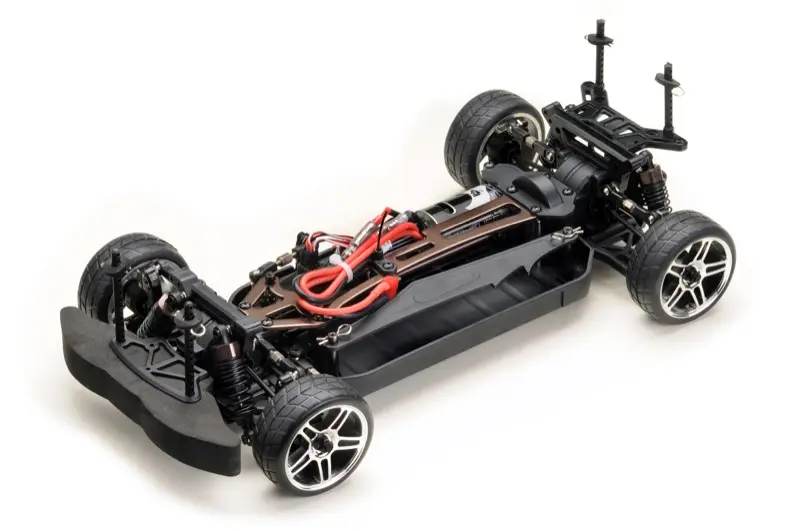

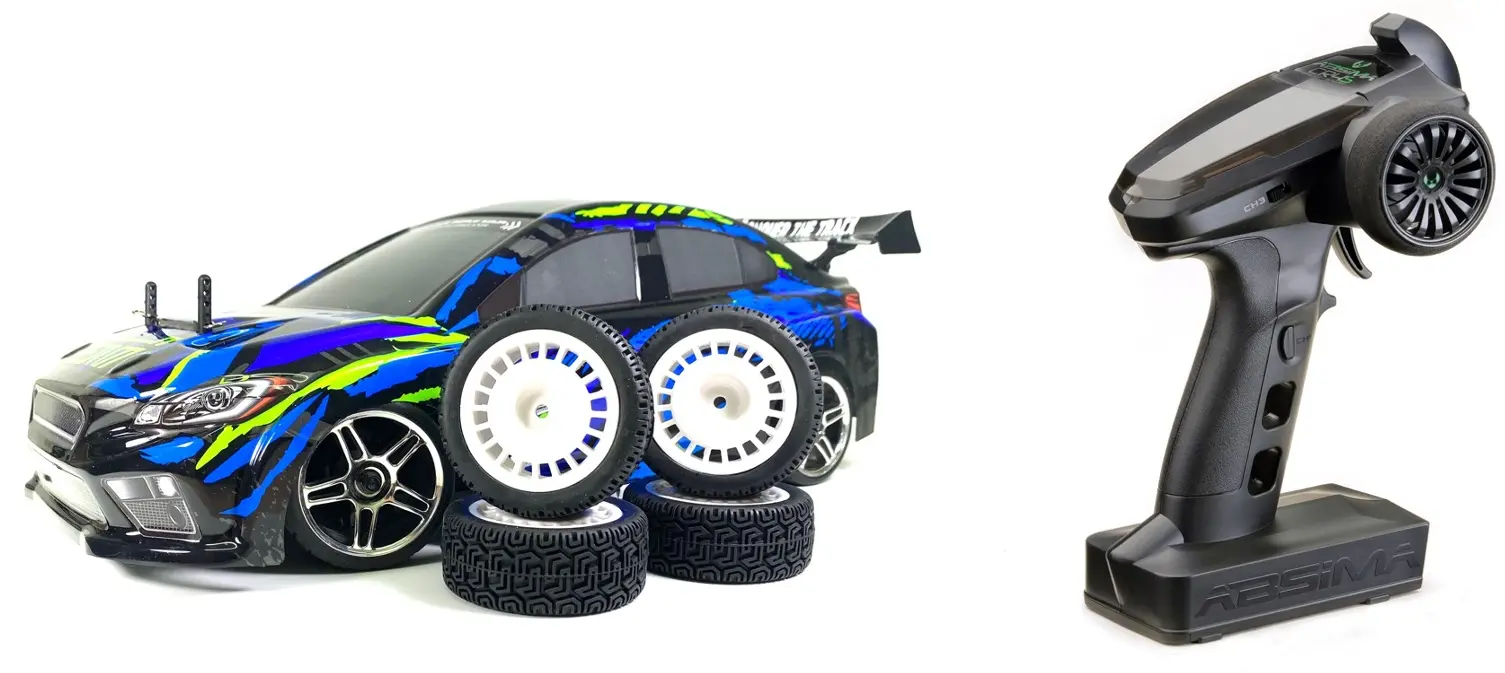

The chassis comes with 2 sets of wheels ! One set chrome colored on-road wheels for smooth surfaces like asphalt and one set slightly larger white rally wheels for loose surfaces like sand and gravel.

NEW* 80A brushed speed controller with T-plug and 540size 15T Motor
NEW* Speed controller is programmable
NEW* 6kg steering servo

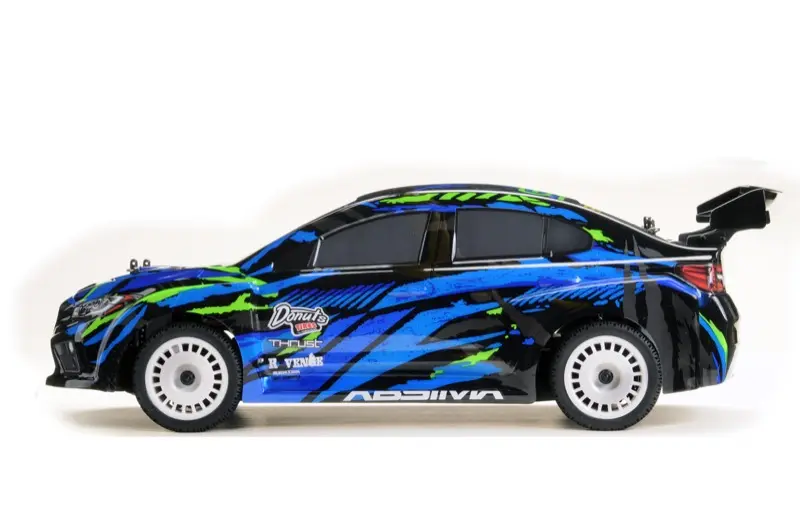

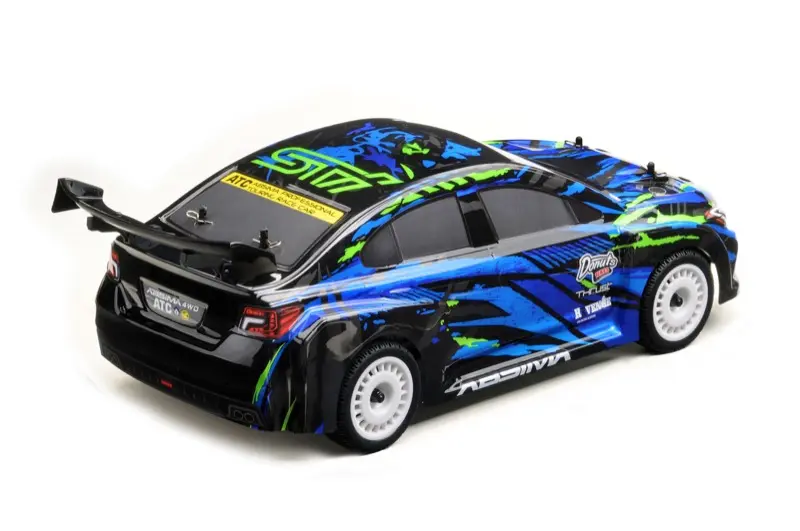

NEW* Rally body design
NEW* 2 wheel sets included – On-road und Rally

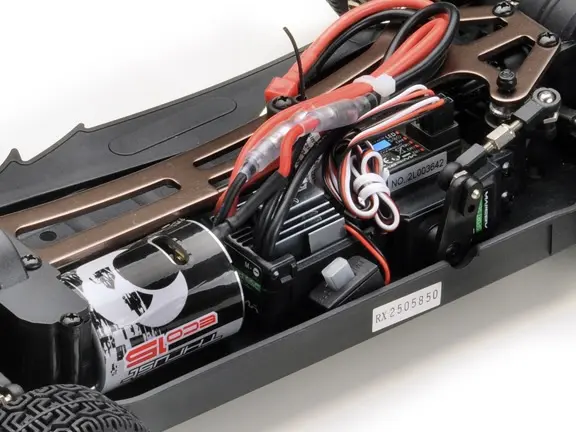

The new 80A brushed speed controller is waterproof, programmable and pre-assembled with a T-connector. To fully exploit the potential of the vehicle, we recommend a 2S LiPo battery for operation. In addition, a separately available programming card (item 2110061) can be used to set various parameters such as brake strength, punch, low voltage protection and much more.

The car is driven by a 540 15T brushed engine which directly accesses the all-wheel drive. The two differentials (front and rear) are driven by an aluminum drive shaft. Due to the higher power of the speed controller and the use of T-plugs, any 2S LiPo battery can be used – no matter what C-rate and capacity.

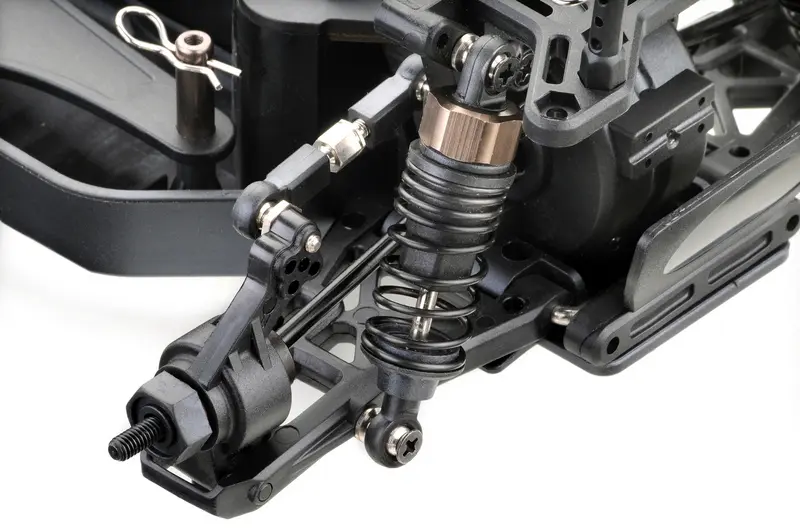

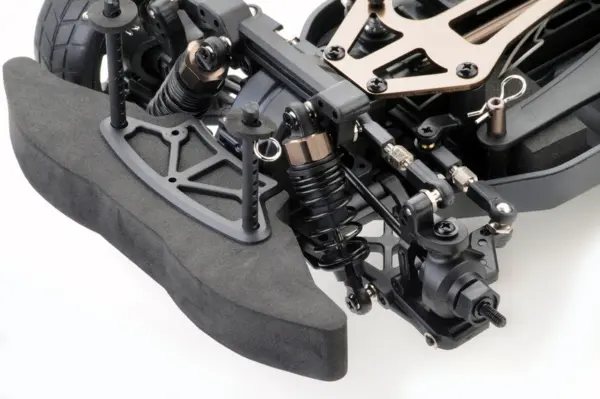

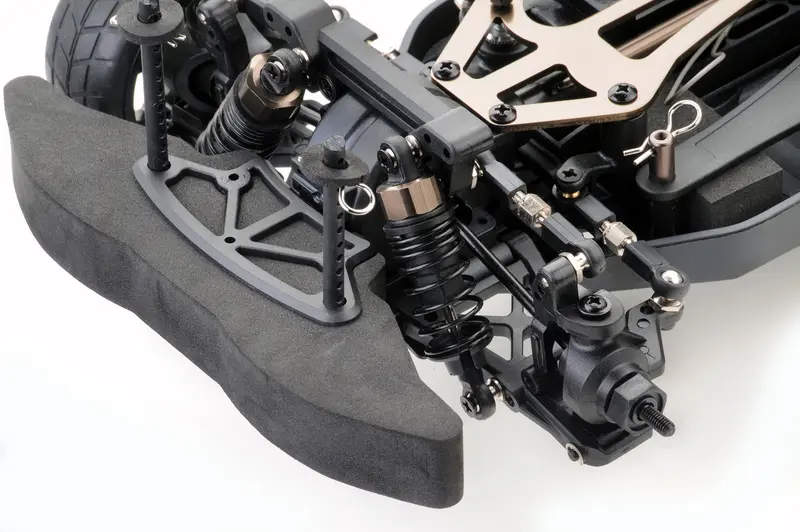

4 oil-pressure shock absorbers provide ideal handling so that a lot of driving fun arises. If you choose the on-road tires, you can make hot drifts on smooth surfaces while the grooved profile of the rally tires provides traction on almost any surface. A 6kg servo takes over the implementation of the steering commands.

Lightweight and compact design, as well as comfortable and ergonomically shaped – these are just two features of our CR4S 4-channel remote control. Of course, all trim, reverse and dual rate functions are available in the cockpit, so that settings can be made easily via levers and knobs. In addition, the remote control has a “beginner mode” (power reduction by 50%) and is therefore ideally suited for novice drivers.

4WD all wheel drive
2.4GHz 4-channel radio system
80A brushed speed controller with T-plug
540size 15T Motor mit 32.000 U/min @ 7.4V
6kg steering servo (25T, ball bearing)
4 oil shock absorber
Ball bearing main drive
Extremely durable composite plastic parts
Steel differential outdrives
Aluminum universal joint drive with steel mounts
Adjustable upper track rods
5mm aluminum motor mount
6mm shock towers
2 differentials (front/rear)

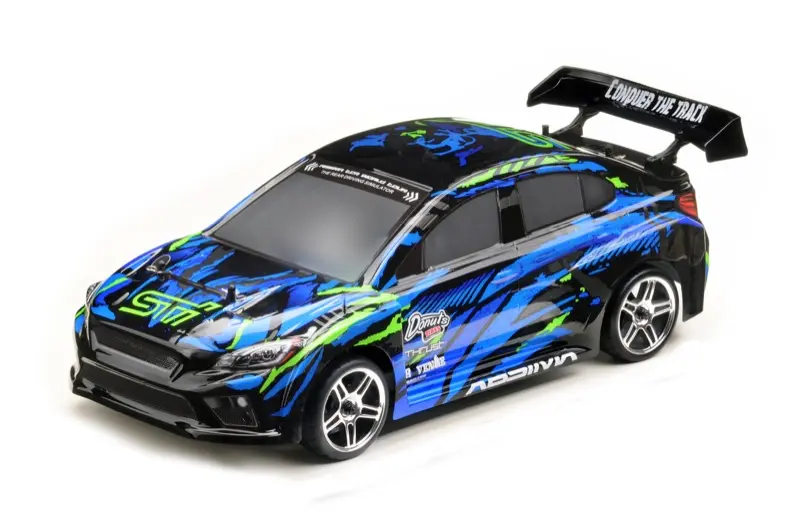

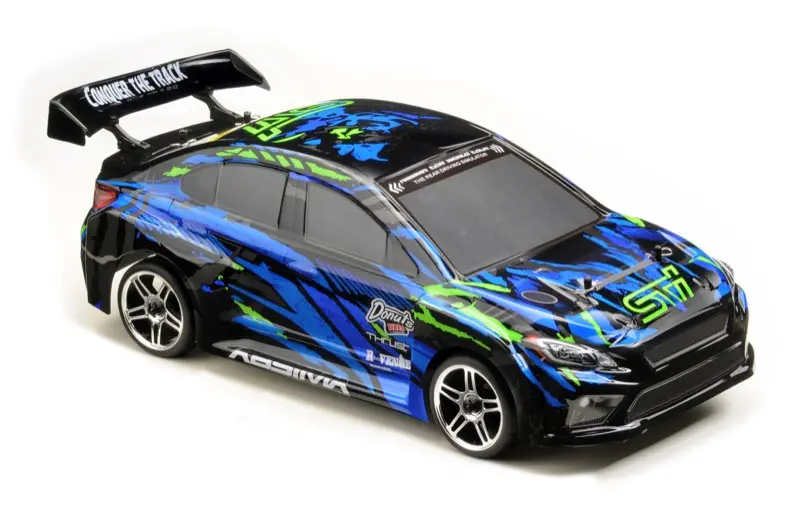

Stylish touring car body
Light-Weight chassis (less weight – longer driving time)
Many aluminum option parts available

Scale: 1:10
Dimensions (L/W/H): 470x200x150 mm
Weight: 1400g
Wheelbase: 260mm
Ground clearance: ca. 15mm
Track width: 170mm front/rear
On-road wheels front/rear: Ø 65mm / Width: 26mm
Rally wheels front/rear: Ø 70mm / Width: 26mm
Shock-oil: 400CPS
Damper installation length: 60mm
Internal gear ratio: bevel gear: 13T / ring gear: 38T
Motor ratio brushed version: Pinion: 26T / main gear: 58T (module 0.6)

Scope of delivery:
ATC3.4V2 On-Road/Rally Car RTR
2.4GHz CR4S radio system
Plastic clips for shock absorbers
Sticker
Manual
