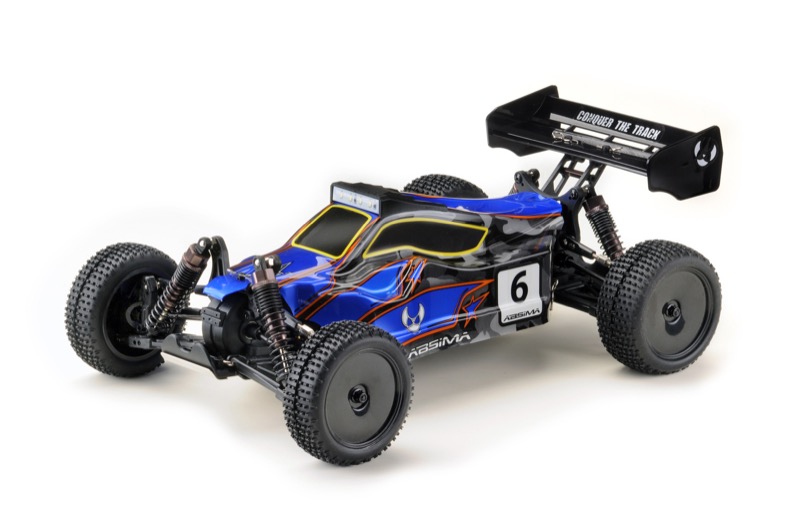

1:10 EP Buggy "AB3.4-V2 BL" 4WD Brushless RTR

The success story continues! We have equipped the AB3.4 “V2” brushless with some new features that bring the vehicle to the next level of evolution.

Some technical changes have been implemented in our 1/10th scale buggy – among other things, the vehicle now comes with LED lighting on the roof

HIGHLIGHTS:
NEW* 60A brushless speed controller withT-connector and 3421KV motor
NEW* Programmable speed controller
NEW* 6kg steering servo

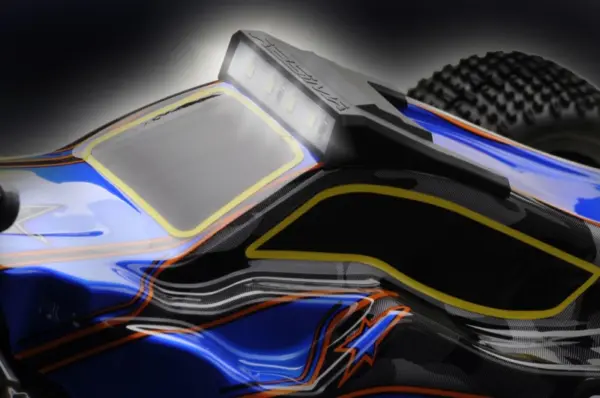

NEW* LED lighting
NEW* Downforce rear wing
NEW* even more option parts available

The new 60A brushless speed controller is waterproof, programmable and pre-configured with a T-connector. To fully exploit the potential of the vehicle, we recommend a 2S/7.4V LiPo battery for operation. In addition, a separately available programming box (item 2110062) can be used to set various parameters such as braking force, punch, low voltage protection and more.

The car is powered by a 3421KV brushless motor that directly accesses the all-wheel drive. The two differentials (front and rear) are driven by an aluminum driveshaft. A 6kg servo handles the conversion of the steering commands. The motor/controller unit can also be powered by a 3S/11.1V LiPo battery (note the size of the battery compartment!), but this increases the wear and tear on the vehicle extremely. Also the handling becomes almost impossible due to the enormous over-motorization. Therefore, we generally advise against 3S driving.

4 adjustable aluminum oil-pressure shock absorbers offer ideal handling, so that a lot of driving fun. The spring preload can be adjusted via a knurled screw. Thus, the chassis can be perfectly adapted to your needs.

Lightweight and compact design, as well as comfortable and ergonomically shaped – these are just two features of our CR4S 4-channel remote control. Of course, all trim, reverse and dual rate functions are available in the cockpit, making adjustments easy via levers and knobs. In addition, the remote control has a “Beginner Mode” (speed reduction by 50%) and is therefore ideal for pilots who do not yet have so much experience with the handling of such RC vehicles.

4WD all wheel drive
2.4GHz 4-channel radio system
60A brushless speed controller (waterproof; T-plug; programmable)
3421KV brushless motor (sensorless; splash-proof)
6kg steering servo (25T, ball bearings)
Aluminum oil shock absorbers
Ball bearing main drive
Extremely durable composite plastic parts
Steel differential outdrives
Aluminum main drive shaft with steel mounts
Adjustable upper tie rods
5mm aluminum motor mount
6mm shock towers
2 differentials (front/rear)
Stylish “Cap Forward” buggy body
“Light-Weight” chassis (less weight – longer drive time)
Many aluminum option parts available
TEC SPEC:
Scale: 1:10
Dimensions (L/W/H): 380x255x155 mm
Weight: 1530g
Wheelbase: 270mm
Ground clearance: ca. 30mm
Track width: 215mm front/rear
Front wheels: Ø 88mm / Width: 33mm
Rear wheels: Ø 88mm / Width: 42mm
Shock absorber oil: 400CPS
Shock absorber installation length: 90mm
Motor ratio: pinion 26T / main gear 64T (module 0,6)

SCOPE OF DELIVERY:
1/10 Brushless Buggy “AB3.4BLV2” RTR
2.4GHz “CR4S” radio
Sticker sheet
Manual
