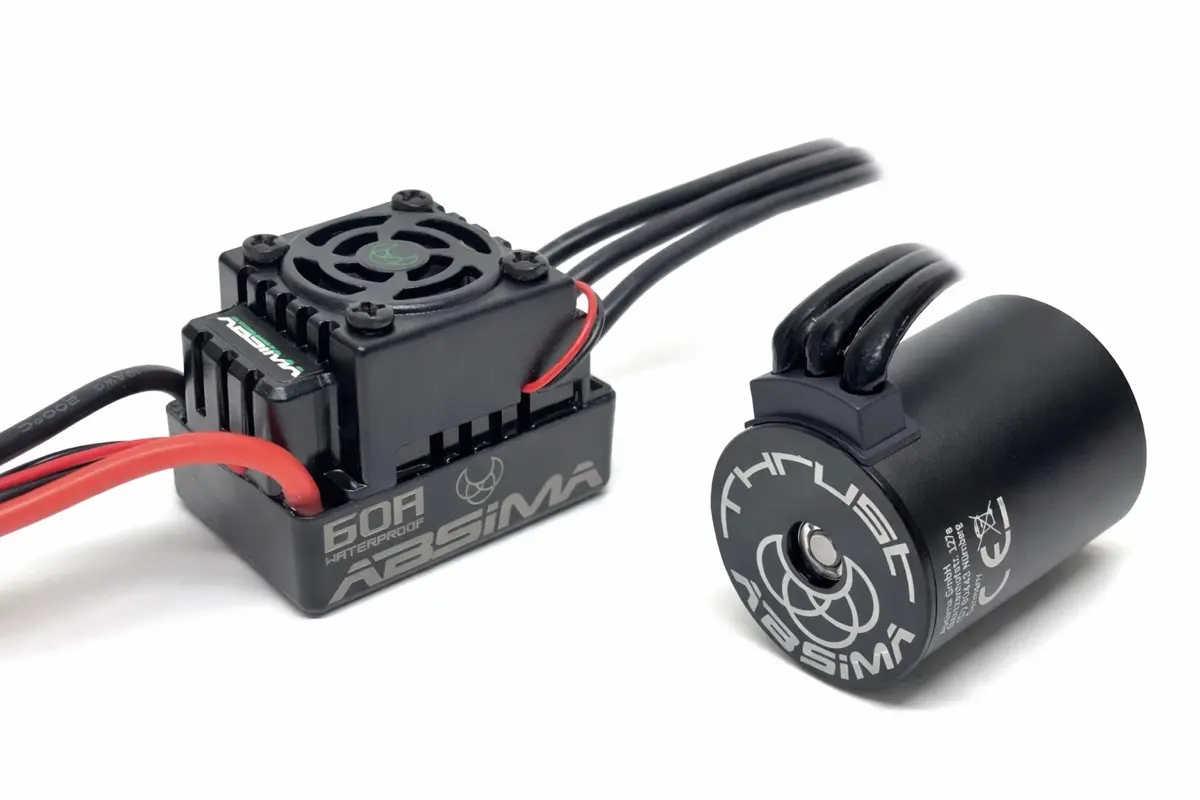

1:10 Brushless Set ECO - 60A 3650/4370kv

The
Absima Thrust-BL ECO Brushless Set
is the little brother of our Thrust-V2 Set and impresses with its powerful performance
for 1:10 “High-Speed RC Cars” like buggies, on-road and rally cars.
The set combines a sensorless brushless controller with a
powerful 4370KV brushless motor
, offering optimum performance for ambitious RC fans.
The Brushless Combo Set is perfect for
converting brushed to brushless
as well as for
completely rebuilding RC vehicles
. Thanks to its simple installation and factory pre-configuration, the system is quickly ready for use and can be used immediately after installation.
For even more customization options, the set can be individually programmed using a
separately available programming card
(5 parameters) and optimally tuned to the respective vehicle.
HIGHLIGHTS:
2s & 3S LiPo compatible
Programmable via separately available programming card (5 different parameters)
Ready to drive
Recommended for 1:10 on-road, rally cars and buggies
FEATURES Brushless ESC:
Waterproof 60A ESC inkluding fan
2S & 3S LiPo compatible
T-Plug battery connection
3.5mm gold contact motor plugs
Voltage and overheating protection
Sensorless system
TECHNICHAL DATA ESC:
Operating voltage: 4.8V-11.1V (2S/3S)
BEC: 5.3V / 2A (switch mode)
Motor limit @2S:
On-road
<6000KV
/
Off-road
<4000KV
Motor limit @3S:
On-road
<4400KV
/ Offroad
<3300KV
Dimensions (L/B/H) & weight: 42*29*30 mm / 60g
FEATURES Brushless Motor:
Splash proof
Aluminum housing
Overheating protection (105°)
Sensorless system
TECHNICHAL DATA Motor:
Power: 4370KV
Motor size:: 3650
Operating voltage: 4.8V-11.1V (2S/3S)
Motor shaft length: 14.5mm
Motor shaft diameter: 3.17mm
Weight: 185g
SCOPE OF DELIVERY:
1* Thrust ECO ESC
1* Thrust 3650/4370KV Motor
Manual
RECOMMENDED ACCESSORIES:
Programming card for Thrust ECO ESC
SAFETY INSTRUCTIONS:
Not suitable for children under 14 years of age without adult supervision. Keep away from small children; product contains small parts. This is not a toy but a high-performance motor with rotating parts. Caution: risk of burns.
2110064 – Programming card (sold separately)

Item number: 2120005
EAN: 4250650966638
