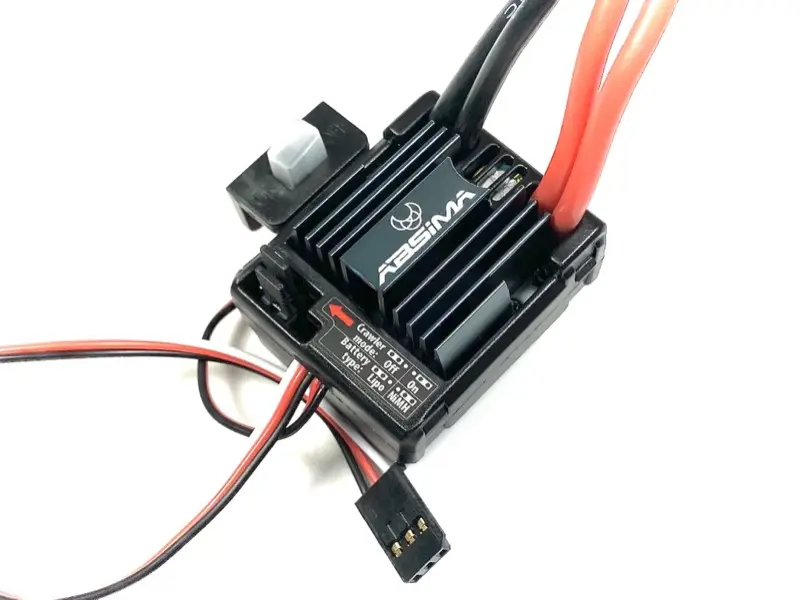

1:10 Brushed Esc Standard/Crawler V2 80a

Programmable 80A brushed speed controller (ESC) for 1:10 RC crawlers, off-road, and on-road vehicles
V2 UPDATE VERSION – Crawler setup (drag brake) or race setup (brake force) selectable.
The
basic settings for vehicle type and battery type
can be easily configured via
jumpers directly on the speed controller
. For even more customization options, a
separately available programming card (item 2110061)
is also available.
Thanks to its
robust construction, powerful performance, and extensive protection functions
, this
brushed ESC is the ideal choice for beginners and experienced RC pilots
.
V2 HIGHLIGHTS:
Universal
ALL-IN-ONE speed controller
for various RC vehicle types
Extensive protection functions (low voltage; overheating; signal)
Programmable via jumper
on the ESC
5 advanced settings via
optional programming card (item 2110061)
2S–3S LiPo compatible
Continuous current: 80A
Powerful BEC: 6.0V / 5A
FEATURES:
Application: 1:10 crawler, on-road & off-road
Programmable: Yes (via programming card – sold separately)
Water/dustproof: Yes (IP67)
Motor types: 540/550/750 brushed
Battery connection: T-plug
TECHNICHAL DATA ESC:
Operating voltage: 2S/3S LiPo / 5-9 cells NiMH
Current (continuous/peak): 80A / 320A
BEC: 5A @ 6.0V
Motor/Power cable length: 20cm / JR/Fut cable length 18cm
Dimensions (L/W/H) & weight: 41.5*35.0*29.5 mm / 65g
MOTOR LIMIT:
2S LiPo/5-6 cells NiMH: >=11T or 25.000RPM
3S LiPo/7-9 cells NiMH: >=18T or 17.000RPM
SCOPE OF DELIVERY:
Brushed Standard/Crawler ESC
Adhesive pads
Manual
RECOMMENDED ACCESSORIES:
Programm card for V2 Brushed ESC
SAFETY INSTRUCTIONS:
Not suitable for children under 14 years of age without adult supervision. Keep away from small children; product contains small parts. This is not a toy but a high-performance motor with rotating parts. Caution: risk of burns.
2110061 – Programmierbox (separat erhältlich)

Item number: 2100004V2
EAN: 4250650956929
