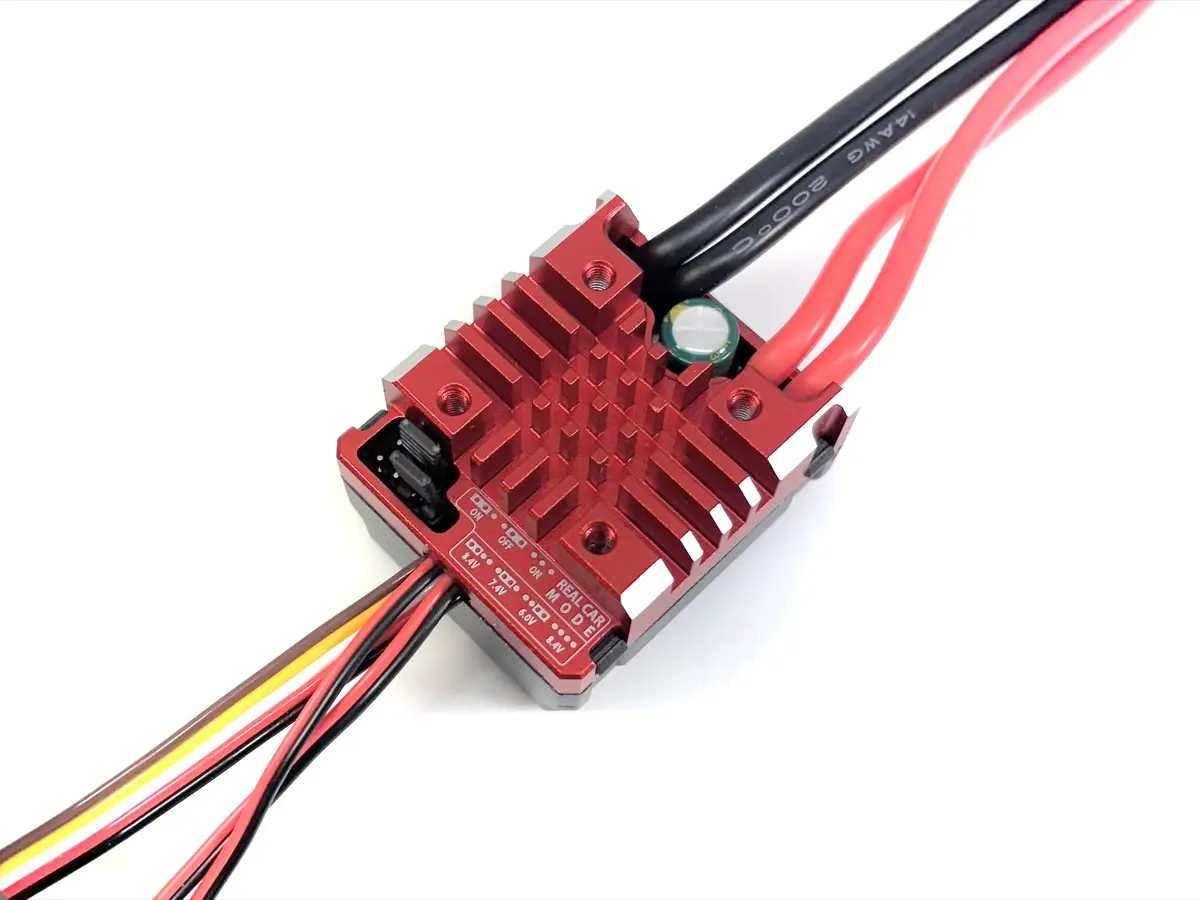

1:10 Brushed Esc Pro/Crawler 80a

Programmable 1:10 80A PRO ESC. Precise control, drag brake, real car mode, and optimal performance for RC crawlers and cars with 540/550/750 brushed motors.
The
1:10 Brushed Crawler PRO ESC 80A
is a powerful RC speed controller for models with
540, 550, and 750 brushed motors
. Thanks to improved modulation, it enables particularly sensitive control at low speeds—ideal for demanding crawler passages.
Programmability via an optional programming box
allows numerous parameters to be individually adjusted and the ESC to be optimally tuned to the vehicle and driving style.
A jumper can be used to set the
BEC output to 6.0 V, 7.4 V, or 8.4 V at up to 5 A
. This makes the system suitable for powerful steering servos and the reliable power supply of additional components such as lighting or winches.
The controller offers special functions such as a drag brake that can be adjusted via remote control and various driving modes. This makes it
suitable for both crawlers and classic RC cars with brushed motors
.
Real Car mode
enables particularly realistic control by changing the driving mode in real time via the remote control’s idle channel. It can be conveniently activated via jumpers on the controller. In addition, the
drag-and-kill intensity
can be adjusted directly via the idle channel. This allows the braking or resistance power to be adjusted dynamically and precisely via remote control while driving (provided that free channels with potentiometers are available on the remote control).
HIGHLIGHTS:
80A continuous load for reliable performance
Sensitive throttle response for precise crawling
Programmable settings for maximum control
Adjustable drag brake for better downhill control
Real-Car Mode for realistic driving experience
Suitable for RC crawlers and on/off-road vehicles
FEATURES:
Application: 1:10 crawler, on-road & off-road
Programmable: Yes (via programming box – sold separately)
Water/dustproof: Yes (IP67)
Motor types: 540/550/750 brushed
Battery connection: T-plug
TECHNICAL DATA ESC:
Operating voltage: 2S/3S LiPo / 4-9 cells NiMH
Current (continuous/peak): 80A / 320A
BEC: 5A @ 6.0V/7.4V/8.4V (switch mode)
Cable length: Motor/power 20cm / JR/Fut 20cm / Fan 8cm
Dimensions (L/W/H) & weight: 42*35.2*26.6 mm / 66g
SCOPE OF DELIVERY:
Brushed PRO ESC
Manual
RECOMMENDED ACCESSORIES:
Programming box for Brushed PRO ESC
SAFETY INSTRUCTIONS:
Not suitable for children under 14 years of age without adult supervision. Keep away from small children; product contains small parts. This is not a toy but a high-performance motor with rotating parts. Caution: risk of burns.
2110063 – Programming box (sold separately)

Item number: 2100005
EAN: 4250650962197
