Kyosho Outlaw Renegade Pro Kit 1:10 2WD EP (2RSA)

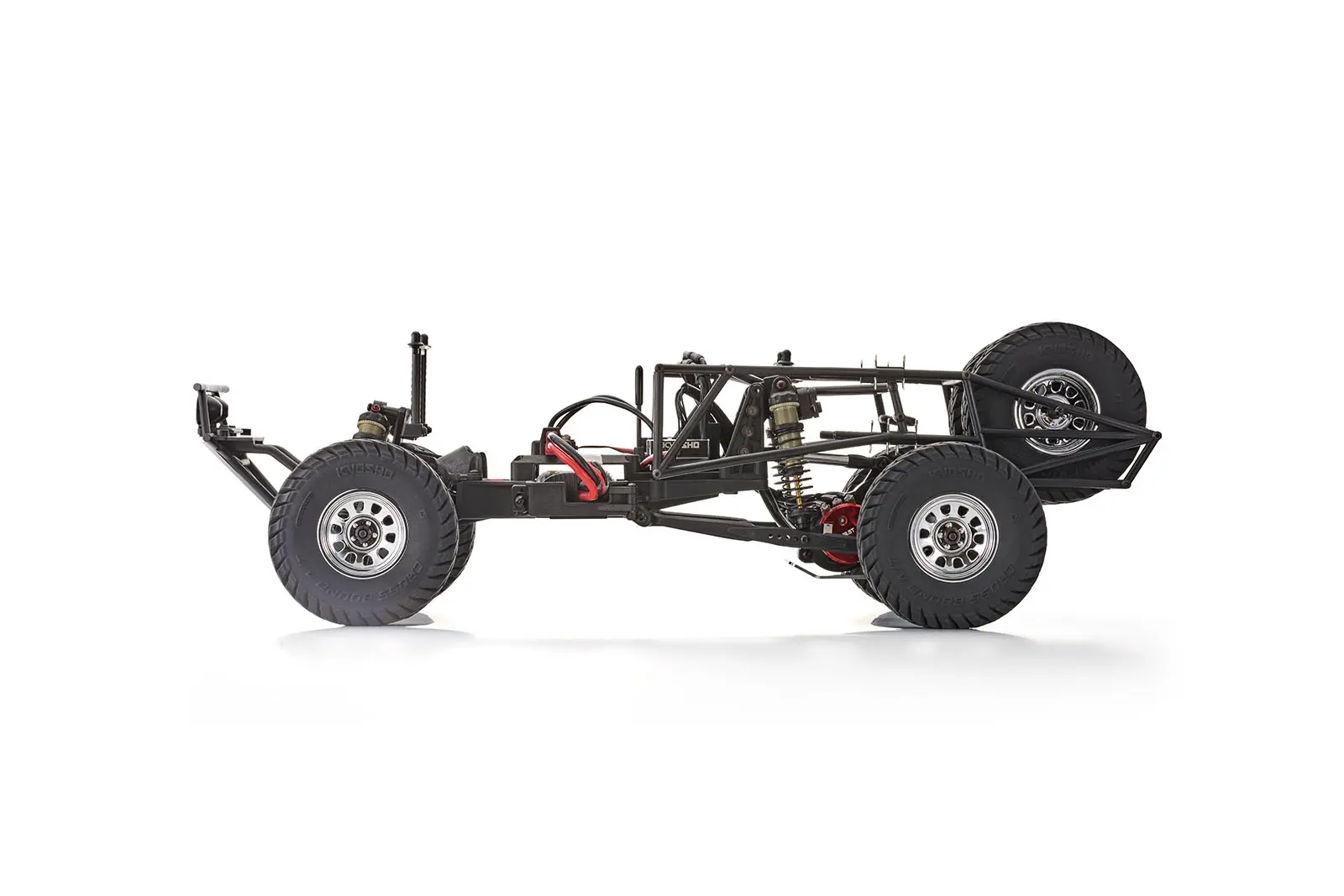

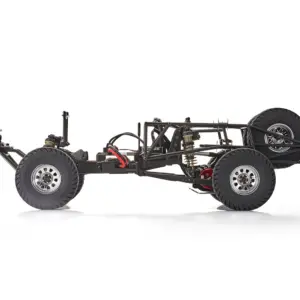

The Kyosho Outlaw Renegade Pro Kit (item K.34364B) is a 1:10 scale electric pickup truck from Kyosho’s Outlaw range. It runs on the 2RSA layout: two-wheel drive through a rear solid axle on four links, with double wishbones at the front. That is the set-up that gives a desert truck its long-travel, tail-out character on loose ground.

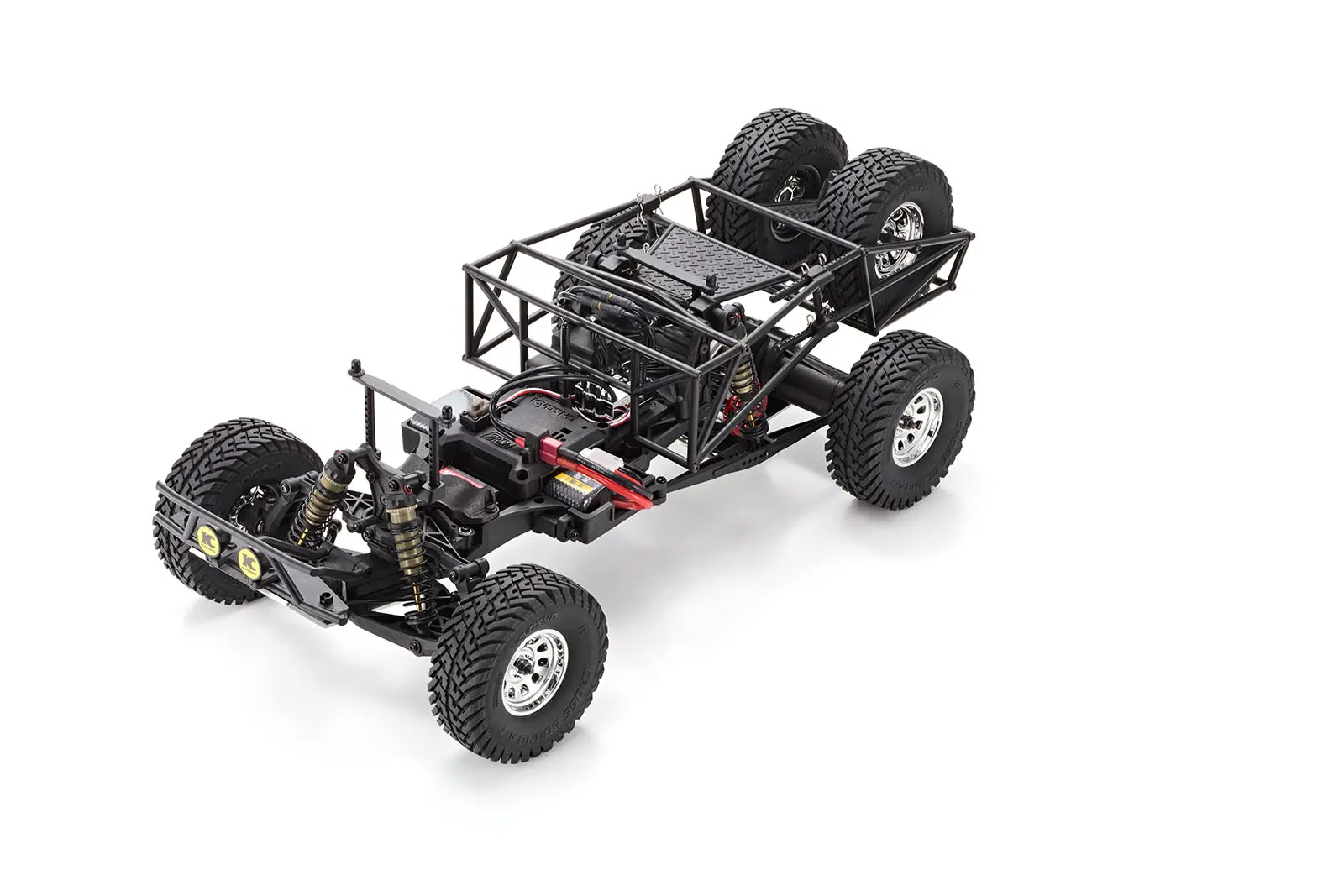

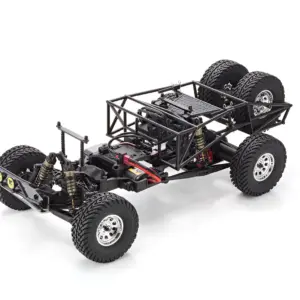

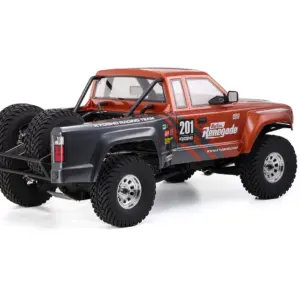

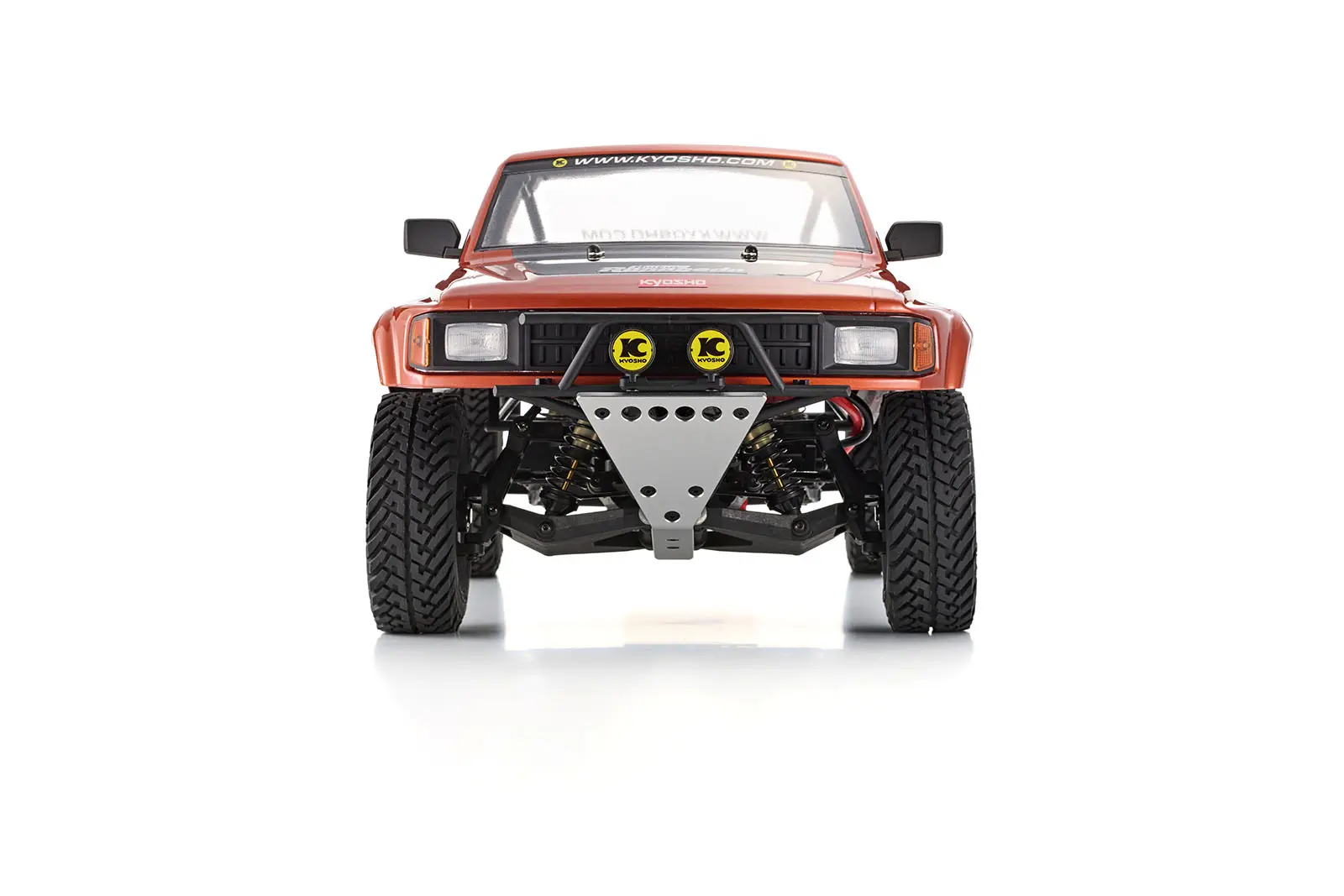

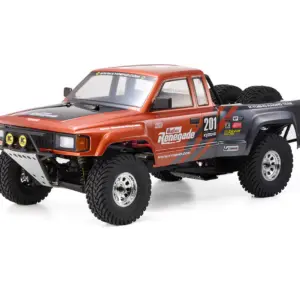

It is sold as an ARR (almost ready to run) kit. Around 70% of the chassis is assembled at the factory, so the build is mostly fitting your own electronics and painting the body. The bodyshell is clear polycarbonate, already cut and drilled, and comes with decals. The orange and grey truck in the photographs is a painted example.

What stands out

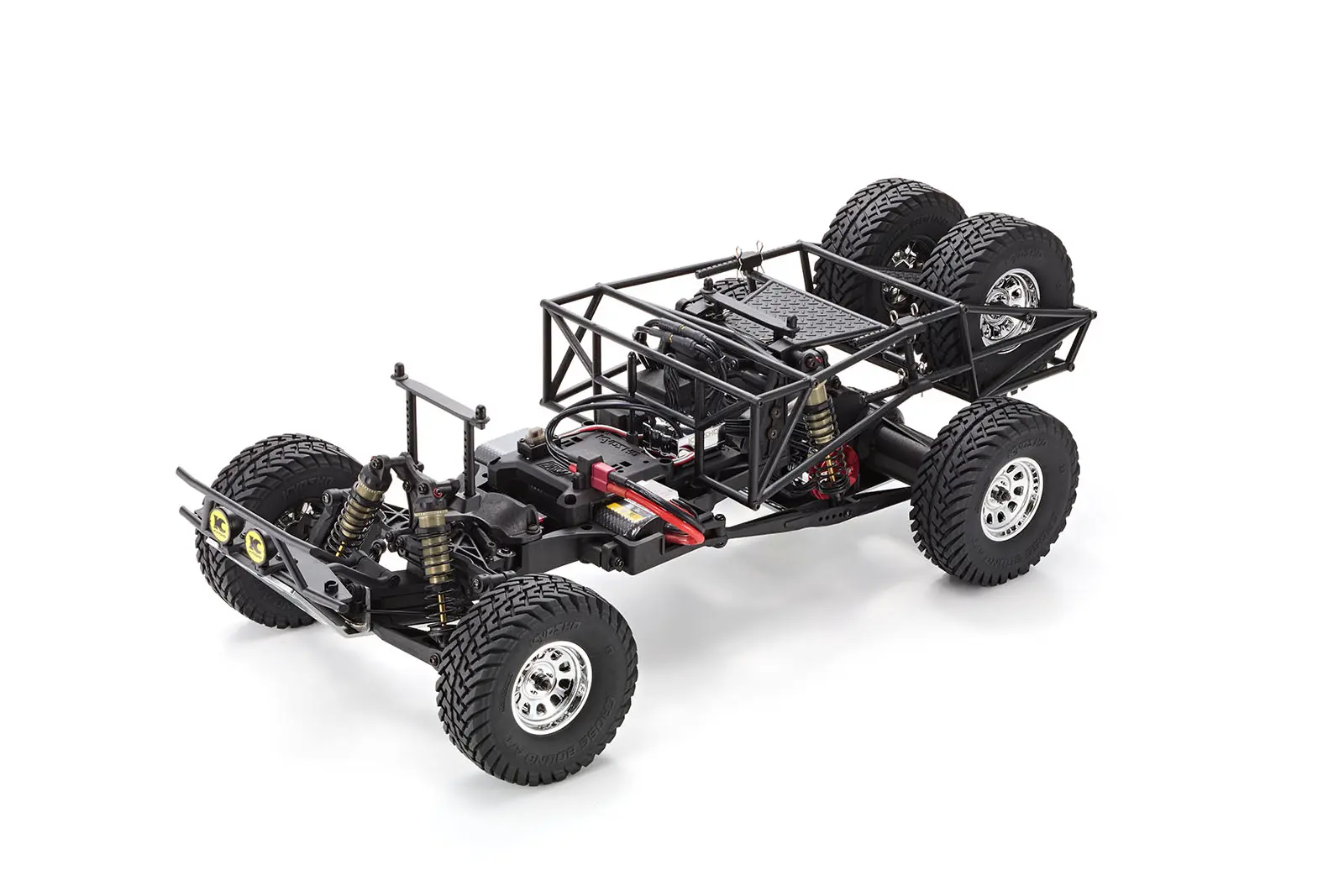

• 2RSA chassis: 2WD with a four-link rear solid axle and long-arm double wishbone front suspension
• About 70% pre-assembled, with hex-head screws throughout for easier building and maintenance
• Pre-cut, pre-drilled clear body with decals, ready to paint
• V2 gear set: 32-pitch counter and differential gears in revised materials, with a 48-pitch spur gear
• Full ball-bearing drivetrain
• Aluminium oil shocks with hard-anodised bodies and titanium-coated shafts

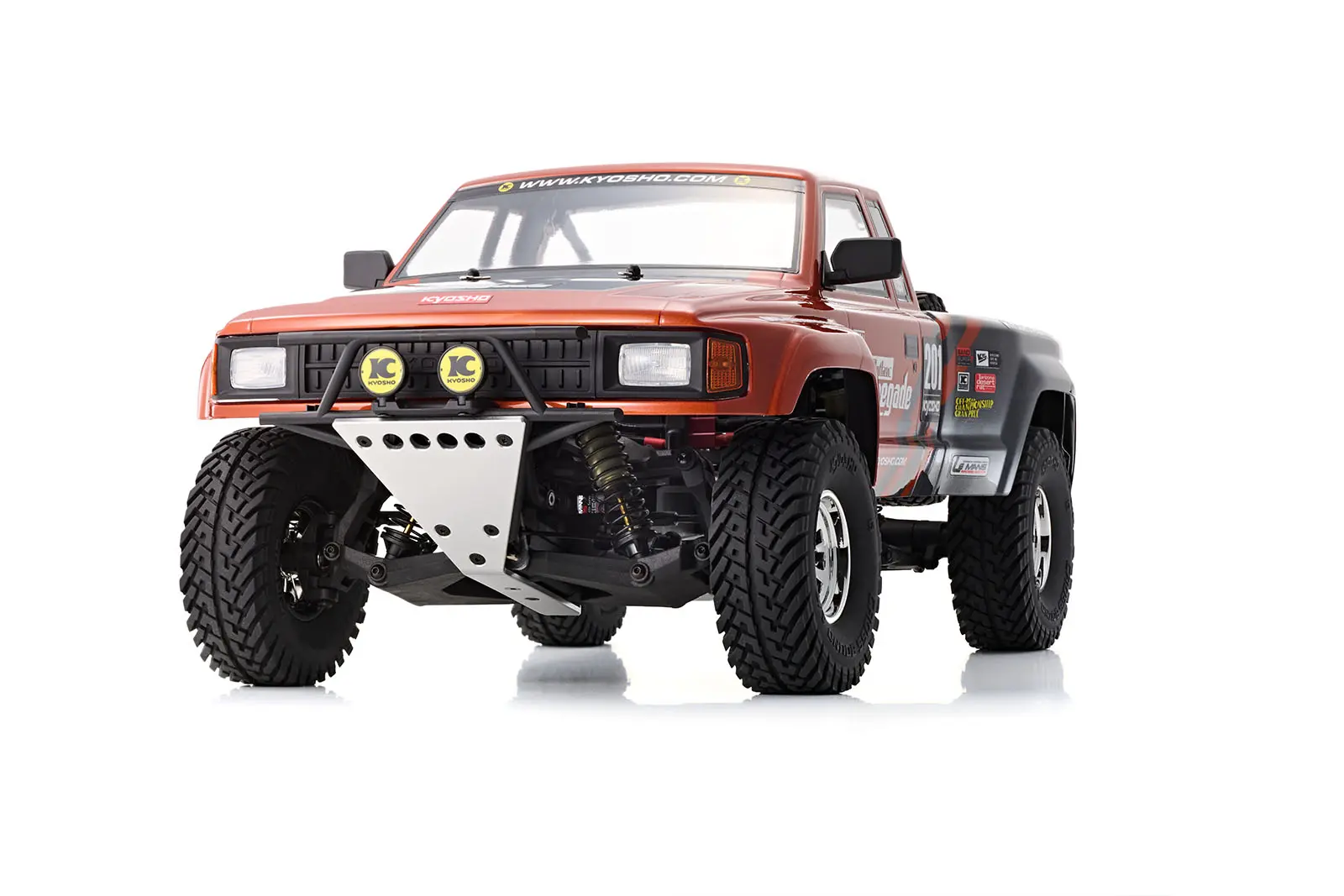

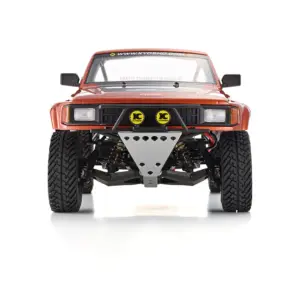

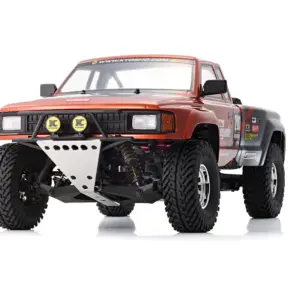

• Aluminium front skid plate fitted, with a plastic spare in the box
• Front and rear stabiliser bars: 2.2mm fitted, 1.8mm and 2.6mm supplied for tuning
• Dust-proof receiver case on the radio tray, and space at the rear for the speed controller
• Lever-lock battery holder for quick pack changes, with room for a LiPo balance lead

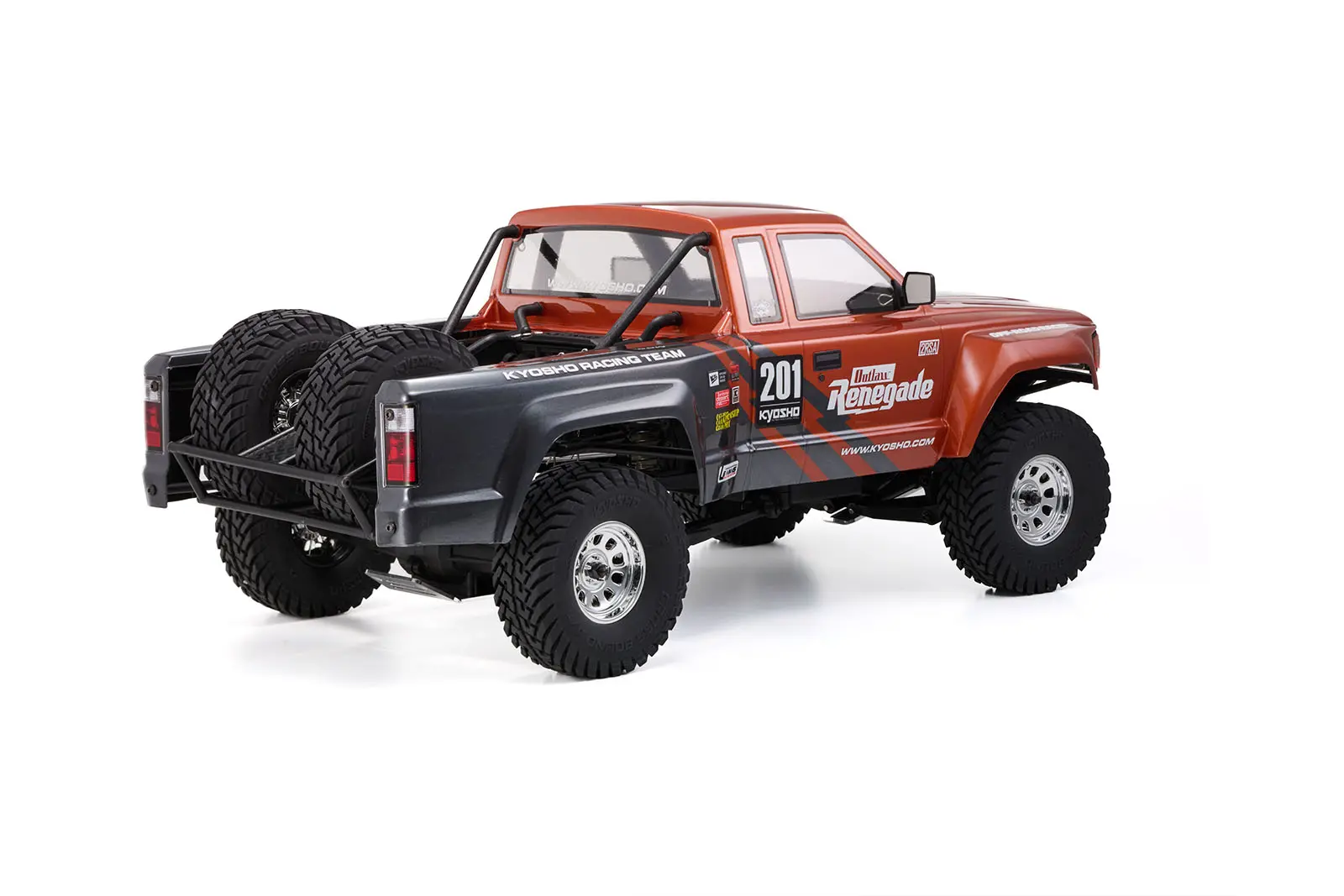

• Scale off-road tyres on silver wheels, plus two spare tyres for the bed
• Takes brushed or brushless 540-size motors

Technical data

• Scale: 1:10
• Length: 561mm
• Width: 272mm (with body)
• Height: 220mm (with body)
• Wheelbase: 335mm
• Track, front and rear: 214mm
• Tyres, front and rear: 108 x 38mm
• Gear ratio: 12.65:1
• Weight: about 2,500g

In the box

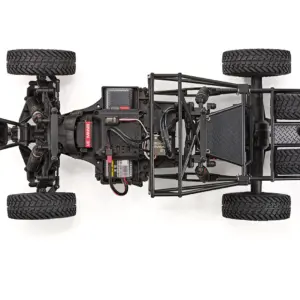

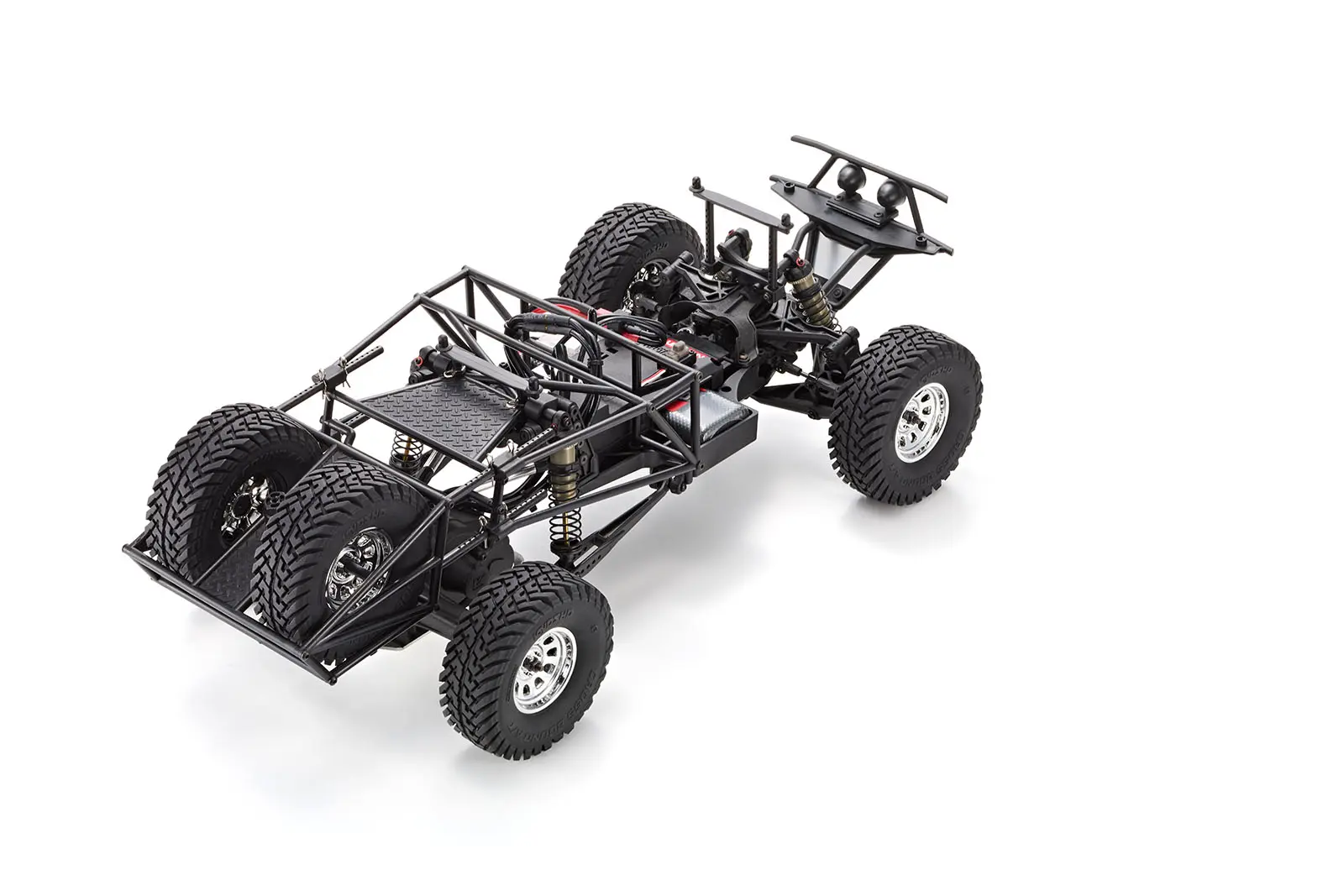

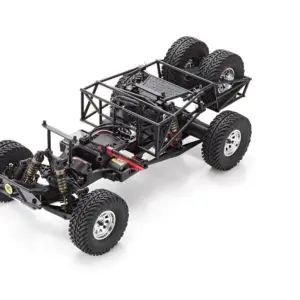

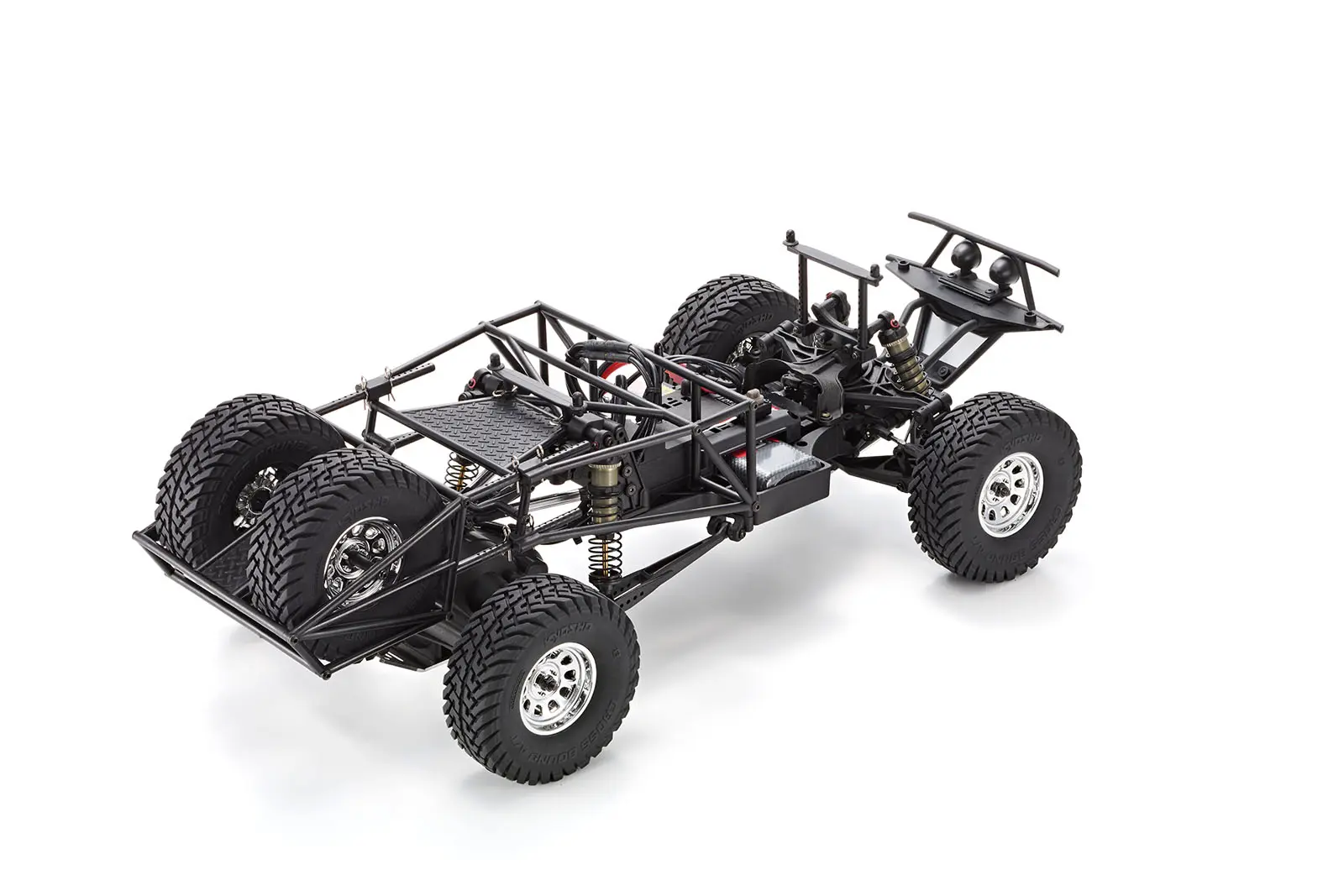

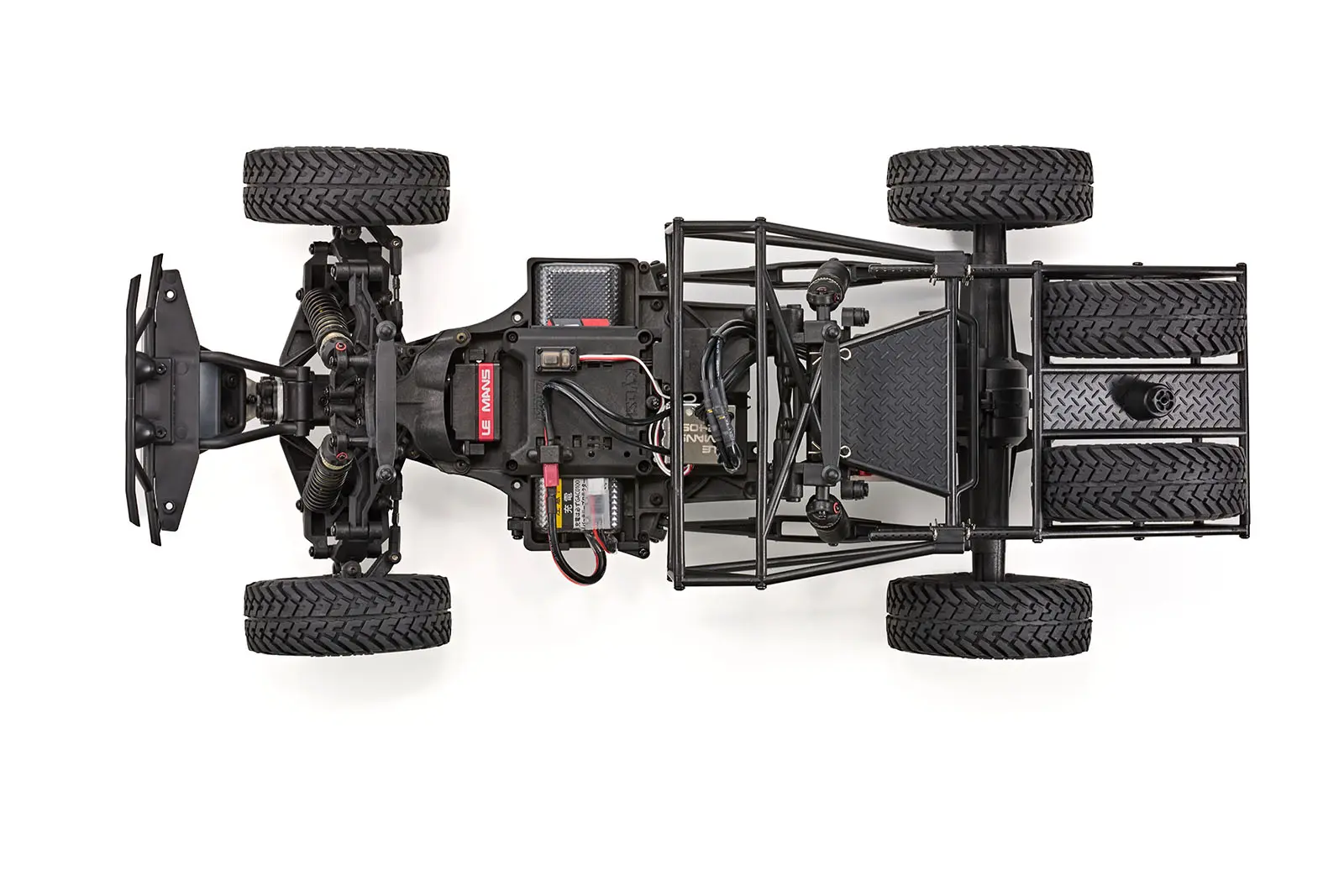

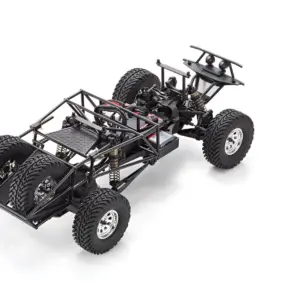

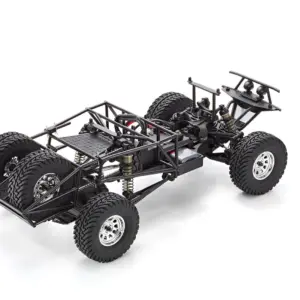

• Outlaw Renegade ARR chassis, about 70% assembled
• Cut and pre-drilled clear body with decals
• Hex wrenches (1.5, 2.0 and 2.5mm) and cross wrench (4, 5, 5.5 and 7mm)
• Differential oil (#10000) and shock oil (#350)
• Setting spacers and shock pistons (1.2 and 1.4mm)
• Front and rear stabiliser bars (1.8 and 2.6mm)
• Plastic front skid plate
• Body posts, spare tyre mounting screw and nut

You will also need

• 2-channel transmitter and receiver
• Steering servo
• 540-size motor and electronic speed controller
• Drive battery and charger
• Polycarbonate body paint
• Batteries for the transmitter, and basic tools

Pre-order

This is a new release. Kyosho expects UK stock in December 2026, and pre-orders are sent as soon as it arrives. The date comes from the manufacturer and can move.
