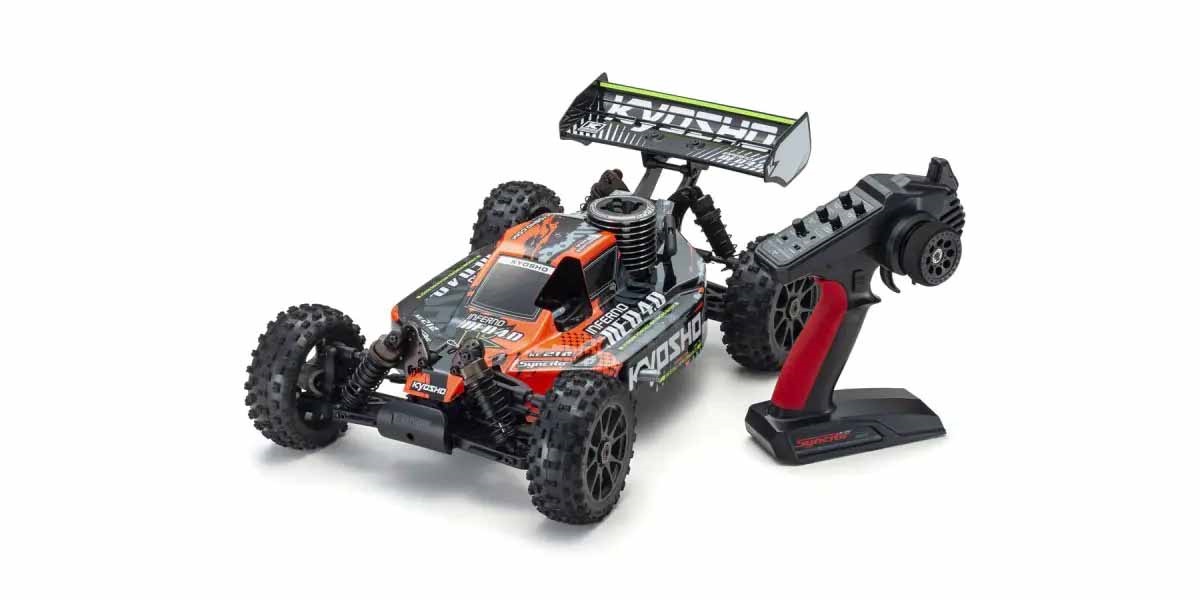

Kyosho Inferno Neo 4.0 1:8 RC Nitro Readyset (KE21SP) Type1

Description

Powerful 1/8 racing buggy
Perfect for beginner to experienced thrill-seekers!

Kyosho’s 1/8 scale Inferno GP buggy series is recognized worldwide as a top-class racing model. The Inferno NEO 4.0, based on the Inferno, comes as a Readyset with a pre-assembled chassis, installed engine, R/C system, and painted body. It’s ready to race after inserting batteries into the included pistol-grip transmitter and chassis and filling the fuel tank. For beginners, the challenging engine break-in process is simplified with a break-in ring that eliminates needle adjustments. The smooth-starting engine makes it easy for those new to GP models. Sharing its body with the electric Inferno NEO 4.0 VE, it comes in two color options. High-torque steering and throttle servos from the previous model provide reliable control, even in demanding off-road conditions. For those new to 1/8 scale GP buggies or experienced R/C enthusiasts, the Inferno NEO 4.0 delivers thrilling large-scale buggy performance.

●This Readyset includes a factory-assembled chassis with engine and R/C components installed, as well as a completed body.
●Based on Inferno series chassis that boasts an unrivalled record of racing achievement, including World Championship victories.
●Shaft-driven 4WD system ensures stable grip even on low-grip surfaces.
●Three-differential configuration with front, rear, and center drive units ensures outstanding driving stability.
●Universal swing shafts deliver efficient and reliable power transfer to the front wheels.
●Double-disc brakes deliver powerful braking performance.
●Powered by the KE21SP engine with an easy-to-use pull starter, including a break-in ring.
●Includes Inferno NEO 4.0VE body for superior control stability, with an original color print scheme.
●Synchro KT-231P+ transmitter with adjustable settings for precise control.
●Special receiver unit is equipped with a fail-safe function to prevent issues resulting from signal loss.
●Features high-torque KS5071-09MW servos with metal gears, ensuring excellent responsiveness on rough terrain.

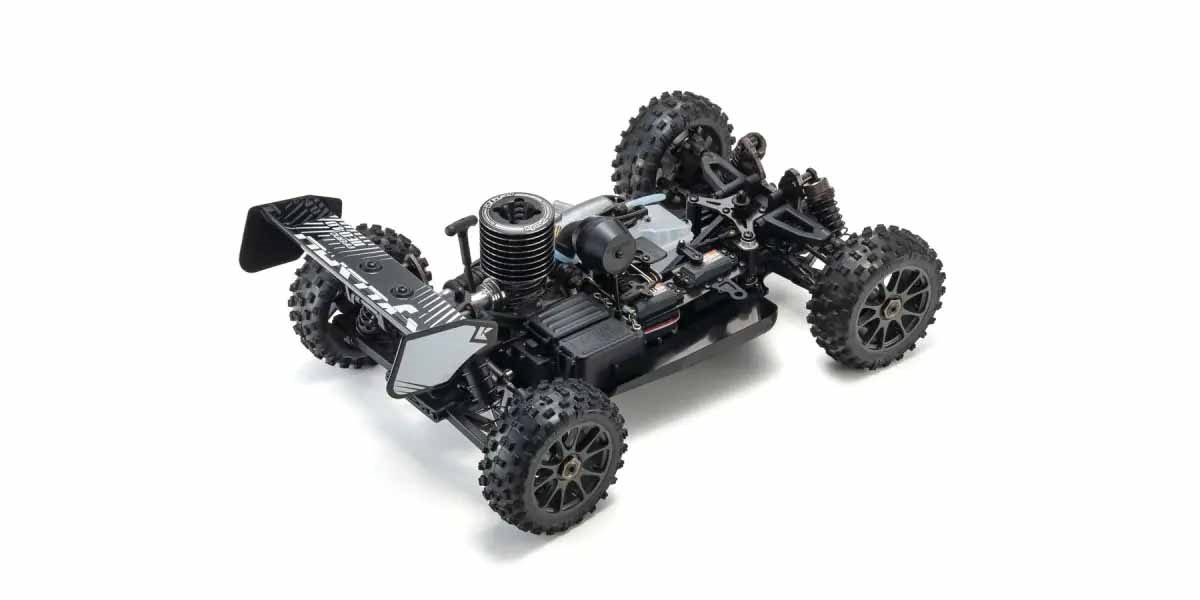

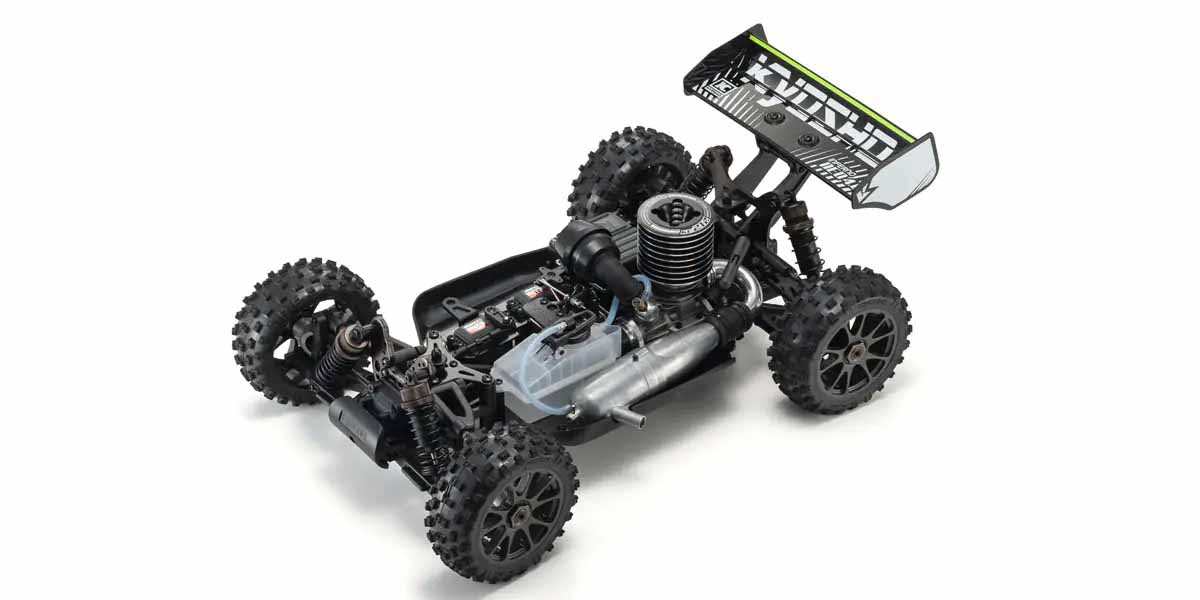

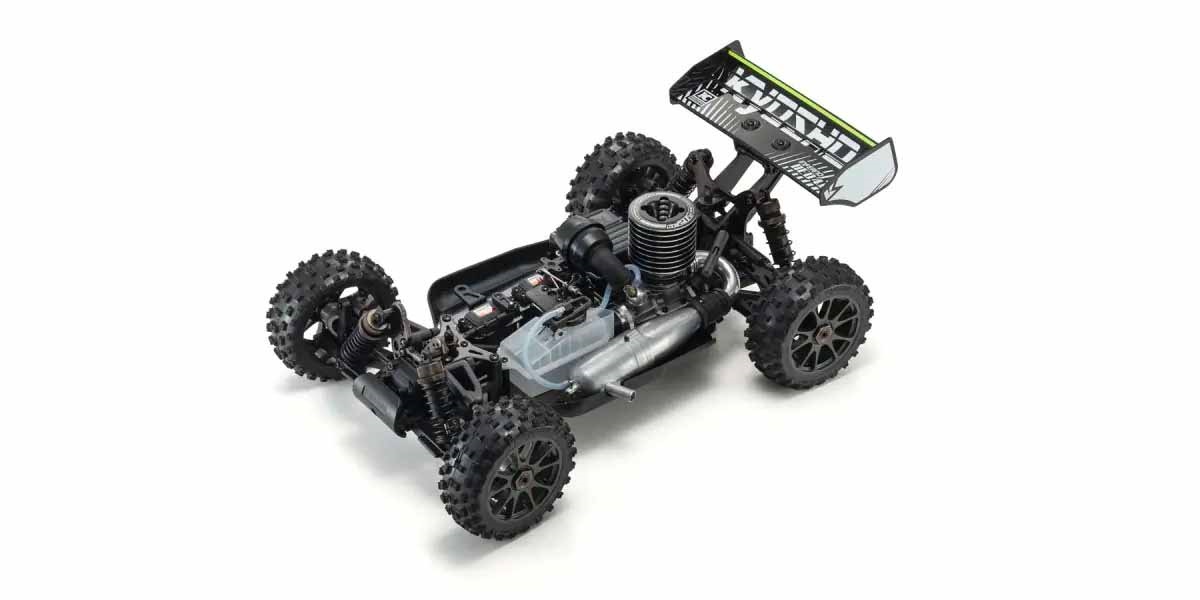

This pre-assembled Inferno-series chassis boasts an impressive racing record, including World Championship victories. It comes as a Readyset with the engine and R/C components pre-installed, ready for action.

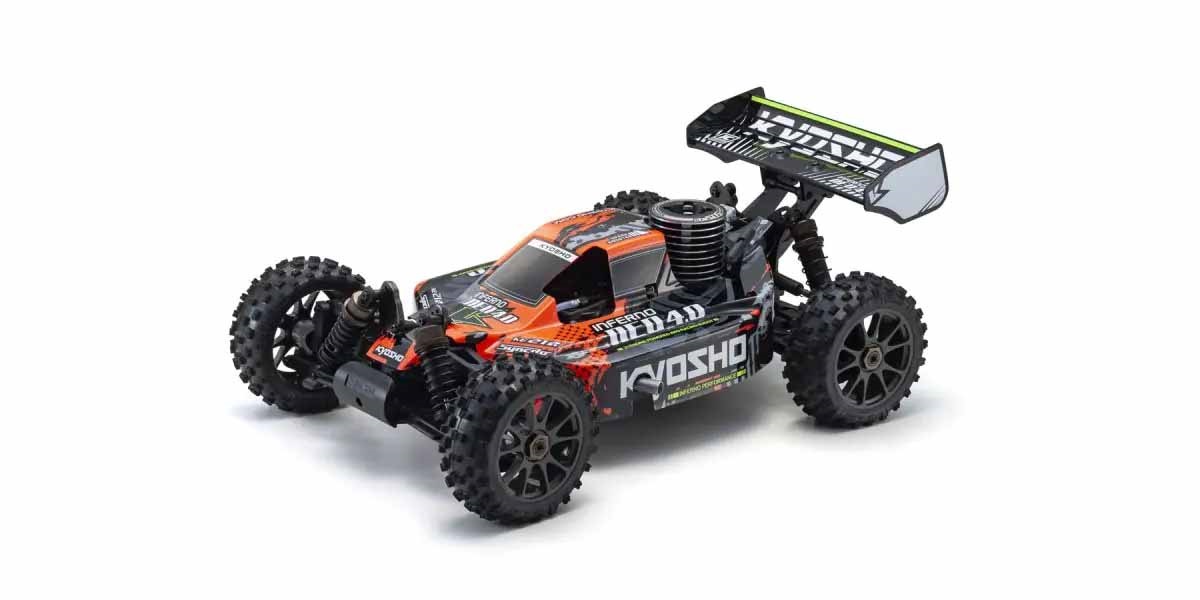

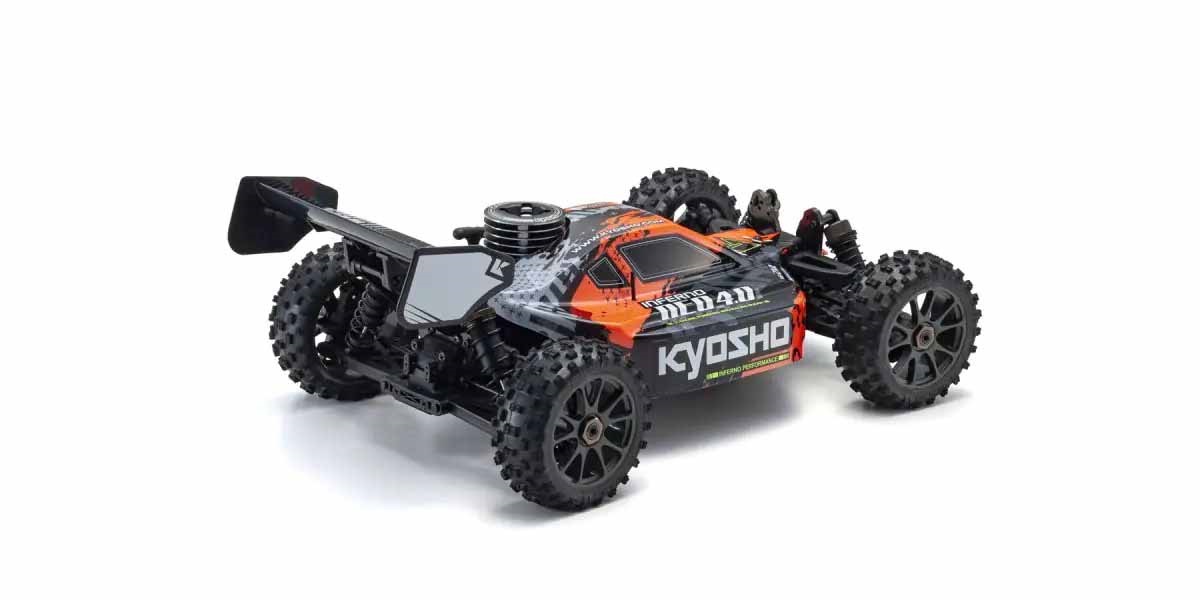

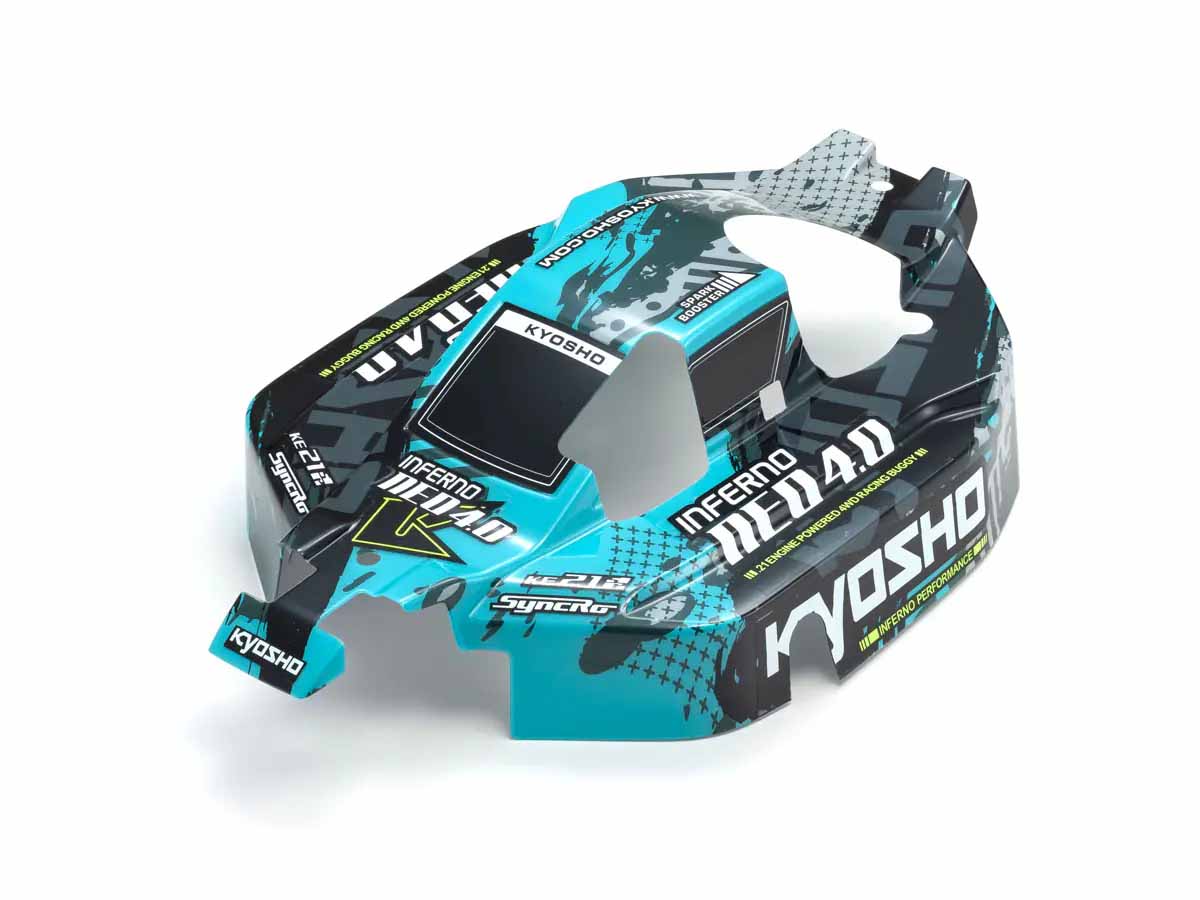

Includes a fully completed body with an original color design. Shared with the Inferno NEO 4.0 VE, it offers excellent aerodynamics for smooth, easy handling.

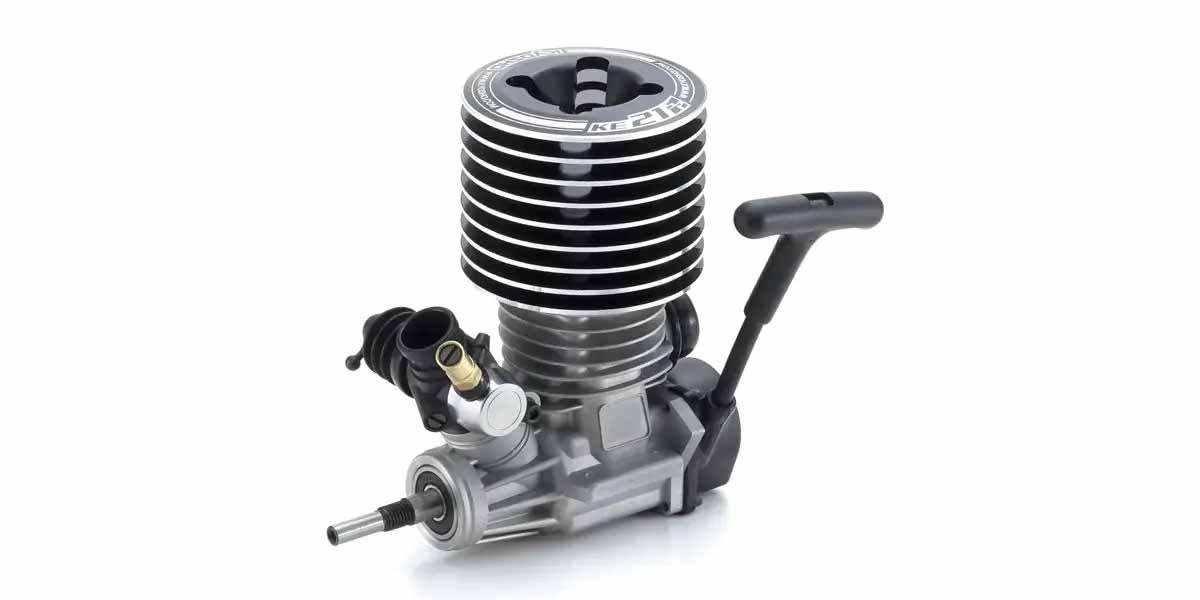

Pre-installed KE21SP engine is equipped with a pull starter. Smooth power delivery and that distinctive engine sound with the thrilling acceleration of a GP model starts with an easy pull on the handle.

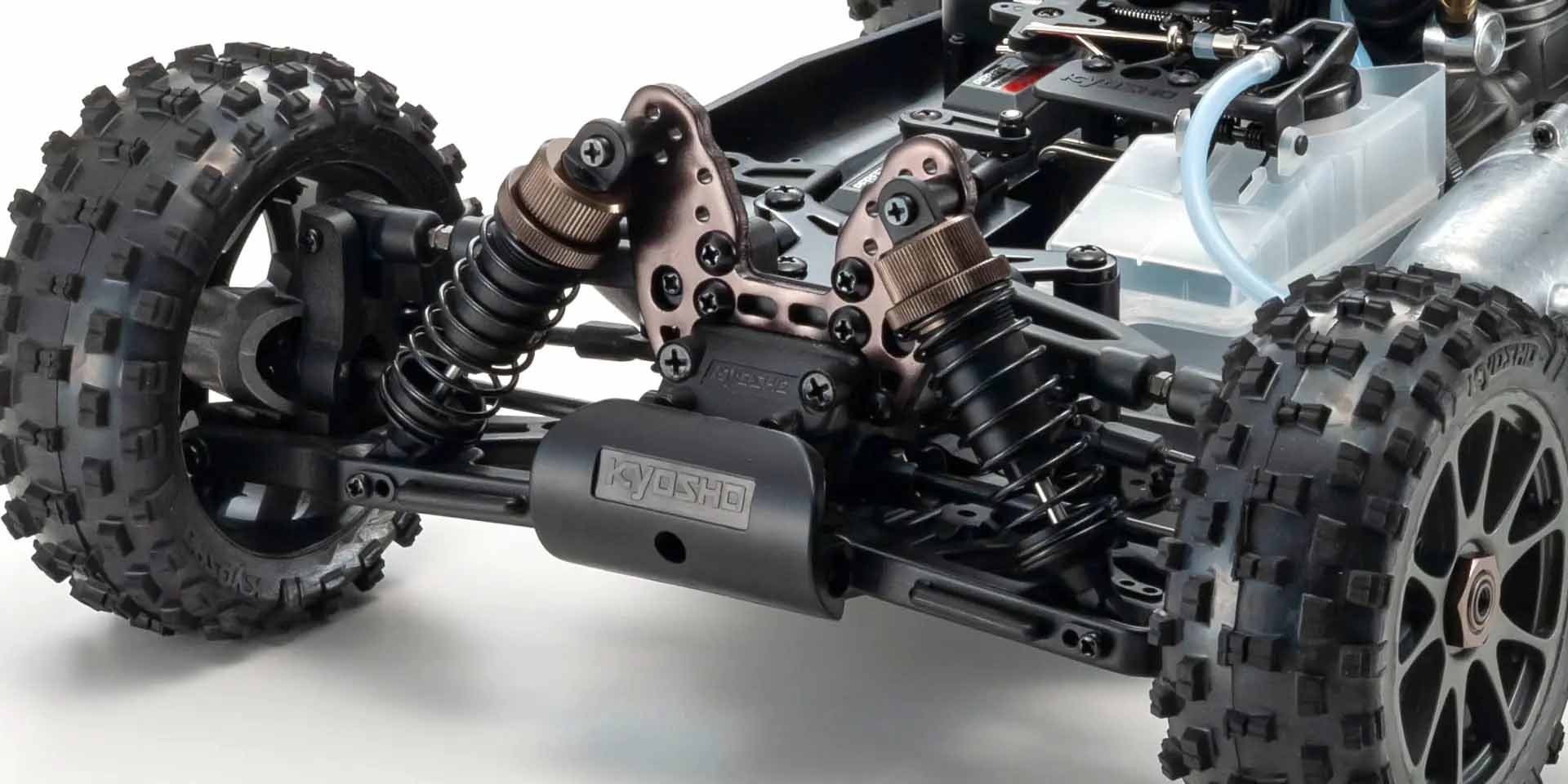

Big-bore oil-filled shock units are designed to handle the weight of the large 1/8 scale chassis. Standard springs are selected to suit various surface conditions, with optional springs available for different spring rates.

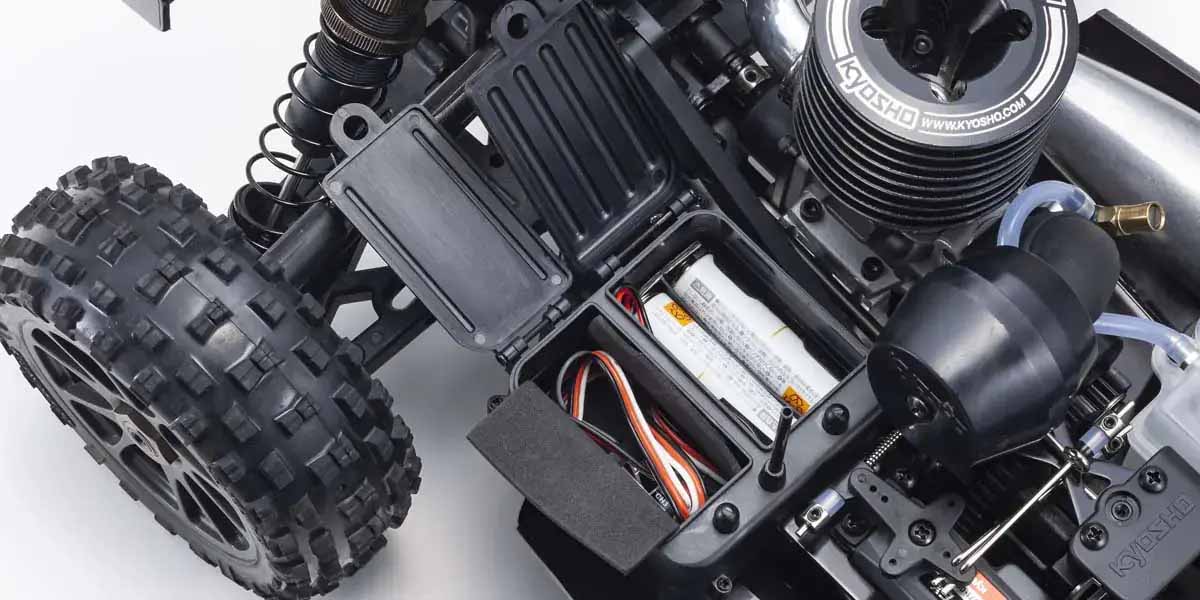

Special radio box houses the receiver to protect it from dirt and dust. Battery holder for the receiver and servos is also secured inside the same box.

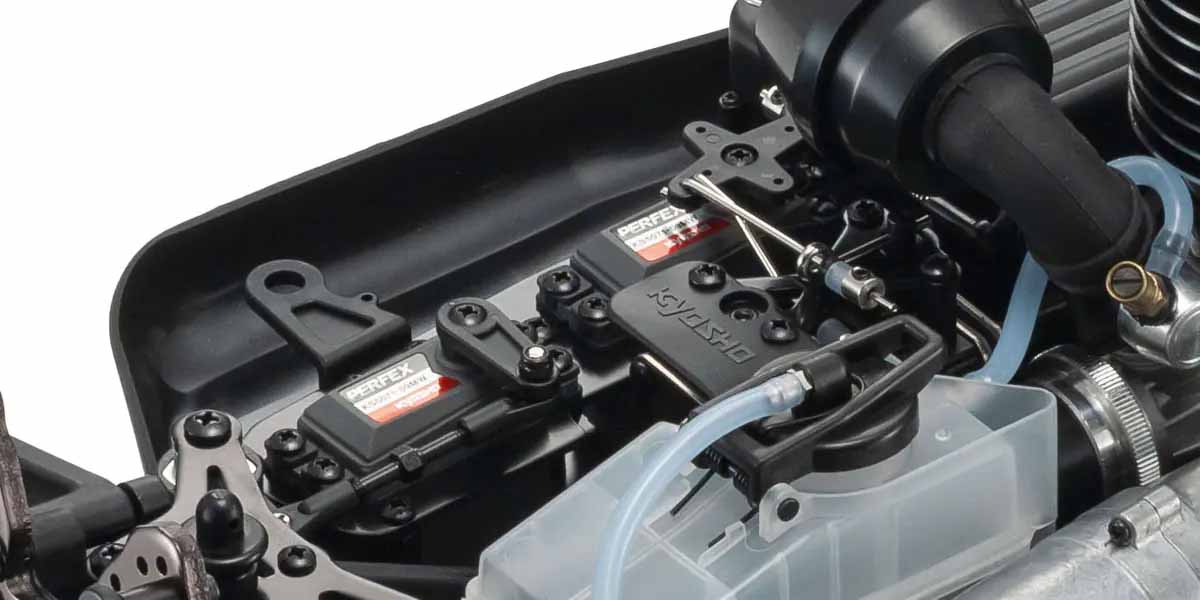

Waterproof KS5071-09MW servos are used for both steering and throttle. Metal internal gears ensure precise high-torque performance, even under heavy-duty off-road driving conditions.

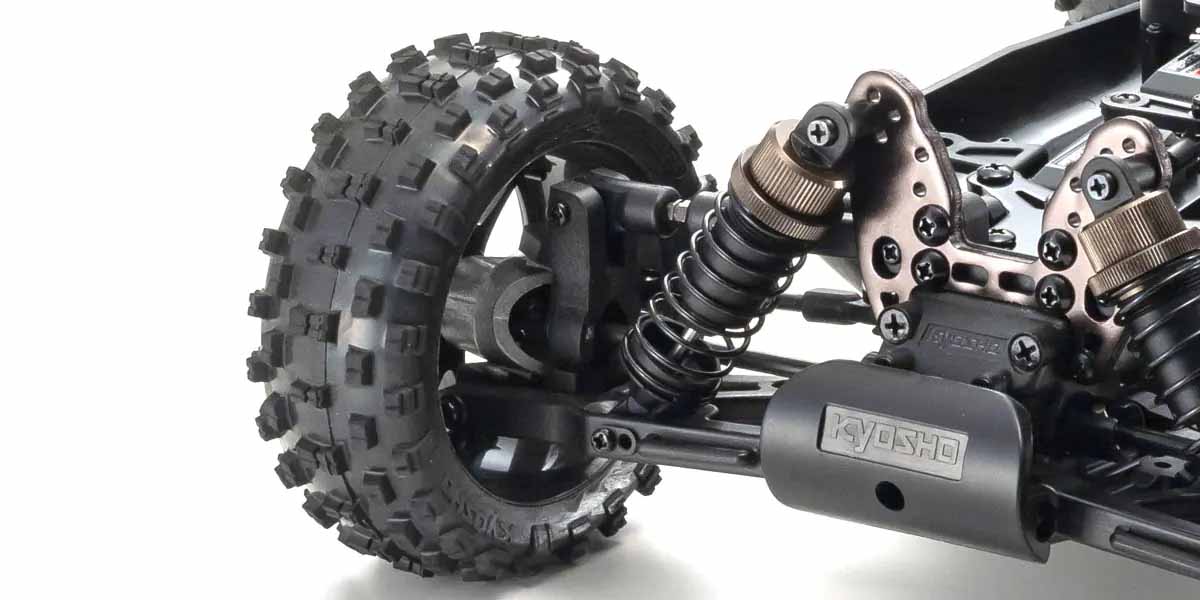

Double wishbone suspension comes standard with turnbuckle-style rods, making alignment adjustments such as toe and camber angles easy. While the alignment is optimally set at the factory, it can be adjusted as needed for different conditions.

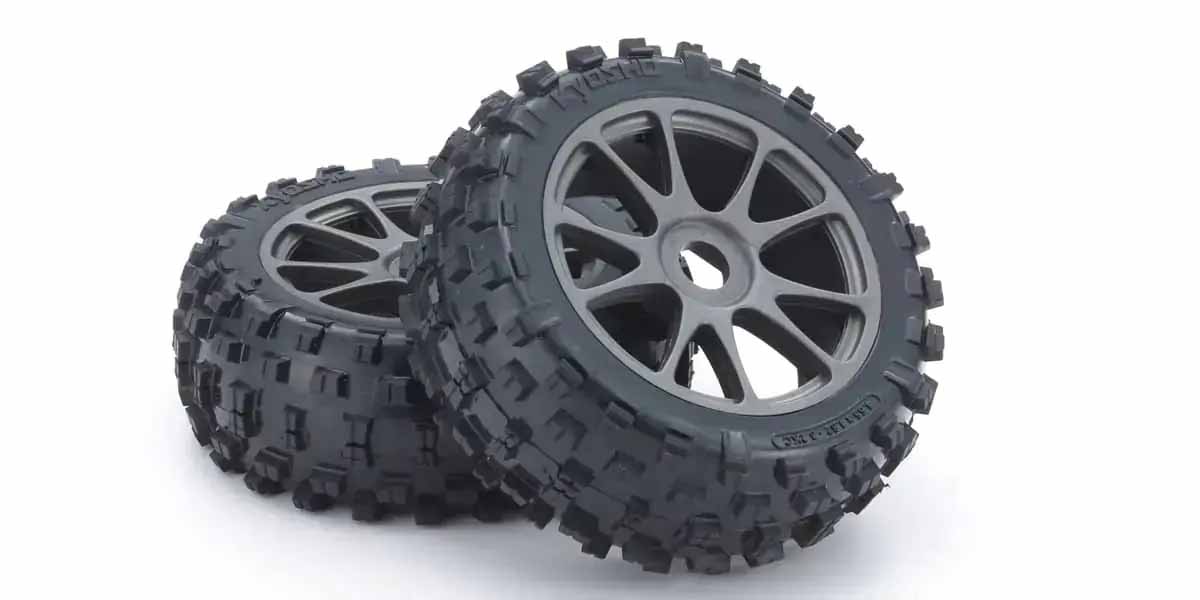

The included KC Cross Tires provide excellent grip on both off-road and on-road surfaces, with a long tire life. They come pre-mounted on scale-looking spoke wheels.

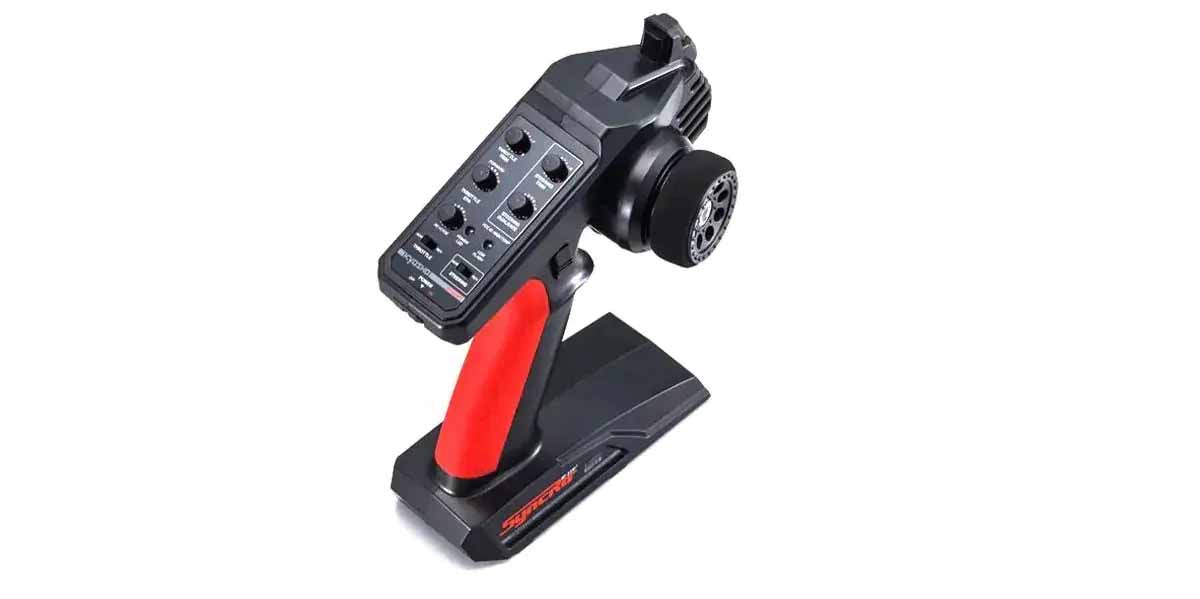

Includes Synchro KT-231P+ pistol-grip transmitter which features adjustable settings for steering and throttle trim, as well as servo motion angles with just a turn of the dial. Its lightweight design is also ergonomically comfortable.

Technical Data

<Technical Data>

– Length 507mm
– Width 307mm
– Height 189mm
– Wheelbase 325.5mm
– Tread (F/R) 258mm／261mm
– Tire (F/R) φ116×44mm／φ116×44mm
– Gear Ratio 11.70：1
– Weight 3,400g (approx.)
– Engine KE21SP
– Transmitter 2.4GHz Syncro KT-231P+

Kit Contents

<Readyset Contents>

– Factory assembled chassis complete with control linkages
– Finished body complete with printed color scheme
– 2.4GHz Syncro KT-231P+ transmitter
– Break in ring
– 1.5、2.0、2.5、3.0mm L shaped hex wrenches
– Cross wrench
– 17mm wheel wrench

Required For Operation

<Required for Operation>

– Glow fuel
– 8 x AA size alkaline batteries for transmitter and receiver
– Engine starting tools (fuel bottle, plug heater)
– Tool
