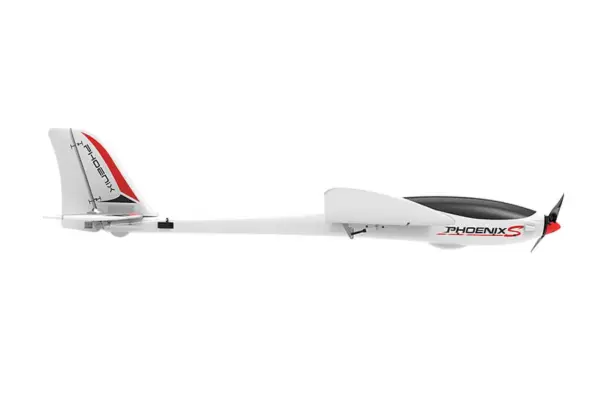

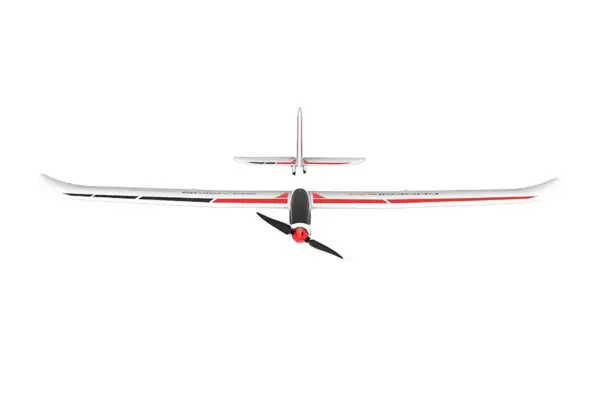

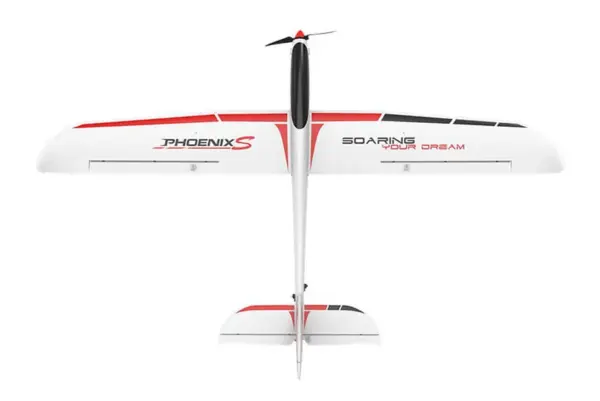

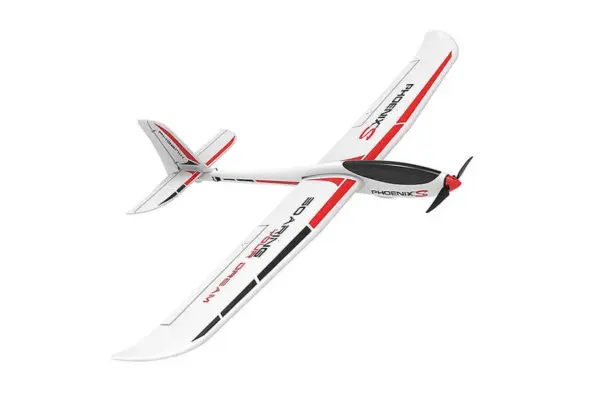

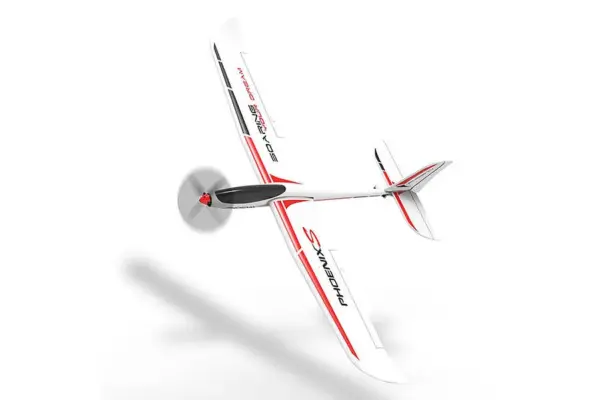

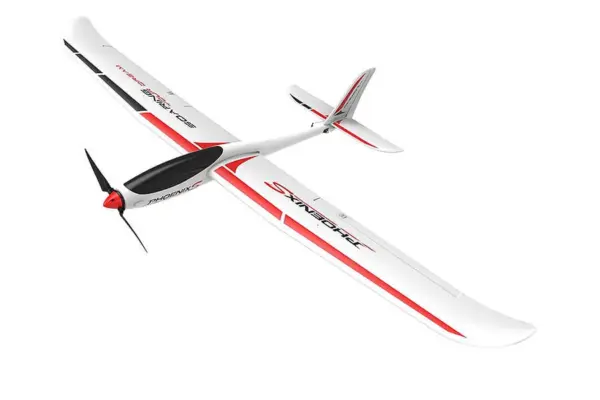

VOLANTEX PHOENIX S 1600MM GLIDER w/ABS FUSELAGE ARTF
Chosen as the glider of choice by certain Glider Club competitions, the Phoenix 1600 represents great value in performance and durability. Quick and easy to assemble via the Volantex fast connect clip system, you can have it built or disassembled in minutes for transport.
The sleek, blow-moulded fuselage is rugged to handle a fair bit of punishment and the foam EPO stabilizer and elevator are reinforced with carbon to futher add strength and rigidity in flight.
Electronics, 30A brushless ESC, 9 gram servos and 2212-1400kv brush less motor are all pre-installed, just requiring you to add your choice of battery and TX/RX.
Features
- Great Power System – Powerful over-grade motor system and 4 channel allow easy controlling to do aerobatic flying.
- Stable Performance With 1.6M Wingspan – Due to its long wingspan, the PhoenixS flies stably in breeze, able to save power by gliding and expand the time of flight.
- Durabel Material – Strong Plastic Fuselage provides flexibility and durability to keep the plane from crashing damages.
- Easy Wing Mounting – Easy to install, assembly time less than 20 minutes.
Specifications
Wingspan: 1600 mm
Overall Length: 1160mm
Flying Weight(without battery): 800g
Prop Size: 1060
Motor Size: BL 2212/1400KV
Speed Control: BL ESC 30A
Servo: 9-gram Servo * 4pcs
Recommended Battery (Required): 7,4V 1500mAh Li-po
Radio (Required): 2.4Ghz 4-Channels
Charger (Required): 2S LiPo
Ailerons: Yes
Flaps: No
Minimum Age Recommendation: 14 years
Experience Level: Beginner~Expert
Recommended Environment: Outdoor
Assembly Time: Less than 20min
Is Assembly Required: Yes
Required To Complete
- Transmitter
- Receiver
- Battery
- Charger
For further information: on flying your RC plane in a safe and responsible manner please check out www.bmfa.org
Frequently Asked Questions
The Phoenix S is rated for Beginner to Expert level pilots, so while beginners can fly it, the 1600mm wingspan and aerobatic capabilities make it better suited to pilots with some RC experience. If you're completely new to RC planes, consider starting with a smaller trainer model first.
You'll need a 7.4V 1500mAh Li-Po battery and a 2S Li-Po charger, as neither is included in the box. Check the manual for exact charge times and always follow safe Li-Po charging practices.
The ARF (Almost Ready to Fly) kit includes the fuselage, wings, stabilisers, pre-installed motor, 30A ESC, four 9-gram servos, and propeller. Assembly takes less than 20 minutes using Volantex's quick-connect clip system; you just need to add your battery, transmitter, and receiver.
With a 1600mm (1.6 metre) wingspan and 1160mm length, it's a substantial glider. The good news is the wings and fuselage disconnect quickly for transport, making it manageable to fit in most vehicles.
Yes, the powerful 2212/1400KV brushless motor and 30A ESC enable aerobatic performance, and the four-channel radio system gives you full control. You'll need to supply your own 2.4GHz 4-channel transmitter and receiver.
