SKU Z-K0065 Category RC Cars

Rc4Wd Trail Finder 2 Lwb 1/10

£399.99

Just a few left

Excellent product, superb delivery and packaging. Recipient absolutely overjoyed with the truck and all its excellent parts and performance

i have to say radio- controlled uk are spot on with the service provided and fast delivery, their products are packaged with great care i ordered a Rlaarlo AM-D12 1/12 RTR Brushless RC Desert Car and it arrived 48 hours later, and boy what a great little buggy for the price so well done radio- controlled uk . Oliver who owns the company was very polite/honest and helpful in answering my questions, and nothing seemed to be to much trouble i will buy from this company again. Good service, helpful staff, always replies to a message right away 10/10 stars from me regards Ian

Not ran it yet, but the build quality is excellent. Excellent service and communications from radio-controlled.co.uk one of my fave vendors

Fantastic service and advice from radio-controlled.co.uk, couldn't have helped any more, thank you. Really impressed with the quality of this buggy, extremely well built and looks amazing. Everything just looks well made and put together. This buggy is seriously rapid 👌

RC4WD TRAIL FINDER 2 LWB 1/10 SCALE BUILDERS KIT

The Trail Finder 2 LWB has both style and aggressive performance.You can find a balance of scale details and performance into every build.

Performance is smooth with its R3 Scale Single Speed transmission, 4WD drivetrain, Bulletproof Transfer Case, and quality metal components. The front axles have been upgraded with XVDs, providing sturdier construction and a greater steering angle than stock counterparts. The Trail Finder 2 LWB is a product of innovative engineering that impresses in appearance and performance.

The Trail Finder 2 LWB is fully compatible with an array of options and performance enhancements crafted to elevate the user experience and enhance the authenticity of a 1/10 off-road truck!

FEATURES

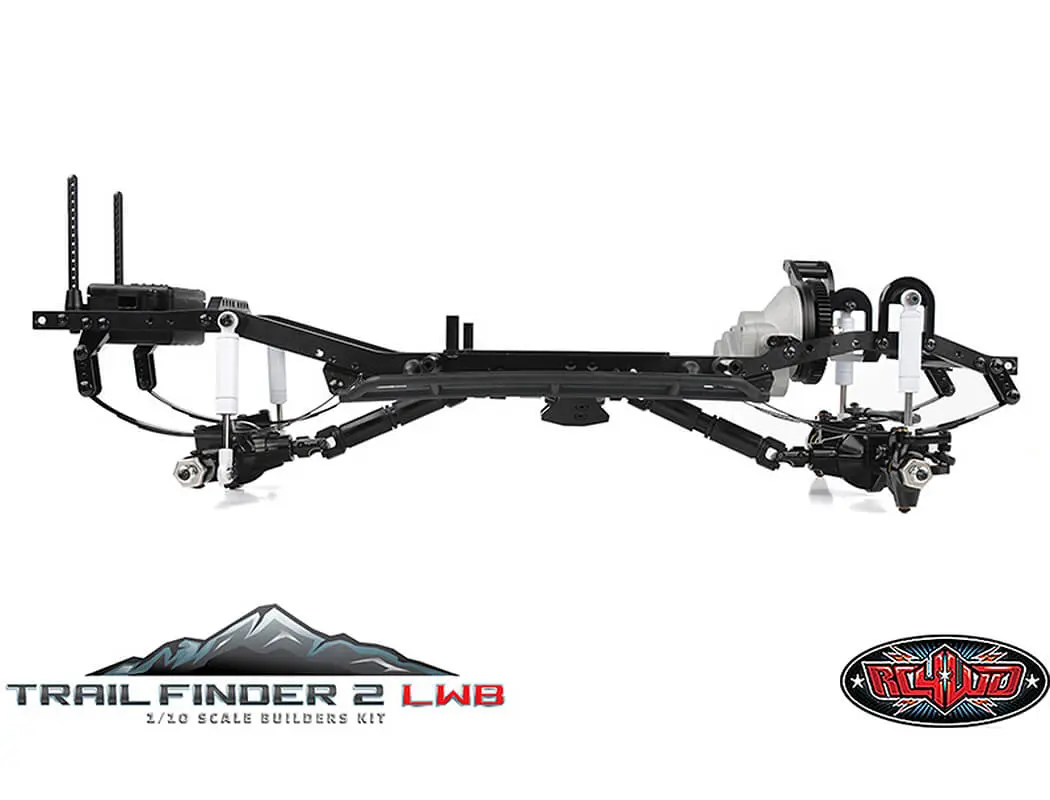

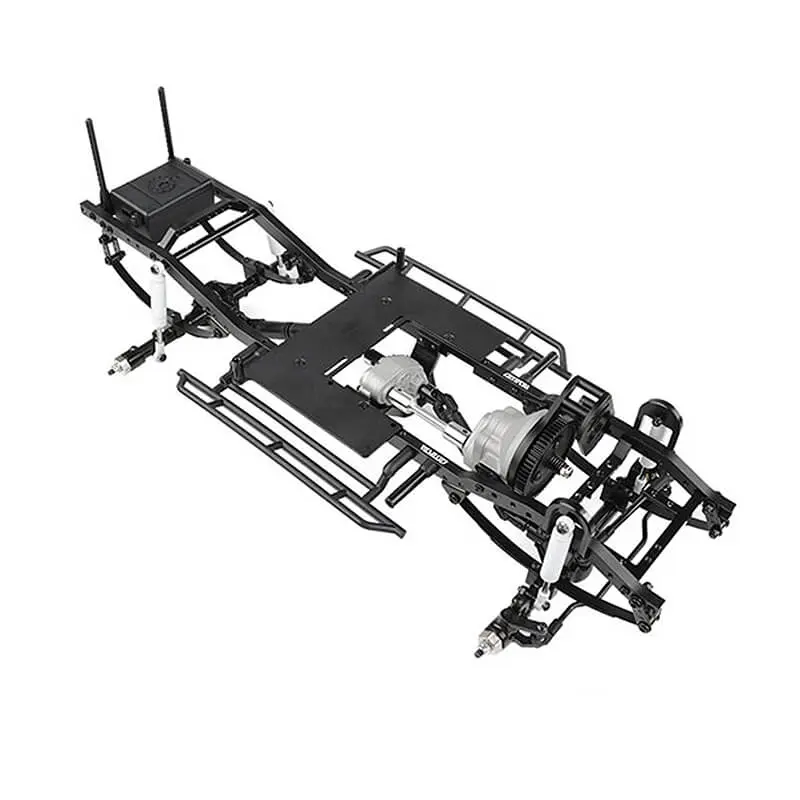

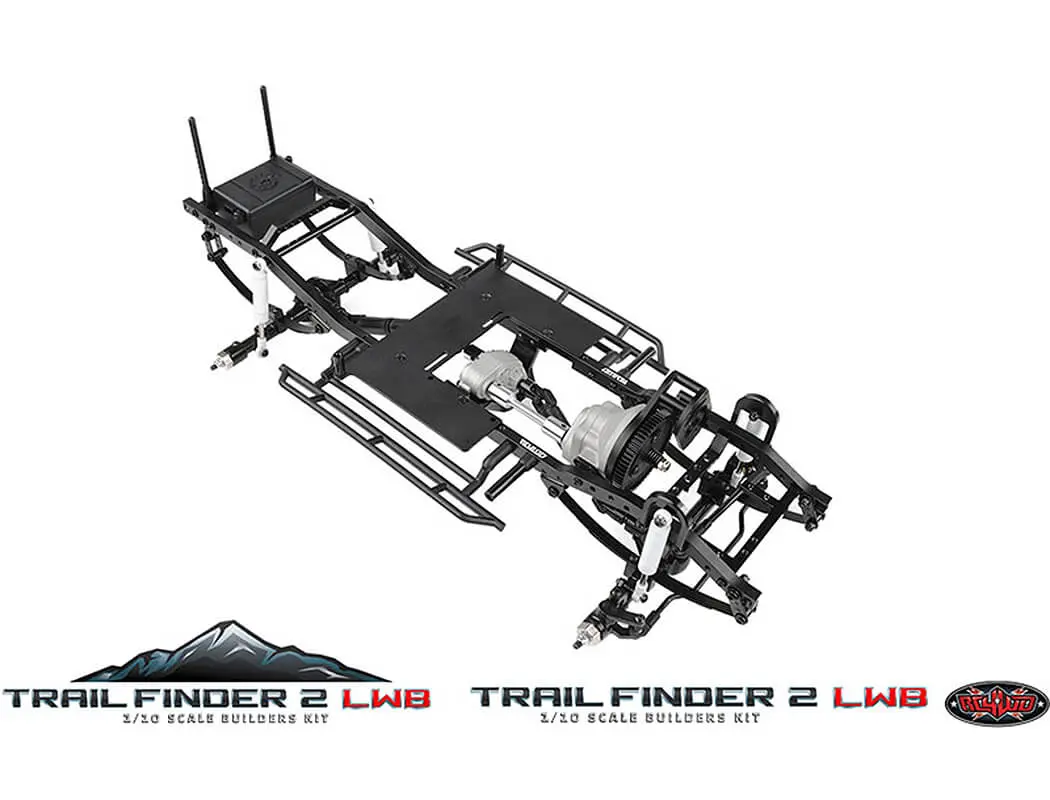

Realistic Billet Aluminum Ladder Frame Chassis
R3 Scale Single Speed Transmission

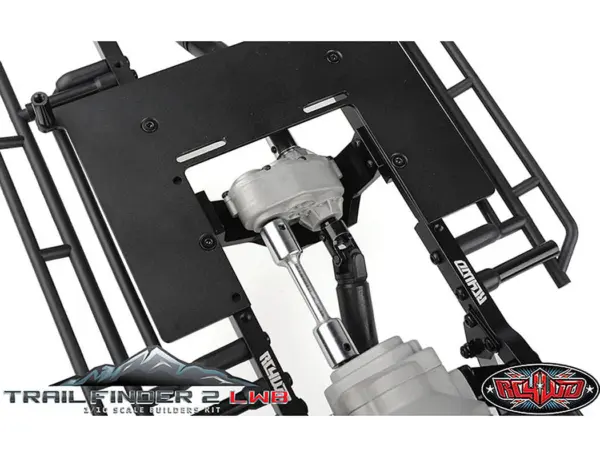

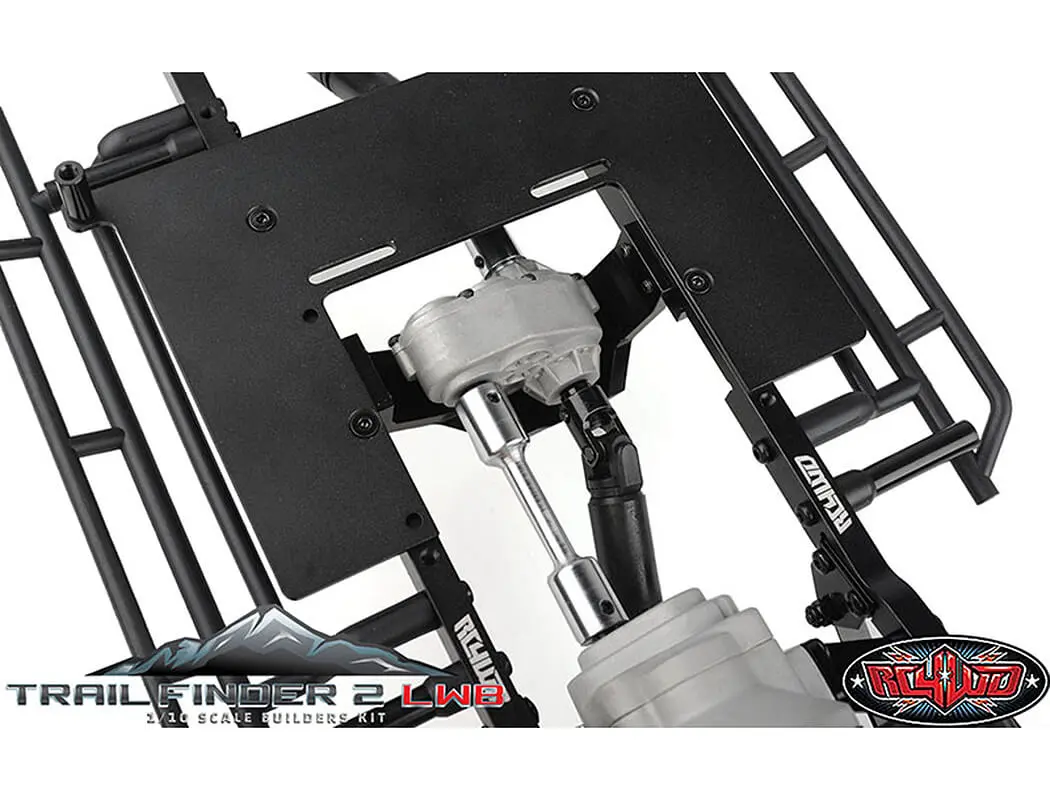

Center Mounted Realistic 4×4 Transfer Case

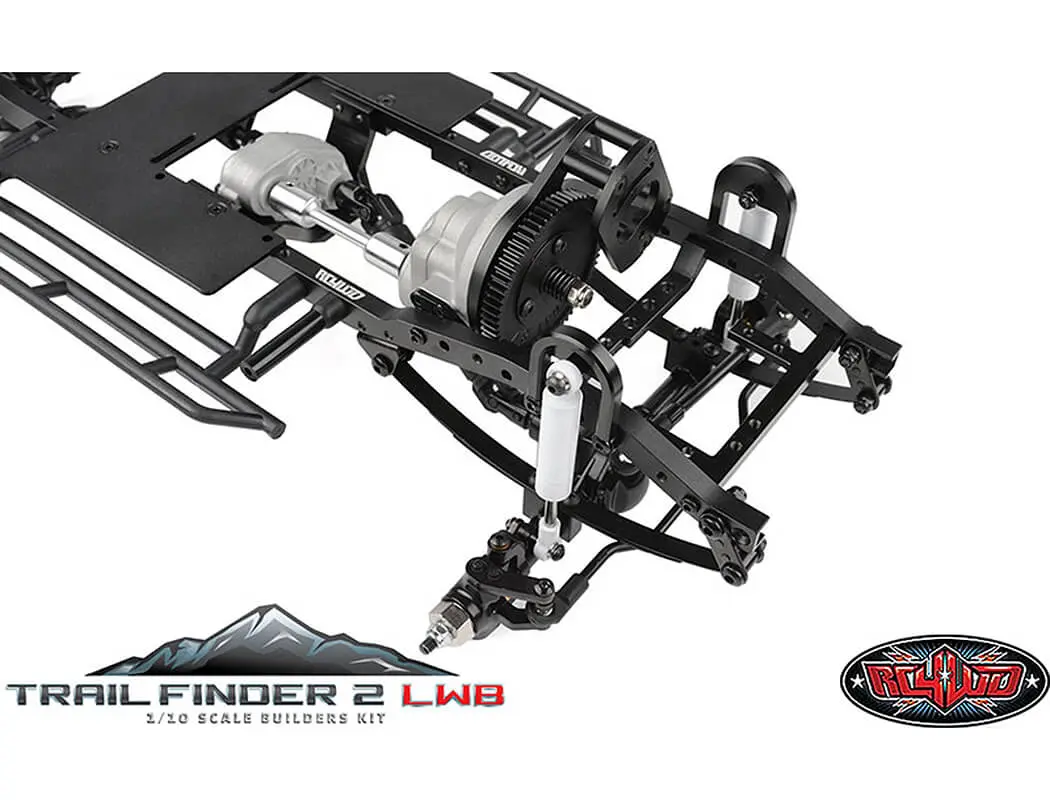

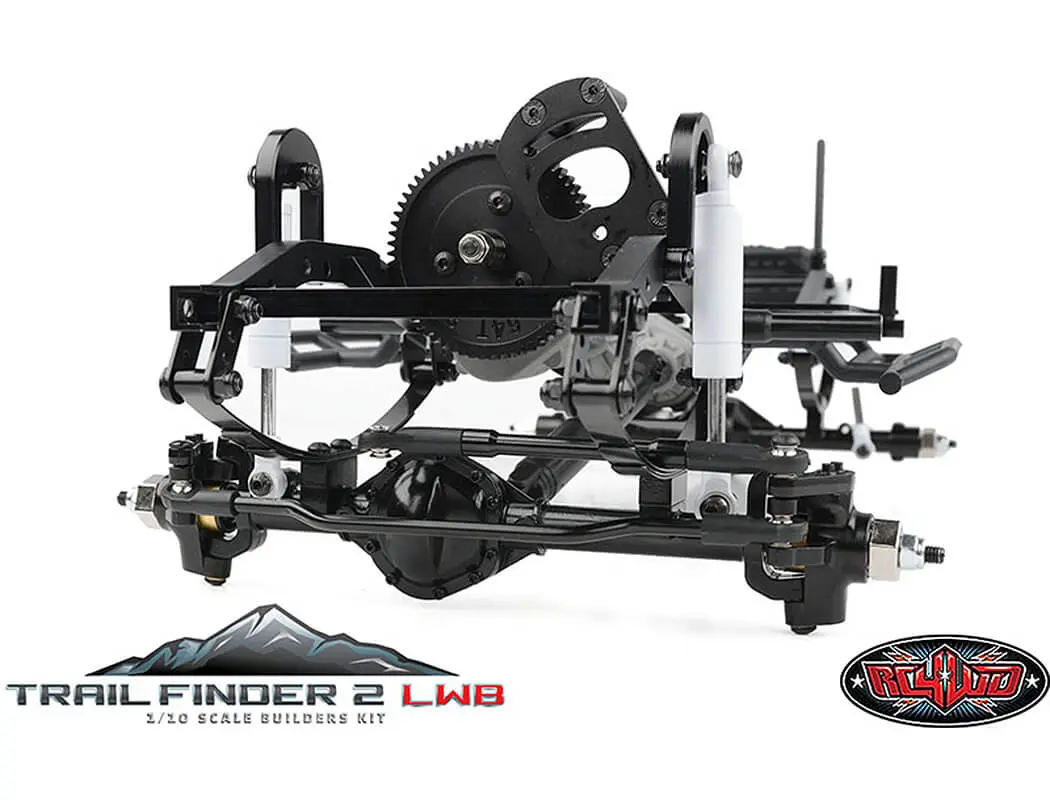

K44 Ultimate Scale Cast Front Axle with Upgraded XVD’s

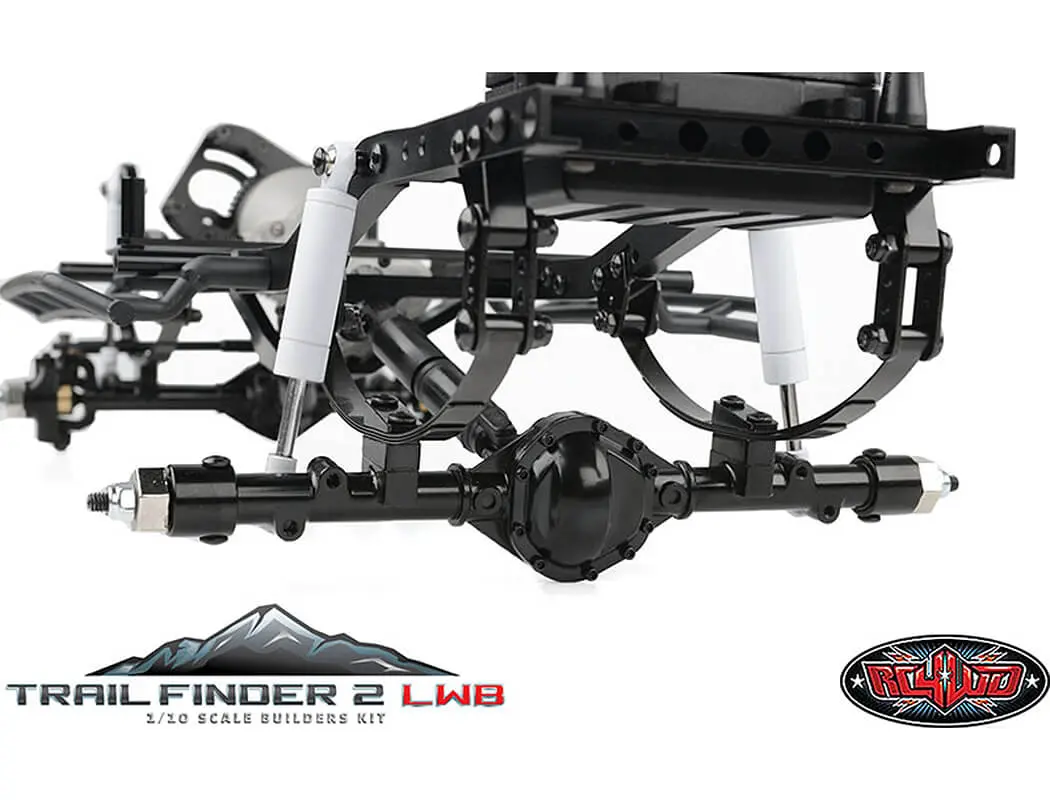

K44 Ultimate Scale Cast Rear Axle
Super Scale 70mm White Shocks W/ Internal Springs
RC4WD Marlin Crawler Side Plastic Sliders
Soft Steel Leaf Springs

SPECIFICATIONS

Hammer Transfer Case
Ratio: 1.47:1
Gears: Wide .8 Mod Steel Gears
Features: 8 Bearings, Cast Casing, Hardened Gears

R3 Scale Single Speed Transmission
Ratios: Pinion/Spur 14/64 = 1:4.57
Internal Ratio: 1.78:1
Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch

K44 Ultimate Scale Cast Axles
Ratio: 2.67:1
Hex To Hex Width: 177mm (6.96″)

Trail Finder 2 “LWB” Chassis
Features: Billet Aluminum Construction, Adjustable Shock Hoops

Drive Shafts
High Quality Plastic Material, Durable Steel Yokes

Trail Finder 2 “LWB” Truck Dimensions
Wheelbase: 314mm(12.4″)
Width: 193mm(7.6″)
Height: 118mm (4.65″)
Final Drive Ratios: 31.9:1

WHAT’S INCLUDED

1x RC4WD Trail Finder 2 “LWB” 1/10 Scale Builders Kit

REQUIRED TO COMPLETE

This is a kit that requires building time (appro. 2-3 hours), electronics, tires and wheels.

Truck Kit

Hex Drivers (1.5mm, 2mm, 2.5mm)
Long Nose Pliers
Associated Thread Locking Adhesive
Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)

Electronics

Motor (35t, 45t or 55t)
Outcry Extreme Speed Controller ESC w/ Program Card (Z-E0118)
Radio and Receiver (3 Channels or more) (3 Channel Z-R0009, or 4 Channel Z-R0006)
Twister High Torque Metal Gear Digital Servo (Z-E0035)
Battery (Consult your “ESC” manual) Z-E0090 or Lipo battery
Charger (Consult your battery guide) Chargers

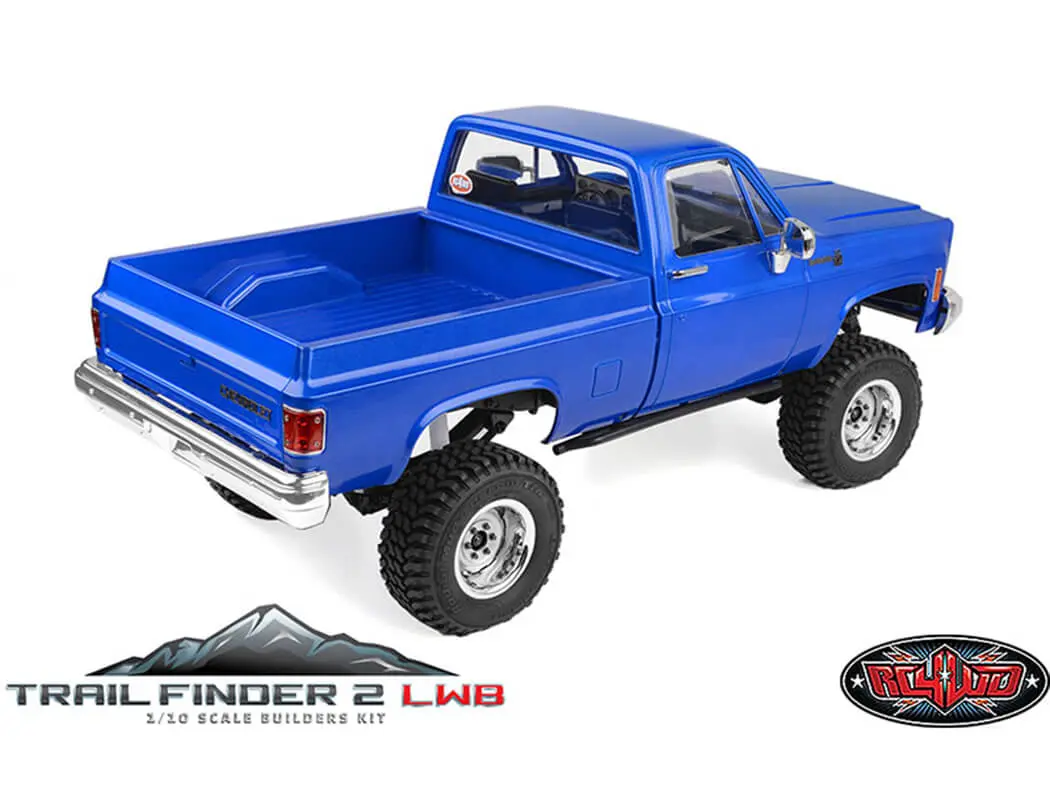

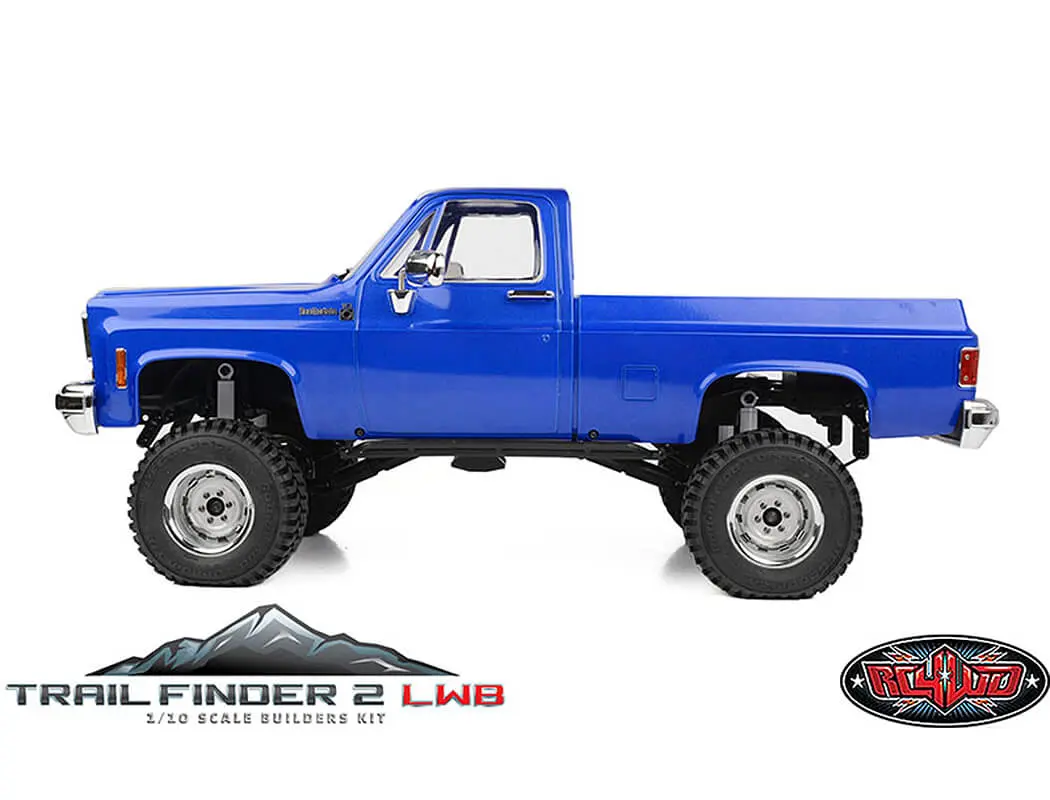

Suggested Bodies

RC4WD 1987 Toyota XtraCab Hard Body Complete Set (Z-B0216)

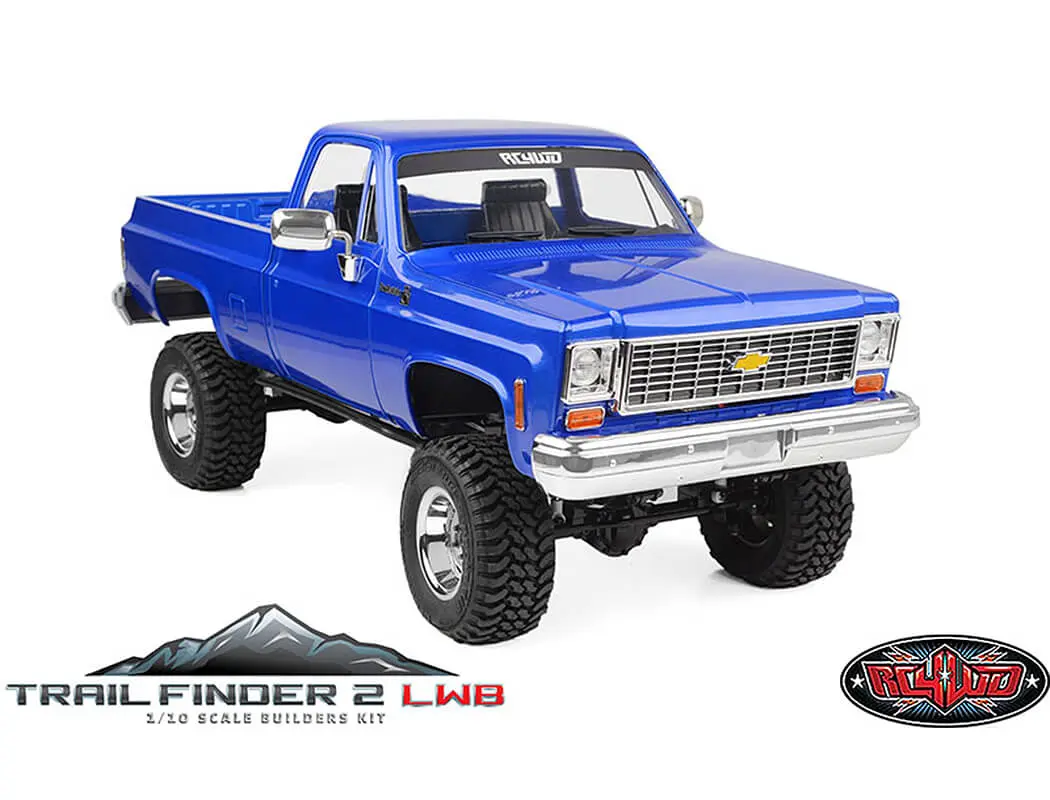

RC4WD Chevrolet K10 Scottsdale Hard Body Complete Set (Z-B0258)

NOTES

While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
Use good quality hex drivers to avoid stripping screw heads.
Use thread lock sparingly.
Do not over tighten screws, otherwise you may strip the thread.
