Key Specs
About this product
UNBELIEVABLE POWER – the new Hotshot 3.4BL series is equipped with a powerful brushless electric motor and waterproof electronic speed controller (ESC). Shaft driven 4WD provides you with the necessary traction to maneuver the toughest obstacles and the forward/reverse ESC is beneficial in navigating tight spots. Lightweight plastic chassis, four oil filled adjustable coil over shocks, and independent suspension offer solid performance. Fear not! A 2.4GHz radio system and waterproof electronics ensure control, for those who dare to unleash the power.
HIGHLIGHTS:
Water-resistant 50A BL Speed Controler (programmable)
Powerfull 3300KV BL Motor
2.4GHz A.F.H.D.S. Radio System
Full Aluminum Shocks
Steel Motor Transmission
PRODUCT FEATURES
Transmission: Forward, Brake & Reverse
Drive System: 4 Wheel Drive
Ball bearing transmission
Oil filled adjustable shocks
Gear differential front/rear
Aluminum motor mount
Complete covered transmission
Adjustable turnbuckles & wishbones
Aluminum drive shaft
Full printed body
2.4GHz radio System
Sticker sheet for a unique design
A lot tune-up parts available!
TECHNICAL SPECIFICATION:
Measure (L/W/H): 450x190x140 mm
Weight: 1300g
Wheelbase: 260 mm
Chassis clearance: 20 mm
Tire width: 27 mm front / 27 mm rear
Tire Ø ± 65 mm
Shock spring force: medium / Length: 62mm f/r
Shock oil viscosity: 300 f/r
Steel Motor transmission: Pinion 29T / Gear 64T
Pinion module: 0.6
MORE FEATURES:
BL Speed Controller (2110007): programmable (brake power, neutral brake, drive mode, punch, V cut-off) / NiMH (7.2V) & LiPo (7.4V/2S) suitable / Amps: 50A cont./300A peak / BEC 6V/3A / Overheat cut-off / Drive function: front/reverse/brake (standard) / Plug system: T-plug (Deans style)

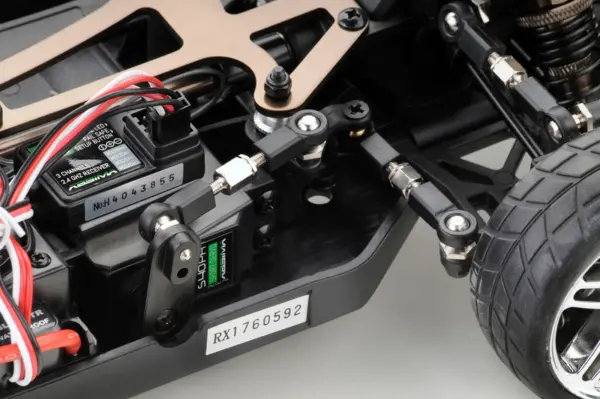

Servo (2030003): 4kg steering force / 25T outdrive
Motor (2130005): 3421KV / 27.400RPM @ 7.4V / Operating voltage: 4.8 – 11.1V / Size: 540
Radio (2000001): 2-channel radio / 3-channel receiver / reverse / dual rate / trimming
SCOPE OF DELIVERY
Touring Car “ATC3.4BL” RTR – brushed version
2.4GHz Radio System
Manual
Sticker Sheet
REQUIRED ACCESSORIES
2S LiPo Battery 7.4V
Charger (LiPo suitable)
4x AA Mignon Batteries for Radio
Frequently Asked Questions
The ATC3.4BL is ready-to-run out of the box with a 2.4GHz radio system included, making it accessible to newcomers. However, as a brushless 4WD touring car with significant power (3300KV motor), it suits drivers with some basic RC experience better than complete beginners.
The speed controller accepts both NiMH (7.2V) and LiPo (7.4V/2S) batteries. The product description confirms the car is supplied RTR with a 2.4GHz radio system and sticker sheet, though the full battery specification isn't listed in the box contents—check with the retailer for details on what battery is included.
The ATC3.4BL measures 450mm long, 190mm wide, and 140mm tall at a 1:10 scale, making it roughly the size of a small toy car. It has a 260mm wheelbase and 20mm ground clearance, so it requires a moderate amount of space for driving but will fit most gardens or indoor areas.
The 3300KV brushless motor, waterproof 50A speed controller, and shaft-driven 4WD system deliver strong power and traction for demanding terrain. Waterproof electronics allow use in wet conditions, though you should check the manual for specific recommendations on water resistance limits.
Yes—the product highlights that a lot of tune-up parts are available, and the car comes with a sticker sheet for custom design. The speed controller is also programmable, allowing you to adjust brake power, drive mode, punch, and voltage cut-off settings to suit your driving style.
