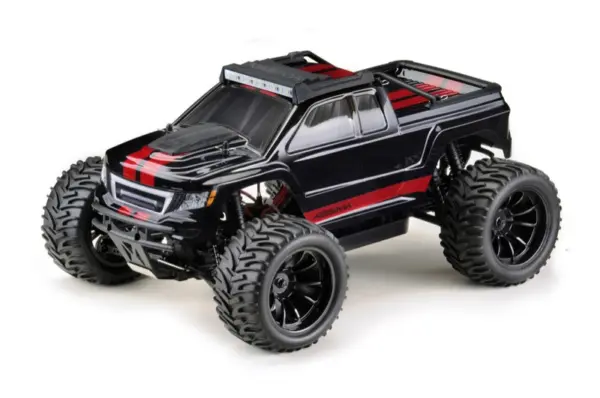

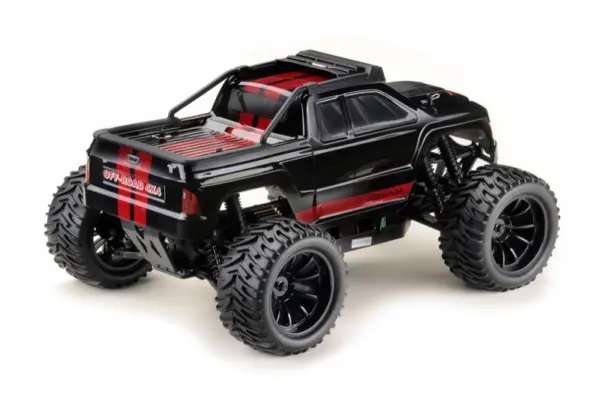

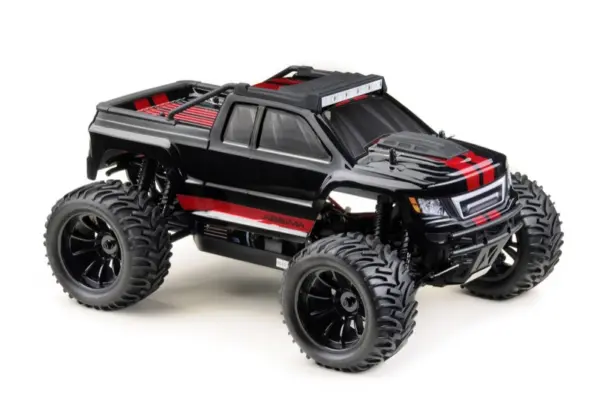

1:10 EP Monster Truck “AMT3.4-V2” 4WD RTR

The success story continues! We have equipped the AMT3.4 “V2” with some new features that bring the vehicle to the next level of evolution.

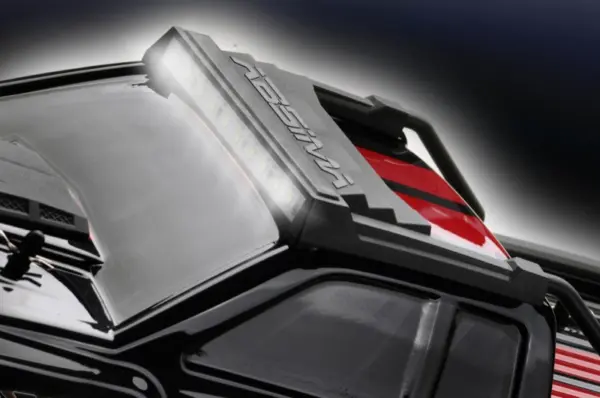

Some technical changes have been implemented in our 1/10th scale monster truck – among other things, the vehicle now comes with LED lighting on the roof

NEW* 80A brushed speed controller withT-connector and 540 motor
NEW* Programmable speed controller
NEW* 15kg steering servo with metal gears
NEW* LED lighting
NEW* Monster truck body with many add-on parts
NEW* even more option parts available

The new 80A Brushed speed controller is waterproof, programmable and pre-configured with a T-connector. To fully exploit the potential of the vehicle, we recommend a 2S LiPo battery for operation. In addition, a separately available programming card (item 2110061) can be used to set various parameters such as braking force, punch, low voltage protection and more.

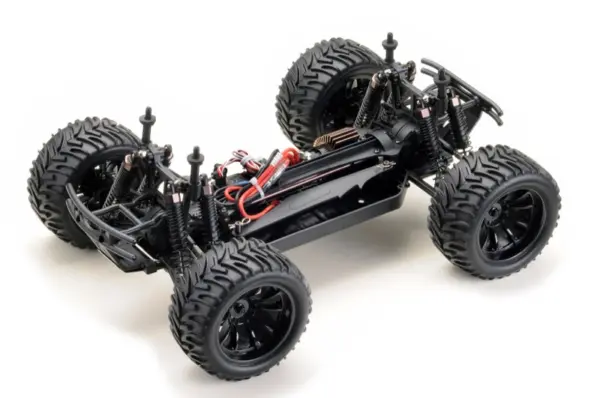

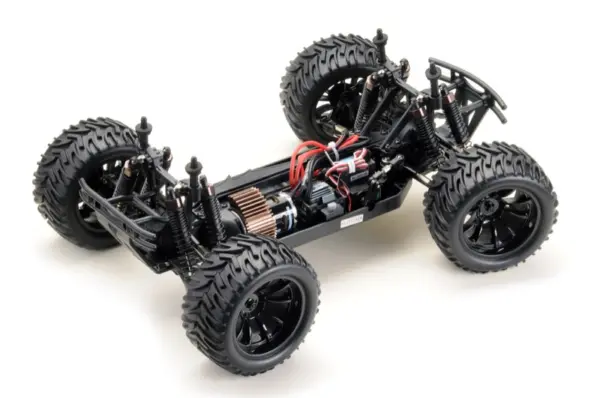

The car is powered by a 550size 18T brushed motor that directly accesses the all-wheel drive system. The two differentials (front and rear) are driven by an aluminum driveshaft. Due to the higher power of the speed controller and the use of T-connectors, any 2S LiPo battery can be used – no matter what the C-rate and capacity.

8(!) oil-pressure shock absorbers provide ideal handling, so there is plenty of driving fun. A 15kg metal gear servo with takes over the implementation of the steering commands.

Lightweight and compact design, as well as comfortable and ergonomically shaped – these are just two features of our CR4S 4-channel remote control. Of course, all trim, reverse and dual rate functions are available in the cockpit, making adjustments easy via levers and knobs. In addition, the remote control has a “Beginner Mode” (speed reduction by 50%) and is therefore ideal for pilots who do not yet have so much experience with the handling of such RC vehicles.

4WD all wheel drive
2.4 GHz 4-channel radio system
80A brushed speed controller with T-plug
550size 18T motor with 28.000RPM @ 7.4V
15kg MG steering servo (25T, ball bearings)
8 Oil shock absorbers
Ball bearing main drive
Extremely durable composite plastic parts
Steel differential outputs
Aluminum main drive shaft with steel mounts
Adjustable upper tie rods
5mm aluminum motor mount
6mm shock towers
2 differentials (front/rear)

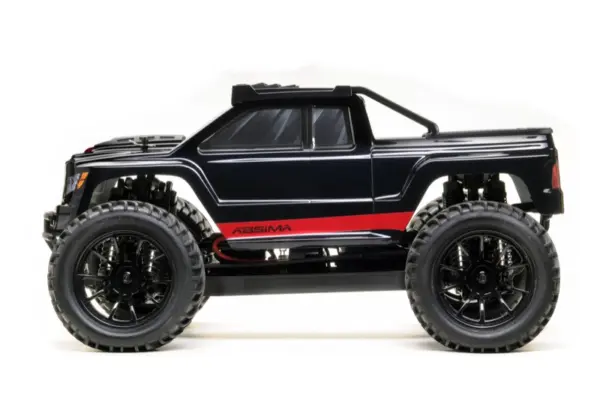

Stylish truggy body with add-on parts
“Light-Weight” chassis (less weight – longer drive time)
Many aluminum option parts available

Scale: 1:10
Dimensions (L/W/H): 425x300x200 mm
Weight: 2070g
Wheelbase: 270mm
Ground clearance: ca. 45mm
Track width: 250mm front/rear
Wheels front/rear: Ø 116mm / Width: 57mm
Shock absorber oil: 400CPS
Shock absorber installation length: 100mm
Motor ratio: pinion: 17T / main gear: 64T (module 0,6)

1/10 Monster Truck “AMT3.4V2” RTR
2.4GHz “CR4S” radio
Sticker sheet
Manual
