Key Specs
About this product
The success story continues! We have equipped the AB3.4 “V2” KIT with some new features that take the vehicle to the next evolutionary stage
Some technical changes have been made to our 1:10 buggy – among other things, the vehicle now comes with LED lighting on the roof
HIGHLIGHTS:

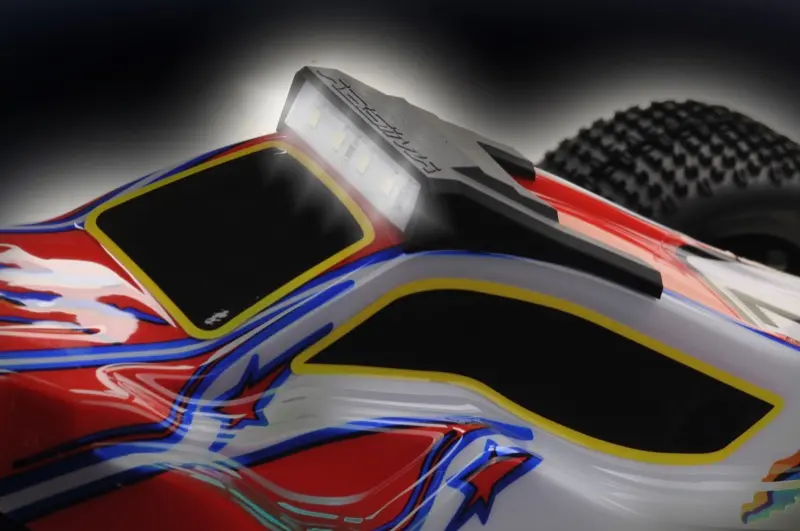

NEW* LED lighting
NEW* Downforce rear wing
NEW* even more tuning parts available
The KIT version is a kit that can be assembled with standard tools such as pliers and screwdrivers. Shock absorbers and gearbox units are already pre-assembled so that even children can build this vehicle under parental supervision. You can also decide for yourself which electronic components should be installed in the vehicle. The kit includes 2 gear units – a copper/plastic version with the gear ratio for brushed motors and a full metal version designed for a brushless drive. This means that there are no limits to the motorization.
FEATURES:
4WD all-wheel drive
4 oil shock absorbers
Ball bearing main drive
Extremely durable composite plastic parts
Steel differential outlets
Aluminum main drive shaft with steel mounts
Adjustable upper tie rods
5mm aluminum motor mount
6mm shock towers
2 differentials (front/rear)
Stylish “Cap Forward” buggy body
“Light-Weight” chassis (less weight – longer driving time)
Many aluminum tuning parts available
TEC SPECS:
Scale 1:10
Dimensions (L/W/H): 380x255x155 mm
Weight: 1400g
Wheelbase: 270mm
Ground clearance: approx. 30mm
Track width: 215mm front/rear
Front wheels: Ø 88mm / width: 33mm
Rear wheels: Ø 88mm / width: 42mm
Shock absorber oil: 400CPS
Installation length of the shock absorbers: 90mm
Gear ratio BRUSHED version: pinion: 23T / main gear: 64T (module 0.6)
Gear ratio BRUSHLESS version: pinion: 26T / main gear: 64T (module 0.6)
SCOPE OF DELIVERY:
1/10 Buggy “AB3.4V2” KIT version
Sticker sheet
Manual
Frequently Asked Questions
Yes, this kit is designed for builders of all levels. The shock absorbers and gearbox units come pre-assembled, and you only need standard tools like pliers and screwdrivers to complete the build. Children can assemble it under parental supervision.
The kit comes with two interchangeable gear units—one for brushed motors and one for brushless motors—so you have the flexibility to choose either type. You'll need to source a compatible motor, ESC, battery, and charger separately based on your preference.
The kit includes the 1:10 buggy chassis, two pre-assembled gear units, pre-assembled shock absorbers, a sticker sheet, and a manual. You will need to purchase a motor, ESC, battery, charger, and radio equipment separately.
The buggy measures 380mm long, 255mm wide, and 155mm tall, with a wheelbase of 270mm and approximately 30mm ground clearance. It's a 1:10 scale model weighing 1400g.
The AB3.4 V2 adds LED roof lighting, a downforce rear wing, and expanded tuning parts availability compared to the original model. The core chassis remains a proven 4WD design with dual differentials, oil shocks, and ball bearing drive.
