Description
The success story continues! We have equipped the AT3.4 “V2” KIT with some new features that take the vehicle to the next evolutionary stage

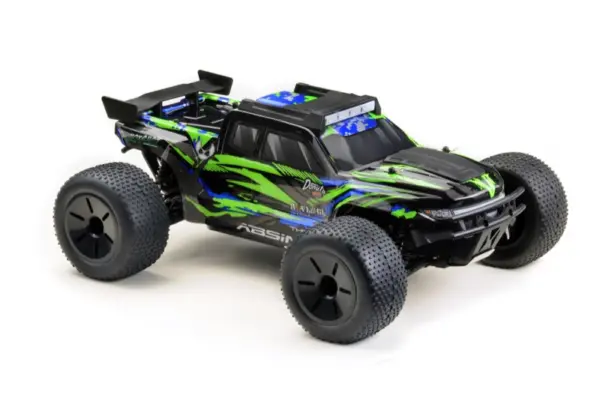

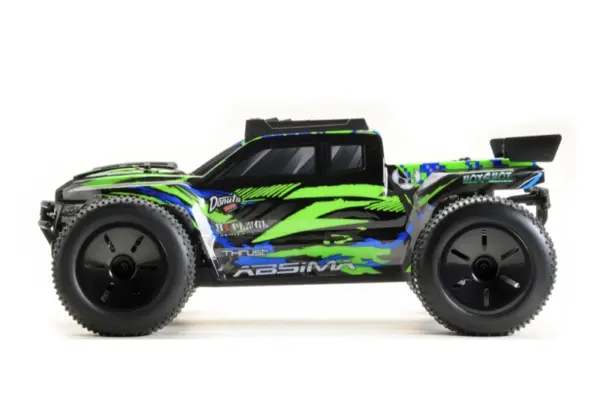

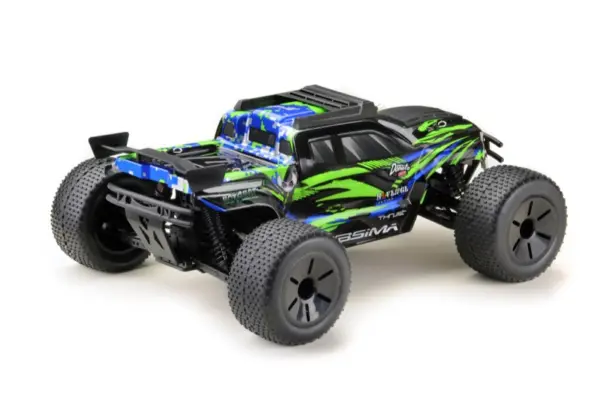

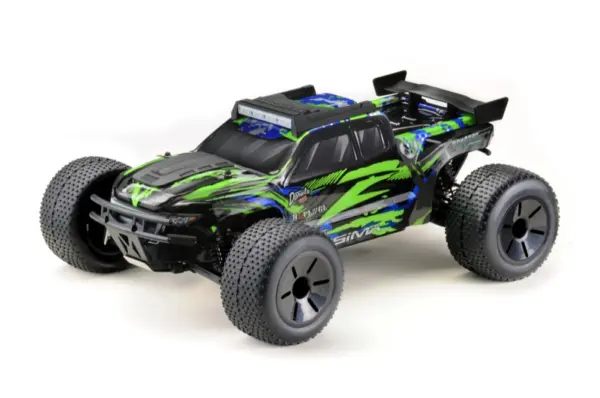

Some technical changes have been made to our 1:10 Truggy – among other things, the vehicle now comes with LED lighting on the roof
HIGHLIGHTS:
NEW* Body in new race design

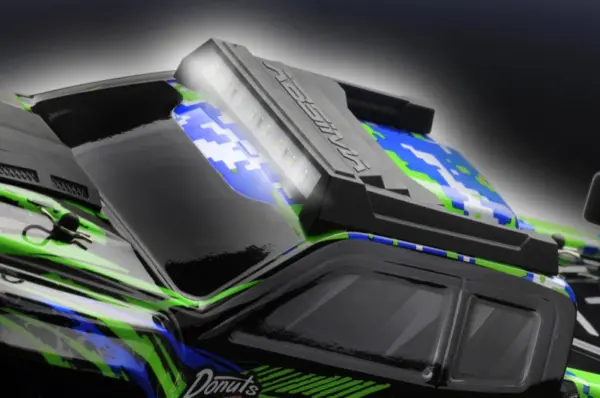

NEW* LED lighting
NEW* Downforce rear wing
NEW* even more tuning parts available

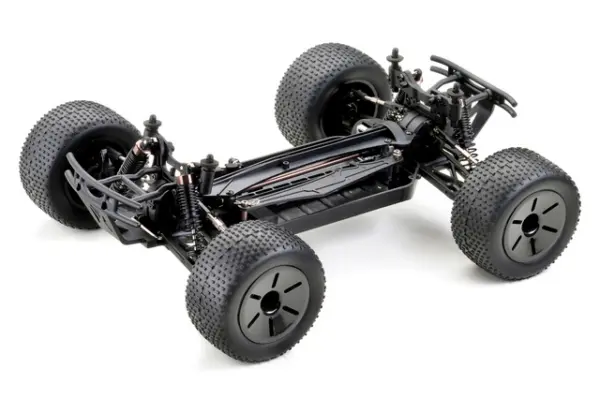

The KIT version is a kit that can be assembled with standard tools such as pliers and screwdrivers. Shock absorbers and gearbox units are already pre-assembled so that even children can build this vehicle under parental supervision. You can also decide for yourself which electronic components should be installed in the vehicle. The kit includes 2 gear units – a copper/plastic version with the gear ratio for brushed motors and a full metal version designed for a brushless drive. This means that there are no limits to the motorization.
4WD all-wheel drive
4 oil shock absorbers
Ball bearing main drive
Extremely durable composite plastic parts
Steel differential outlets
Aluminum main drive shaft with steel mounts
Adjustable upper tie rods
5mm aluminum motor mount
6mm shock towers
2 differentials (front/rear)
Stylish Truggy body with add-on parts
“Light-Weight” chassis (less weight – longer driving time)
Many aluminum tuning parts available
TEC SPECS:
Scale 1:10
Dimensions (L/W/H): 405x325x165 mm
Weight: 1180g
Wheelbase: 270mm
Ground clearance: approx. 35mm
Track width: 270mm front/rear
Wheels: Ø 105mm / width: 55mm
Shock absorber oil: 400CPS
Installation length of the shock absorbers: 90mm
Gear ratio BRUSHED version: pinion: 18T / main gear: 64T (module 0.6)
Gear ratio BRUSHLESS version: pinion: 23T / main gear: 64T (module 0.6)
SCOPE OF DELIVERY:
1/10 Truggy “AT3.4V2” KIT version
Sticker sheet
Manual
