Xfly 80mm Sirius Edf Sport Jet 1100mm Wingspan Without Tx/Rx/Batt
Key Specs
About this product

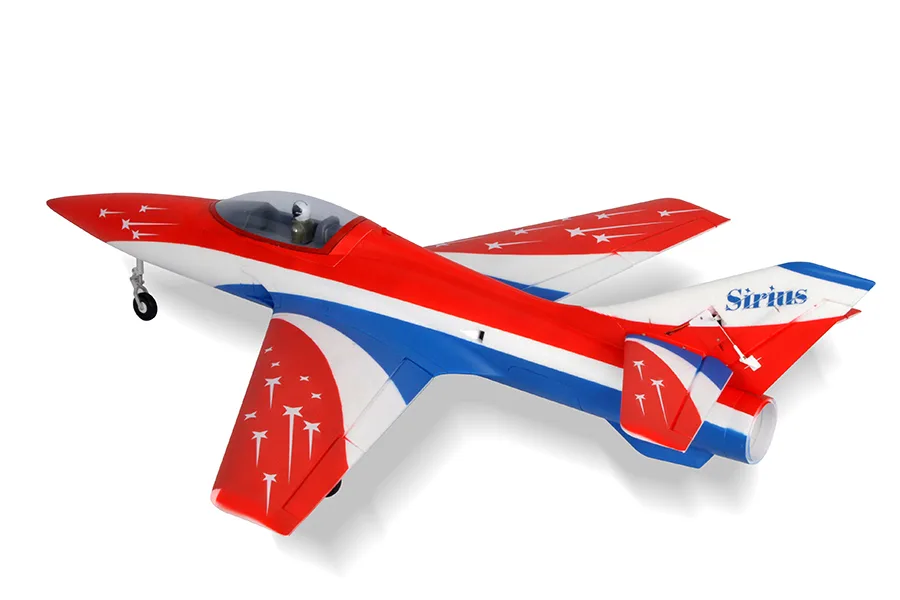

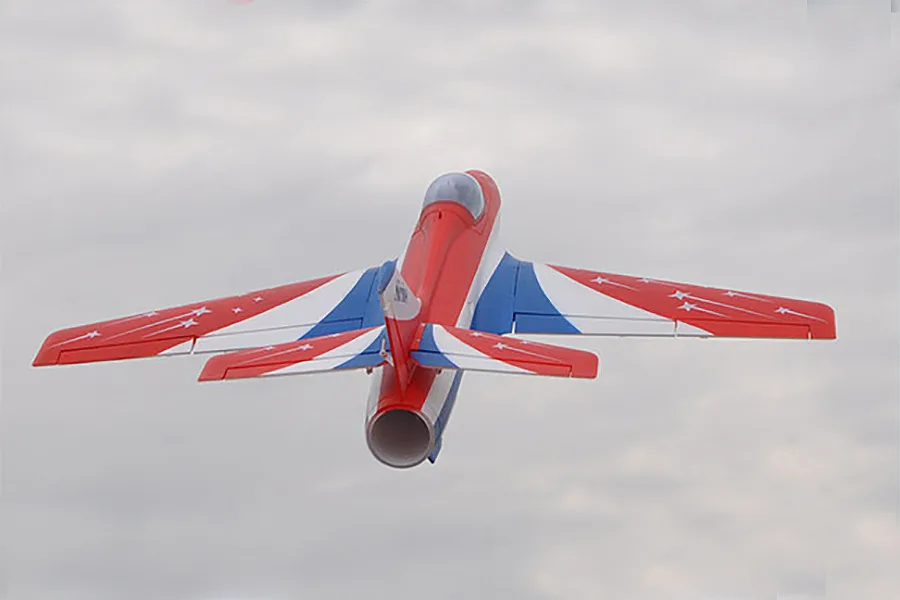

XFLY 80MM SIRIUS EDF SPORT JET 1100MM WINGSPAN WITHOUT TX/RX/BATT
XFly-model is proud to release the first sport jet – 80mm EDF Sirius. It features low wing load, streamlined design with low wind resistance and Galaxy X-8 12 blade 80mm EDF power system that excels at both high speed and low speed performance. XFly-model engineer owns the original design of 80mm EDF system and has upgraded it into the latest version – Galaxy X-8 80mm EDF. Powered by 6S LiPo battery, high-RPM brushless in runner motor and 100A ESC deliver fantastic performance with virtually instantaneous throttle response. Its excellent top speed, vertical performance and turbine like sound effect take lead in the industry.
The Sirius possesses stable flight attitude to easily deliver the F3A aerobatic capabilities/ It is not only a good choice for the enthusiasts who enjoy high speed or aerobatic flight, but also an excellent trainer EDF jet with fantastic performance.
Features
- High-RPM brushless in-runner motor and high-power Hobbywing 100A ESC.
- Digital metal-geared servos on all flying sur-faces and ball-link equipped linkages deliver precise response to your control inputs.
- Electric retracts with CNC shock-absorbing, trailing-link struts and built-in worm shaft of 10mm diameter all combine for easy grass operation and heavy landing.
- Functional and installed flaps for shorter take off and landing plus improved slow-flight performance.
- Integrated wing connector for easy installation or removal of main wing.
- Only eight screws needed for assembly and no glue required.
- Removable magnetic nose cone, jet nozzle and ventral fin all with plastic cap for durability.
- Large battery tray allows 6S 5000mAh LiPos for increased flight times!
- Wingspan 1100mm.
- Length 1312mm.
- Servos 13g x 5pc, 9g x 2pc.
- Requires TX/RX/Batt/Charger to complete.
Skill Level: Intermediate/Advanced
Material: Lightweight yet strong EPO, ABS engineering plastics
Wingspan: 1100mm/43.3in
Overall length: 1312mm/51.7in
Wing Load: 109g/dm2
Wing Area: 23.36dm2
Flying weight: 2560g
Propeller/EDF: 80mm EDF with12-Blade Fan
Motor: 3280-KV2200 Brushless In-runner Motor
ESC: 100A ESC 5A UBEC
Flying Duration: 4-8min
Servos: 5*13g digital metal-geared servos, 3*9g digital metal-geared servos
Landing gear: Electric retracts and training link suspension struts for grass operation
LED lights: Wingtip lights *2
Other electronics: Main wiring board *1, Wing plug set*2
Channels: 6CH-Throttle, ailerons, flaps, elevator, rudder and landing gears
Recommended Battery: 22.2V(6S0 4000-5000mAh Discharge Rate > 35C (if using the battery of discharge rate more than 100C, please use the 120A ESC instead)
Battery Connector: XT90
For further information: on flying your RC plane in a safe and responsible manner please check out www.bmfa.org
Frequently Asked Questions
This is an intermediate to advanced model. It features high-speed performance, aerobatic capability and requires precise control inputs, so previous RC flying experience is recommended before purchasing.
You'll need a 6S LiPo battery (up to 5000mAh fits in the battery tray), a high-RPM brushless in-runner motor, and a 100A ESC. These are not included in the box.
The aircraft arrives ARR (almost ready to run) with servos, EDF unit, ESC and airframe assembled. You'll need to add your own transmitter, receiver, 6S LiPo battery, charger and brushless motor to complete the build.
With a 1100mm wingspan and 1312mm length, it's a mid-sized jet. The integrated wing connector allows easy removal of the main wing for transport, and the removable nose cone and ventral fin help reduce storage space.
It features XFly's upgraded Galaxy X-8 80mm EDF system with excellent high-speed and low-speed performance, instantaneous throttle response, functional flaps for improved slow-flight, and retractable landing gear for grass operations. It's capable of F3A aerobatic manoeuvres.
