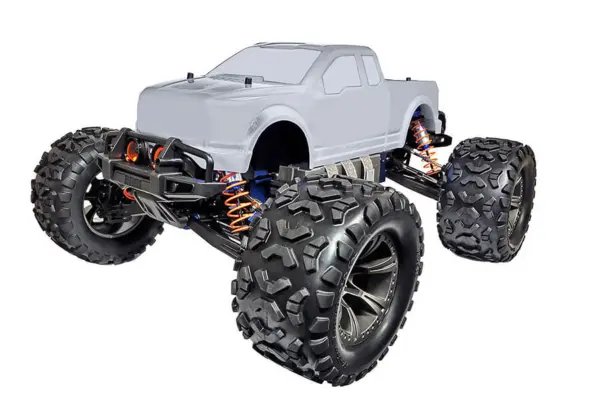

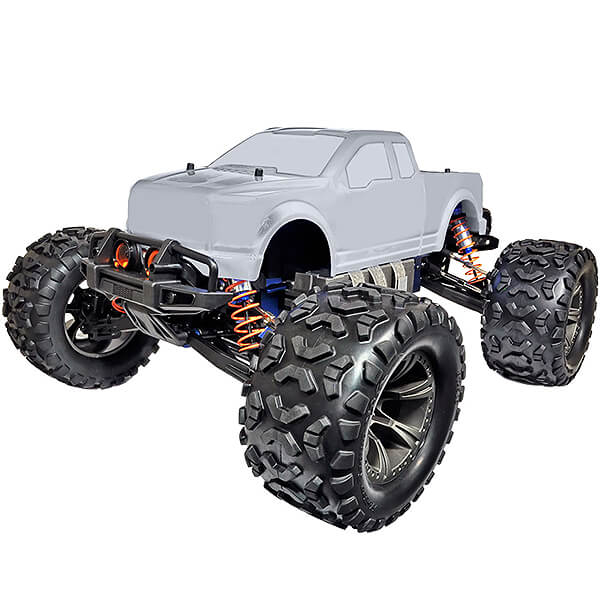

Hobao Hyper Monster Truck X

HOBAO HYPER MONSTER TRUCK X ELECTRIC 80% ROLLING CHASSIS

Experience with little work mighty monster truck action in 1/8 scale with the Hyper MTX Electric ARR by Hobao! The big fan favorite is finally back and presents itself in a new design.

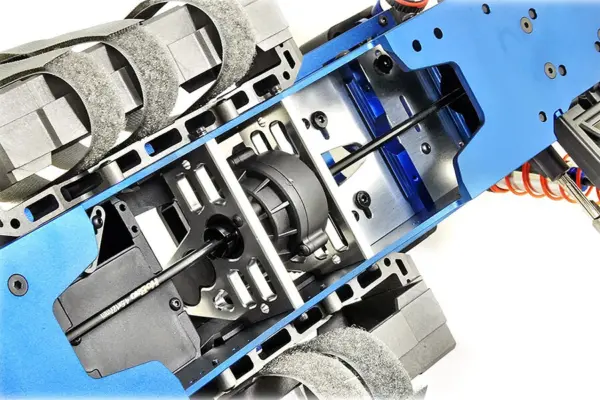

The core of the truck is the monocoque chassis frame made of 7075 aluminum, which is up to any challenge. New handlebars and shock absorber designs with matching hart springs also contribute to the fact that the truck can go through any terrain well and bash properly. Add to that a massive center differential, robust and durable wheel suspension and an improved center roll bar, that transforms the Hyper MTX into a real monster with a certain fun factor.

With this ARR (Almost Ready to Run) version, everything is of course pre-assembled at the factory, but comes without pre-installed electronic components. The body has already been cut out to fit perfectly. Within a few steps of work, the Hyper MTX Monster Truck is ready for use. A real monster truck made for bashing, jumping and racing with no ifs and buts!

NEW AND IMPROVED

• Shock absorbers (see details below)
• Servo saver
• Handlebar
• Hard springs
• Shock towers for front and rear
• Center roll bar/handle
• Aluminum shock absorber stiffening plate

FEATURES

• Almost Ready to Run,  pre-assembled at the factory
• 4WD heavy duty driveshaft
• Processing of high quality aluminum parts
  – Center differential mount
  – Motor “C” holder and motor mount
  – 17mm big bore aluminum oil pressure shock absorber, 4mm diameter
  – 7075 monocoque chassis

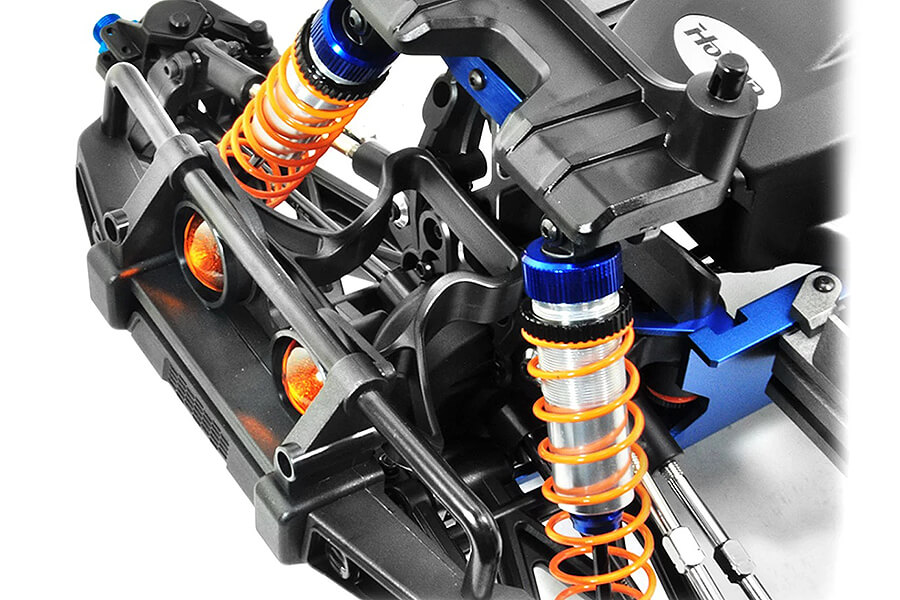

• Improved shock absorbers
  – Adjustable in length
  – New protective caps
  – New pistons with 3×1.6mm holes
  – New top end and bar end to increase shock resistance
  – Special surface treatment to improve shock performance
• 17mm hex 6 spokes wheels and matching monster truck tires
• Mighty wheelie bar
• As well as many new and improved parts

CONFIGURATION

• Motor Gear: 15T (MOD 1)
• Spur Gear: 36T (MOD 1)

SPECIFICATIONS

Length: 635mm
Width: 495mm
Height: 290mm
Wheelbase: 396mm
Track (front): 400mm
Track (rear): 405mm

REQUIRED TO COMPLETE

• AA batteries for the transmitter (4 pcs.)
• LiPo batteries with XT90 connector
• Appropriate charger for the selected battery
• Motor (e.g. 2000kV Brushless, 4 poles, 40mm outer diameter, 5mm shaft diameter)
• ESC (e.g. Hobbywing 150A ESC with XT90-Connectors, Fan and Program Card)
• Servo (e.g. waterproof HB-5518MG Heavy-duty servo with ball bearing, metal gears, digital, 32kg-cm torque, 7.4V)
• Transmitter and Receiver (e.g. 3-channel 2.4GHz FHSS with dual-rate steering and throttle)
