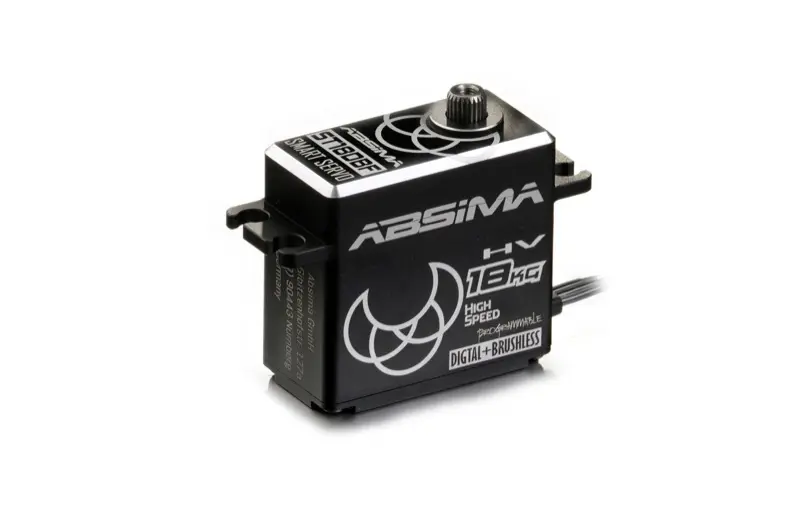

Hv Digital Alu Servo St18dbf 18kg Race-Spec.
About this product
Technical Data Highlights:
Servo Category:
High-Speed
Operating Voltage:
4.8 – 8.4V HV
Torque
@ 4.8V: 14.0kg
Torque
@ 6.0V: 15.0kg
Torque
@ 7.4V: 16.5kg
Torque
@ 8.4V: 17.5kg
Speed:
0.068sec/60° @ 7.4V / 0.061sec/60° @ 8.4V
Technology:
Digital
Motor Type:
Brushless
Gear Material:
Reinforced steel
Housing material:
CNC AL6061 T6
Waterproof Rating:
IP65 water-resistant
Bearing:
Metal ball bearings
Size:
40*20*37.5 mm
Weight:
78,0 g
Programmable:
Yes with USB interface adapter # 2030110 (sold separately)
Servos – the heart of every RC system
Servos
are a central component of the
RC system
and form the basis of every
remote-controlled model
. They are responsible for transmitting the control commands from the transmitter to the model precisely and reliably.
Connected via the
steering linkage
, RC servos convert stick or rotary movements on the transmitter directly into
steering movements on the vehicle
. In
RC combustion engine vehicles
, servos are also used as
throttle servos
: they control both the
throttle valve of the carburetor
and the
brake
.
A
servo that is too weak
leads to longer positioning times under load and a significantly
shortened service life
. That’s why the following rule applies in RC model building:
Never skimp on the servo!
A high-quality servo does not have to be expensive, but it increases
reliability
, improves handling, and often lasts for many years in use.
Servo sizes for RC cars
In
RC cars with scales of 1:8 and 1:10
, only
standard-size servos
or
low-profile servos
are used. These designs offer the optimal combination of performance, stability, and accuracy of fit for modern RC vehicles.
Race & Team Spec. Servos – developed for competition
Our
“Race & Team Spec.” servos
are mainly used in
competition vehicles
and impress with a variety of outstanding features:
High positioning force and fast response time
Precise control even under high loads
Durable, high-quality components
Ideal for demanding RC racers
Here is an overview with more information about all TEAM SPEC. SERVOS:
Item number: 2030104
EAN: 4250650956653
