Hobbywing Tunalyzer Brushless Motor Tester

Hobbywing Tunalyzer Brushless Motor Tester - Image 2

Hobbywing Tunalyzer Brushless Motor Tester - Image 3

Hobbywing Tunalyzer Brushless Motor Tester - Image 4

Hobbywing Tunalyzer Brushless Motor Tester

Name: Hobbywing Tunalyzer Brushless Motor Tester - The best place for RC cars in the UK & Europe
SKU: HW30504003
Price: 314.99 GBP
Availability: InStock

£314.99

Add a review.

Just a few left

SKU HW30504003 Category RC Cars Tag nobid Brand: Hobbywing

Ordered a new brushless motor and ESC combo for my crawler, and it’s working like a dream. Shipping was surprisingly fast, and the parts were exactly as described. I had a minor issue with the wiring, and customer service helped me figure it out over email within a few hours. Great experience overall.

Just got my first RC drift car from this site, and it’s been a blast! The car arrived well-packed and in perfect condition. I had some questions about the best batteries to pair with it, and their support team was quick to respond with solid advice. It’s refreshing to deal with a company that actually knows their products. Will definitely order from them again.

Good communication with the seller would definitely use again.

All good, would order from this seller again.

Arrived with in 2 days, Arrived as stated in a well Packaged box, will definitely be ordering again.

Delivery was a little late (3 days), but arrived 1 day late. Think this was royal mail to be fair. Everything else good!

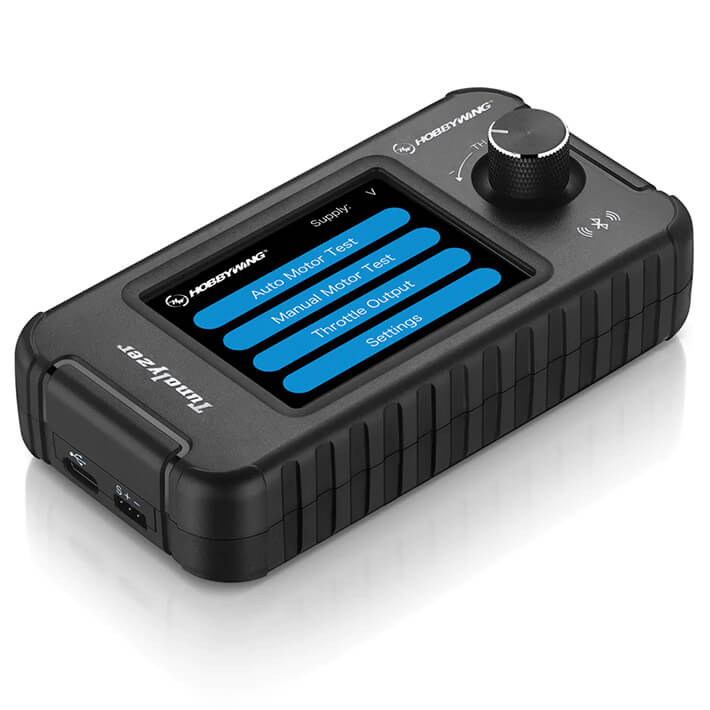

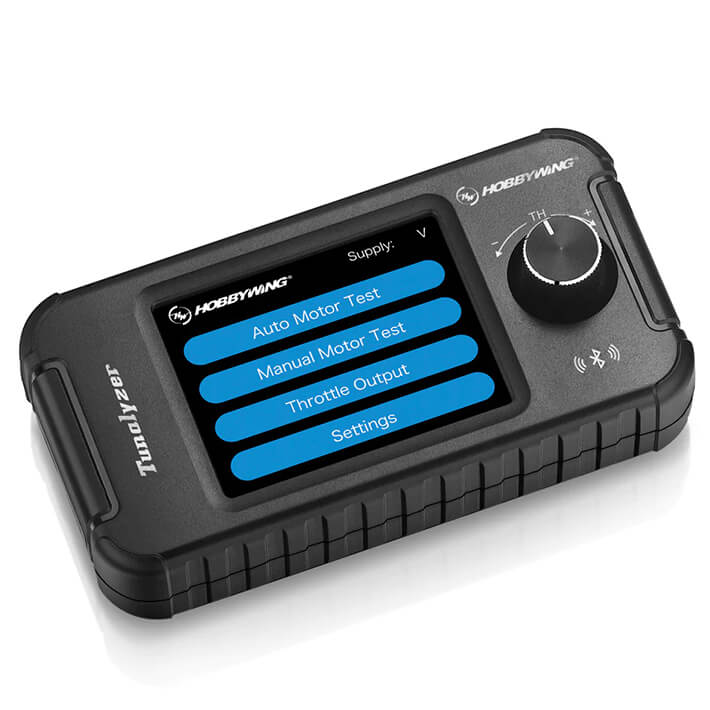

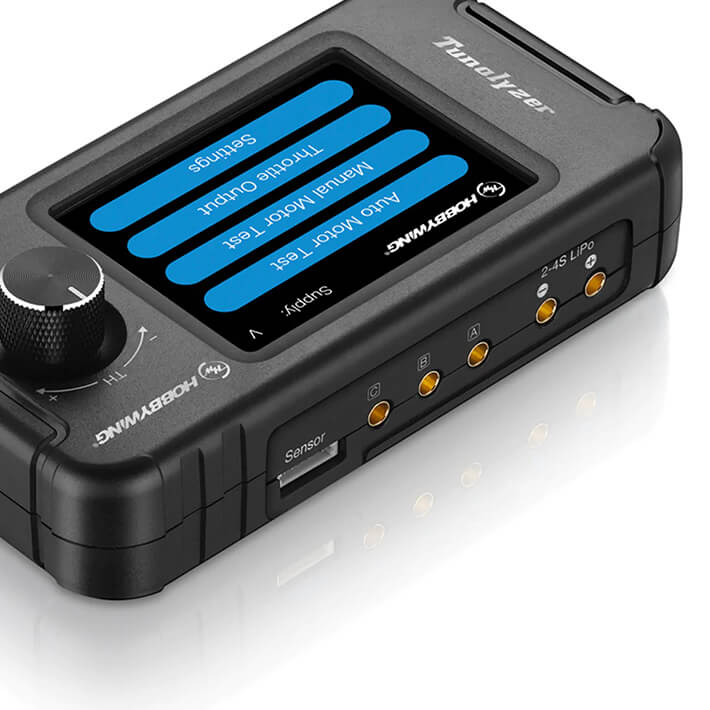

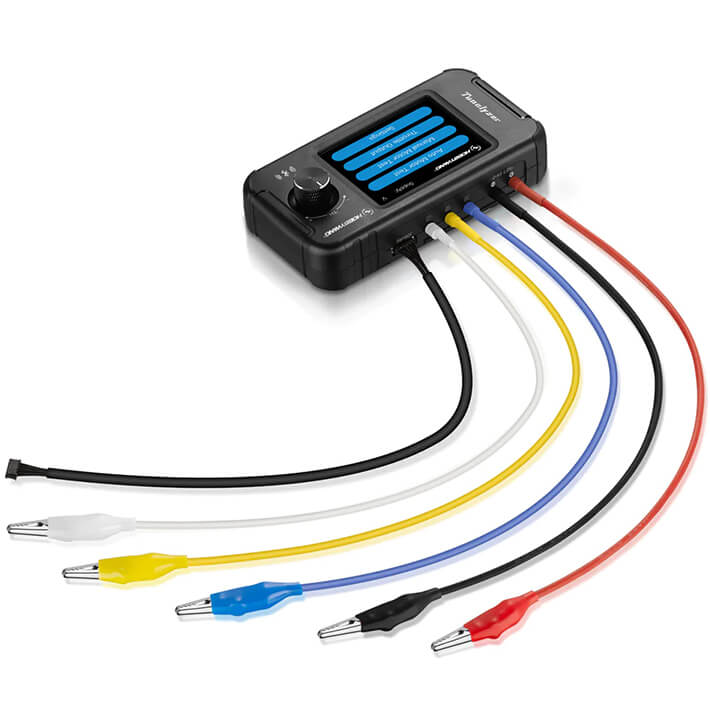

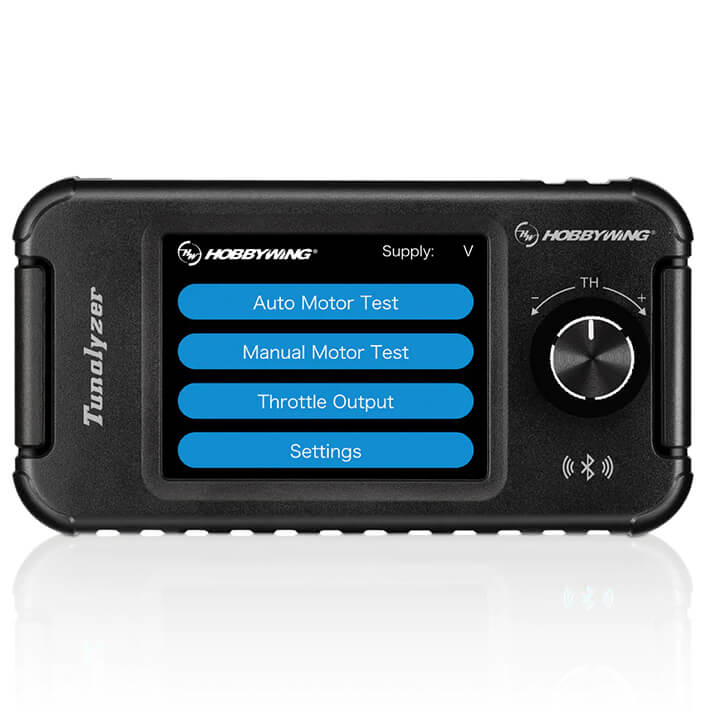

HOBBYWING TUNALYZER BRUSHLESS MOTOR TESTER

The Hobbywing Tunalyzer is used to test brushless DC motors and the internal components. It can measure the KV value, RPM, Current, End-bell timing and Sensor elements of a brushless motor. These parameters can be displayed on the LCD in real time so that you can have an intuitive and full understanding of the motor being tested. In addition, the built-in Bluetooth connection of the Tunalyzer can establish a connection to a Hobbywing esc through the mobile phone app to adjust the settings of the esc.

Features

Automatic Test Mode
Timing, rotor, and signal accuracy within 0.1degrees
Stable Voltage Regulator
Manual Test Mode
Multi-Function Control Dial
RPM Displayed in Real Time
LCD Colour Touch Screen Display
OTA Tuning and Upgrades
Multiple motor types supported

Specifications

Input Voltage:6-16.8V (2-4S Lipo)
Motor Type: Sensored & Sensorless Brushless Motor
Maximum Test Current: 18A
Programming device: The Tunalyzer can double as your ESC programmer device for simple benchtop ESC tuning
Size: 122.8 x 64.6 x 39mm
Weight: 144g
Display:LCD Colour Touch Screen
