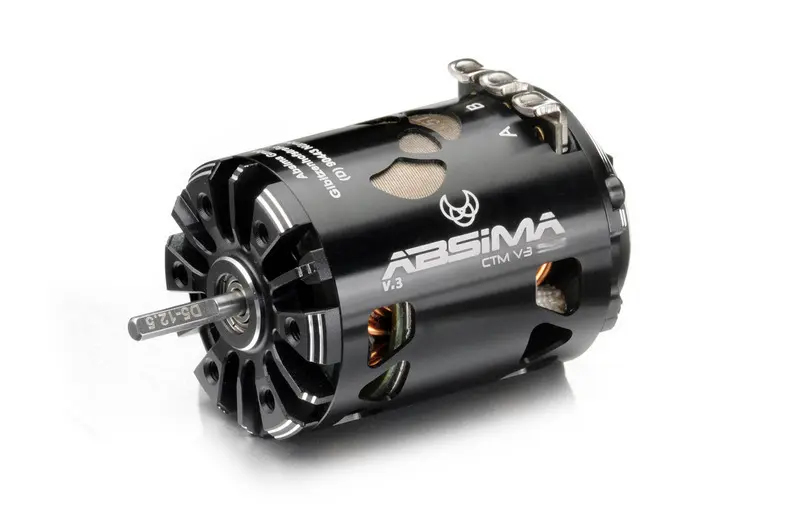

Bl Motor 1:10 Revenge CTM V3 17,5t Stock

NEW DESIGN – LESS WEIGHT – OUTSTANDING PERFORMANCE!
YOUR REASONS FOR CHOOSING THE REVENGE V3 ENGINE SERIES
A year of development has gone into the new brushless REVENGE CTM V3
competition motor
generation. We have changed the exterior housing design to reduce weight and ensure
maximum cooling
and
excellent heat dissipation
.
At the heart of the motors is a new, unique
high-torque stator
for maximum power and speed. Naturally, all motors are
sensor-controlled
(sensor cable included) with
adjustable timing
and come with stainless
steel ball bearings.
FEATURES CTM10 V3:
CNC machined lightweight can
High-torque stator
High strength, balanced rotor
Optimized air cooling
Stainless steel ball bearings
Silver-plated solder tabs
Adjustable timing
Sensored
2-Pole
Developed for maximal performance
ROAR-Aproval (pending)
TECH SPECS:
Turns: 17.5T
Turns/volt: 2780KV
Power: 210W
Current A: 27A
Efficiency: 96%
Volt/Cells: 1-3S LiPo
Ø Drive shaft: 3.175 mm
Length drive shaft: 15.2 mm
Ø w/o solder tabs: 35,8 mm
Length of motor can: 51.8 mm
Weight: 165 g

Item number: 2130061
EAN: 4250650940300
