AFRCGYRO

Description

The shell adopts all metal CNC processing and surface treatment

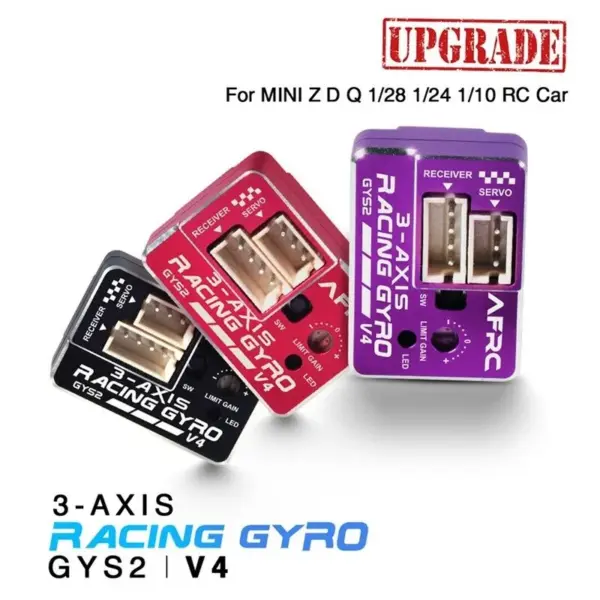

Exquisite and compact design, suitable for mini Z/Q/D/R and 1/28,1/10 Drift car
High quality gyroscope sensor has more stable performance and longer service life
Combined with the feedback of multi professional evaluation, the program optimization is more reasonable
X, Y, Z 3-axis can be set to match more rc cars. Multiple sensitivity modes are available for more application scenarios.

Dimensions: 21 x 15 x 8.5 mm(0.83 x 0.59 x 0.33inch)
Working Voltage: 3.7 ~ 8.0V
Weight:4g
Current Drain: Less than 30mA
Operating Temperature:-10℃+50℃
Gain Mode: Normal / AVCS Mode
Operating Voltage: Control System
Input Signal: PWM(50~333Hz)/ /SUR/SXR/SHR;FUTABA S.BUS/S.BUS2
Input & Output Plug: JST1.5mm (attached the signal input cable to connect with receiver)
X, Y, Z three-axis selection:
Press and hold SW to power on to enter the travel setting, then double-click SW to enter the axis selection, the red light flashes twice and it will stay solid red light (default Z axis), press SW to switch to the X axis green light It flashes twice quickly and turns on, then press it again to switch to the Y-axis, the blue light will be solid, and continue to press SW to switch to the Z-axis. If you do not operate the SW key for 5 seconds, it will automatically exit, and the gyro will automatically enter the initialization.
RC Parts & Accs:
For Vehicle Type: Cars
Upgrade Parts/Accessories: Gyro
Model Number: -GYS2-V4
Recommend Age: 12+y
Use: Vehicles & Remote Control Toys
Four-wheel Drive : Assemblage
color:Black
Material:Metal

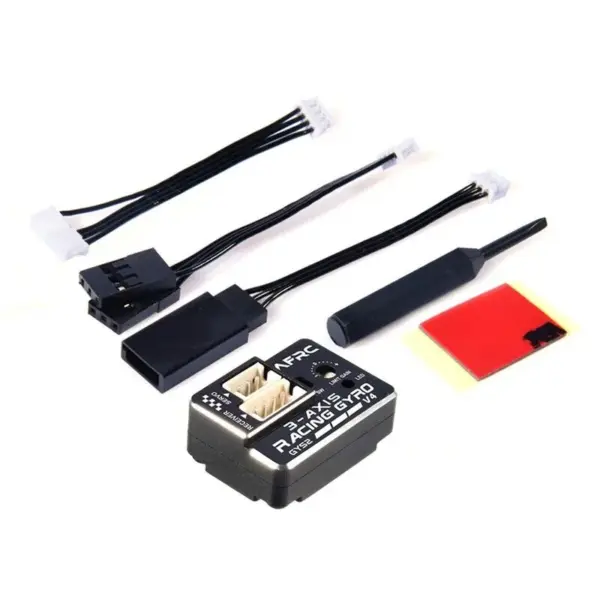

Package Contents:
1 x Racing Gyro Drift Car Stabilizer

Only the above package content, other products are not included.
