Key Specs
About this product
The success story continues! We have equipped the AT3.4 “V2” with some new features that bring the vehicle to the next level of evolution.
Some technical changes have been implemented in our 1/10th scale truggy – among other things, the vehicle now comes with LED lighting on the roof
HIGHLIGHTS:
NEW* 80A brushed speed controller withT-connector and 540 motor
NEW* Programmable speed controller
NEW* 15kg steering servo with metal gears

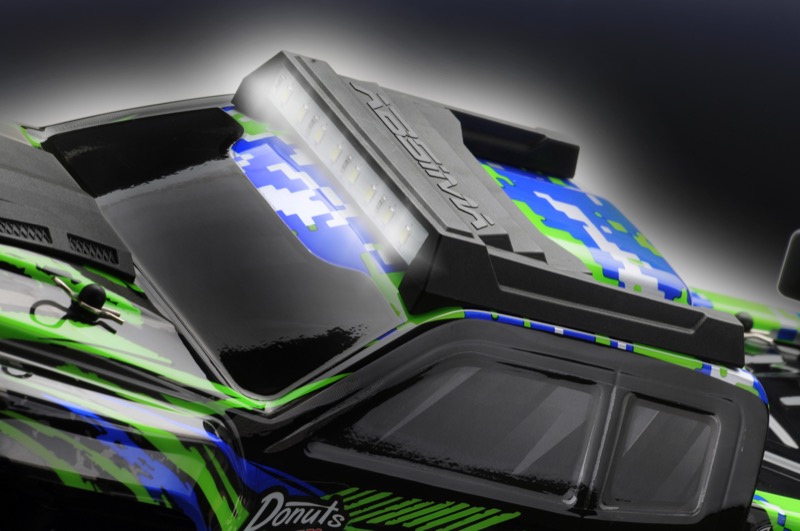

NEW* LED lighting
NEW* Race body with many add-on parts
NEW* even more option parts available
The new 80A Brushed speed controller is waterproof, programmable and pre-configured with a T-connector. To fully exploit the potential of the vehicle, we recommend a 2S LiPo battery for operation. In addition, a separately available programming card (item 2110061) can be used to set various parameters such as braking force, punch, low voltage protection and more.
The car is powered by a 540size 15T brushed motor that directly accesses the all-wheel drive system. The two differentials (front and rear) are driven by an aluminum driveshaft. Due to the higher power of the speed controller and the use of T-connectors, any 2S LiPo battery can be used – no matter what the C-rate and capacity.
4 oil-pressure shock absorbers provide ideal handling, so there is plenty of driving fun. A 15kg metal gear servo with takes over the implementation of the steering commands.
Lightweight and compact design, as well as comfortable and ergonomically shaped – these are just two features of our CR4S 4-channel remote control. Of course, all trim, reverse and dual rate functions are available in the cockpit, making adjustments easy via levers and knobs. In addition, the remote control has a “Beginner Mode” (speed reduction by 50%) and is therefore ideal for pilots who do not yet have so much experience with the handling of such RC vehicles.
FEATURES:
4WD all wheel drive
2.4 GHz 4-channel radio system
80A brushed speed controller with T-plug
540size 15T motor with 32.000RPM @ 7.4V
15kg MG steering servo (25T, ball bearings)
Oil shock absorbers
Ball bearing main drive
Extremely durable composite plastic parts
Steel differential outputs
Aluminum main drive shaft with steel mounts
Adjustable upper tie rods
5mm aluminum motor mount
6mm shock towers
2 differentials (front/rear)
Stylish truggy body with add-on parts
“Light-Weight” chassis (less weight – longer drive time)
Many aluminum option parts available
TEC SPECS:
Scale: 1:10
Dimensions (L/W/H): 405x325x165 mm
Weight: 1740g
Wheelbase: 270mm
Ground clearance: ca. 35mm
Track width: 270mm front/rear
Wheels front/rear: Ø 105mm / Width: 55mm
Shock absorber oil: 400CPS
Shock absorber installation length: 90mm
Motor ratio: pinion: 18T / main gear: 64T (module 0,6)
SCOPE OF DELIVERY:
1/10 Truggy “AT3.4V2” RTR
2.4GHz “CR4S” radio
Sticker sheet
Manual
Frequently Asked Questions
Whilst this is an RTR (Ready-to-Run) model that requires no assembly, it's designed for experienced drivers due to its power and performance. However, the included remote control features a 'Beginner Mode' that reduces speed by 50%, making it suitable for less experienced pilots to learn with.
A 2S LiPo battery is recommended for optimal performance. The product description does not specify whether a battery is included, so you should confirm with the seller or check the full box contents before ordering.
The AT3.4-V2 is sold as RTR, meaning it comes fully assembled and ready to run with the 80A speed controller, 540 motor, metal-gear servo, LED roof lighting, race body, remote control, and driveshaft fitted. Check the product listing for a full box contents list to confirm all included items.
This is a 1:10 scale truggy, which is a medium-sized RC vehicle suitable for outdoor driving on dirt, grass, and varied terrain. The compact design of the remote control and the truggy itself make it portable and manageable for most drivers.
Yes, the 80A speed controller is programmable and comes pre-configured. A separate programming card (item 2110061) is available for purchase, which allows you to adjust parameters such as braking force, punch, and low voltage protection.
