Explore Power HD
Shop Power HD RC Parts About Power HD Brand

£174.40

Rated 4.5 out of 5 based on 18 customer ratings
(17 customer reviews) | Add a review.

Out of Stock

Compatible Parts
SKU HD-GTS-5 Category Tag Brand:

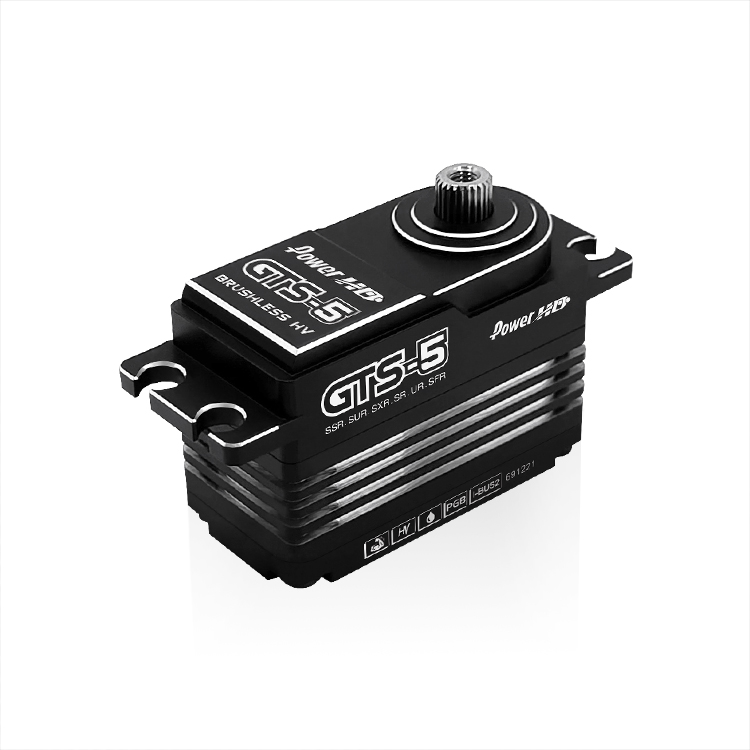

Servo Power Hd GTS 5 Low Prof Hv Mg Brushless Alu Case (50kg/0.08s)

Description

PowerHD GTS-5 HV CNC Brushless Digital Servo 50.0KG/[email protected]
*Support FLYSKY radio’s i-BUS2 protocol
servo parameter setup / data logging / warning / and other functions
*Support the high speed mode of brands’ radio
Noble NB4 Pro modes: NOR / SR / SFR
Futaba modes: NOR / SR / UR
SANWA modes: NOR / SHR /SSR / SUR / SXR
*Support the Power HD program box PG-CB63
*four-pole brushless motor
high performance/ long Life-span/ heat-resistant/ faster response

Torque(6.0V): 36.0 kg-cm / (499.9 oz/in)
Torque(7.4V): 42.0 kg-cm / (583.3 oz/in)
Torque(8.4V): 50.0 kg-cm / (694.4 oz/in)
Speed: 0.11 sec (6.0V) ©¦ 0.09 sec (7.4V)
Speed: 0.08 sec (8.4V)
Operating Voltage: 6.0 ~ 8.4 DC Volts
Weight: 63 g (2.22 oz)
Bearing Type: Ball Bearing x 2
Motor Type: Brushless Motor

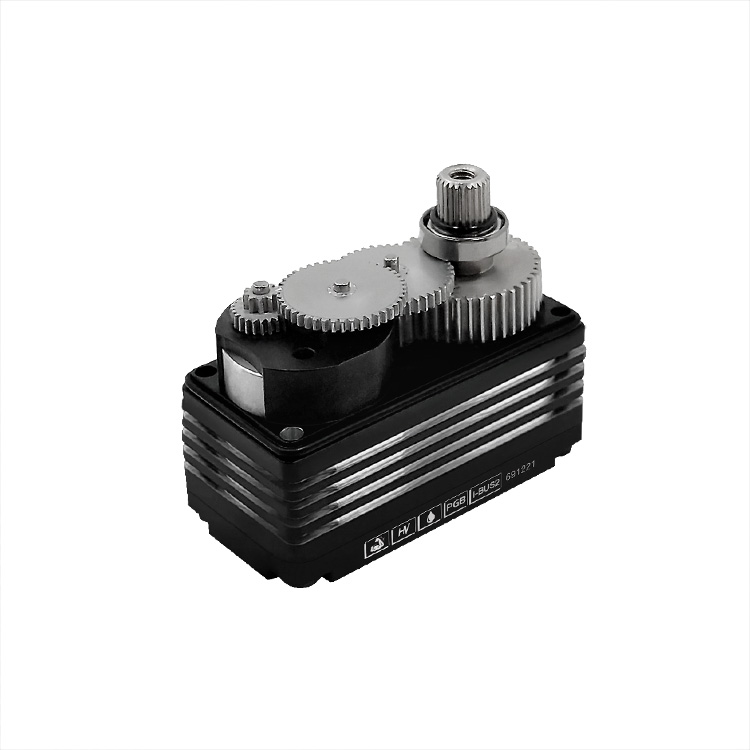

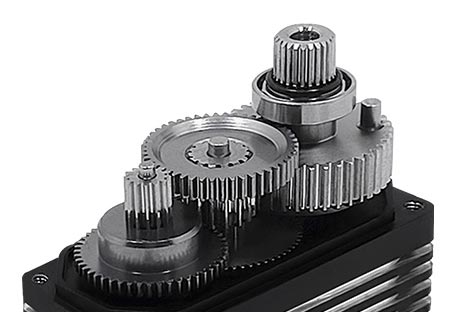

Gear Type: 7075+Steel
Operating Temperature: -20~60°C
Working frequence: 1520 / 1666hz
Size: 41.0 x 20.0 x 29.0 mm ( 1.61 x 0.79 x 1.14 in)
Max current: 7.5A

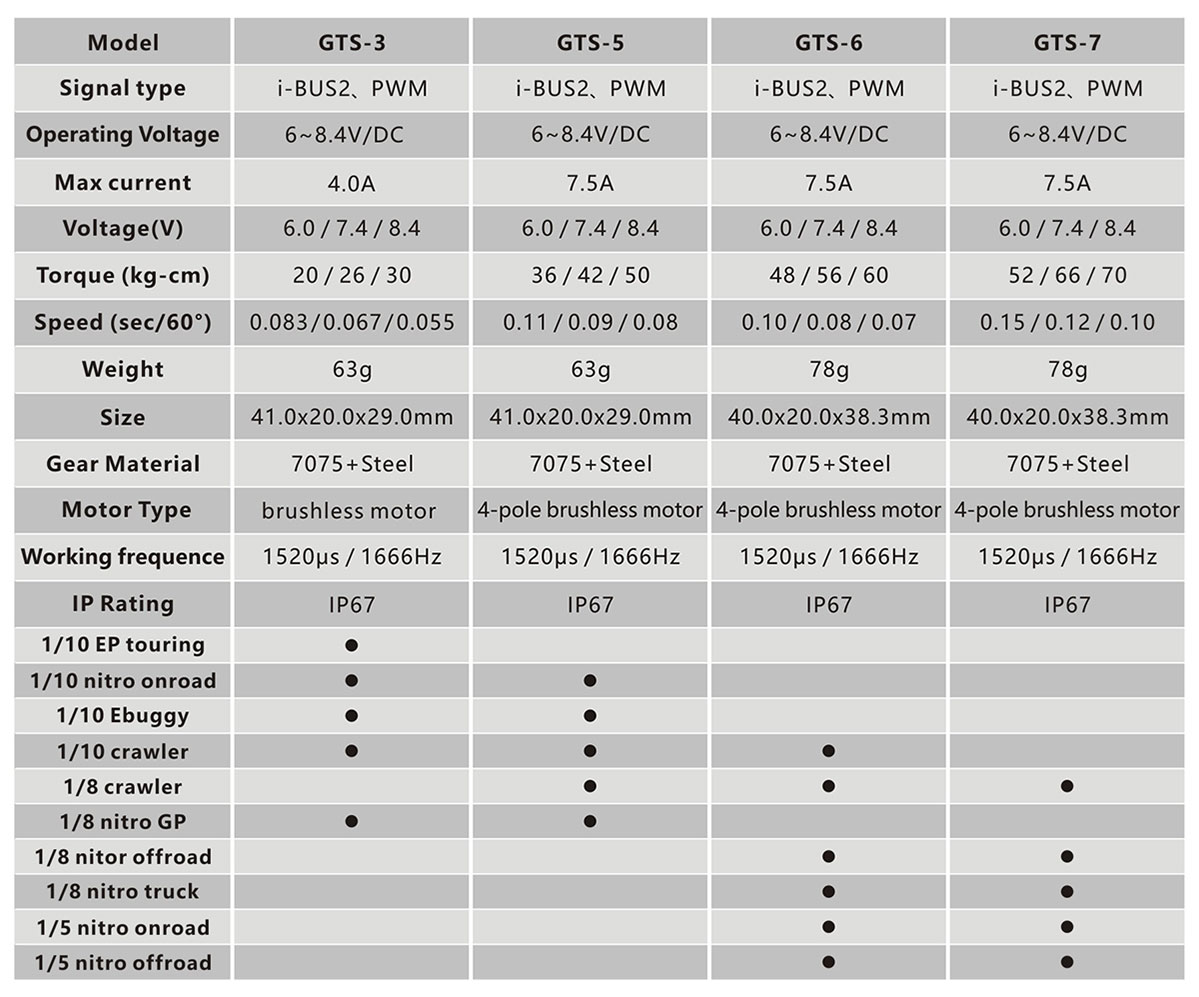

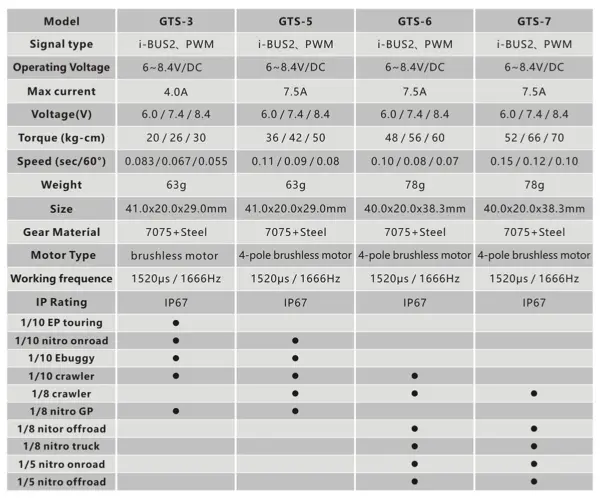

Technical Data

Torque(6.0V): 36.0 kg-cm / (499.9 oz/in)
Torque(7.4V): 42.0 kg-cm / (583.3 oz/in)
Torque(8.4V): 50.0 kg-cm / (694.4 oz/in)
Speed: 0.11 sec (6.0V) │ 0.09 sec (7.4V) │ 0.08 sec (8.4V)
Operating Voltage: 6.0 ~ 8.4 DC Volts
Weight: 63 g (2.22 oz)
Bearing Type: Ball Bearing x 2
Motor Type: Brushless Motor
Gear Type: 7075+Steel
Max current: 7.5A
Size: 41.0 x 20.0 x 29.0 mm ( 1.61 x 0.79 x 1.14 in)

Torque(6.0V): 36.0 kg-cm / (499.9 oz/in)
Torque(7.4V): 42.0 kg-cm / (583.3 oz/in)
Torque(8.4V): 50.0 kg-cm / (694.4 oz/in)
Speed: 0.11 sec (6.0V) │ 0.09 sec (7.4V) │ 0.08 sec (8.4V)
Operating Voltage: 6.0 ~ 8.4 DC Volts
Weight: 63 g (2.22 oz)
Bearing Type: Ball Bearing x 2
Motor Type: Brushless Motor
Gear Type: 7075+Steel
Max current: 7.5A
Size: 41.0 x 20.0 x 29.0 mm ( 1.61 x 0.79 x 1.14 in)

Kit Contents

Required For Operation

Browse the full Power HD servo range at Radio Controlled UK, including Power HD digital and analogue servos for RC cars, boats, planes and helicopters. View all current stock in the Power HD product archive.
