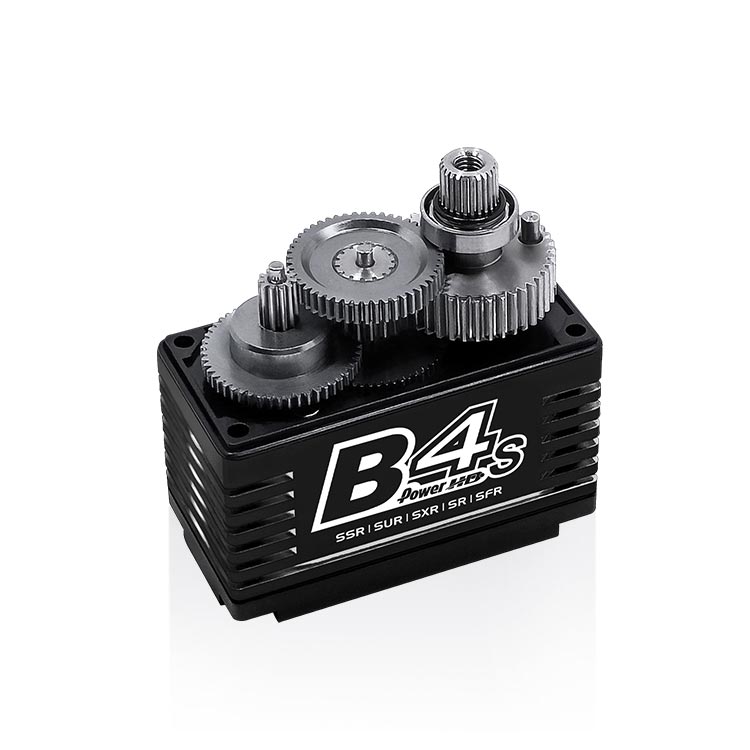

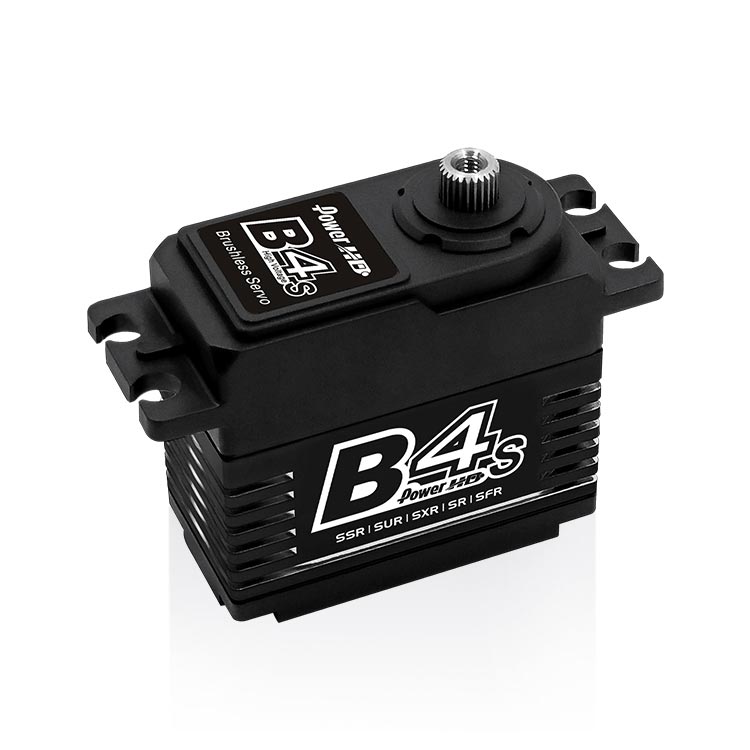

Power Hd B4s Hv Mg Brushless Alu Heat Sink (32kg/0.065s)

Joshua Evans
Joshua Evans
Ordered a new brushless motor and ESC combo for my crawler, and it’s working like a dream. Shipping was surprisingly fast, and the parts were exactly as described. I had a minor issue with the wiring, and customer service helped me figure it out over email within a few hours. Great experience overall.
Thomas Pearson
Thomas Pearson
Just got my first RC drift car from this site, and it’s been a blast! The car arrived well-packed and in perfect condition. I had some questions about the best batteries to pair with it, and their support team was quick to respond with solid advice. It’s refreshing to deal with a company that actually knows their products. Will definitely order from them again.
LT
LT
Purchased:Kyosho EP Fantom 4WD EXT CRC II 112 Kit (Legendary Series)
Good communication with the seller would definitely use again.
Pete Goddard
Pete Goddard
Purchased: Flywing BELL-206-V3 RTF RC Helicopter
All good, would order from this seller again.
Alex
Alex
Purchased: MJX H8H Hyper Go RC Crawler Brushless 1:8th Scale Crawler Truck (Blue Orange)
Arrived with in 2 days, Arrived as stated in a well Packaged box, will definitely be ordering again.
Oli Short
Oli Short
Delivery was a little late (3 days), but arrived 1 day late. Think this was royal mail to be fair. Everything else good!
Anonymous
Anonymous
This was a very good buying experience This was a very good buying experience, they went above and beyond to meet my needs, knowledgeable and happy to help, I purchased a kyosho USA-1 and received 2 free 2s 5500 mah Lipo’s in to the deal. Best price on the internet with battery’s Would recommend and will be using in the future. 👍
Explore Power HD
Shop Power HD RC Parts About Power HD Brand

£114.90

Rated 4.9 out of 5 based on 17 customer ratings
(17 customer reviews) | Add a review.

Out of Stock

SKU HD-B4S Categories , Tag Brand:
Power Hd B4s Hv Mg Brushless Alu Heat Sink (32kg/0.065s)

Description

Torque(6.0V): 21.0 kg-cm (291.6 oz/in)
Torque(7.4V): 25.0 kg-cm (347.2 oz/in)
Torque(8.4V): 32.0 kg-cm (444.4 oz/in)
Speed: 0.085 sec (6.0V) ¦ 0.075 sec (7.4V)¦
Speed: 0.065 sec (8.4V)
Operating Voltage: 6.0 ~ 8.4 DC Volts
Weight: 67.0 g (2.36 oz)
Bearing Type: Ball Bearing x 2
Motor Type: Brushless Motor
Gear Type: Titanium & Steel
Operating Temperature: -20~60°C
Working frequency: 1520µs / 333hz
Size: 41.0 x 20.5 x 38.3 mm ( 1.61 x 0.81 x 1.51 in)

Technical Data

■ Torque(6.0V): 21.0 kg-cm (291.6 oz/in)
■ Torque(7.4V): 25.0 kg-cm (347.2 oz/in)
■ Torque(8.4V): 32.0 kg-cm (444.4 oz/in)
■ Speed: 0.085 sec (6.0V) │ 0.075 sec (7.4V)│ 0.065 sec (8.4V)
■ Operating Voltage：6.0 ~ 8.4 DC Volts
■ Weight: 67.0 g (2.36 oz)
■ Bearing Type：Ball Bearing x 2
■ Motor Type：Brushless Motor
■ Gear Type：Titanium & Steel
■ Size：41.0 x 20.5 x 38.3 mm ( 1.61 x 0.81 x 1.51 in)

■ Torque(6.0V): 21.0 kg-cm (291.6 oz/in)
■ Torque(7.4V): 25.0 kg-cm (347.2 oz/in)
■ Torque(8.4V): 32.0 kg-cm (444.4 oz/in)
■ Speed: 0.085 sec (6.0V) │ 0.075 sec (7.4V)│ 0.065 sec (8.4V)
■ Operating Voltage：6.0 ~ 8.4 DC Volts
■ Weight: 67.0 g (2.36 oz)
■ Bearing Type：Ball Bearing x 2
■ Motor Type：Brushless Motor
■ Gear Type：Titanium & Steel
■ Size：41.0 x 20.5 x 38.3 mm ( 1.61 x 0.81 x 1.51 in)

Kit Contents

Required For Operation
