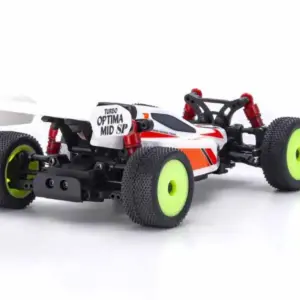

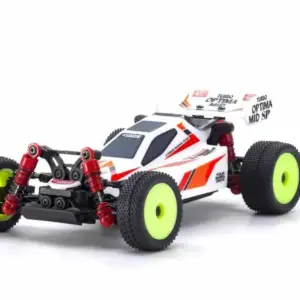

Kyosho Mini-Z Mb010 Readyset 4wd Turbo Optima Mid Special White

Description

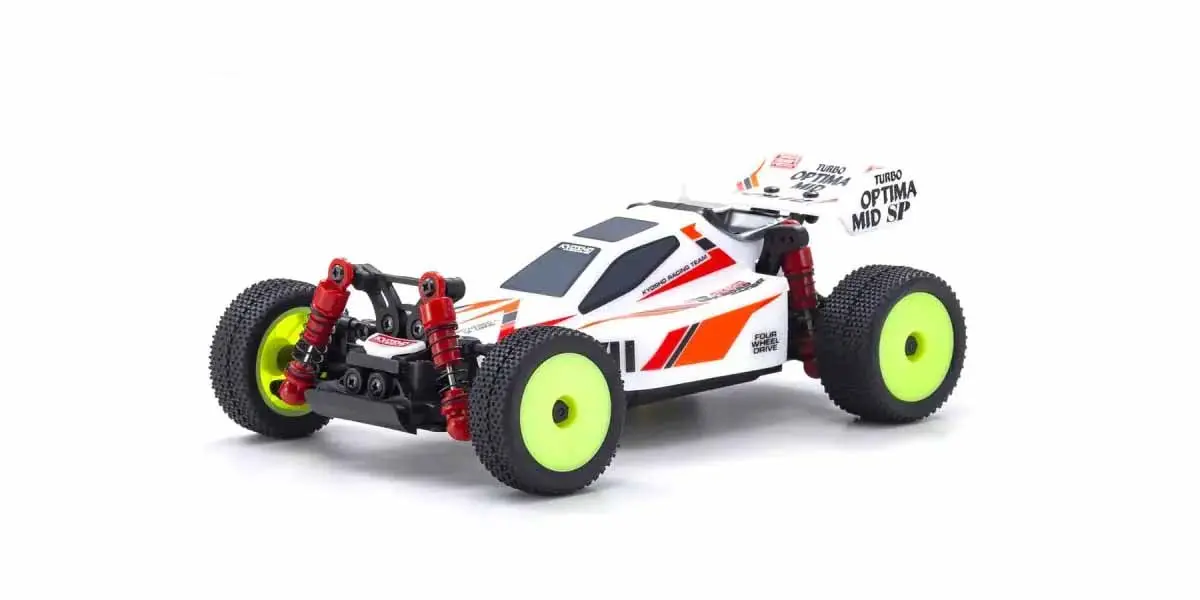

Simply add eight AAA-size alkaline batteries to this Readyset and the MINI-Z Buggy brings the fun of R/C car action. The advanced compact design includes 4WD drive train with slipper clutch to protect the gear system, and 4-wheel independent double wishbone suspension with oil-filled shocks to deliver true racing buggy performance. Most critical components are protected within the high-rigidity dustproof chassis shell. 7-stage geared steering servo provides plenty of torque for precision steering response and combines with the control program to realize the MINI-Z’s signature linear handling and light feel. The circuit board also features manual left/right volume adjustment for the optional gyro unit (sold separately:No.MZW446/MZW711) that stabilizes straight line running and improves cornering control. Modeled on the popular Turbo Optima Mid Special, the MINI-Z buggy body matches performance with style featuring a distinctive new printed color scheme complimented by black wheels for the sharpest looking machine on the track. The fully pre-assembled Readyset package makes it simple and enjoyable for anyone to experience advanced R/C buggy performance, whether it’s your first car or as fun-driving second car.
※As the Readyset includes the Syncro KT-531P transmitter operating on FHSS 2.4GHz, it cannot be used with ASF/MHS/FHS 2.4GHz systems.

– Readyset package allows model to be enjoyed straight after purchasing batteries.
– Fully pre-assembled chassis with printed polycarbonate body.
– Real racing performance will please buggy owners. Great for indoor practice.
– Includes Syncro KT-531P transmitter. Allows various setting adjustments such as steering angle.
– FHSS 2.4GHz R/C system removes the need to manage frequency bands.
– Frequency crystals are not required and up to 40 cars can be run at the same time.
– Optional gyro unit set (sold separately:No.MZW446/MZW711) can be installed. Gyro sensitivity can be manually adjusted on the chassis.
– Most optional parts already released for MINI-Z Buggy can be installed.

Shaft driven 4WD and 4-wheel independent suspension are condensed in the MINI-Z’s compact size. The chassis powers easily over small bumps and gaps.

Main parts including sealed diff gearbox are contained within the dust proof structure. 15 ball bearings and a slipper clutch make this machine ready for serious action.

Flat finish to underside of chassis is achieved with contours for each part shape. Efficient design allows tie-rods to be changed simply by removing the chassis cover.

Includes connector for optional gyro unit (sold separately:No.MZW446/MZW711) and the tiny volume allows gyro unit’s sensitivity to be manually adjusted.

4-wheel independent double wishbone suspension equipped with oil shocks. Delivers surefooted road holding over a variety of different road surface conditions.

Realizes integrated coupling of drive shafts despite the constraints of its size. Also front suspension arms produce a 10-degree skid angle for improved rough-road performance.

Chassis features shell structure with battery boxes on each side. High rigidity extracts full effectiveness from the suspension.

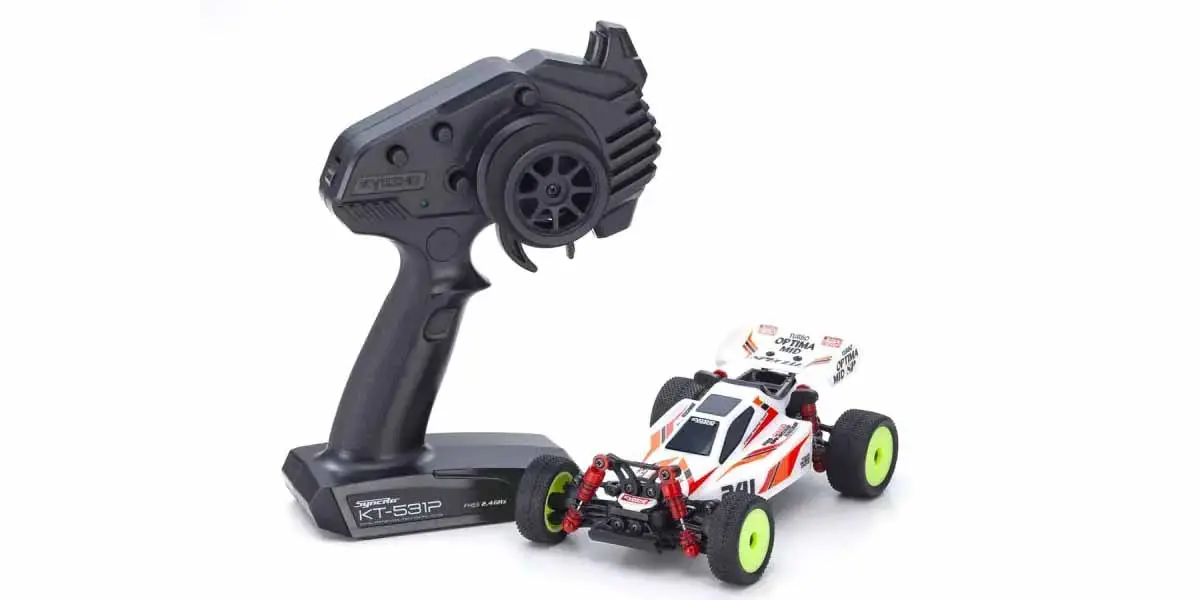

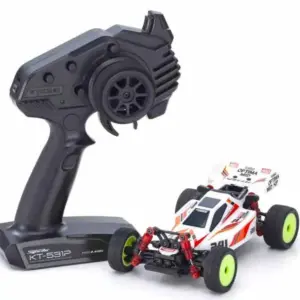

Readyset includes KT-531P transmitter and other items. Requires only 4 batteries for the transmitter to start enjoying realistic buggy performance.

Technical Data

<Technical Data>

– Length 167mm
– Width 106mm
– Height 56mm
– Wheelbase 115mm
– Tread (F/R) 89mm/89mm
– Tire(F/R) F37 x 13.5mm/F37 x 18.5mm
– Weight 200g (approx.)
– Motor 130 class
– R/C System KT-531P FHSS 2.4 GHz

Kit Contents

<Readyset Contents>

– Factory assembled chassis with pre-installed R/C unit
– KT-531P transmitter
– Pre-painted polycarbonate body finished with markings
– Pinion gears (11T, 13T, 15T)
– Spur gears (33T, 35T)
– Pinion gear tool
– Pairing stick
– Wheel wrench
– Spare nuts for wheels

Required For Operation

<Required for Operation>

– AAA alkaline batteries x 4 or NiMH batteries x 4 for chassis
– AAA alkaline batteries x 4 for KT-531P transmitter
