Kyosho Fazer Fz02-L Madvan Ve 4wd 1:10 Readyset T1 Rouge - 34491t1c
Key Specs
About this product
Description

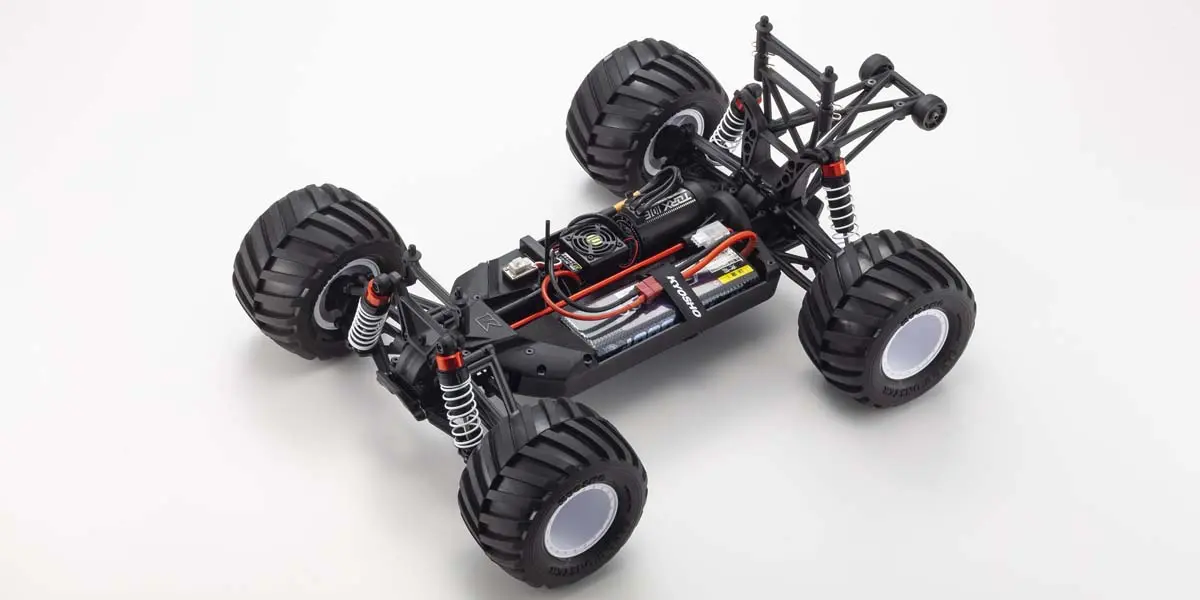

FAZER Mk2 sets the standard for Kyosho 1/10 EP car chassis. A bathtub type frame realizes an optimal combination of rigidity with moderate flex and incorporates the proven reliability of shaft-type 4WD together with sealed front and rear gearboxes to handle the punishment of off-road driving.

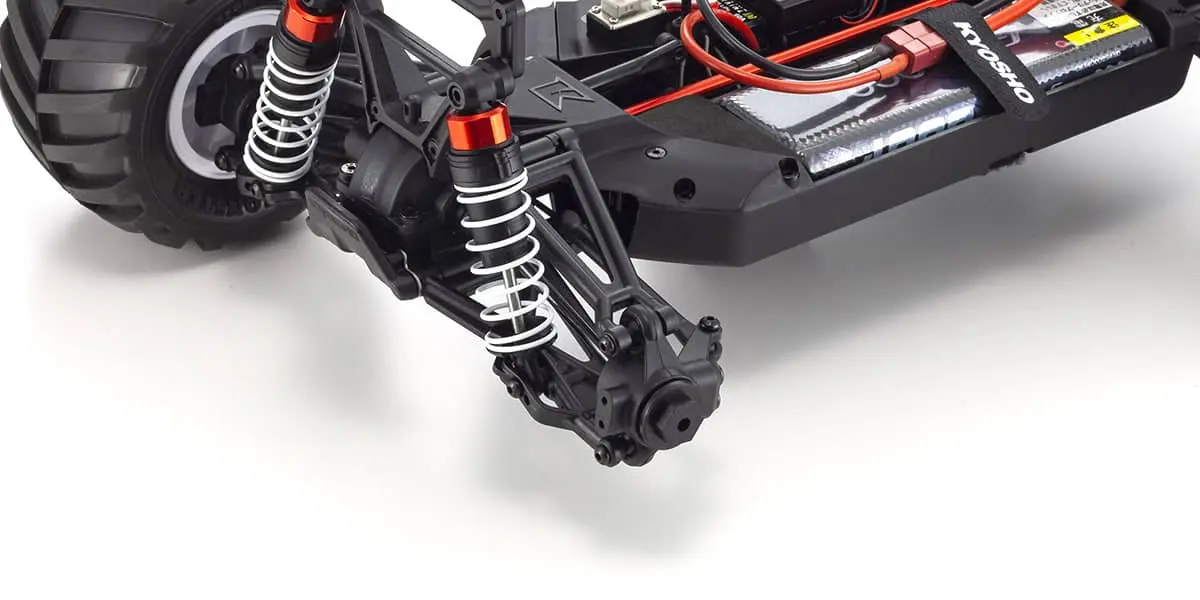

Long-type upper and lower suspension arms equipped with oil shocks for front and rear provide a sufficient stroke and secure damping force. Ball-connected left-right interchangeable steering knuckles realize smooth operation and crash resistance.

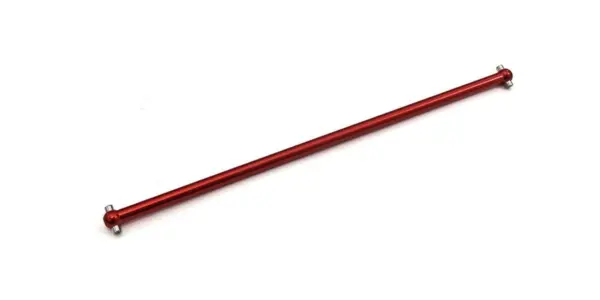

Optional aluminum HD center shaft (No. FAW210) is standard equipment to support the power of brushless motor and realizes smooth rotation.The TORX 10E brushless motor generates enough power for gentle wheelies with the big body and tires. Sealed motorcase prevents dirt and dust from getting into the motor and gearbox.

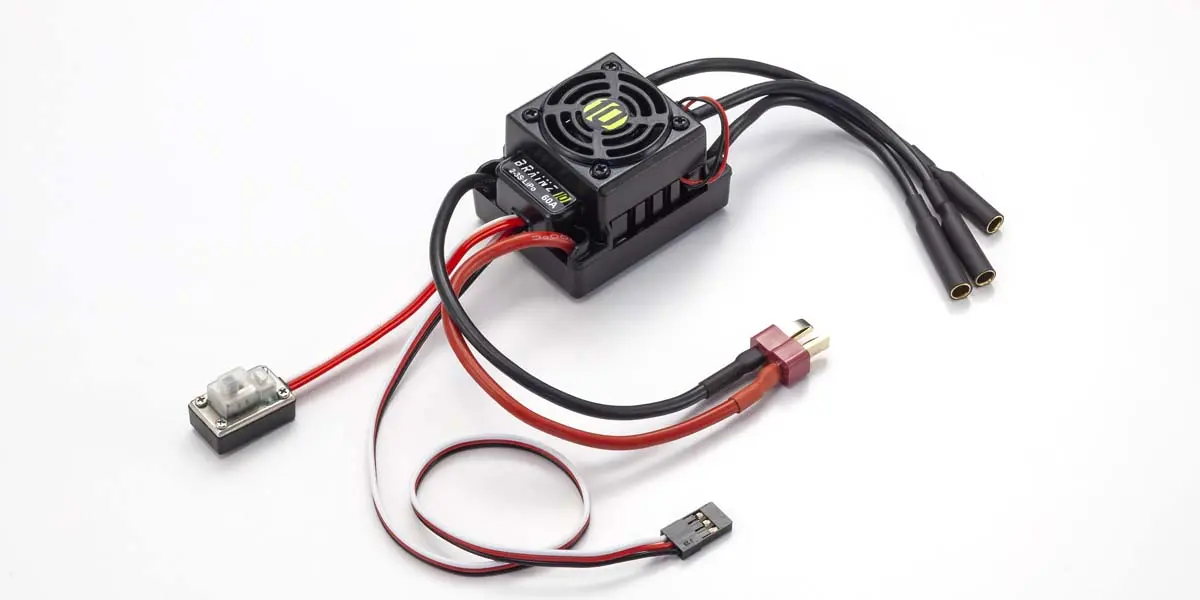

Includes BRAINZ 10 speed controller equipped with cooling fan, for brushless motors. Able to be programmed for specific purposes. Waterproofing allows you to drive even in the rain or through small puddles.

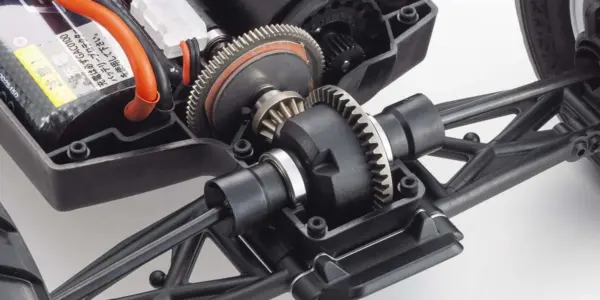

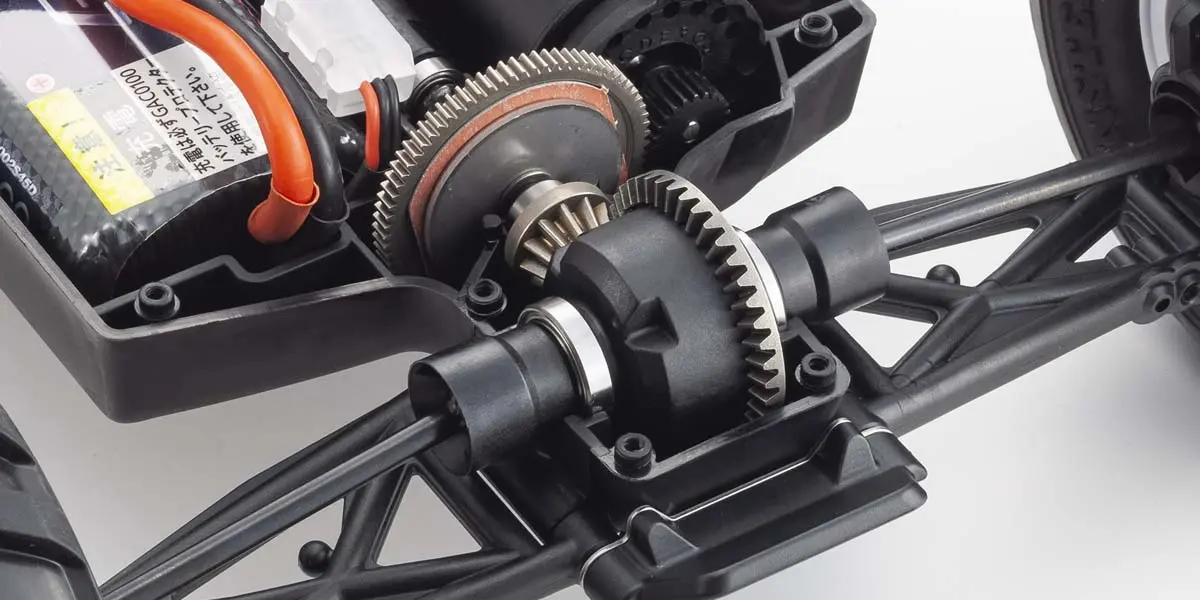

Gearbox incorporates high-strength sintered metal gears. In addition to new material, the final gear ratio has been changed to low gear to fully utilize the power of the brushless motor. The machined steel pinion gear has also been strengthened.

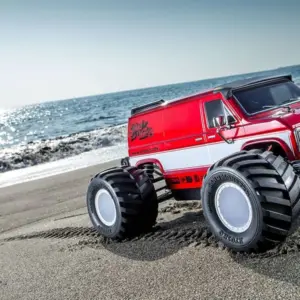

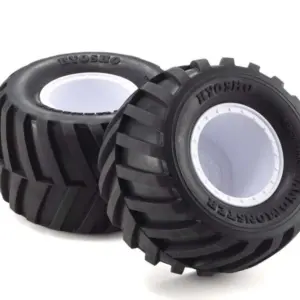

Large diameter tires produce high grip on any road surface. The kit comes with pre-glued wheels so you can hit the ground running. To match the new-look chassis, wheels have been changed to white and match nicely with the body.

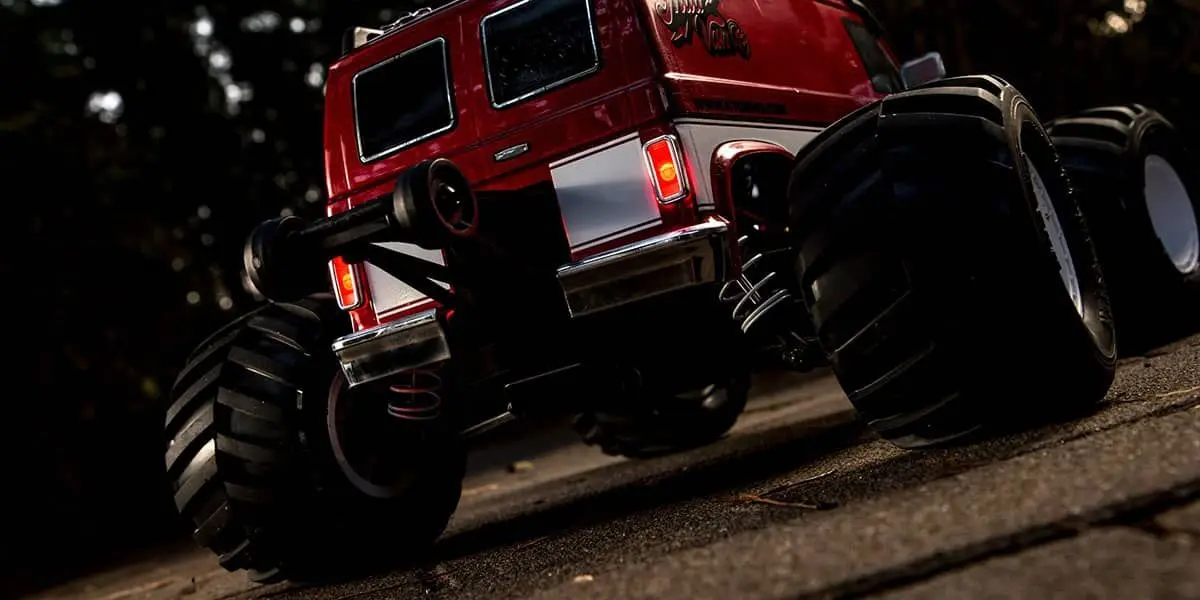

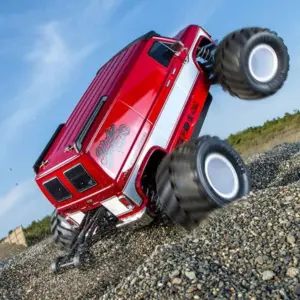

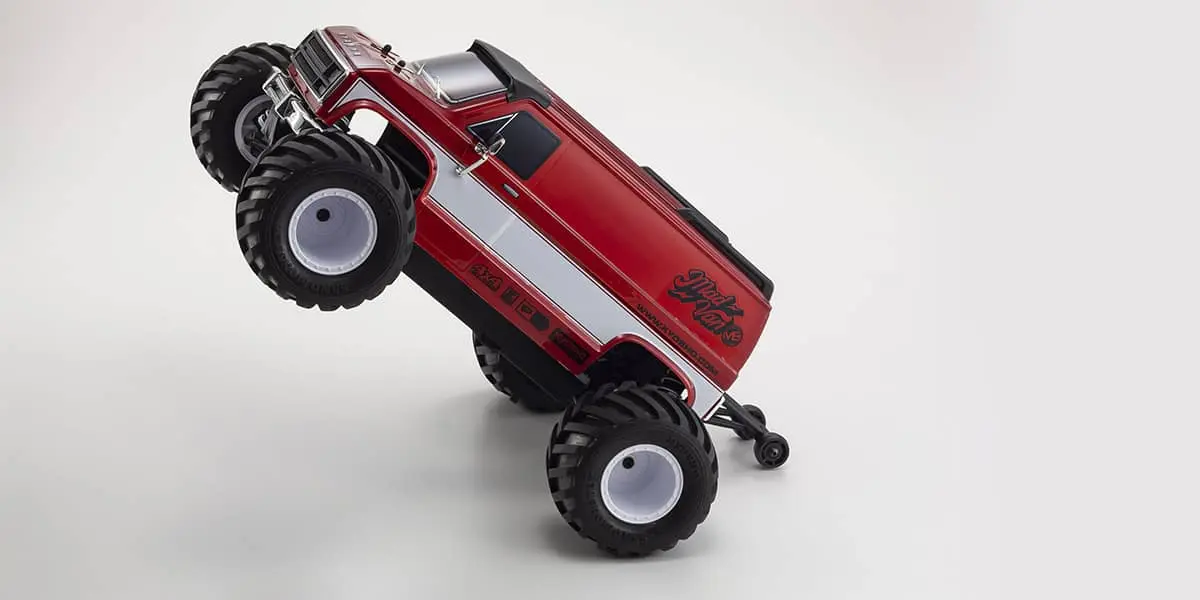

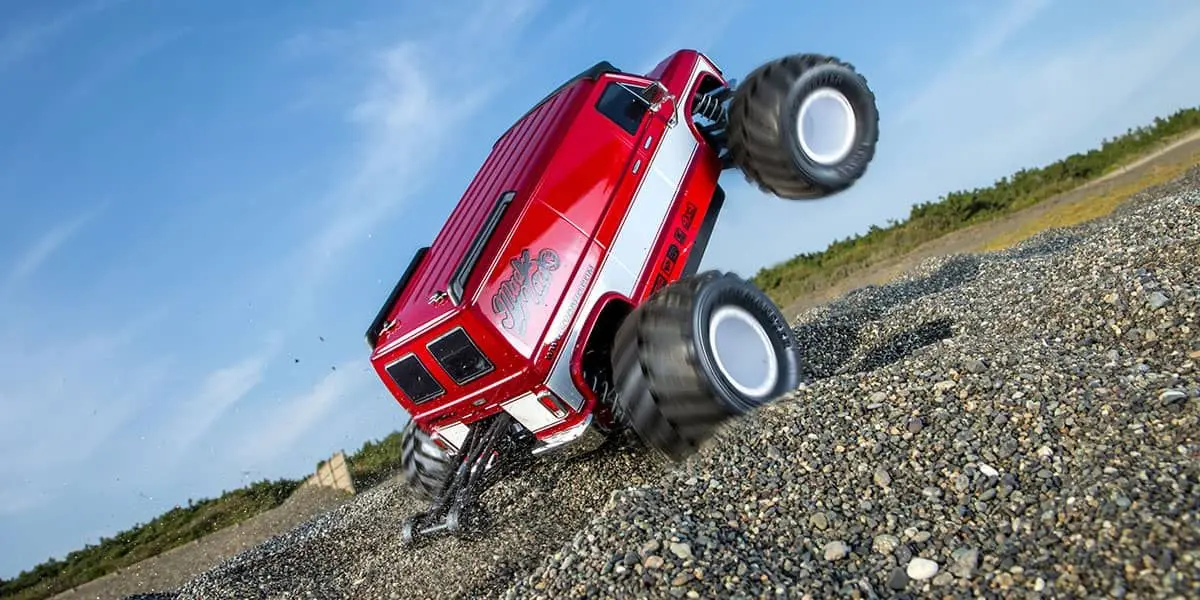

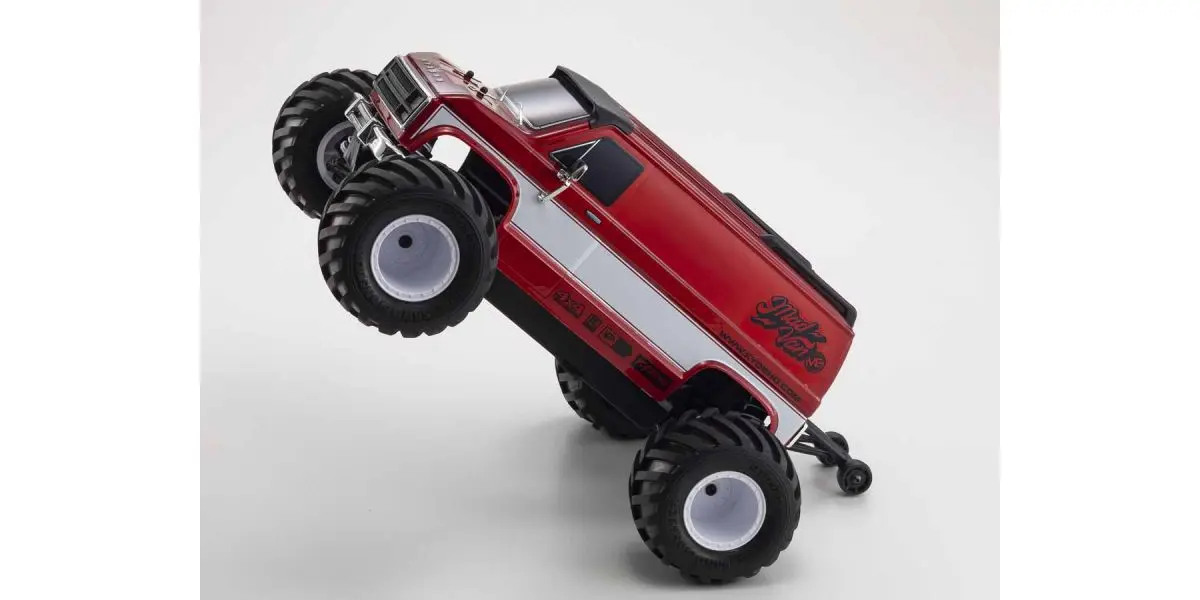

VE model features a wheelie bar to prevent flipping over when doing wheelies. With the power of the brushless motor, the dynamic acceleration lifts the front wheels and the chassis runs on its rear wheels (wheelie).

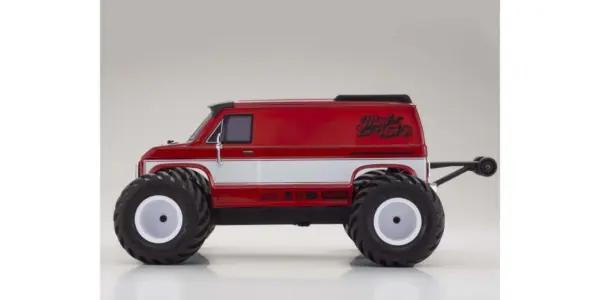

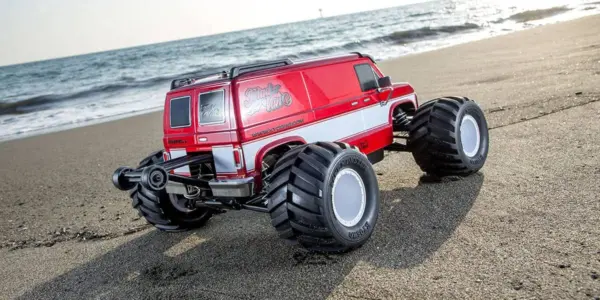

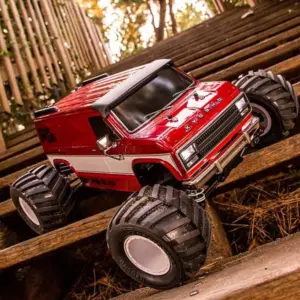

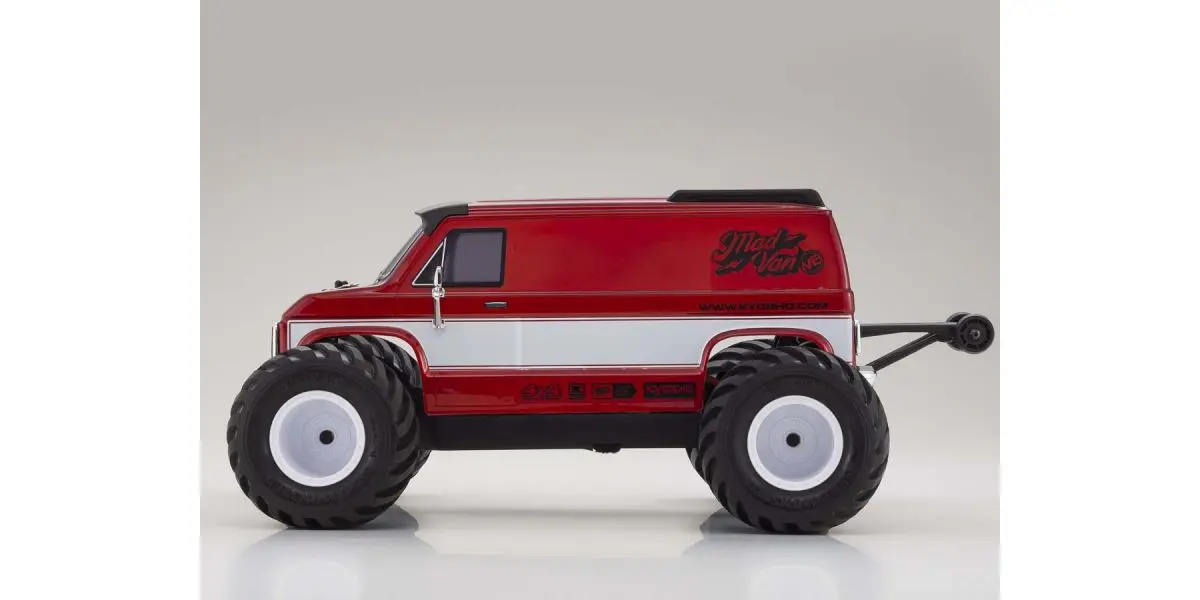

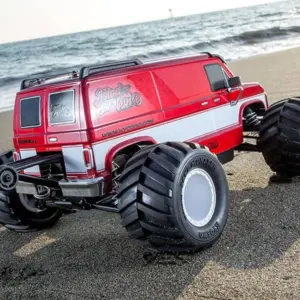

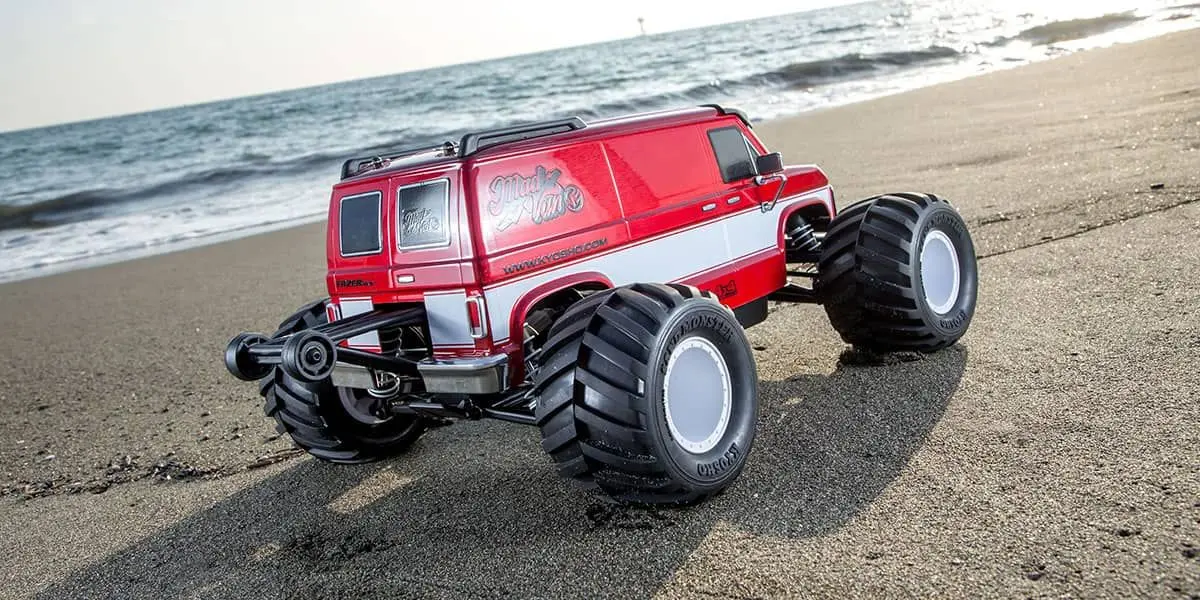

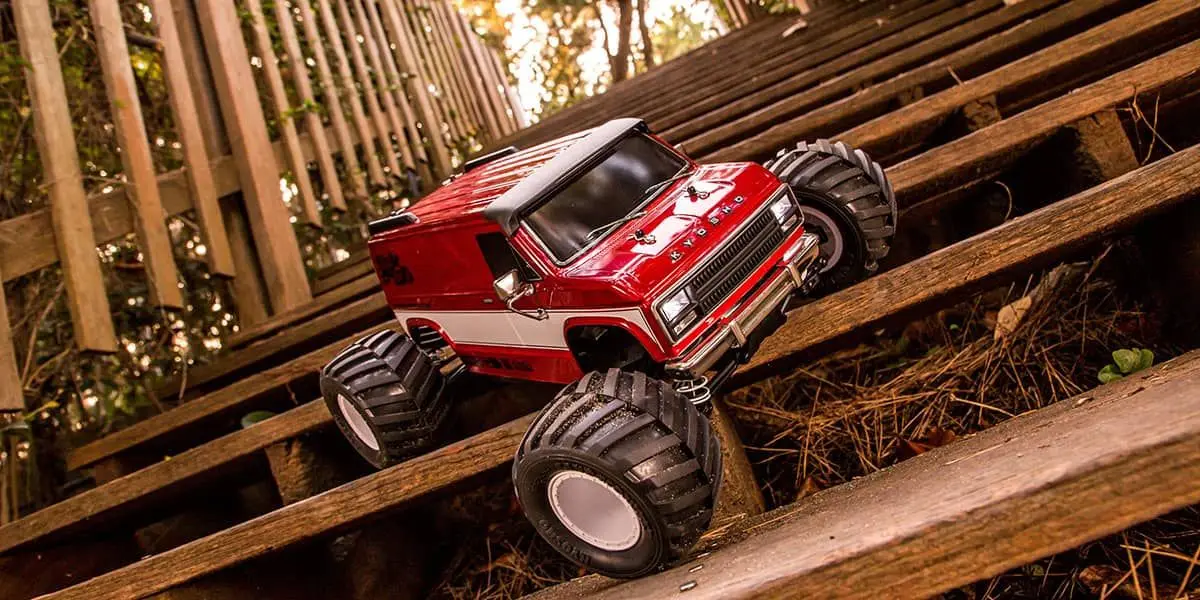

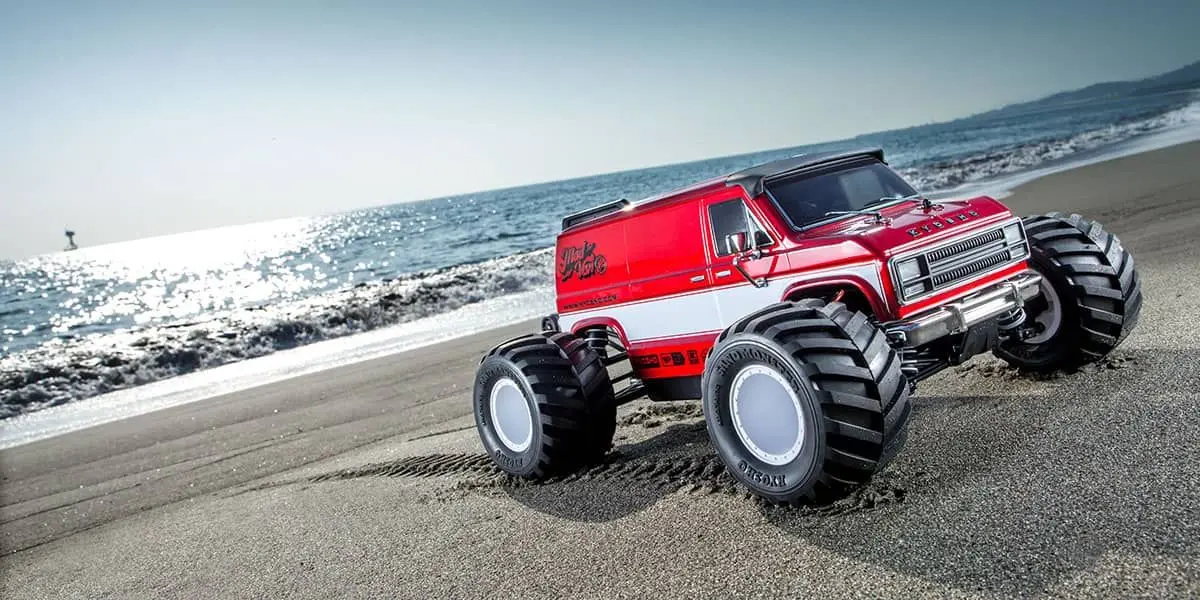

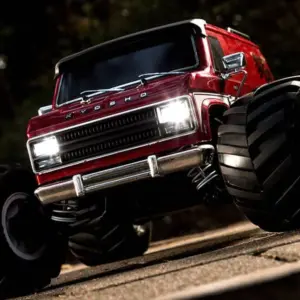

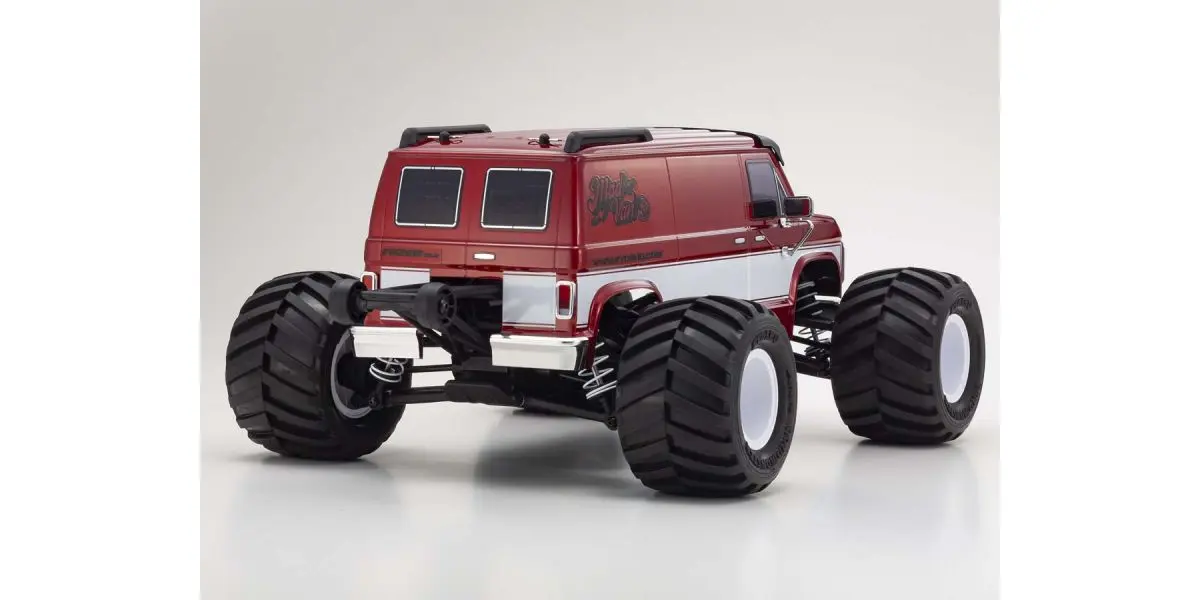

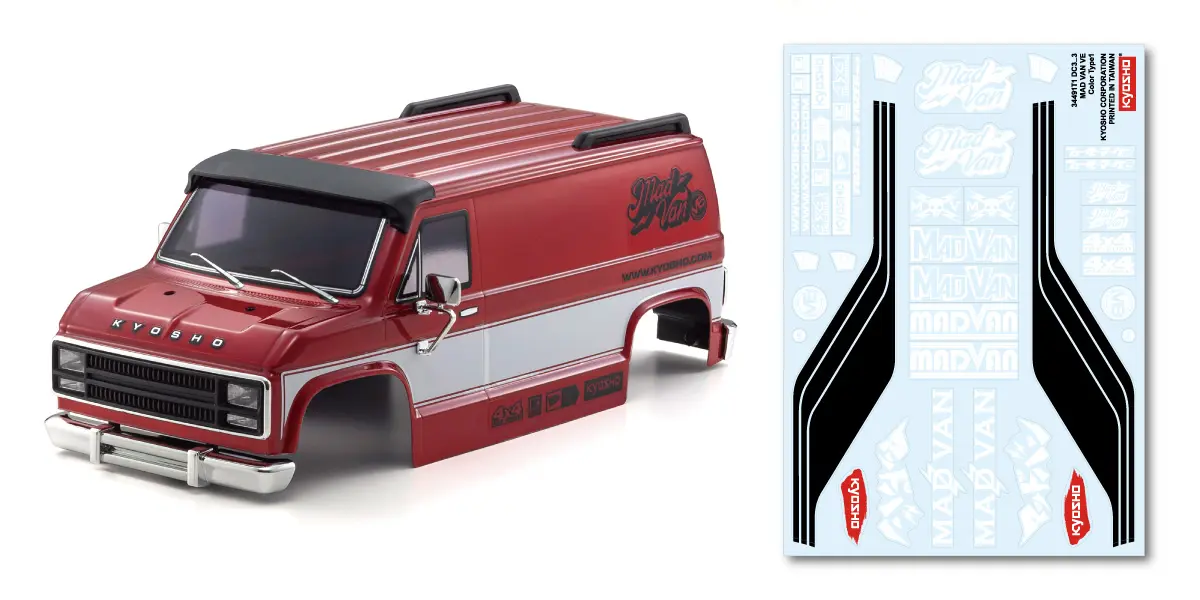

Polycarbonate body is painted bright red and white. Separate molded parts such as the bumper, grille and side mirrors enhance the scale feel of this 1970’s & 80’s American van motif. A roof guard is also installed.Extra decal sheet included to customize body.
Technical Data
■Length 460mm
■Width 323mm
■Height 197mm
■Wheelbase 274mm
■Tread (F/R) F：250mm／R：250mm
■Tires (F/R) F：φ110×70mm／R：φ110×70mm
■Gear Ratio 11.803:1
■Weight 2180g (approx.)
■R/C system Syncro KT-231P+
■Motor TORX10E (3652 kv4000)
Kit Contents
<Kit Contents>

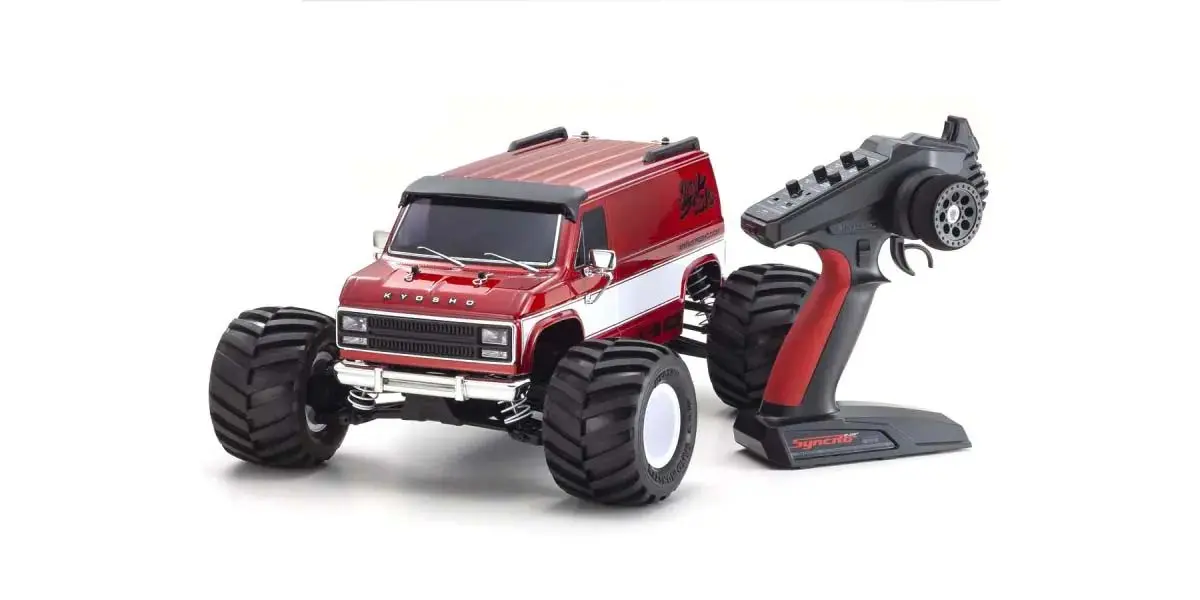

●Completed chassis with R/C radio installed
●Factory assembled body complete with color scheme
●Syncro KT-231P+ transmitter
●Installed 60A waterproof electronic speed controller
●Spanner
●Customization decals
Required For Operation
<Required for Operation>
●4 x AA batteries for transmitter
●Battery for chassis
●Charger for battery for chassis
●Tools
Frequently Asked Questions
This is designed for experienced drivers rather than beginners. The Fazer Mk2 is a serious performance machine with a brushless motor and advanced features, so prior RC knowledge is recommended to get the most from it.
The product description does not specify which battery type or capacity is included, or charger details. You should check the manual or product documentation for exact charging times and battery requirements before purchasing.
As an RTR model, it comes fully assembled and ready to drive. The package includes the Fazer Mk2 chassis with 4WD drivetrain, TORX 10E brushless motor, BRAINZ 10 speed controller, pre-glued wheels, painted polycarbonate body, and extra decals.
This is a 1/10 scale model, making it a medium-sized RC truck suitable for garden and park use. At this scale, the Fazer is larger and more robust than smaller 1/16 models but more manageable than larger 1/8 vehicles.
Yes—the model features waterproofing that allows you to drive in rain or through small puddles. Durability for off-road use comes from its rigid bathtub frame, sealed gearboxes, shaft-drive 4WD, oil-damped suspension arms, and large-diameter grippy tyres that handle rough surfaces.
