SKU ABSIMA-2030102 Category Tag

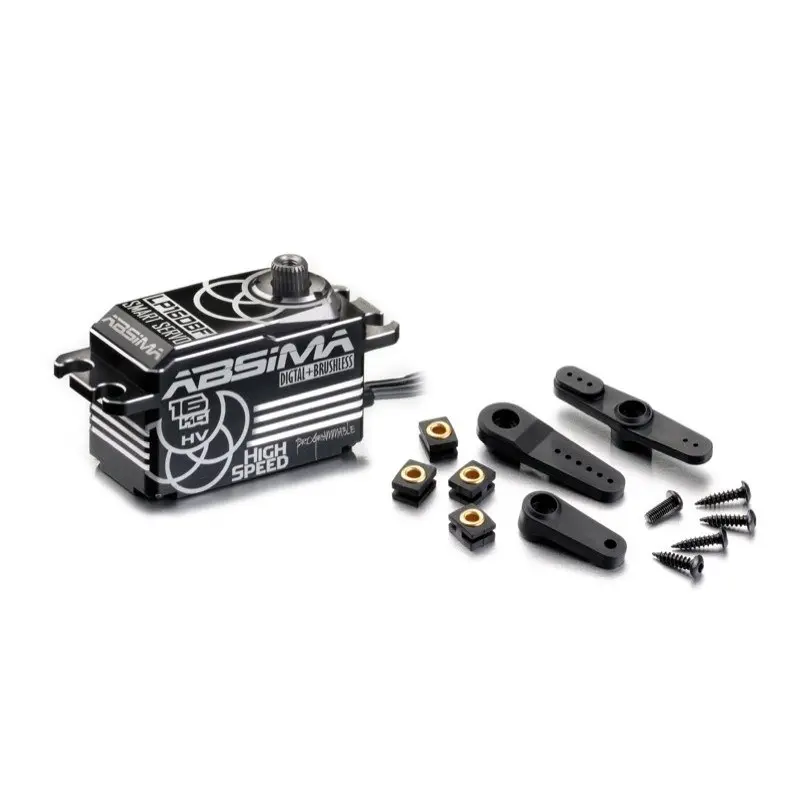

HV Digital Full-Alu Servo LP16DBF 16KG Team-Spec.

£89.95

Just a few left

kevin
kevin
Read More
Excellent product, superb delivery and packaging. Recipient absolutely overjoyed with the truck and all its excellent parts and performance
blackarrow37
blackarrow37
Read More
i have to say radio- controlled uk are spot on with the service provided and fast delivery, their products are packaged with great care i ordered a Rlaarlo AM-D12 1/12 RTR Brushless RC Desert Car and it arrived 48 hours later, and boy what a great little buggy for the price so well done radio- controlled uk . Oliver who owns the company was very polite/honest and helpful in answering my questions, and nothing seemed to be to much trouble i will buy from this company again. Good service, helpful staff, always replies to a message right away 10/10 stars from me regards Ian
scittney
scittney
Read More
Not ran it yet, but the build quality is excellent. Excellent service and communications from radio-controlled.co.uk one of my fave vendors
deane.porter7
deane.porter7
Read More
Fantastic service and advice from radio-controlled.co.uk, couldn't have helped any more, thank you. Really impressed with the quality of this buggy, extremely well built and looks amazing. Everything just looks well made and put together. This buggy is seriously rapid 👌
Previous
Next

Servos are part of the “RC system” and thus the basis of a remote-controlled model. Connected to the steering linkage, they convert stick or rotary movements on the transmitter into steering movements on the vehicle. In combustion vehicles, they also act as throttle servos, operating both the throttle valve of the carburetor and the brake. A servo that is too weakly dimensioned has a longer actuating time and a shorter service life when loaded. Therefore never save on the servo! A good servo does not have to cost a lot, but it makes the model more reliable and lasts for years. In 1/8 and 1/10 scale RC cars, only standard size or low-profile servos are used.




Our “Team Spec.” servos are mainly used in competition vehicles and offer a whole range of excellent features:



TECHNICAL DATA HIGHLIGHTS:



Servo Category: High-Speed / Low Profile

Operating Voltage: 4.8 – 8.4V HV

Torque / Speed @ 4.8V: 10.0kg / 0.078sec/60°

Torque / Speed @ 6.0V: 13.0kg / 0.068sec/60°

Torque / Speed @ 7.4V: 14.5kg / 0.062sec/60°

Torque / Speed @ 8.4V: 16.0kg / 0.056sec/60°

Technology: Digital

Motor Type: Brushless

Gear Material: Reinforced steel

Housing Material: AL6061 T6

Waterproof Rating: IP65 water-resistant

Bearing: Metal ball bearings (2)

Size: 40.8*20.2*26.5 mm

Weight: 61,0 g

Programmable: Yes with USB Interface Adapter # 2030110 (sold separately)



Not sure if these specifications are right for you? Here is an overview with even more information on all TEAM SPEC. SERVOS to compare:











Information ElektroG3

Equivalent Item for this item:

HV Digital Full-Alu Servo LP20DBT 20KG Team-Spec.

Absima
Item no.: 2030103
89,95 EUR
incl. VATand excl. shipping

Go to the details

HV Digital Full-Alu Servo ST23DBF 23KG Team-Spec.

Absima
Item no.: 2030100
89,95 EUR
incl. VATand excl. shipping

Go to the details

HV Digital Full-Alu Servo ST50DBT 50KG Team-Spec.

Absima
Item no.: 2030101
89,95 EUR
incl. VATand excl. shipping

Go to the details

Spare Parts for this item:

Gear Set for Servo LP16DBF (2030102)

Absima
Item no.: 2030113
18,95 EUR
incl. VATand excl. shipping

Go to the details

Interface USB Adapter

Absima
Item no.: 2030110
19,95 EUR
incl. VATand excl. shipping

Go to the details

Average customer rating:
Number of Customer reviews: 1
6 Stars15 Stars04 Stars03 Stars02 Stars01 Star0

Write an online review of this item and show it to other visitors!

Item reviews

Marco Ziegleranonymous

TOP / Kann ich nur empfehlen

Review from 29.11.2023|Purchase not verified
Immer wieder. Top Qualität

ï…¤Usefulï…¥Not useful
