SKU ABSIMA-2030105 Category Tag

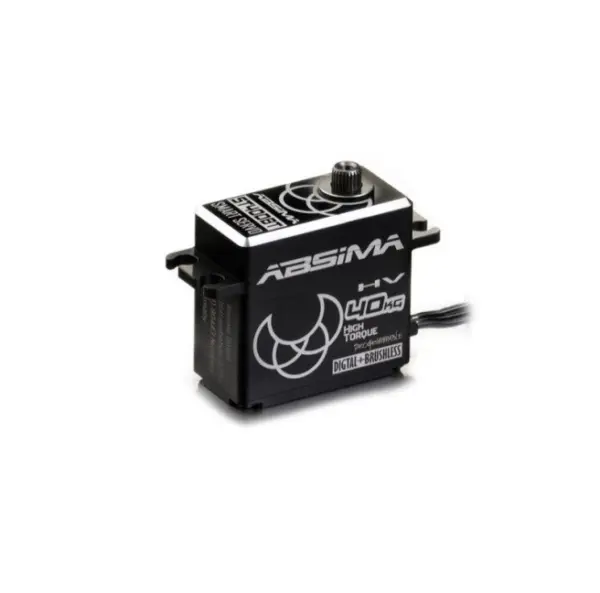

HV Digital Alu Servo ST40DBT 40KG Race-Spec.

£59.95

Just a few left

kevin
kevin
Excellent product, superb delivery and packaging. Recipient absolutely overjoyed with the truck and all its excellent parts and performance
blackarrow37
blackarrow37
i have to say radio- controlled uk are spot on with the service provided and fast delivery, their products are packaged with great care i ordered a Rlaarlo AM-D12 1/12 RTR Brushless RC Desert Car and it arrived 48 hours later, and boy what a great little buggy for the price so well done radio- controlled uk . Oliver who owns the company was very polite/honest and helpful in answering my questions, and nothing seemed to be to much trouble i will buy from this company again. Good service, helpful staff, always replies to a message right away 10/10 stars from me regards Ian
scittney
scittney
Not ran it yet, but the build quality is excellent. Excellent service and communications from radio-controlled.co.uk one of my fave vendors
deane.porter7
deane.porter7
Fantastic service and advice from radio-controlled.co.uk, couldn't have helped any more, thank you. Really impressed with the quality of this buggy, extremely well built and looks amazing. Everything just looks well made and put together. This buggy is seriously rapid 👌

Servos are part of the “RC system” and thus the basis of a remote-controlled model. Connected to the steering linkage, they convert stick or rotary movements on the transmitter into steering movements on the vehicle. In combustion vehicles, they also act as throttle servos, operating both the throttle valve of the carburetor and the brake. A servo that is too weakly dimensioned has a longer actuating time and a shorter service life when loaded. Therefore never save on the servo! A good servo does not have to cost a lot, but it makes the model more reliable and lasts for years. In 1/8 and 1/10 scale RC cars, only standard size or low-profile servos are used.




Fields of application for our “Race Spec. Servos” is the competition, but also for ambitious “club racers” and hobby drivers these servos are fantastic!



TECHNICAL DATA HIGHLIGHTS:



Servo Category: High-Torque

Operating Voltage: 4.8 – 8.4V HV

Torque / Speed @ 4.8V: 25.0kg / 0.140sec/60°

Torque / Speed @ 6.0V: 29.0kg / 0.120sec/60°

Torque / Speed @ 7.4V: 35.0kg / 0.105sec/60°

Torque / Speed @ 8.4V: 40.0kg / 0.098sec/60°

Technology: Digital

Motor Type: Brushless

Gear Material: Reinforced steel

Housing Material: AL6061 T6 – CNC machined with plastic inlay

Waterproof Rating: IP65 water-resistant

Bearing: Metal ball bearings (2)

Size: 40*20*37.5 mm

Weight: 73,0 g

Programmable: Yes with USB Interface Adapter # 2030110 (sold separately)



Not sure if these specifications are right for you? Here is an overview with even more information on all RACE SPEC. SERVOS to compare:











Information ElektroG3

Equivalent Item for this item:

HV Digital Alu Servo LP15DBF 15KG Race-Spec.

Absima
Item no.: 2030106
59,95 EUR
incl. VATand excl. shipping

Go to the details

HV Digital Alu Servo LP19DBT 19KG Race-Spec.

Absima
Item no.: 2030107
59,95 EUR
incl. VATand excl. shipping

Go to the details

HV Digital Alu Servo ST18DBF 18KG Race-Spec.

Absima
Item no.: 2030104
59,95 EUR
incl. VATand excl. shipping

Go to the details

Spare Parts for this item:

Gear Set for Servo ST40DBT (2030105)

Absima
Item no.: 2030118
18,95 EUR
incl. VATand excl. shipping

Go to the details

Interface USB Adapter

Absima
Item no.: 2030110
19,95 EUR
incl. VATand excl. shipping

Go to the details
